Included Equipment

Power cable (1)

Note: Power cables may

vary by country.

Camera 200 (1)

Power adapter (1)

USB 3.0 cable (1)

HDMI cable (1)

Quick Start Guide (1)

Remote control (1)

AAA batteries (2)

Mounting bracket (1)

1/4"-20UNC screw (1)

Expansion bolts (4)

M6 ×30 Philips screws (4)

Certificate of Compliance &

Safety Precautions

&Warranty Card (1)

http://www.huawei.com

Issue: 02 (2019-11-28)

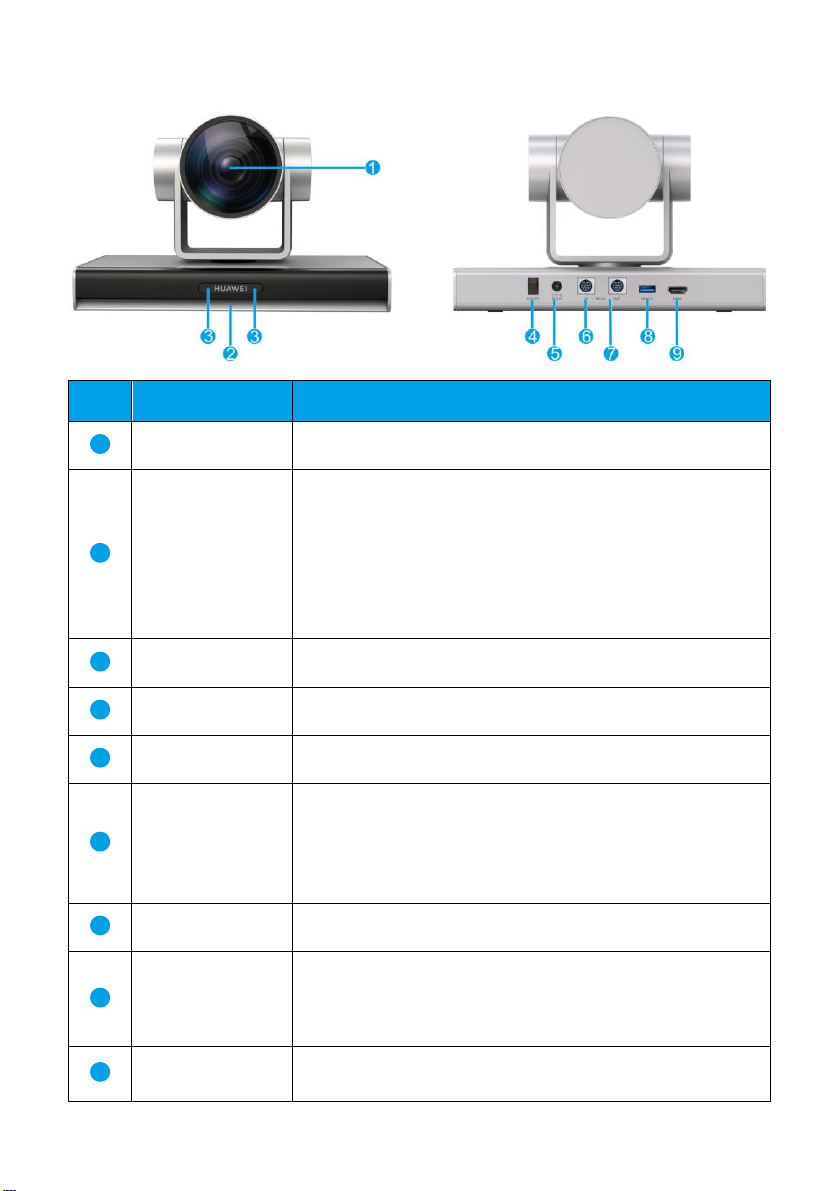

Appearance

No.

Port

Description

Lens

12x optical zoom

Status indicator

Steady green: normal operation

Blinking green: remote control is in use

Steady orange: sleep mode

Blinking orange: camera upgrade

Blinking red:

1. Fault detected

2. Upgrading Single Chip Micyoco

Infrared receiver

Receives infrared signals, supports NEC protocol

Power button

Powers camera on or off

Power port

12 V DC power input port

RS232-IN port

Serial port

Supports IR transparent transmission

Cascades with upper-level camera

Supports VISCA, PELCO-P and PELCO-D protocols

RS232-OUT port

Cascades with lower-level camera

USB 3.0

Connects to PC

USB 2.0 compatible

Supports UVC 1.1 protocol standard

HDMI

Outputs HDMI 1.4 signals

1080p model for up to 1080p60

No.

Port

Description

4K model for up to 4K30 resolution

Installation

The Camera 200 can be placed horizontally, mounted on top of a display (such as TV set or

monitor), wall-mounted, ceiling-mounted, or placed on a tripod.

If the display is thicker than 170 mm or wall-mounted, the Camera 200 cannot be installed on

top of the display.

If the display is 170 mm or thinner, the Camera 200 can be mounted on top of a display or

placed horizontally with an additional L-shaped bracket (not included).

Placed

Horizontally

Place the camera on a flat surface.

If you have toplace the camera on a sloping surface, the slope must be less

than 15°for the camera to function properly.

Mounted on

Top of a

Display

Use the L-shaped bracket to secure the Camera 200 on top of thedisplay.

Figure Installation procedure.

Wall-

Mounted

Requires:

Included: wall mounting bracket (1), 1/4"-20UNC screw (1), Expansion bolts

(4), M6 ×30 Philips screws (4).

Not included: hammer drill (1), electric screwdriver (1), hammer (1), and

Phillips screwdriver (1).

First, drill four holes in the wall for mounting the bracket, each with a diameter

of 8 mm (0.31 in.) and depth of 35–40 mm (1.38–1.57 in.). The two upper

holes must be level for correct installation, then install.

Installation Procedure.

The camera canbe mounted both on top and on bottom of the

bracket as shown below.

Ceiling-

Mounted

Requires:

Not included: ceiling bracket (1), 1/4"-20UNC screw (recommended)

Bracket Requirements:

Connecting the Cables

Matched Box Series Endpoints

Example:

The Camera 200 is connected to HUAWEI Box 500 directly through an HDMI

cable or an HDMI cable adapter.

HDMI connection:

Weight bearing minimum of 8.5 kg (18.74 lb) and a thickness between 2

mm (0.08 in.) to 3 mm (0.12 in.)

A location pillar which can be inserted into the location hole of the Camera

200. The distance between the screw hole on the bracket and location pillar

must be 14.5 mm (0.57 in.) to match the holes of the Camera 200.

If the bracket has a front side and back side, the location pillar must be

placed on the front, and the screw hole on the back.

A screw hole and one 1/4"-20UNC screw (using UNC screw included with

purchased ceiling bracket recommended to avoid mismatch)

Others

Install the camera on a tripod (not included).

If the Box 500's VGA port is used for input in the demo or multiple HDMI input

ports are available, connect the HDMI video input port of the Box 500 to the

camera's HDMI port, and the Box 500's COM1 to the camera's RS232-IN port.

Suggestion: Reserve a plugged-in USB cable for seamless PC upgrades in the

future.

HDMI adapter connection:

Use an HD-VI adapter if the Box 500's HDMI input is used for the demo and no

HDMI port is available for direct connection with the camera. Insert the supplied

HD-VI to DVI/COM adapter into the Box 500's HD-VI port. Connect it to the

DVI-HDMI adapter (not included) and to the Camera 200's HDMI port, and then

connect the COM cable to the Camera 200's RS232-IN port.

Suggestion: Reserve a plugged-in USB cable for seamless PC upgrades in the

future.

Matched CloudLink Meeting PC Client

Directly connect the Camera 200 to a PC with a USB cable after it is turned on.

Start the Huawei CloudLink Meeting PC client. Go to the menu and go to

Settings >Media >Video Device and select HUAWEI Camera 200.

Sleep Mode:

Use the IR remote control to set the sleep mode. Press MENU, go to Main

Menu >Settings > USB Auto Sleep to set the sleep parameters.

By default, the sleep mode is set to ON:

The camera will automatically enter sleep mode after the video conference on the

PC ends. If there is no image output from the HDMI or USB port, the PTZ rotates

lower leftwards and the indicator turns steady orange. Once the PC client rejoins a

conference, the camera will automatically awaken.

Setting the sleep mode to OFF:

In this case, after a video conference on the PC ends, the HDMI port will keep

outputting images, the PTZ stays as it is, and the camera keeps working. The

camera quicklydisplays images the moment the PC client rejoins the conference.

Powering the Camera On

Connect the cables, power adapter to the camera, and press the power button. About 25 seconds

later, video will display. The camera faces forward the first time it is powered on. The camera

PTZ location can be set to 0# preset position so that it turns to the pre-set position upon reboot.

Checking the Status Indicator

Steady green: normal operation

Steady orange: sleep mode

Blinking orange: camera upgrade

Blinking red:

Upgrading Single Chip Micyoco

Faulty detected

Blinking green: remote control is in use

Controlling the Camera

The camera can be controlled from the connected HD video conferencing endpoint or IR remote

control.

When the HD video conferencing endpoint is used for camera control, the video cable and

RS232 cable connection must be configured. In addition the following configurations must be

performed:

For configurations (1) and (2), the camera is also controllable by the Huawei Touch

included with the HD video device: when the device is idle, go to Setting >Camera to

set the Touch for camera control. When in a meeting, choose More >Camera.

(1) Box 300/600 HD video conferencing endpoints:

1) Log in to the web interface. Under System Settings >Input/Output >Video Input >

CAM IN, select the correct COM port for Serial port, and set Camera type to

CAMERA200.

2) Select the correct video input port under Device Control >Camera Parameters and

configure the default video format to 1080p 60 Hz.

3) Select the local video input port under Device Control >Video Control for camera

control operations.

(2) Box 500/700/900 HD video conferencing endpoints:

1) Log in to the web interface. Under System Settings >Input/Output >Video Input,

select CAMERA200 as the input camera type and configure the Serial port. If you use

the HD-VI to DVI/COM adapter of the HD endpoint for control, select the default value

None for Serial port.

2) Go to Device Control >Video Control >Video Input Source >Mainstream Video

Source to select the video input source.

3) Go to Device Control >Camera Parameters to select the video input port and

configure the video format. By default, the format is 1080p 60 Hz.

4) Go to Device Control >Video Control >Local Camera to select the video input

port and perform camera control operations.

(3) TEX0 HD video conferencing endpoints:

Follow the steps listed for the Box 500/700/900 HD above, but select VPC800 as the

camera type.

Control the camera individually using the IR remote control included with the Camera 200.

Use the Menu button to hide or display the On-Screen Display (OSD) configuration screen.

There you can set the image output format, image parameters, and image inversion mode.

IR Remote Control

"+"refers to button combination sequence.

Buttons

Description

Standby button: Pressing once enables the device to enter into

standby mode. Pressing again causes device re-check and returns

it to HOME position. If preset position is 0, PTZ will go to the

preset position 0 when idle for 12 seconds or more

Camera address selection button

Number buttons: setor call preset 0–9

* + # + 3: Chinese menu

*+ # + 4: English menu

*+ # + 6: Restore factory defaults

*+ # + 9: Flip image upside down

4K video format:

# + #+ 0: 4K30

#+ #+ 1: 4K25

#+ #+ 2: 1080p 60

#+ #+ 3: 1080p 50

#+ #+ 4: 1080p 30

#+ #+ 5: 1080p 25

1080p video format

#+ #+ 2: 1080p 60

Do not manually rotate or stop the camera from rotating

when it is operating properly. Otherwise, the camera must

be restarted.
