Huawei FusionModule500 Bedienungsanleitung

Huawei Technologies Co., Ltd.

Issue: 02

Date: 2021-06-30

FusionModule500 Smart Mini Data Center

Quick Guide (02116382)

Product Overview

Item Specifications

Cabinet dimensions (H x W x D)

(unit: mm)

Converged Cabinet: 2000 x 600 x

1100

Installation scenario

Supports only a single cabinet.

Installation space

The cabinet provides 42 U available space. The mounting

bars are adjustable. The installation position for horizontal

rPDUs

is set at the rear of the cabinet.

Power distribution

6 kVA UPS

rPDU

: horizontally installed; options: IEC and GB

Lithium battery: 100 Ah/48 V DC

Operating temperature

Indoor: 0

°C to 40°C

Operating humidity

–95% RH

IP rating

IP20

Maximum power of a single cabinet

3 kW

Installation mode

Installed on a concrete floor or an electrostatic discharge

(ESD) floor

Altitude

≤ 1000 m (

derated

when the altitude ranges from 1000 m

to 4000 m)

Components to Be

Installed Onsite

Lithium battery

Water sensor

Temperature and humidity

(T/H) sensor

rPDU

LAN Switch

(Optional)

Server

(Optional)

IVS (Optional)

Camera

(Optional)

•The component layout is only for reference. The actual installation positions prevail.

•If the IVS, server, and LAN switch are configured, determine their installation positions

based on the site requirements.

Hardware Installation

1Installing the Cabinet

1. Determine the cabinet position based

on the engineering layout diagram.

2. Place the cabinet at the correct

installation position.

3. Level the cabinet using a wrench.

•Use a measuring tape to check

that the vertical distance between

the top of the 2000 mm high

cabinet and the floor is 2000 mm

(+3 mm). Then use a level to

check that the cabinet is level.

•Do not remove the anchor bolts.

Otherwise, rework is required if

the cabinet height does not meet

requirements.

2Installing a Drainage Pipe for the Smart Cooling Product

1. Remove the baffle plate from the smart cooling product.

2. Cut the rubber plug of the water pipe hole at the bottom of the cabinet and route the

drainpipe.

3. Install the baffle plate for the smart cooling product.

1. Push a lithium battery into the

cabinet and secure it.

3Installing Power Supply and Distribution Devices

3.1 Installing Lithium Batteries 12.1

3.2 Install Busbars

3.3 (Optional) Installing Busbars

•If there is more than one lithium

battery, install busbars.

•The busbars need to be installed 2

U above the last lithium battery.

Determine the busbar installation

position based on the lithium

battery configuration.

Install lithium batteries in the 11th U and

higher positions of the cabinet.

Install rPDUs in the 11th U and 13th U

positions of the rear door of the cabinet.

4Installing Monitoring Devices

4.1 Installing the SIM Card and Antenna

3. Attach the antenna to the middle of the

cabinet top.

4. Connect the antenna cable.

1. Remove the ECC800-Pro main control module.

2. Install the SIM card.

4.2 Installing a PAD

1. Adjust the PAD mounting support to match the dimensions of the PAD to be installed.

2. Remove the nuts from the PAD mounting support and install the support.

3. Route the PAD power cable through the cable hole and connect the cable.

4. Clamp the PAD.

5. Connect the ECC800-Pro USB cable to the charging port on the PAD.

Adjusting

screws

4.3 Installing T/H Sensors

1. Unpack the two T/H sensors. Attach one

sensor to the right post at the 33th U

position on the front door and the other

to the right post at the 11th U position

on the rear door of the cabinet.

2. Set the DIP switch address of the T/H

sensor on the front door to 2 and that

of the T/H sensor on the rear door to 1.

3. Insert the pre-routed cables into the

ports on the T/H sensors on the front

and rear doors.

•The installation positions of the T/H sensors can be adjusted as required.

•The default device address is 1.

Installing Remote T/H Sensors for

Smart Cooling Products Installing Cabinet T/H Sensors

1. Unpack the two T/H sensors and attach

one sensor to the mounting bars at the

39th U position on the front door and the

other to the 37th U position on the rear

door of the cabinet.

2. Set the DIP switch address of the T/H

sensor on the front door to 2 and that of

the T/H sensor on the rear door to 1.

3. Insert the pre-routed cables into the

ports on the T/H sensors on the front and

rear doors.

4.4 Installing an Electrode

Water Sensor

1. Place the water sensor on the floor

under the cabinet.

2. Route the water sensor cable through

the cable hole at the bottom of the

cabinet, and connect the cable to the

water sensor cable connected to the

ECC500.

3. Install the water detector.

4.5 (Optional) Installing a Server

1. Determine the installation position of the server and check whether floating nuts are installed.

If not, install them first.

2. Install guide rails. 3. place the server on the guide rails, and push

it into the cabinet.

4. Secure the server.

5. Connect the server power cable.

a. Wear an ESD wrist strap or ESD gloves.

b. Connect one end of the power cable to

the cable port on the AC power module

of the server.

c. Use a hook-and-loop fastener to secure

the power cable.

d. Route the power cable along the cable tray neatly, use cable ties to bind the power cable,

and use diagonal pliers to trim off the excess of the cable ties.

4.6 (Optional) Installing a Camera

1. (Optional) Install an SD card. 2. Secure the camera to the

mounting plate.

(1) Cable outlet

4. Adjust the camera.

5. Install the transparent cover.

3. Secure the mounting plate to the top

of cabinet front door.

4.7 (Optional) Installing a LAN Switch

1. Install guide rails and floating

nuts.

2. Secure the LAN switch.

3. Connect the power cable of

the LAN switch.

4. Connect any port from 1 to 24

on the LAN switch to the

WAN_1 port on the ECC800-

Pro using a network cable.

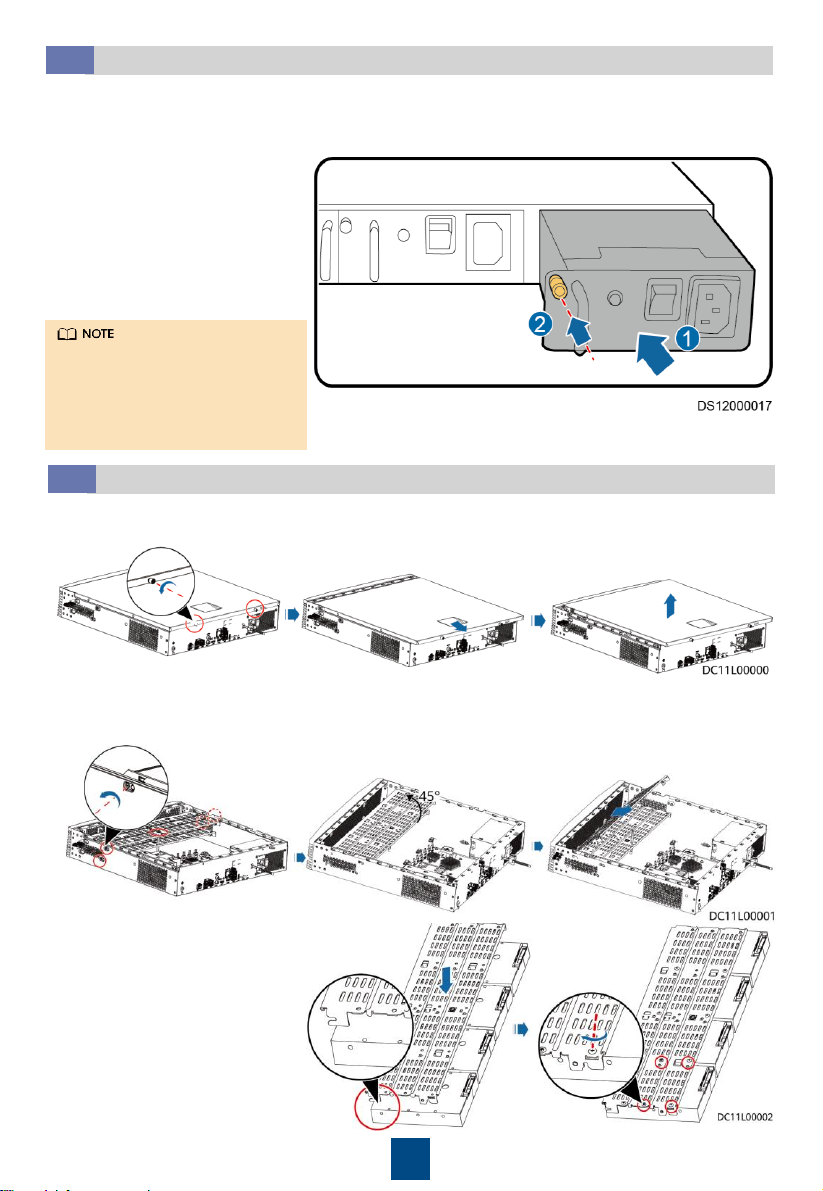

5. Insert a power module into

the power slot of the LAN

switch.

It is recommended that the

LAN switch be installed in the

35th U position of the cabinet.

You can adjust the position

based on the site requirements.

4.8 (Optional) Installing an IVS1800

1. Install hard disks.

a. Remove screws, and take off the chassis cover.

b. Remove two black screws on each side of the chassis and the silvery white one on top of the

hard disk tray, raise the hard disk tray by 45 degrees, and take out the upper and then lower

layers of hard disk tray.

c. Place the hard disks with ports

facing upwards and align the

screw holes on the hard disk

tray with the hard disks and

fasten the screws.

d. Insert the hard disk tray back at 45 degrees with the opening of its locking buckle facing

downwards, hold the screw in the red-framed part to lower the hard disk tray until it is level,

and fasten the black screws on the left and right sides and the white screw on the top.

e. Connect data and power cables to hard disks.

f. Close the chassis cover, and use a PH2 screwdriver to fasten the rear screws.

2. Install the device.

a. Install the cage nuts on guide rails, and Install guide rails.

b. Install the cage nuts that secure the IVS1800.

c. Install mounting ears.

d. Install the IVS1800 in the cabinet.

3. Power on the device.

4.9 (Optional) Installing a Fire Extinguishing Module

1. (Optional) Installing guide rails to the installation position of the fire extinguishing module.

2. Secure the fire extinguishing module.
