Huawei E5830s Bedienungsanleitung
1
Thank you for choosing !DEA Wi-Fi Wireless Modem
(hereinafter referred to as the E5).
The supported functions and actual appearance are subject to your product
purchased. The following pictures are provided for illustration only. For details
about your product selection, consult your service provider.
This guide briefly describes the functions of the E5. For details about how to set
the management parameters, see the Help on the web management page.
If the E5 is placed in an environment with poor ventilation, it will get heated
after used for a long time. When the E5 gets heated to a certain extent, it will
switch off or disconnect from the network automatically to protect itself. In this
case, please expose the E5 in a well-ventilated place for heat dissipation and
then restart the E5.
2
Getting to Know Your E5

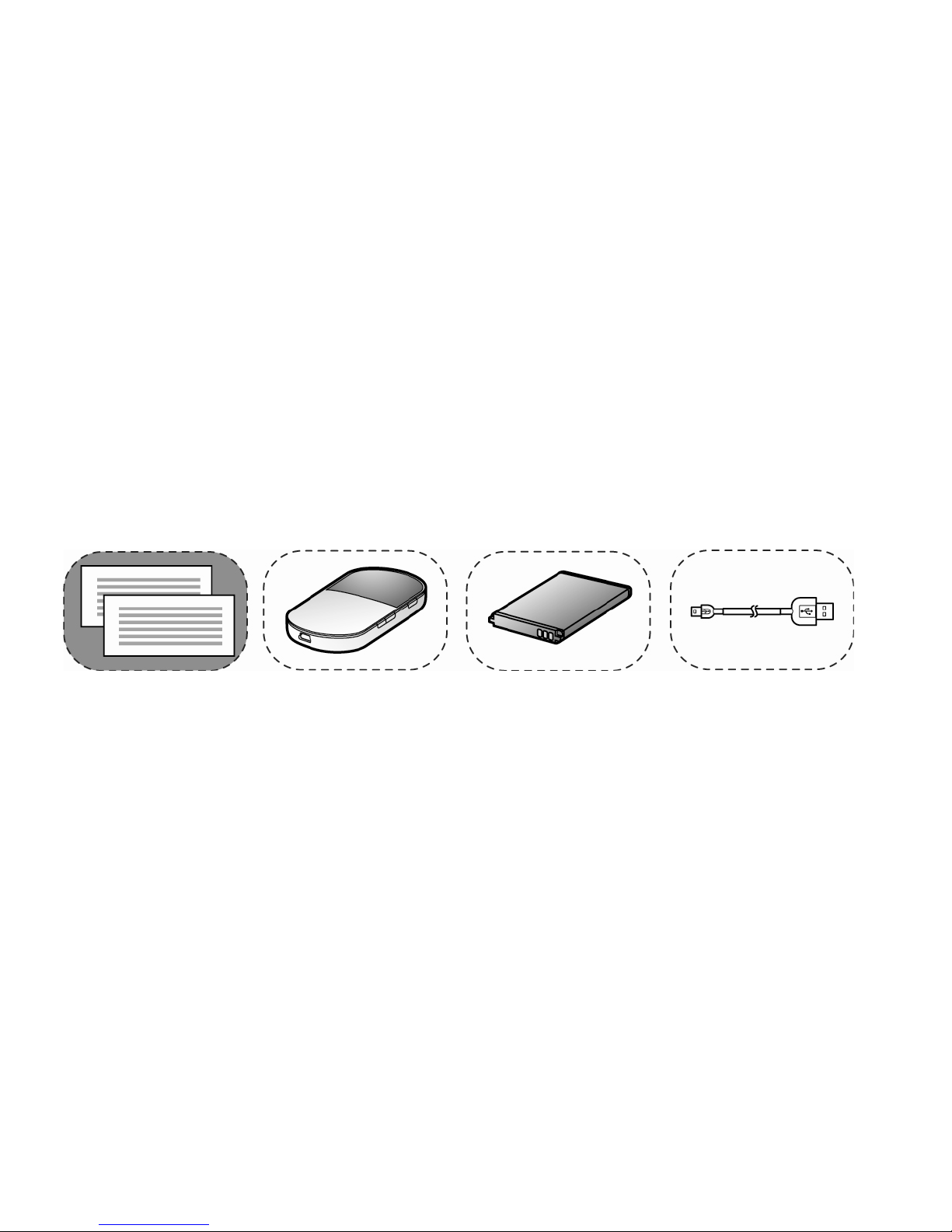

Packing List
The package box contains the following items. If any of the items is lost or damaged,
contact your local dealer.
Quick Start
Safety
Information
Main unit Battery Data cable
Some of the optional accessories are not provided in the package, you can contact
your local dealer to buy them yourself.
3
Application Scenarios
The Wi-Fi device or computer can be connected to the Internet through the E5. The
actual connecting procedure depends on the operating system of the Wi-Fi device
or computer. You can perform the connection operations as prompted.
Scenario 1: Multi-device access
viaWi-Fi
Scenario 2: One-device access
via USB
Smart phone
Game machine
Laptop
Digital Camera
4
Scenario 3: Multi-device access via Wi-Fi and USB at the same time
Smart phone
Laptop
Game machine
Digital Camera
5
2
1
3
4
5
6
8
7
Appearance
No. Item
1 Screen
2 microSD card slot
3 USB port
4 Power button
5 Wi-Fi/WPS button
6 Dialing button
7 Strap hole
8 Battery button
Wi-Fi: Wireless Fidelity
WPS: Wi-Fi Protected Setup
6
7
8
1
2
4
3
5
6
Screen
No. Item
1 Signal strength
2 Network
3 Wi-Fi enabled
Number of devices connected
4 Internet connection
5 New messages
Number of new messages
6 Power level
7 Roaming state
8 M: Manual mode
A: Auto mode
7
Before You Start
Installing the SIM Card and the Battery
Install the SIM card at the card slot entrance. Ensure that the SIM card faces the
direction as shown in the following figure. Then slide in the SIM card.
1234
Installing the microSD card
1. Remove the rubber cap from the microSD
card slot. Then insert the microSD card
8
into the slot.
2. After inserting the microSD card completely, attach the rubber cap.
Note:
The microSD card is an optional accessory. If the microSD card is not provided
in the package, you can buy one yourself.
To remove the microSD card, open the rubber cap and press the microSD card
gently. When the microSD card pops up automatically, take it out.
Do not remove the card when it is being used. Otherwise, the card and the E5
may be damaged, and the data stored on the card may be corrupted.
Charging the Battery
Note: If you have not used the battery for a long time, please charge it first.
Method 1: Charging by Using the Charger
Caution:
Use the charger compatible the E5 model and provided by the designated
manufacturers only. If the charger incompatible with the device model or
9
provided by other manufacturers or vendors is used, the E5 may fail to work
and dangers may be caused. At the
same time, any national regulations
on terminal products or warranty
applicable to the E5 may fail to work.
The charger is an optional accessory.
If the charger is not provided in the
package, you can contact your local dealer to buy one yourself.
Method 2: Charging by Connecting to a
PC
1. Power off the E5.
2. Connect the E5 and PC with a compatible
data cable.
10
Accessing the Internet through a Wi-Fi Connection
Note: By default, the management parameters are preset on the E5 according to
the requirements of the service provider. You can follow the steps below to quickly
access the Internet. For the details about how to set the management parameters,
see the Help on the Web management page.
Step1: Power on the E5.
Step2: Establish a Wi-Fi Connection.
Step3: Access the Internet.
1. Power on the E5
Press and hold until the screen
becomes lightened. When the screen becomes
lightened, it indicates that the E5 is powered on.
