Hubsan X4 DESIRE Bedienungsanleitung

2.4GHZ RC SERIES 4 CHANNEL

FLIP TIPS SEE PAGE 15-17

Ages 14+

Please read the instructions carefully before use.

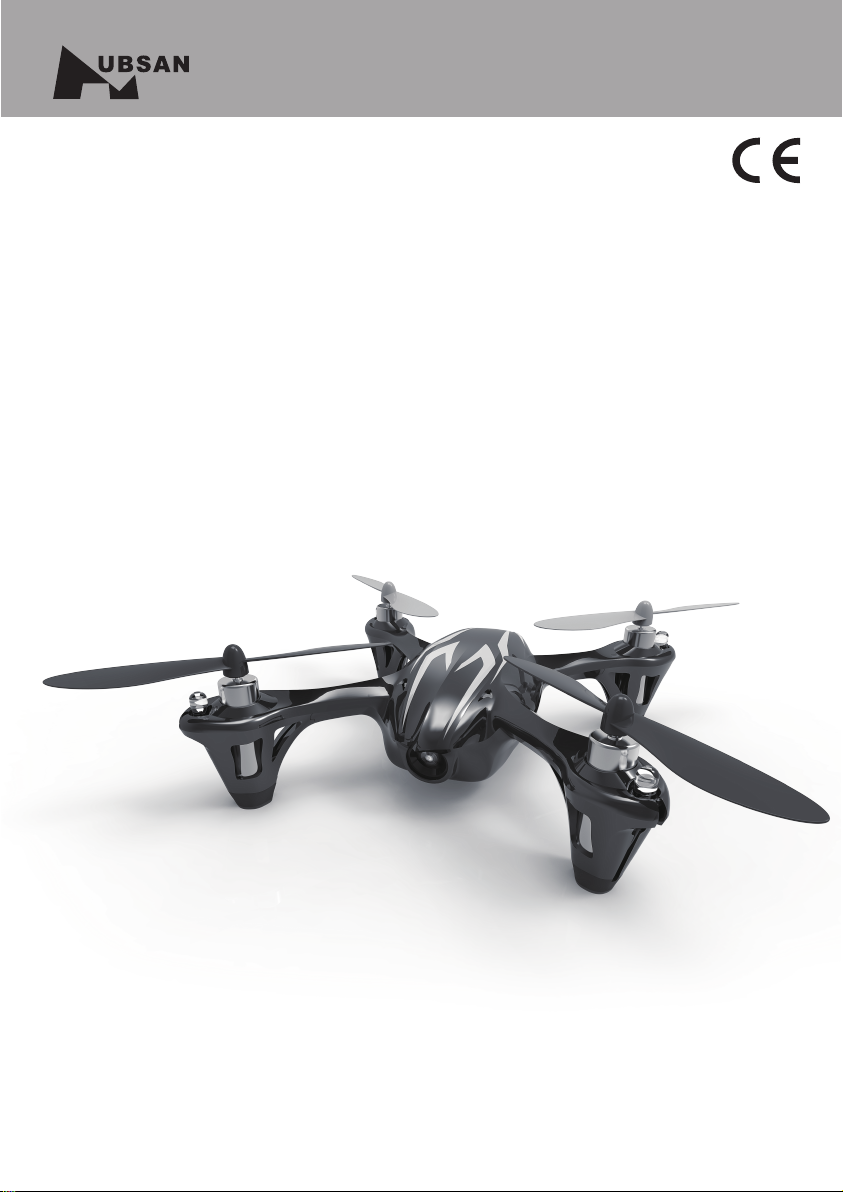

THE HUBSAN X4

ITEM NO.: H107C

01 THE HUBSAN X4

H107C

www.hubsan.com

INTRODUCTION

SAFETY NOTES

SAFETY CHECK BEFORE FLYING

TRANSMITTER

CHARGING THE LI-PO BATTERY

FLY THE X4

ADVANCED PERFORMANCE SETUP

REPLACING PROPELLERS

EXPLODED VIEW

SPARE PART CHART

H107C TROUBLESHOOTING

CAMERA RECORDING 09

REMOVING AND INSTALLING LEDS 19

CATALOG

02 THE HUBSAN X4

H107C

www.hubsan.com

1 INTRODUCTION

Thank you for buying HUBSAN products. The X4 quadcopter is designed as an easy-to-use,

full-featured RC model capable of hovering, fast forward, and aerobatic ight maneuvers. Please read

the manual carefully and follow all instructions in it. Be sure to retain the manual for future reference,

routine maintenance, and tuning.

2.1 Important Notes

This RC quadcopter is not a toy.

Any improper use of this product will result in serious injury. Be aware of your personal safety,

safety of others and your surrounding environment.

We recommend beginners learn to y with more experienced pilots playing nearby before

attempting to y the X4 for the rst time.

2.2 Caution

The X4 quadcopter has parts that move at high speed, which poses a certain degree of danger.

Choose a wide open space without obstacles. Do not operate the X4 near buildings, crowds of

people, high voltage cables, or trees to ensure the safety of yourself, others and your model.

Improper operation may cause damage to people and property.

2.3 LiPo Battery Safety Notes

The X4 is powered by a Lithium-Polymer (LiPo) battery.

To avoid risk of re or damage, never recharge your battery while it is inserted in the X4.

If you do not plan to y the X4 for a week or more, store the battery approximately 50% charged to

maintain battery performance and life.

2 SAFETY NOTES

03 THE HUBSAN X4

H107C

www.hubsan.com

Charge and store LiPo batteries in a location where a battery re or explosion

(including smoke hazard) will not endanger life or property.

Keep LiPo batteries away from children and animals.

Never charge the LiPo battery that has ballooned or swelled .

Never charge the LiPo battery that has been punctured or damaged.

After a crash, inspect the battery pack for the sign of damage. Discard in

accordance with your country’s recycling laws.

Never charge the LiPo battery in a moving vehicle.

Never overcharge the LiPo battery.

Never leave the LiPo battery unattended during recharging.

Do not charge LiPo batteries near ammable materials or liquids.

Ensure that charging leads are connected correctly. Reverse polarity charging can

lead to battery damage or a re or explosion.

Have a suitable re extinguisher (electrical type) OR a large bucket of dry sand near

the charging area . Do not try to extinguish electrical (LiPo) battery res with water.

Reduce risks from re/explosion by storing and charging LiPo batteries inside a

suitable container.

Protect your LiPo battery from accidental damage during storage and

transportation. (Do not put battery packs in pockets or bags where they can short

circuit or can come into contact with sharp or metallic objects.).

If your LiPo battery is subjected to a shock (such as a crash), place it in a metal

container and observe for signs of swelling or heating for at least 30 minutes.

Do not attempt to disassemble or modify or repair the LiPo battery.

LiPo batteries are dierent from conventional batteries in that their chemical contents

are encased in a relatively lightweight foil packaging. This has the advantage of

signicantly reducing their weight, but does make them more susceptible to damage if

roughly or inappropriately handled. As with all batteries, there is a risk of re or

explosion if safety practices are ignored:

04 THE HUBSAN X4

H107C

www.hubsan.com

2.4 Prevent Moisture

The X4 contains many precision electrical components.

Store the battery and the X4 in a dry area at room temperature. Exposure to water or moisture may

cause malfunction resulting in loss of responsiveness, or a crash.

2.5 Proper Operation

For safety only use the included HUBSAN spare parts for replacement.

2.6 Always Be Aware of the Rotating Blades

When in operation, the main and tail rotor blades will be spinning at high speed. The blades are

capable of inicting serious body injury or property damage.

Be careful to keep your body and loose clothing away from the blades. Never take your eyes o the

X4 or leave it unattended while it is turned on. Stop operating immediately if the X4 ies out of your

view. Once landed, immediately turn o the X4 and transmitter.

2.7 Avoid Flying Alone

Beginners should avoid ying alone when learning ight skills. We recommend ying with an

experienced pilot nearby in case you need help.

CAREFULLY INSPECT THE X4 BEFORE EVERY FLIGHT

• Before operation, check the batteries of the transmitter and X4 are charged for the ﬂight.

• Before turning on the transmitter, check that the throttle stick is pulled completely backward

(down position).

• Carefully check rotor blades and rotor holders. Broken parts will pose risk of injury and hazard.

• Check the battery and power plug are securely fastened. Severe vibration during ﬂight may

detach the plug and result in loss of control.

• When turning on the unit, always turn on the transmitter ﬁrst, and then turn on the X4. To power

o, always turn o the X4 rst and then the transmitter. Improper procedure may cause loss of

control of the quadcopter .

3 SAFETY CHECK BEFORE FLYING

05 THE HUBSAN X4

H107C

www.hubsan.com

4.2 Safety Advisory Notice

Always partially charge your LiPo battery before storage. LiPo batteries retain the power over a

reasonable period; It is not normally necessary to recharge stored LiPo batteries unless stored for

periods longer than 3-6 months.

If your LiPo battery has been over-discharged, it will not be possible to recharge it again.

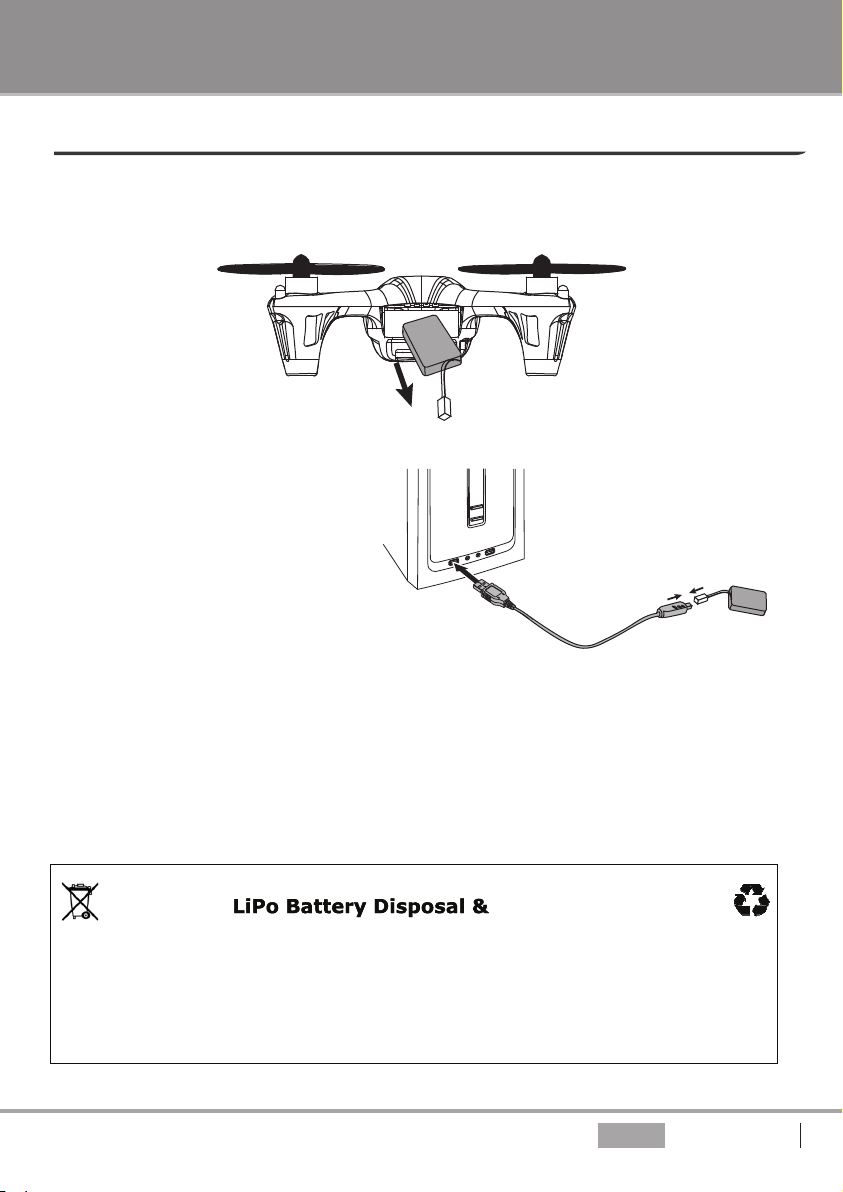

4.1 3.7V 380mAh LiPo Battery

4.1.1 Take out the battery from the bottom of the X4.

3.7V 380mAh

4.1.2 Connect the battery with USB charger, then connect the USB charger to a computer or other

USB connector, such as a smartphone

charger. The LED lights up while charging

and turns o when charging is complete.

The voltage of the USB is +5±0.5V.

4 CHARGING THE LI-PO BATTERY

Recycling

Lithium-Polymer(LiPo) batteries must not be placed in with household trash. Please contact

your environmental or waste agency or the supplier of your model for local regulations and

the location of your nearest LiPo battery recycling center.

3.7V 380mAh

06 THE HUBSAN X4

H107C

www.hubsan.com

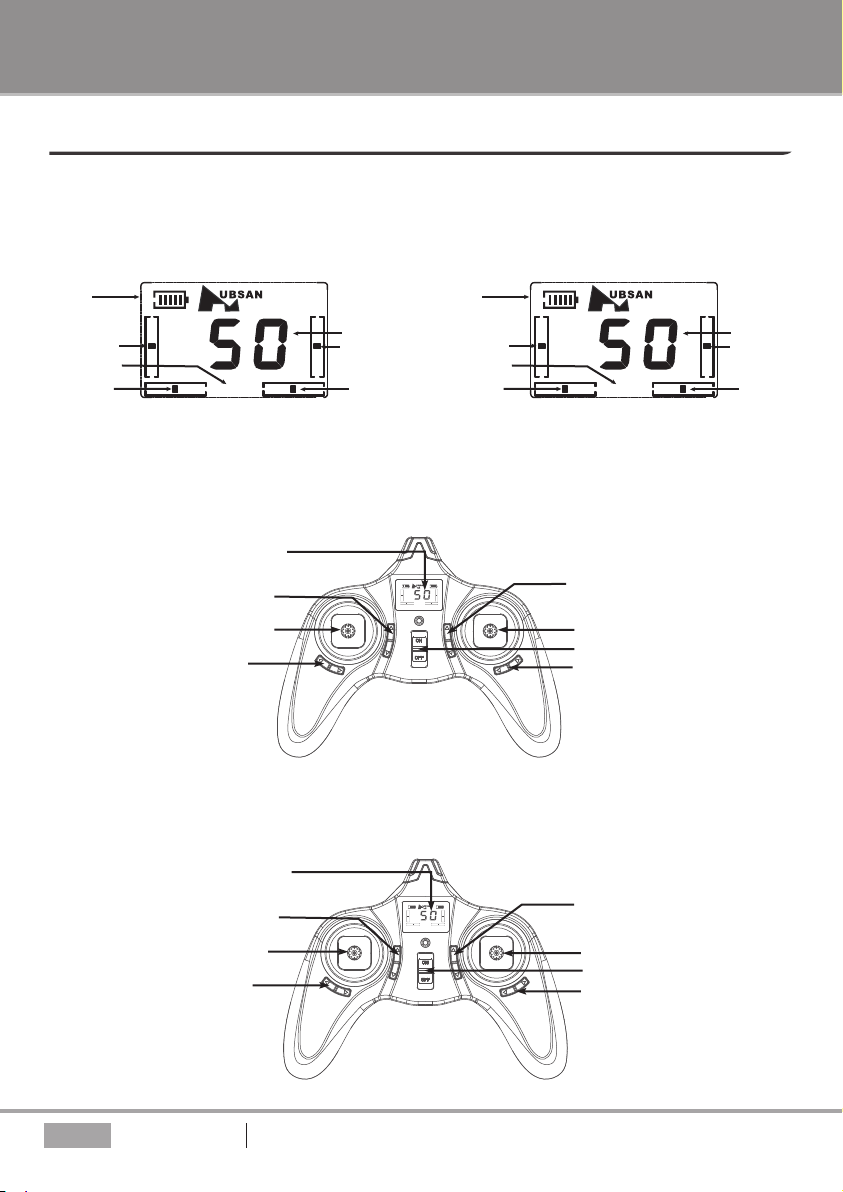

5.1 Identication and Functions of the Main Menu

TRANSMITTER

Main Menu

MODE 1 MODE 2

Battery voltage

display

Rudder trim

Elevator trim

Data display

Throttle trim

Aileron trim

Expert mode

Expert

Battery voltage

display

Rudder trim

Elevator trim

Data display

Throttle trim

Aileron trim

Expert mode

Expert

5 TRANSMITTER

MODE 1

MODE 2

M1 M2

Expert

4 Elevator Trim

1 Throttle/Rudder Stick

5 Rudder Trim

LCD

6 Throttle Trim

2 Elevator/Aileron Stick

7 Power Switch

3 Aileron Trim

M1 M2

Expert

4 Elevator Trim

(2) Elevator/Rudder Stick

5 Rudder Trim

LCD

6 Throttle Trim

(1) Throttle /Aileron Stick

7 Power Switch

3 Aileron Trim

07 THE HUBSAN X4

H107C

www.hubsan.com

MODE 2

Input Key Function

S/N Mode/ Control Function

MODE 1

(1)

Throttle /Aileron Stick

Move the stick forward or backward to increase or decrease speed . Move

the stick left or right to make the quadcopter roll left or right to initiate

a banked turn.

MODE 1

(2)

Elevator/Rudder Stick

Move the stick forward or backward to make the quadcopter nose point

up or down. Move the stick left or right to make the quadcopter

yaw left or right.

3 Aileron Trim

Aileron trim adjusts for left and right drift.

4 Elevator Trim

Elevator trim adjusts for forward and backward drift.

5 Rudder Trim

Rudder trim adjusts for drift of left and right rotation or yaw.

6 Throttle Trim

Throttle trim normally left at neutral. The lower trim turns LEDs on and o.

7 Power Switch

Push to ON to turn on the transmitter. Push to OFF to turn o.

MODE 2

2 Elevator/Aileron Stick

Move the stick forward or backward to make the quadcopter move

forward or backward. Move the stick left or right to make the

quadcopter drift sideways left or right.

1 Throttle/Rudder Stick

Move the stick forward or backward to make the quadcopter ascend or

descend. Move the stick left or right to rotate the quadcopter’s fuselage

left or right.

Electrical and electronic equipment that are supplied with batteries

(including internal batteries)

WEEE Directive & Product Disposal

At the end of its serviceable life, this product should not be treated as household or general waste. It should

be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or

returned to the supplier for disposal.

internal / Supplied Batteries.

This symbol on the battery indicates that the battery is to be collected separately.

This battery is designed for separate collection at an appropriate collection point.

08 THE HUBSAN X4

H107C

www.hubsan.com

5.2 Transmitter Stick Calibration

Mode 2: Push both sticks to the upper left position and hold, then power on the transmitter. Rotate

both sticks twice. Hold down any trim until the LED on the transmitter blinks red, indicating

successful calibration.

Mode 1: Push the left stick to the upper left position and right stick to the upper right position and

hold, then power on the transmitter. Rotate both sticks twice. Hold down any trim until the LED on

the transmitter blinks red, indicating successful calibration.

5.3 Transmitter Battery Installation

Notice: Do not mix old and new batteries.

Do not mix dierent types of batteries.

Do not charge non-rechargeable batteries.

Replace cover

Remove the cover Install 4 x AAA batteries

according to the correct polarities

PUSH PUSH
