HumanCentric 101-1064 Bedienungsanleitung

Model 101-1064

www.humancentric.com/patents

© 2023 HumanCentric Ventures LLC www.humancentric.com

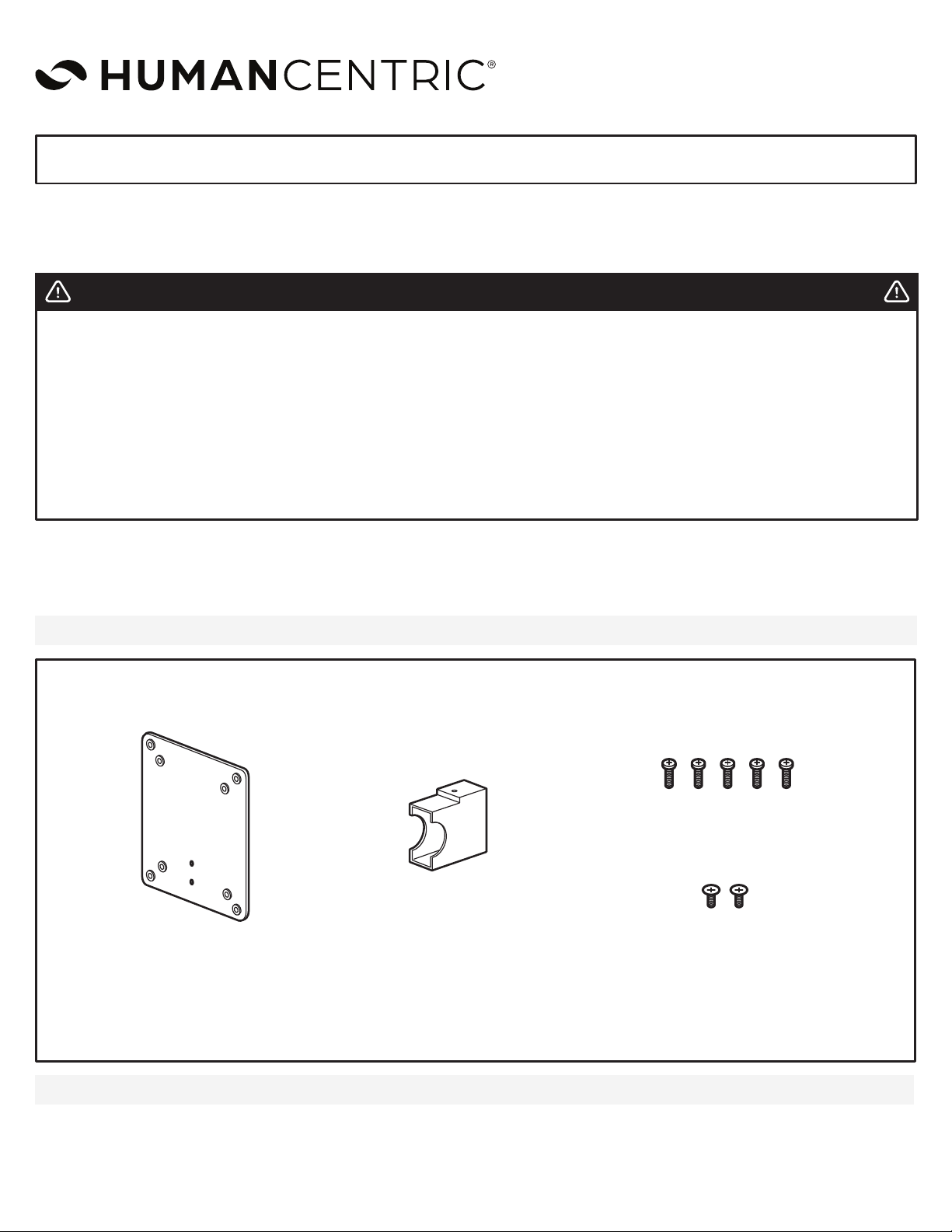

VESA Adapter for HP M-Series Monitors

ADDITIONAL TOOLS REQUIRED

Phillips Screw Driver

M22F, M24F, M24FW, M24FD, M24FWA, M27F, M27FD, M27FQ, M27FW, M27FWA, M32F

PARTS INCLUDED

A (x1)

VESA Adapter Plate

B (x1)

Monitor Adapter

C (x5)

M4 x 12mm Panhead Screw

D (x2)

M4 x 10mm Flat Head Screw

Compatible with models:

Full product speciﬁcations: www.humancentric.com/101-1064

Need help? Contact support: [email protected]

WARNING

To reduce the risk of injury to persons, read all important precautions and warnings listed below.

HumanCentric assumes no responsibility for personal injury or property damage sustained by or through

the use of this product:

1. Read all instructions carefully.

2. Incorrect installation may lead to damage or serious injury. Ensure the product is secured before use.

3. If using a VESA stand or VESA arm, ensure it can support the combined weight of the bracket, monitor,

and any mounted devices.

1

© 2023 HumanCentric Ventures LLC www.humancentric.com

Note which geometry your monitor attachment point has and move to the next step.

2

Geometry A Geometry B

2

Orientate the Monitor Adapter (B)

with the square cutout toward the

bottom and push onto the monitor

attachment point. Make sure that

the adapter is fully pushed on and

the button is fully seated in the

square cutout. You will hear a “click”

when the button seats.

click

B

© 2023 HumanCentric Ventures LLC www.humancentric.com

3

C

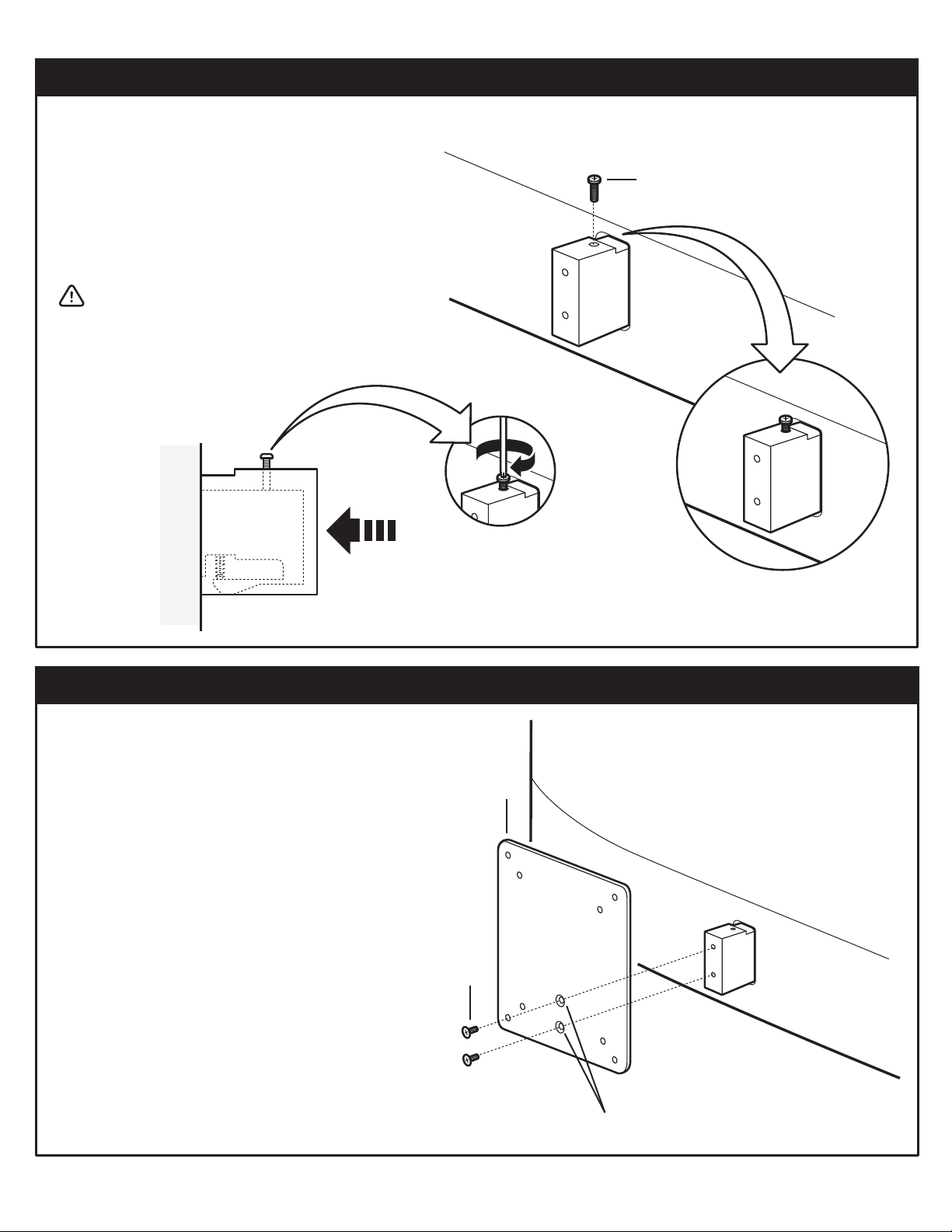

Note that Geometry B is a looser ﬁt and will

require pushing the adapter into the monitor

while tightening the screw.

Secure the Monitor Adapter onto the

monitor by tightening one of the

panhead screws (C) into the top. The

screw will stick out of the adapter even

after tightening.

4

D

A

Secure the VESA Adapter Plate (A) to the

Monitor Adapter using two ﬂat head screws

(D). The screws should sit ﬂush with the plate

surface in the countersunk holes.

Countersunk Holes

© 2023 HumanCentric Ventures LLC www.humancentric.com

5

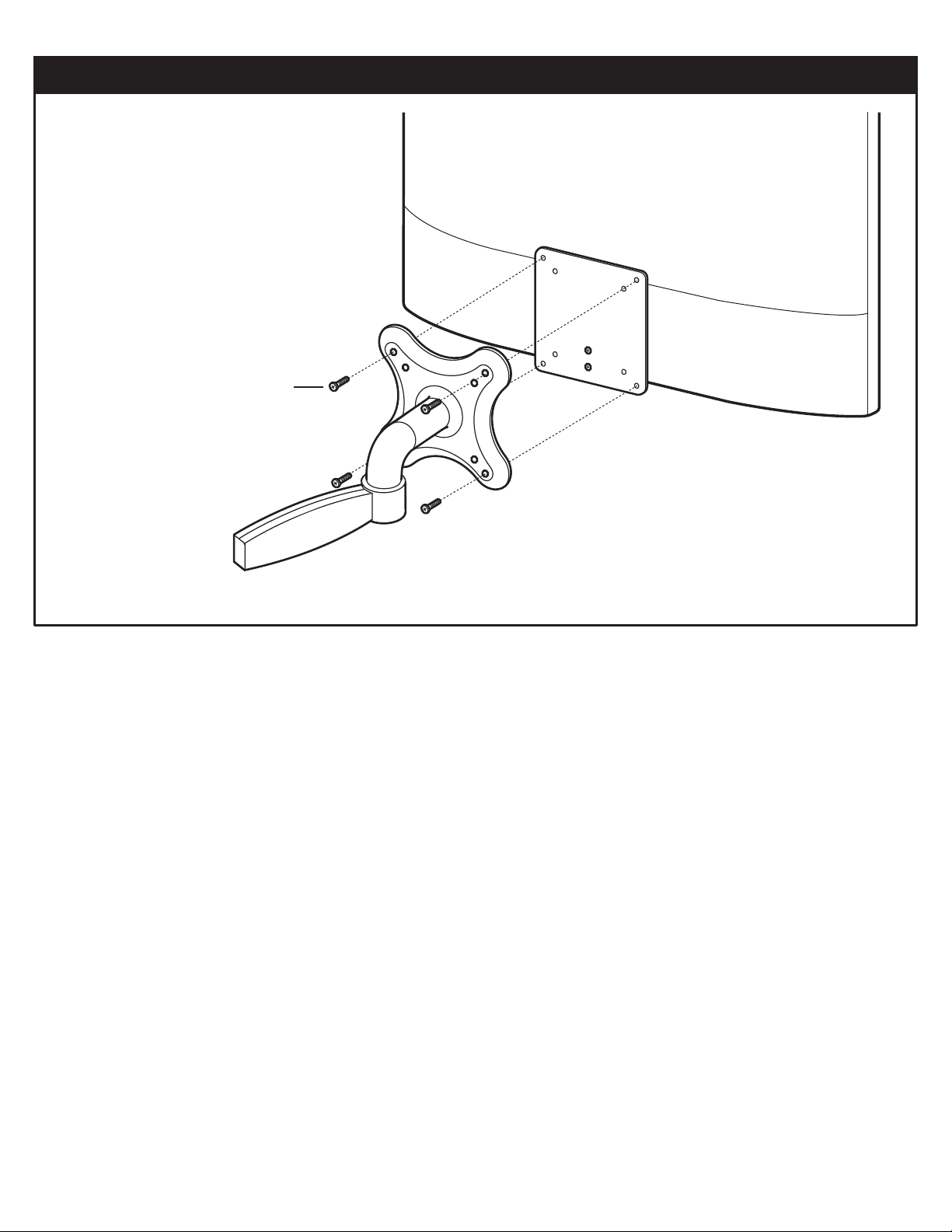

Mount the monitor to your VESA

Mount using four panhead screws (C).

C
