531478-2_B

GPS Receiver

Th nk You!

Thank you for choosing Humminbird®, America's #1 name in ishfinders.

Humminbird® has built its reputation by designing and manufacturing top-quality,

thoroughly reliable marine equipment. Your Humminbird® accessory is designed

for trouble-free use in even the harshest marine environment. In the unlikely event

that your Humminbird® accessory does require repairs, we offer an exclusive

Service Policy - free of charge during the first year after purchase, and available

at a reasonable rate after the one-year period. or complete details, see the

separate warranty card included with your accessory. We encourage you to read

this operations manual carefully in order to get full benefit from all the features

and applications of your Humminbird® product.

Contact our Customer Resource Center at either 1-800-633-1468 or visit our

website at www.humminbird.com

WARNING! This device should not be used as a navigational aid to prevent collision,

grounding, boat damage, or personal injury. When the boat is moving, water depth

may change too quickly to allow time for you to react. Always operate the boat at very

slow speeds if you suspect shallow water or submerged objects.

WARNING! Disassembly and repair of this electronic unit should only be performed

by authorized service personnel. Any modification of the serial number or attempt to

repair the original equipment or accessories by unauthorized individuals will void the

warranty.

WARNING! This product contains chemicals known to the State of California to cause

cancer and/or reproductive harm.

ENVIRONMENTAL COMPLIANCE STATEMENT: It is the intention of Humminbird®

to be a responsible corporate citizen, operating in compliance with known and

applicable environmental regulations, and a good neighbor in the communities

where we make or sell our products.

WEEE DIRECTIVE: EU Directive 2002/96/EC “Waste of Electrical and Electronic

Equipment Directive (WEEE)” impacts most distributors, sellers, and manufacturers

of consumer electronics in the European Union. The WEEE Directive requires the

producer of consumer electronics to take responsibility for the management of

waste from their products to achieve environmentally responsible disposal during

the product life cycle.

WEEE compliance may not be required in your location for electrical & electronic

equipment (EEE), nor may it be required for EEE designed and intended as fixed or

temporary installation in transportation vehicles such as automobiles, aircraft, and

boats. In some European Union member states, these vehicles are considered

outside of the scope of the Directive, and EEE for those applications can be

considered excluded from the WEEE Directive requirement.

This symbol (WEEE wheelie bin) on product indicates the product must not

be disposed of with other household refuse. It must be disposed of and

collected for recycling and recovery of waste EEE. Humminbird® will mark

all EEE products in accordance with the WEEE Directive. It is our goal to

comply in the collection, treatment, recovery, and environmentally sound disposal

of those products; however, these requirement do vary within European Union

member states. For more information about where you should dispose of your

waste equipment for recycling and recovery and/or your European Union member

state requirements, please contact your dealer or distributor from which your

product was purchased.

Humminbird®, HumminbirdPCTM, X-Press™ Menu, Structure ID®, SmartCast® and

WeatherSense® are trademarked by or registered trademarks of Humminbird®.

T ble of Contents

GPS Connection Kit 1

How GPS and Trackplotting Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Connecting a GPS Receiver to the ishfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

GPS Receiver Installation 4

Stem Mount with 1” - 14 Thread. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Access Under Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

No Access Under Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

inish Routing the Cable and Check Operation . . . . . . . . . . . . . . . . . . . . . . . . . 7

Bird'sEyeView................................................... 8

TrackView....................................................... 9

ComboView.................................................... 10

ViewOrientation................................................. 10

Introduction to Navigation 11

Waypoints,RoutesandTracks...................................... 11

Save,EditorDeleteaWaypoint.................................... 12

NavigatetoaWaypointorPosition.................................. 13

Add a Waypoint Target or Trolling Grid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

SaveorClearaCurrentTrack ...................................... 15

Edit,DeleteorHideSavedTracks................................... 15

The enu System 16

Start-Up Options enu 18

NormalOperation................................................ 18

Simulator ..................................................... 19

SystemStatus .................................................. 19

SelfTest ....................................................... 20

AccessoryTest .................................................. 20

GPSDiagnosticView ............................................. 20

PC Connect (with PC Connect Cable onl ) ................................ 21

iii

Sonar X-Press™ enu (Sonar Views only) 22

Mark.......................................................... 23

Cancel Navigation (onl when navigating) ............................... 23

Navigation X-Press™ enu (navigation views only) 24

Mark.......................................................... 25

Zoom.......................................................... 25

GoTo.......................................................... 25

Waypoint [Name] (onl with an active cursor on a wa point) .................. 26

Cursor to Waypoint (Chart or Combo View onl ) ........................... 27

SaveCurrentTrack .............................................. 27

ClearCurrentTrack............................................... 28

Skip Next Waypoint (onl when navigating).............................. 28

Cancel Navigation (onl when navigating) ............................... 29

Remove Target (onl if target is active) ................................. 29

Remove Grid (onl If grid is active) ..................................... 30

Sonar Window (Combo View onl )..................................... 30

Waypoint [Name] (most recentl -created wa point)......................... 31

Navigation enu Tab 32

CurrentTrack.................................................... 33

SavedTracks.................................................... 34

Waypoints...................................................... 35

ViewOrientation................................................. 36

NorthReference................................................. 36

GridRotation.................................................... 36

TrackpointInterval ............................................... 37

Track Min Distance (Advanced) ...................................... 37

Map Datum (Advanced) ............................................ 38

CourseProjectionLine............................................ 38

Delete All Nav Data (Advanced) ...................................... 39

Alarms enu Tab 40

OffCourseAlarm ................................................ 41

ArrivalAlarm.................................................... 41

DriftAlarm ..................................................... 42

Setup enu Tab 43

Units-Distance ................................................. 44

Units-Speed ................................................... 44

TriplogReset ................................................... 45

Local Time Zone (Advanced) ......................................... 45

Daylight Saving Time (Advanced)..................................... 46

Position ormat (Advanced) ......................................... 46

Time ormat (Advanced, International onl ) ............................... 47

Date ormat (Advanced, International onl ) ............................... 47

NMEA Output (Advanced) .......................................... 48

Troubleshooting 49

ishing System Doesn’t Power Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

ishing System Defaults to Simulator with a Transducer Attached. . . . . . . . . 49

DisplayProblems ................................................ 50

indingtheCauseofNoise........................................ 51

Humminbird® Accessories 52

GPS & Navigation Glossary 53

Contact Humminbird® 60

NOTE: Entries in this Table of Contents which list (International Only) are only available

on products sold outside of the U.S. by our authorized International Distributors. It is

important to note that products sold in the U.S. are not intended for resale in the

international market. To obtain a list of authorized International Distributors, please

visit our website at www.h mminbird.com or contact our Customer Resource Center

at 1-800-633-1468 to locate the distributor nearest you.

NOTE: Entries in this Table of Contents which list (with PC Connect Cable Only)

require the purchase of a separate accessory. You can visit our website at

www.h mminbird.com to order these accessories online or contact our Customer

Resource Center at 1-800-633-1468.

GPS Connection Kit

The Humminbird® GPS Connection Kit includes the following items:

• GPS Antenna Receiver with 20' (6 m) cable

• AS YC ("Y") cable for multiple accessory attachment

• Hardware kit for stem or deck mounting

• GPS Receiver Accessory Manual.

NOTE: 10 foot extension cables are available as an optional purchase item. These can

be used to extend the total Antenna Cable length up to 50 feet.

How GPS nd Tr ckplotting Work

Your Humminbird® uses GPS and sonar to determine your position, display it on a

grid, and provide detailed underwater information. The Global Positioning System

(GPS) is a satellite navigation system designed and maintained by the U.S.

Department of Defense. GPS was originally intended for military use; however,

civilians may also take advantage of its highly accurate position capabilities,

typically within 4.5 - 10 meters, depending on conditions and your Humminbird®

model. This means that 95% of the time, the GPS receiver will read a location

within 4.5 - 10 meters of your actual position. Your GPS Receiver also uses

information from WAAS (the Wide Area Augmentation System), EGNOS (the

European Geostationary Navigation Overlay Service), and MSAS (the MTSAT

Satellite Augmentation System) satellites if they are available in your area.

GPS uses a constellation of satellites that

continually send radio signals to the earth. Your

present position is determined by receiving signals

from up to 16 satellites and measuring the distance

from the satellites.

All satellites broadcast a uniquely coded signal

once per second at exactly the same time. The GPS

receiver on your boat receives signals from

satellites that are visible to it. Based on time

differences between each received signal, the GPS receiver determines its

distance to each satellite. With distances known, the GPS receiver mathematically

triangulates its own position. With once per second updates, the GPS receiver

then calculates its velocity and bearing.

The GPS Receiver allows you to combine easy-to-use trackplotting and navigation

capabilities with advanced fishfinding. The following GPS functionality is currently

supported by your ishing System when it is connected to the included GPS receiver:

• View current position

• View current track (breadcrumb trail)

• View precision speed and heading from your GPS receiver

• Save tracks and waypoints

• Travel a route and navigate from one waypoint to the next.

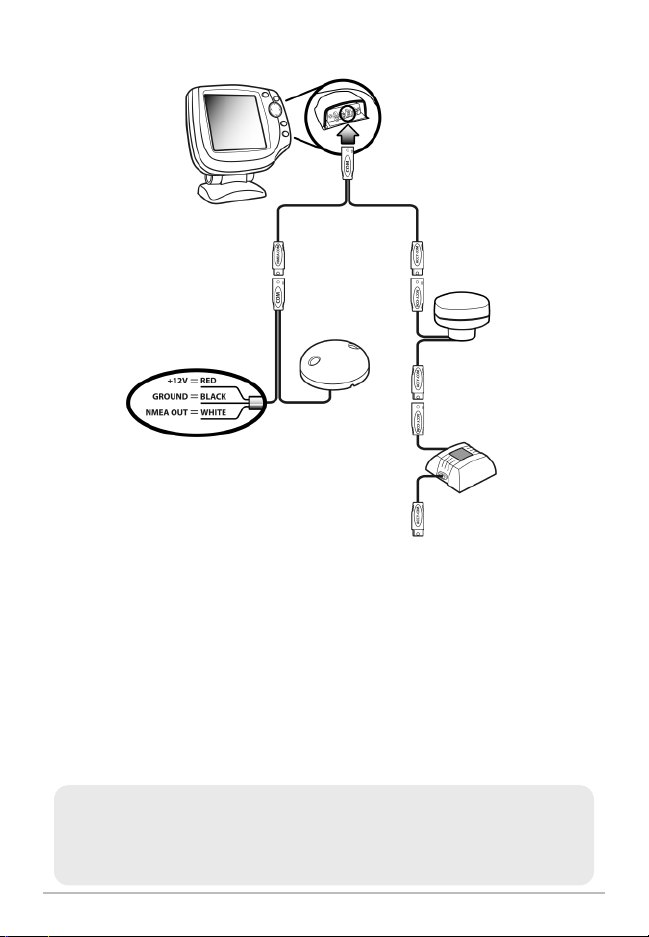

Connecting GPS Receiver to the Fishfinder

Here's how to access GPS functionality using your GPS Receiver Accessory:

1. Attach the GPS receiver to your ishfinder Control Head COM port using

the NMEA cable attached to the antenna.

2. If you are already using other ishfinder accessories plugged into the COM

connector, you will also need to use the AS-YC ("Y") cable included in your

GPS Hardware Kit so that you can use both the accessories and your GPS

Receiver at the same time. Attach the COM connector of the "Y" cable

directly to your ishfinder Control Head COM port. Attach the GPS receiver

to the NMEA-COM connector of the "Y" cable. Re-connect your ishfinder

accessories to the ACCY-COM connector of the "Y" cable.

3. Power up the ishfinder ishing System (see your ishfinder Operation

Manual for details).

4. When the ishfinder detects the NMEA input from the GPS Receiver, the

Combo, Track and Bird's Eye Views will be added automatically to the

VIEW key function. A Navigation menu tab and the Navigation X-Press™

menu will also be added automatically to the Menu system.

5. The ishfinder Control Head outputs NMEA signals through the "pigtail"

cable attached to the end of the GPS receiver cable for connection to

devices such as autopilots. Connect the NMEA Out (White Wire) of the

cable to the NMEA In of the device you are connecting to your ishfinder.

The pinouts of this cable are as follows:

• Red Wire, +12V (output voltage only)

• Black Wire, Ground

• White Wire, NMEA Out.

GPS Receiver

Fishing System

AS-YC (“Y”) Cable

Smartcast® WSL

WeatherSense®

CAUTION! Please use caution before connecting the red +12V wire to any

other NMEA device. This is an output voltage provided by the Fishfinder unit

and receiver and should only be connected to those NMEA devices that need

a 12 volt input.

GPS Receiver Inst ll tion

To optimize performance of the GPS receiver, mount it in an area that has full

exposure to the sky. The effective area of reception is 10° above the horizon.

Different circumstances determine the mounting method appropriate for your

GPS receiver.

If you have… Then use...

An antenna stem with standard 1" – 14 thread Stem Mount with 1" - 14 Thread

Access under mounting location Access Under Mounting Location

No access under mounting location No Access Under Mounting Location

Ste Mount with 1" - 14 Thread

ollow these steps to stem mount the GPS receiver:

1. If you have a pre-existing stem mount, skip to step 2.

If you need to mount the antenna pole (stem),

determine the best location, preplan and test the

cable routing to your ishfinder unit before any

drilling or cutting of your boat surfaces, then route

the 20’ (6 m) cable to the desired mounting location.

Mark the location and drill a 3/4” (19 mm) hole for the

cable and cable connector. If you have purchased

hardware to stem mount your GPS receiver, follow

the instructions included with that hardware to

attach the stem to the boat.

NOTE: 10’ extension cables may be purchased from Humminbird® if your planned

cable route exceeds 20’ (6 m). Maximum cable length, including extension cables,

should not exceed 50’ (16 m). Visit our website at www.h mminbird.com, or call our

Customer Resource Center at 1-800-633-1468 to purchase extension cables.

Stem ount,

Attaching Receiver

Base to Stem

Receiver

Base

Receiver Head

Antenna

Stem

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Humminbird GPS Handbücher

Humminbird

Humminbird HELIX 5 SI GPS Bedienungsanleitung

Humminbird

Humminbird AS GR50 Bedienungsanleitung

Humminbird

Humminbird ChartSelect Bedienungsanleitung

Humminbird

Humminbird 797c2 GPS Chartplotter Bedienungsanleitung

Humminbird

Humminbird 787C2 Bedienungsanleitung

Humminbird

Humminbird 363 Bedienungsanleitung

Humminbird

Humminbird 858c Combo Bedienungsanleitung

Humminbird

Humminbird 757c Bedienungsanleitung

Humminbird

Humminbird ONIX Bedienungsanleitung

Humminbird

Humminbird 700 SERIES 798C Bedienungsanleitung

Humminbird

Humminbird Lakemaster 2014 Bedienungsanleitung

Humminbird

Humminbird SmartStrike Map Card Bedienungsanleitung

Humminbird

Humminbird 955C Bedienungsanleitung

Humminbird

Humminbird GPS Receiver Bedienungsanleitung

Humminbird

Humminbird NS25 Bedienungsanleitung

Humminbird

Humminbird ChartSelect Bedienungsanleitung

Humminbird

Humminbird HELIX 9 Bedienungsanleitung

Humminbird

Humminbird 900 Series Bedienungsanleitung

Humminbird

Humminbird 531438-1_A Bedienungsanleitung

Humminbird

Humminbird AS GR16 Bedienungsanleitung

Humminbird

Humminbird HELIX 5 SERIES Bedienungsanleitung

Humminbird

Humminbird 161 Bedienungsanleitung

Humminbird

Humminbird 531427-1_D Bedienungsanleitung

Humminbird

Humminbird 383c Bedienungsanleitung

Beliebte GPS Handbücher anderer Marken

Raven

Raven Cruizer II Handbuch

Hama

Hama 53118 Bedienungsanleitung

Garmin

Garmin SOUNDER 125 Bedienungsanleitung

Garmin

Garmin DEZL 580 Bedienungsanleitung

Jigabot

Jigabot EX Bedienungsanleitung

Pointer

Pointer Cellocator CelloTrack XT LTE Installationsanleitung

Queclink

Queclink GV55LITE Bedienungsanleitung

Voxson

Voxson Voxtrack GPS500 Gebrauchsanweisung

Garmin

Garmin ECHOMAP PLUS Bedienungsanleitung

Starcom Systems

Starcom Systems Kylos Compact Bedienungsanleitung

Garmin

Garmin 15 H Series Bedienungsanleitung

Cobra

Cobra Marine MC 600Ci Bedienungsanleitung

Cellocator

Cellocator CelloTrack T Bedienungsanleitung

Enfora

Enfora Mini-MT GSM2228UG001 Bedienungsanleitung

Magellan

Magellan eXplorist 100 Bedienungsanleitung

LTE

LTE G50B Bedienungsanleitung

Garmin

Garmin DEZL OTR500 Bedienungsanleitung

SkyGolf

SkyGolf SkyCaddie SG1 Bedienungsanleitung
