Installation Manual

Typhoon Ceiling Fan

CEILING FAN MUST BE INSTALLED

BY A LICENSED ELECTRICIAN

(NO OTHER PERSONS SHOULD ATTEMPT TO INSTALL THIS FAN)

*Electricians are recommended to tick off all items on the quick

checklist and fill out their details onto the back page of the Fan

Owner Warranty & Operations Manual after installation

National Warranty Line

1300 360 280

Monday to Friday from 9am to 5pm EST

Only available within Australia

Hunter Pacific International Pty Ltd, Building 8, 256 New Line Road, Dural NSW 2158 Australia

ABN :18 063 521 666

ELECTRICIANS - TO PROTECT YOUR CUSTOMER’S WARRANTY, PLEASE READ

PAGE 2 OF THIS BOOKLET PRIOR TO THE INSTALLATION OF THIS PRODUCT.

IMPORTANT INFORMATION

ELECTRICIANS MUST READ PRIOR TO INSTALLATION

1. Distributor and installer details and purchase receipts are essential for on-site warranty claims

and must be presented to repair personnel, make sure you record your details in the Fan Owner

Warranty and Operations Manual.

2. Fans and fixed wiring products must only be installed by persons who are appropriately licensed

by the applicable State regulatory body. Therefore, to protect our repair personnel, on-site

warranty claims will not be accepted if products have been installed by unlicensed persons.

3. Damage caused by incorrect installation, force-majeure, electrical surges, lightning, power grid

fluctuations, water or by connection to alternative power supply sources (such as solar inverters,

etc.) is not eligible for warranty repair.

4. Blades must be replaced only as a complete set. Blades are supplied only as a pre-balanced set

and the replacement of individual blades may void the warranty by causing mechanical damage

to the motor, excessive noise or premature wear.

5. When products are installed in a location requiring special access equipment (such as

scaffolding or scissor lifts, etc) the cost of providing, installing and operating special access

equipment must be borne by the site owner.

For safety, and to protect your customers warranty, the following must be taken into

account when installing and operating the product(s):

IF THERE ARE ANY PROBLEMS WITH THE PRODUCT AT TIME OF

INSTALLATION THE INSTALLER MUST CONTACT THE WARRANTY

HOT LINE NUMBER 1300 360 280. BEFORE LEAVING THE JOB

SITE. PLEASE DO NOT REMOVE THE FAN FROM THE CEILING

ONCE INSTALLED UNLESS INSTRUCTED TO DO SO.

(a) DO NOT USE SOLID-STATE WALL CONTROLLERS. Neither leading nor lagging edge

controllers will give satisfactory performance. Wall controls must only be types approved

for use by Hunter Pacific International.

(b) The fan, light and bracket must be earthed.

(d) Mounting bracket must be firmly screwed to a solid structure such as a concrete ceiling,

steel structure or timber framing. If additional bracing is added it must be firmly secured to

the rafters and not left floating on the ceiling. Special mounts, such as T-hooks, are

available for certain types of installation.

(e) After installation, fan blades must be at least 2.1 m (7 feet) above floor level.

(f) The use of these products by children and the infirm must be under supervision.

Electrician Installation Manual

Typhoon Ceiling Fan

Parts List - Typhoon Metal

Part Qty Part Qty Part Qty

Blades 4 Base Plate 1 Canopy Cover Screws 2

Blade Screws 8 HPI Wall Controller 1 Canopy Cover 1

Blade Washers 8 Hanger Bracket 1 Motor Housing 1

Wall Speed Capacitor 1 Hex Head Screw 2

Ball Joint 1 15cm Down Rod 1 Reversing Switch Cover 1

Ball Joint Screw 1 Down Rod Pin Screw 1 (these parts come preassembled)

Ball Joint Pin 1 Down Rod Short Screw 1

Electrician Installation Manual

Typhoon Ceiling Fan

Hanger Bracket

Hex Head Screw

Ball Joint

Blade Screw

Blade

Canopy Cover

Motor Housing

Parts List - Typhoon Timber

Part Qty Part Qty Part Qty

Blades 4 Base Plate 1 Canopy Cover Screws 2

Blade Screws 16 HPI Wall Controller 1 Canopy Cover 1

Blade Holders 4 Hanger Bracket 1 Motor Housing 1

Blade Holder Screws 8 Hex Head Screw 2 Wall Speed Capacitor 1

Ball Joint 1 15cm Down Rod 1 Reversing Switch Cover 1

Ball Joint Screw 1 Down Rod Pin Screw 1 (these parts come preassembled)

Ball Joint Pin 1 Down Rod Short Screw 1

Blade Nut 16 Blade Washers 16

Electrician Installation Manual

Typhoon Ceiling Fan

Hanger Bracket

Hex Head Screw

Ball Joint

Blade Nut

Blade

Canopy Cover

Motor

Housing

Blade Washer

Blade Holder

Blade Screw

Blade Holder Screw

Typhoon Moulded

(Motor assembly same as Typhoon Metal)

Part Qty Part Qty Part Qty

Blades & Blade

Holders 4 Base Plate 1 Canopy Cover Screws 2

Blade Holder Screws 8 HPI Wall Controller 1 Canopy Cover 1

Blade Washers 12 Hanger Bracket 1 Motor Housing 1

Blade Nuts 12 Hex Head Screw 2 Wall Speed Capacitor 1

Ball Joint 1 15cm Down Rod 1 Reversing Switch Cover 1

Ball Joint Screw 1 Down Rod Pin Screw 1

(these parts come preassembled)

Ball Joint Pin

1 Down Rod Short Screw 1

Blade Screws 12

Electrician Installation Manual

Typhoon Ceiling Fan

Blade Holder Screw

Blade

Blade Washer

Blade Nut

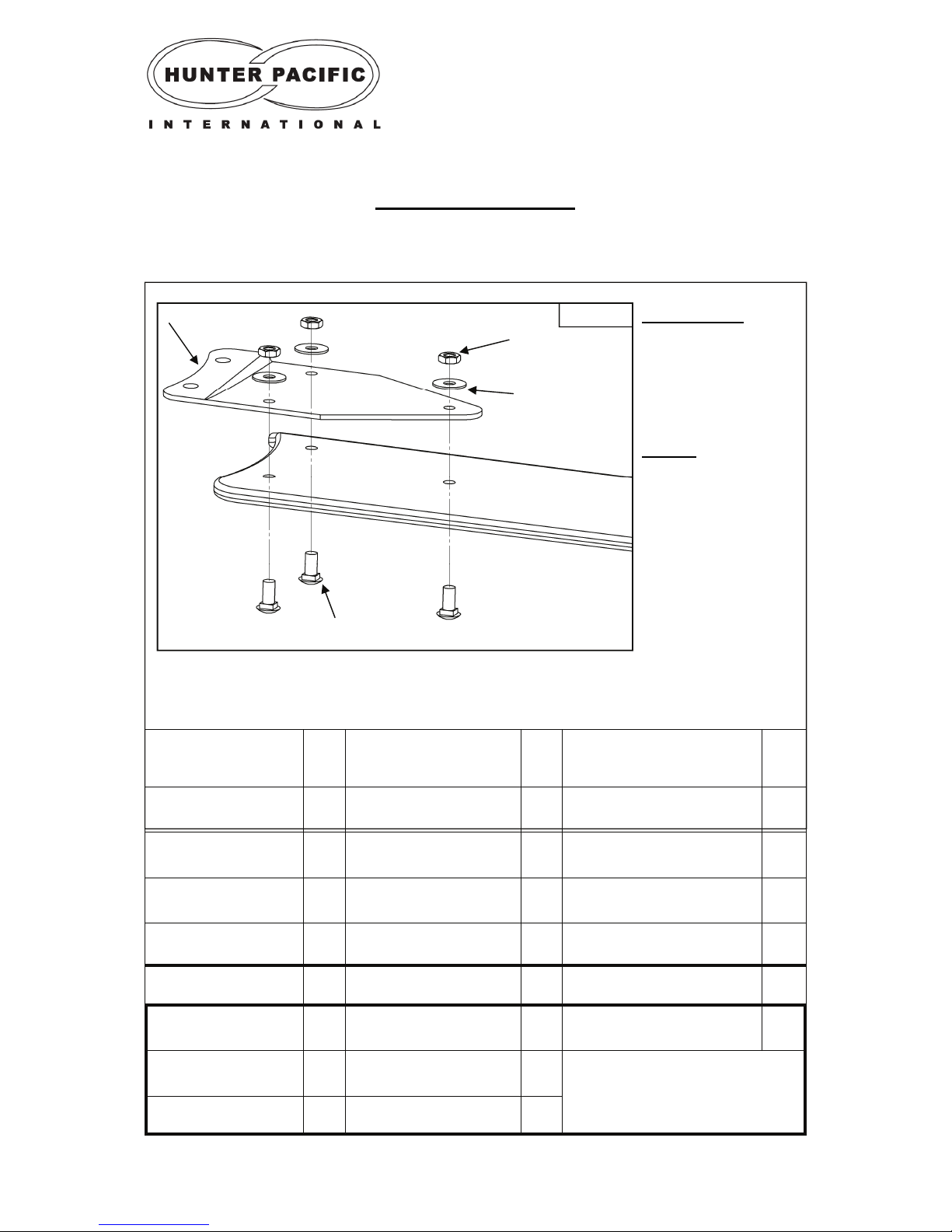

Blade Holder Fig.1 STEP 1. (Fig.1)

Assemble the blades

and blade holders

before attaching to the

fan motor as shown in

Fig.1.

STEP 2.

Tighten the nuts using

a small spanner. Do

not over-tighten to

avoid damaging the

blades.

Damage caused by

improper assembly is

not covered by

warranty.

Electrician Installation Manual

Typhoon Ceiling Fan

1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not

approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The

use of unapproved controllers will void your warranty.

2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If

only one blade is damaged you are still required to replace with a new set.

STEP 3 (Fig. 3)

a) THIGHTEN THE GRUB SCREW

(This is important to ensure the fan will not

wobble and the weight of the fan is supported).

b) Hang the ball joint into the hanger bracket.

Ensure the groove on the hanger bracket is

locked into the slot on the ball joint.

Assembling the fan

STEP 2 (Fig. 2)

a) Drill a hole in the timber nogging for wiring.

b) Secure the hanger bracket onto the timber

nogging, using the two hex head screws

provided. The timber nogging should be supplied

by the installing electrician and must be

supported between the two ceiling joists as

shown in the diagram above.

STEP 1 (Fig. 1)

PERFORM THIS STEP IF THE WIRES HAVE NOT

BEEN FED THROUGH THE DOWN ROD.

a) Loosen the ball joint screw and remove the

ball joint pin to separate the down rod from the

ball joint.

b) Remove canopy cover and reverse switch

cover.

c) Feed wires from motor housing up and

through the down rod.

d) Insert the cotter pin through the connection

collar and secure the down rod in place with the

cotter key and washer (avoid pinching wires).

e) Slide on canopy cover and refit the ball joint.

If an extension rod needs to be installed,

please go to page 12.

Hanger

Bracket

Down Rod

Fig. 3

Fig. 2

Timber Nogging

Hex Head Screw

Hanger

Bracket

Fig. 1

Hanger

Bracket

Screw

Washer

Canopy Cover

Reversing

Switch Cap

Down Rod

Connection Collar

Cotter Pin

Key

Electrician Installation Manual

Typhoon Ceiling Fan

1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not

approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The

use of unapproved controllers will void your warranty.

2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If

only one blade is damaged you are still required to replace with a new set.

Assembling the fan

Fig. 4

Green

Earth Wires

STEP 4 (Fig 4 & 5)

a) Connect wires from the fan with wires in

the ceiling via the terminal block on the

hanger bracket refer to figure 4 and 5.

b) Make sure earth wires are also connected.

c) Connect light wires (red/white) if a light

fitting is going to be used. (Cap seal light

wires if a light fitting is not going to be used).

Wiring Instructions (with and without accessory light)

Brown

Blue

Red/White Earth Wires

Supply

E N A

LA LA

FA LA E N

Green-yellow

Black

Red

Brown

White or Red

Green-yellow

Blue

Fan Wiring

Combi

Control Separate

Control

Separate terminal

For when 3 pole

block is fitted.

Wiring for use with 3 pole block

- Colours representative only

- Separate terminal required for active

for light when 3 pole block fitted.

Fig. 5

Electrician Installation Manual

Typhoon Ceiling Fan

1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not

approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The

use of unapproved controllers will void your warranty.

2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If

only one blade is damaged you are still required to replace with a new set.

Assembling the fan

STEP 5 (Fig 6)

a) Slide canopy cover up and over the hanger

bracket.

b) Twist the canopy to locate screws holes

then loosen canopy screws half way.

c) Now twist the canopy cover in the opposite

direction and fully tighten screws until the

canopy cover is stabilized.

Fig. 6

Fig. 7

Hanger Bracket

Canopy Cover

STEP 6 (Fig 7) - For Typhoon Metal Fan Only

a) Attach blades to the motor housing using the

2 screws provided.

b) Repeat this procedure for the other 3 blades.

Motor Housing

Canopy Screw

Blade Screw

Blade

STEP 7 (Fig 9)

a) The reverse switch should be fully pushed to

the bottom for Summer (fan spins anticlock-

wise) and pushed fully to the up for Winter (fan

spins clockwise).

c) Make the sure reverse switch is not stuck in

its neutral position otherwise the fan will not

spin.

Fig. 9

Ball

Joint

Reversing Switch

Typhoon Metal

Motor Housing

Blade

Fig. 8

Typhoon Timber & Moulded

STEP 6 (Fig 8)- For Typhoon Timber &

Moulded Fans

a) Attach blades to blade holders.

b) Attach blades with blade holders to the motor

housing using the 2 screws provided.

c) Repeat this procedure for the other 3 blades.

Blade Screw

Electrician Installation Manual

Typhoon Ceiling Fan

1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not

approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The

use of unapproved controllers will void your warranty.

2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If

only one blade is damaged you are still required to replace with a new set.

Attaching an accessory light kit — 78mm halogen light (MAX 100W)

STEP 3 (Fig. 12)

a) Connect fan wires to light wires using crimp

style connectors.

b) Turn the light kit inner housing to lock it to

the light kit outer housing

c) Tighten screws provided to securely attach

the light kit inner housing.

STEP 1 (Fig. 10)

a) Unscrew base plate to remove from the motor

housing.

STEP 2 (Fig. 11)

a) Once the base plate is removed use pliers to

gently pull the two light wires out from the motor

housing.

b) Feed the fan wires through the thread adap-

tor.

c) Tightening the thread adaptor to secure the

outer light kit housing onto the motor housing.

Fig. 12

Fig. 11

Motor

Housing

Fan Wires

Thread

Light Kit outer

Housing

Fig. 10

Motor

Housing

Base Plate

Fan Wires

Wire

Connectors

Motor

Housing

Light Wires

Light Kit Inner

Housing

Screw

Fig. 13

Glass Cover

Halogen Globe

Groove

Motor

Housing

STEP 4 (Fig. 13)

a) Insert globe into the globe holder. Do not

touch globe with fingers, use a tissue.

b) Attach glass cover to the light kit, do not

over tighten as this can make the glass cover

difficult to remove in the future.

Electrician Installation Manual

Typhoon Ceiling Fan

1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not

approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The

use of unapproved controllers will void your warranty.

2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If

only one blade is damaged you are still required to replace with a new set.

Attaching an accessory light kit — E27 light (MAX 2x40W)

STEP 3 (Fig. 16)

a) Connect fan wires to light wires using crimp

style connectors.

b) Turn the light kit inner housing to lock it to

the light kit outer housing

c) Tighten screws provided to securely attach

the light kit inner housing.

STEP 1 (Fig. 14)

a) Unscrew base plate to remove from the motor

housing.

Fig. 16

Fig. 15

Motor

Housing

Fan Wires

Thread

Light Kit outer

Housing

Fig. 14

Motor

Housing

Base Plate

Fan Wires

Wire

Connec-

Motor

Housing

Light Wires

Light Kit Inner

Housing

Screw

Fig. 17

Glass Cover

Lamp holder

Groove

Motor

Housing

STEP 4 (Fig. 17)

a) Install light globes into the light socket.

b) Attach glass cover to the light kit, do not

over tighten as this can make the glass cover

difficult to remove in the future.

STEP 2 (Fig. 15)

a) Once the base plate is removed use pliers to

gently pull the two light wires out from the motor

housing.

b) Feed the fan wires through the thread adap-

tor.

c) Tightening the thread adaptor to secure the

outer light kit housing onto the motor housing.

Inhaltsverzeichnis

Andere Hunter Pacific Lüfter Handbücher

Hunter Pacific

Hunter Pacific VortX V500i Installationsanleitung

Hunter Pacific

Hunter Pacific Majestic Coolah Bedienungsanleitung

Hunter Pacific

Hunter Pacific Majestic Duo Bedienungsanleitung

Hunter Pacific

Hunter Pacific Icon 52 Bedienungsanleitung

Hunter Pacific

Hunter Pacific Attitude Bedienungsanleitung

Hunter Pacific

Hunter Pacific Majestic Everglade Bedienungsanleitung

Hunter Pacific

Hunter Pacific Aurora Alternatives 2 Bedienungsanleitung

Hunter Pacific

Hunter Pacific Typhoon Mach 2 Timber Bedienungsanleitung

Hunter Pacific

Hunter Pacific POLAR DC P3B2571 Bedienungsanleitung

Hunter Pacific

Hunter Pacific Majestic Penta Bedienungsanleitung

Hunter Pacific

Hunter Pacific Majestic Madagascar Bedienungsanleitung

Hunter Pacific

Hunter Pacific Intercept II Bedienungsanleitung

Hunter Pacific

Hunter Pacific Concept Kurzanleitung

Hunter Pacific

Hunter Pacific Majestic Palm Bedienungsanleitung

Hunter Pacific

Hunter Pacific Majestic Little Bay Bedienungsanleitung

Hunter Pacific

Hunter Pacific RADICAL 2 Bedienungsanleitung

Hunter Pacific

Hunter Pacific X-OVER DC Bedienungsanleitung

Hunter Pacific

Hunter Pacific Majestic Rosewood Bedienungsanleitung

Hunter Pacific

Hunter Pacific Icon Fan Bedienungsanleitung

Hunter Pacific

Hunter Pacific Concept Bedienungsanleitung

Hunter Pacific

Hunter Pacific Typhoon Timber 42" Bedienungsanleitung

Hunter Pacific

Hunter Pacific Majestic Micro Bedienungsanleitung

Hunter Pacific

Hunter Pacific AQUA DC AIP2661 Bedienungsanleitung

Hunter Pacific

Hunter Pacific Majestic Magnum Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
