Safety instructions
The motor may only be operated after reading these safety instructions, failing to do so might cause serious harm.
• Do not operate a blind which in any way is damaged
• Charging of battery operated blinds, only with suitable chargers
• only operate the blind within the prescribed environmental situation
• the motor may only be used in combination with the recommended and suitable power source, originally supplied
with the blind.
• A remote control is considered NOT to be a children's toy
• window decoration motors should be replaced when the rated cycle limitation is reached
Never drop the
motor!
Never drill into
the motor!
Do not immerse
into liquid!
Avoid
collisions!
MANUAL
Page 1 of 20 version: 1.1
PowerView® EOS Bottom-Up blind
The PowerView® M25S single shaft motor is suited to be used with EOS Plissé and Duette® blind hardware from
HunterDouglas.
1. Delivery condition
As standard, no remote control or hub is connected to the motor. No limits are set. Motor is default set to
Venetian
blind motor type. If the motor condition is unknown, perform the following steps.
1.1. Check motor type
The motor can be programmed for
freehanging blinds:
•Freehanging Plissé
•Freehanging Duette®
The motor can be programmed for
tensioned blinds:
•Tensioned Plissé
•Tensioned Duette®
By reading out the LED sequence after power up, the motor type can be seen.
Plissé Duette®
IMPORTANT
The motor type (default set to
Venetian blind
), has to be changed to
Plissé or Duette®
type. Use the
PowerView®
Programmer
software tool to change.
IMPORTANT
It is important to assign the correct motor type:
•
The behaviour of the blind is slightly different with each motor type
•
Correct recognition in the PowerView® App depends on the motor type
MANUAL
Page 2 of 20 version: 1.1
1.2. End limits reset (factory default)
This procedure will erase all limits stored in the volatile motor memory. It will not clear the Network ID and Group
assignments. Completing an End limits reset will prevent a PowerView® remote or App from operating a window covering
until it is reprogrammed.
1.1.1 Power up the motor by connecting the power cable to
the battery wand or power supply.
1.1.2 Immediately Check the motor button LED sequence
after start up.
1.1.3 The LED sequence should read:
Freehanging Plissé type
Freehanging Duette® type
Tensioned Plissé type
Tensioned Duette® type
MANUAL
Page 3 of 20 version: 1.1
Note
This procedure can be skipped for a fresh out of the box motor.
The motor will jog 2x when receiving any PowerView® command (e.g. Pressing the manual control button on the motor),
to conrm no limits are set.
1.2.1 Remove power from the motor by disconnecting the
power cable from the battery wand or power supply
and wait for 20 seconds.
1.2.2 Press and hold the manual control button on the
motor.
1.2.3 Reconnect power to the motor while press and hold
the manual control button .
The motor LED turns red/green
MANUAL
Page 4 of 20 version: 1.1

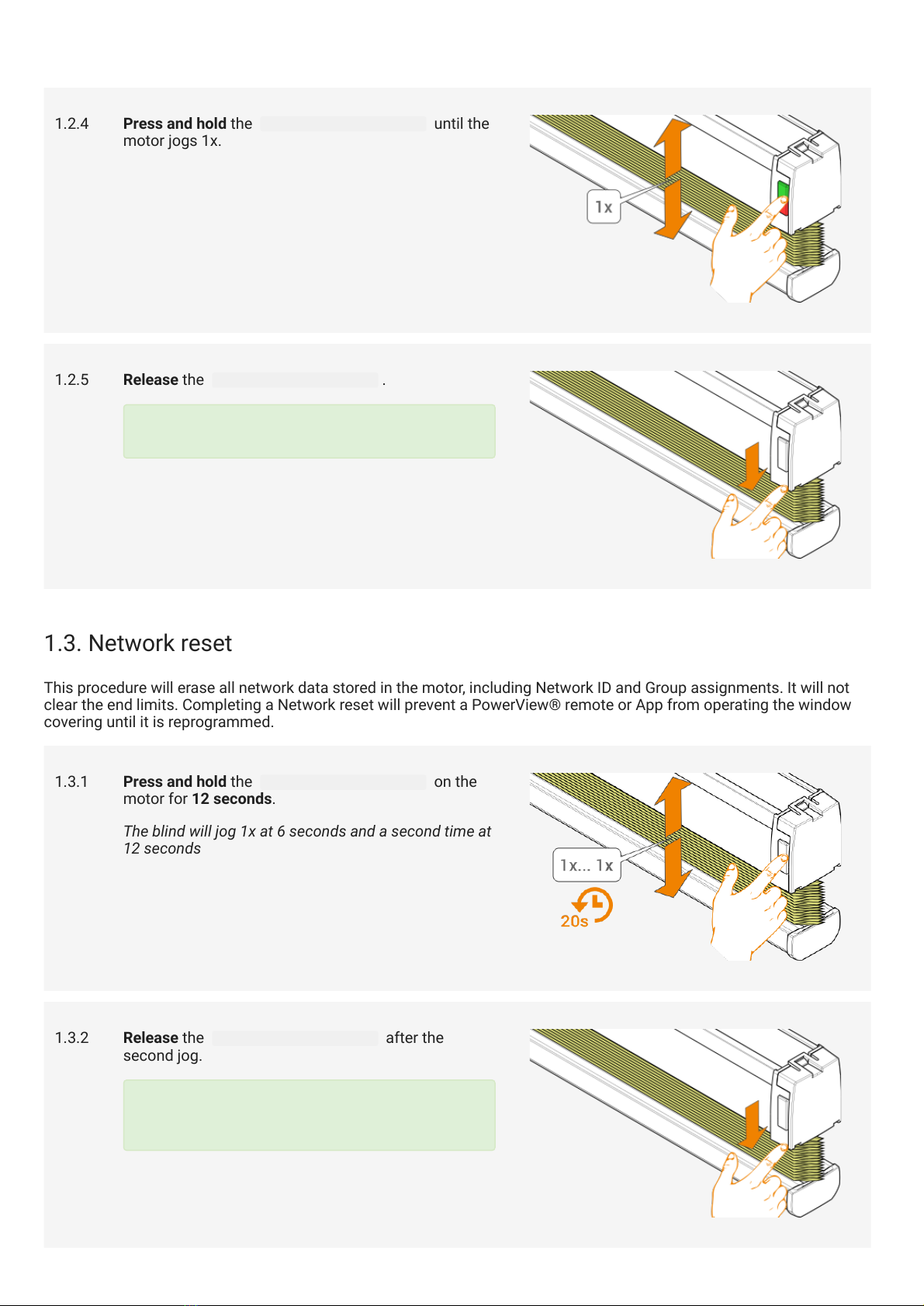

1.3. Network reset
This procedure will erase all network data stored in the motor, including Network ID and Group assignments. It will not
clear the end limits. Completing a Network reset will prevent a PowerView® remote or App from operating the window
covering until it is reprogrammed.
1.2.4 Press and hold the manual control button until the
motor jogs 1x.
1.2.5 Release the manual control button .
The end limits have been cleared.
1.3.1 Press and hold the manual control button on the
motor for 12 seconds.
The blind will jog 1x at 6 seconds and a second time at
12 seconds
1.3.2 Release the manual control button after the
second jog.
The Network ID and Group assignments have
been cleared.
MANUAL
Page 5 of 20 version: 1.1
2. Pairing a remote
A PowerView® remote can control up to 6 individual groups of blinds (buttons 1 to 6 at the top of the remote). The
instructions below assign a blind to group 1.
2.1 Locate the manual control button on your blind.
2.2 Press and hold the stop button for 6 seconds.
Keep pressing until the remote lights start blinking
2.3 Press the group1 button.
IMPORTANT
Watch out to perform steps 2.4 and 2.5 within 3 seconds!
MANUAL
Page 6 of 20 version: 1.1
2.4 Press and hold the manual control button .
2.5 Press the open button.
The blind will jog 1x
2.6 Release the manual control button .
2.7 Press and hold the stop button for 6 seconds.
Keep pressing until the remote lights stop blinking
The remote will exit programming mode
automatically after 20 seconds.
MANUAL
Page 7 of 20 version: 1.1
3. Checking motor direction
3.1. Put motor in program mode
IMPORTANT
Reversing motor direction is only possible with a fresh out of the box motor (no limits set) or when the end limits are
reset.
Before any limits are programmed, the motor direction has to be checked and reversed if needed.
If the top or bottom limit is already set, and the motor direction has to be reversed, perform a
reset
before continuing.
IMPORTANT
Watch out to perform steps 3.1.1 and 3.1.2 within 3 seconds!
3.1.1 Press and hold the manual control button .
3.1.2 Press the open button.
The blind will jog 1x
Make sure group1 on the remote is selected.
MANUAL
Page 8 of 20 version: 1.1
3.2. Check and conrm
3.1.3 Release the manual control button .
The motor LED turns red to acknowledge the motor is
in program mode
3.2.1 Press the arrow down button to check motor
direction.
3.2.2.AIf the blind moves upwards, Press the
stop button.
Motor direction NOT OK!
3.2.2.BIf the blind moves downwards, Press the
stop button and continue with step 4.1.4
Motor direction OK!
MANUAL
Page 9 of 20 version: 1.1
4. Setting end limits
It doesn’t matter if you start with setting the open or the close limit rst. In this description we start with the open (top)
limit.
4.1. Open limit (top)
3.2.3 Press and hold the manual control button for 1
second to reverse motor direction.
The blind will jog 1x to acknowledge the direction is
reversed
3.2.4 Continue with step 4.1.4
4.1.1 Press and hold the manual control button .
4.1.2 Press the open button.
The blind will jog 1x
Make sure group1 on the remote is selected.
MANUAL
Page 10 of 20 version: 1.1
