HunterDouglas VS 100 Guide rail Wartungs- und Serviceanleitung

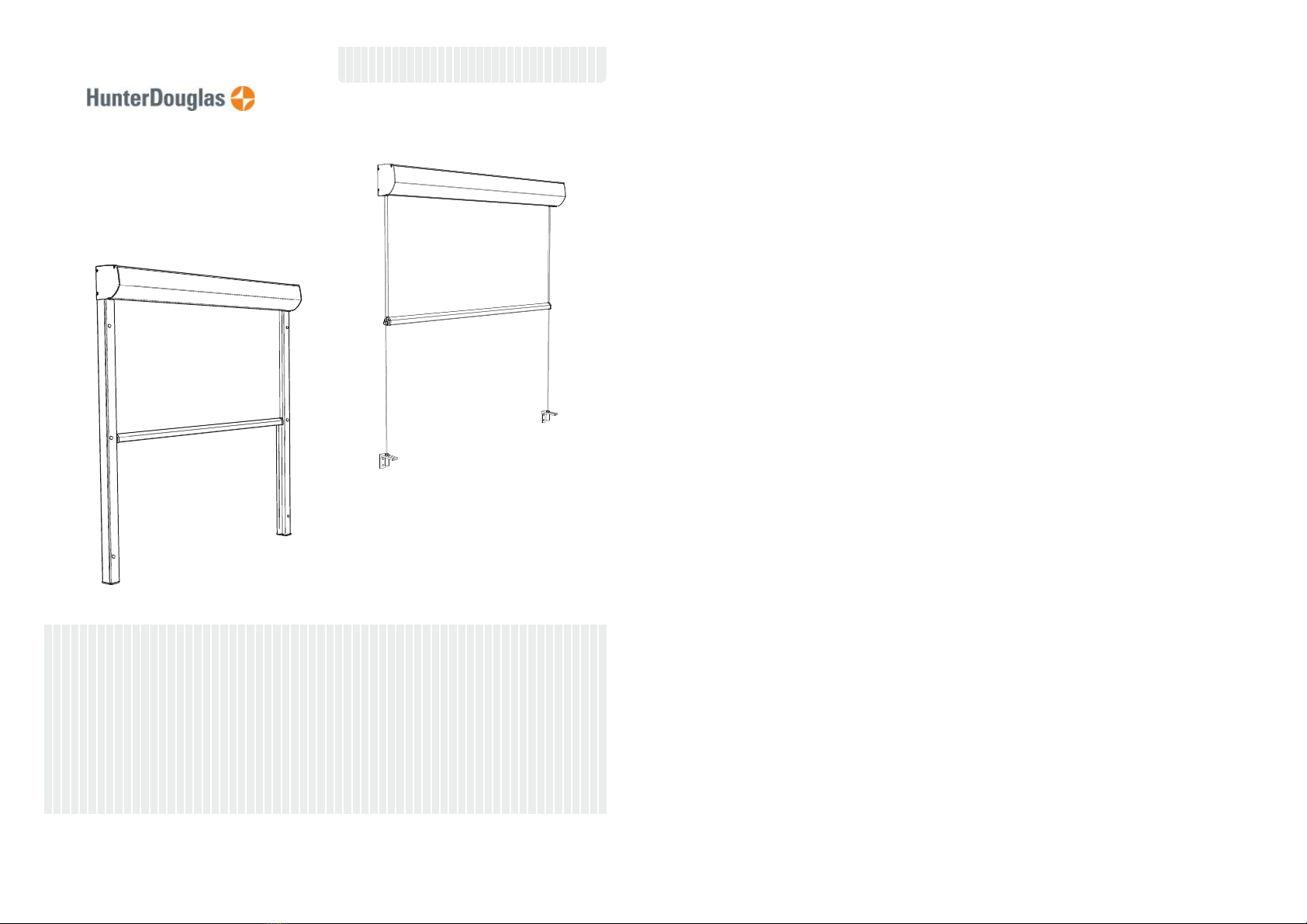

VS 100 Guide rail

VS 100 Wire

INSTALLATION - MAINTENANCE

Screen

VS 100

Installation - Maintenance

Screen

VS 100

Installation - Maintenance

VS 100 Guide rail - installing wall brackets and cassette

Use the drilled holes in the guide railsto

mark the hole positions on themoun-

ting surface (wall A or niche B) and drill,

if necessary, to correct diameter.

Screw the guide rails to the surface with

suitable screws and check so that the

proles are vertical, parallel and on the

same level.

Before continuing, check that the rails

are installed with the same c-c as the

legs of the cassette gables. Adjust if

needed.

• Ensure that the awning is  xed to a su ciently secure base. If needed - contact the façade- or

window supplier for speci c information.

• Check that the screen  ts where supposed to be installed.

• Opening windows and doors may limit the possibility for installing screens.

• The motor and any control equipment must be installed by an authorised electrician.

Lift the cassette on top of the guide

rails, make sure not to damage the

motor cable.

Carefully assemble the legs of the cas-

sette gables into the guide rails, make

sure the cassette gables rest on the

guide rails and are levelled.

Wall

Niche

Left guide rail,

top view

Drill a hole through the wall/window as

illustration to the right.

VS 100 Guide rail - interior tape operation

Pull the tape through the drilled hole

- assemble the cassette as described

Pull the tape through the tape lock and

the tassel

Screw the tape lock to the wall straight

outside the hole - make sure the tape

runs freely through the tape lock when

operating.

Finish the installation by carefully lower

the front prole to the desired end posi-

tion - move the tassel to the top and

make a knot directly under the tassel.

Remove any extra tape.

Operate the screen up and down a few

times to make sure it operates smoothly

- adjust if needed.

Screen

VS 100

Installation - Maintenance

Screen

VS 100

Installation - Maintenance

VS 100 Guide rail - installing cassette support (optional)

Screw the cassette support (optional)

to the wall.

Assemble the upper slot on the back

side of the cassette on to the cassette.

x x

Connect the screen to the electricity.

Set the end limits - run the screen up

and down to make sure the screen is

operating properly.

Center the cassette above the window and

mark the left and right sides.

Position the wall brackets 3-4 mm in from

the ends of the cassette - make sure all wall

brackets are levelled.

Screw the wall brackets to the wall/window

- use correct screws for the type of material.

Pre-drill holes if necessary.

The back of the cassette is to be hanged onto

the brackets at an angle - level the cassette

into the brackets and x it with the screws

under each bracket.

VS 100 Wire - Assembling wall brackets and cassette

Screen

VS 100

Installation - Maintenance

Screen

VS 100

Installation - Maintenance

Center the cassette above the window. Mark

the bottom, left and right side.

Install the wall brackets 3-4mm in from each

side of the cassette. Make sure the brackets

are levelled.

Screw the wall brackets to the wall/window

- use correct screws for the type of material.

Pre-drill holes if necessary.

Drill the 14mm hole through the wall/win-

dow as described.

VS 100 Wire -Interior tape operation

Roll down the fabric to the desired bottom

position - assemble the tensioning brackets

to the wall/window at the desired position.

(The brackets are to be installed 16 mm in

from each side of the cassette.)

Assemble the wire tensioners and thread

the wire through the centre holes. Screw the

locking ring to the wire - slide the wire ten-

sioners into the tensioning brackets - x the

tensioners to the tensioning brackets.

Make sure the wire is pre-tensioned.

VS 100 Wire - Assembling the tensioning brackets

Connect the screen to the electricity.

Set the end limits - run the screen up

and down to make sure the screen is

operating properly

Screen

VS 100

Installation - Maintenance

Screen

VS 100

Installation - Maintenance

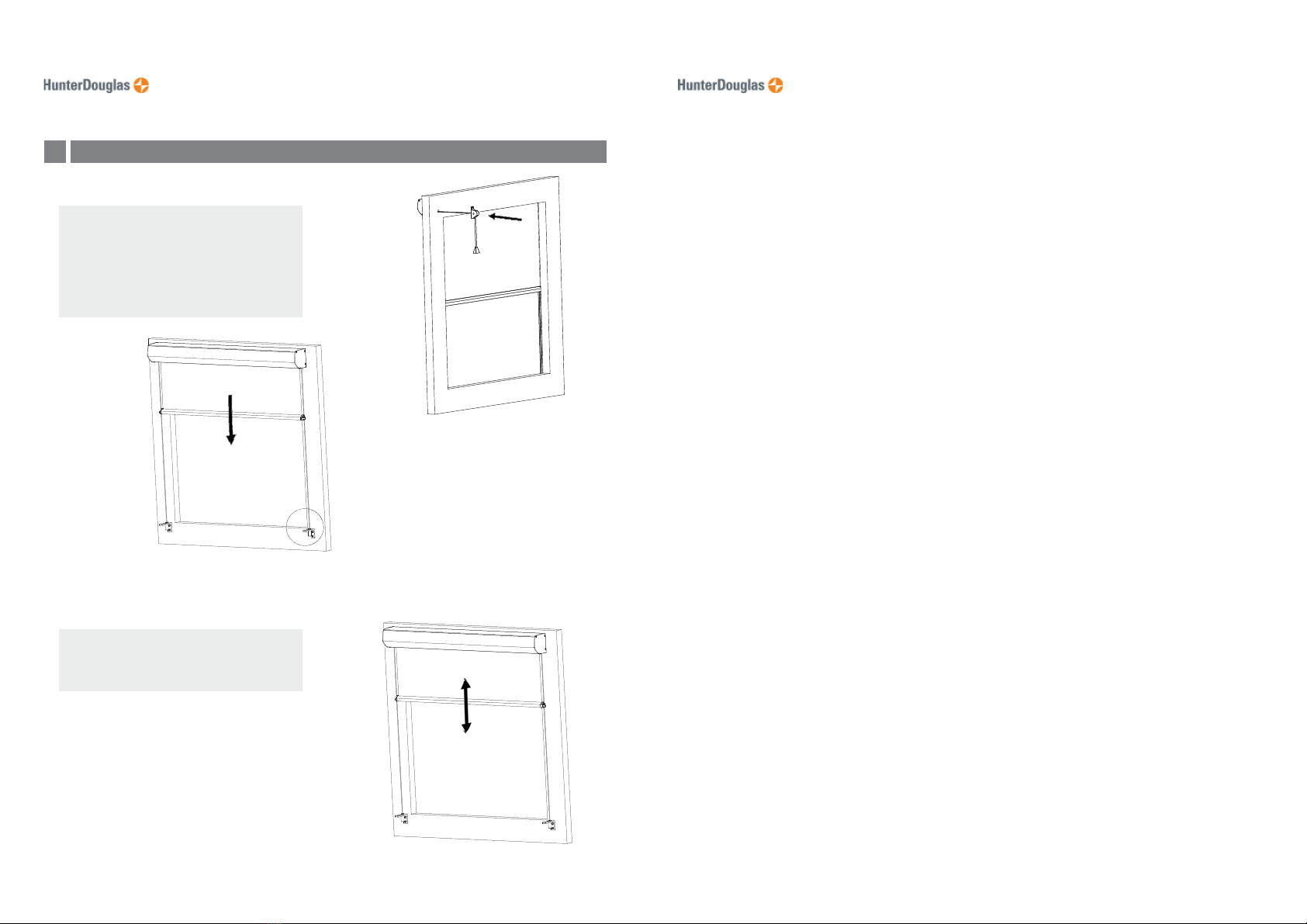

VS 100 Wire - Interior tape operation

Finish the installation by carefully lower

the front prole to the desired end posi-

tion - move the tassel to the top and

make a knot directly under the tassel.

Remove any extra tape.

Operate the screen up and down a few

times to make sure it operates smoothly

- adjust if needed.

Screen

VS 100

Installation - Maintenance

www.hunterdouglas.se Hunter Douglas • Alingsås • Sweden

Tel: +46-322 775 00 • E-mail: [email protected]

® Registered Trademark of Hunter Douglas Scandinavia, Sweden

The original document may not be altered in text or version without the

consent of Hunter Douglas Scandinavia

Maintenance

Maintenance:

The frame and the fabric are subjected to dirt and pollution and should be cleaned at least once

a year in order to retain their high  nish. This is particularly important in more exposed installa-

tions, e.g. environments near the sea. Use a soft cloth, tepid water and a mild cleaner. Do not use

a high-pressure washer as it can damage the awning fabric and any electrical equipment, etc. For

a detailed description of cleaning the fabric, please refer to its usage instructions.

Changing the awning fabric:

Before changing the awning fabric it is recommended to contact the company from which the

awning was purchased to arrange an inspection of the frame. This company can provide more

information about changing the fabric and also provides advice in case some other components

may need to be replaced in order for the awning to maintain its  nish and function.

Warning!

Always allow a professional to perform work that requires the cassette to be opened. The cassette

needs to be opened when replacing the motor and/or fabric. When the cassette is opened, other

parts can be damaged or out of position, and moving parts become accessible.

Any work with the motor requires proper authorization. This should therefore always be carried

out by a professional.
