PowerView® Vertical Blind

The PowerView® VVB motor is suited to be used with Vertical blind hardware from HunterDouglas.

1. Delivery condition

As standard, no remote control or hub is connected to the motor. No limits are set. Motor is default set to a

Left stack

Vertical blind

motor type. If the motor condition is unknown, perform the following steps.

1.1. Check motor type

The motor can be programmed as a

•Left stack Vertical blind (default)

•Right stack Vertical blind

•Split stack Vertical blind

By reading out the LED sequence after power up, the motor type can be seen.

Vertical Venetian blind

IMPORTANT

The motor type (default set to

Left stack Vertical blind

), might be changed to a

Right stack Vertical blind

Split stack Vertical blind

type, depending on your wishes.

Use the

PowerView® Programmer

software tool to change.



Note

The PowerView® Vertical blind motor can only be installed to the back of the headrail and

not

on top!



MANUAL

Page 1 of 24 version: 1.1

Left stack Right stack Split stack

1.1.1 Power up the motor by connecting the power cable to

the battery wand or power supply.

1.1.2 Immediately Check the motor button LED sequence

after start up.

The LED sequence should read:

Left stack blind

type

Right stack blind

type

Split stack blind

type

MANUAL

Page 2 of 24 version: 1.1

1.2. End limits reset (factory default)

This procedure will erase all limits stored in the volatile motor memory. It will not clear the Network ID and Group

assignments. Completing an End limits reset will prevent a PowerView® remote or App from operating a window covering

until it is reprogrammed.

Note

This procedure can be skipped for a fresh out of the box motor.

The motor will jog 2x when receiving any PowerView® command (e.g. Pressing the manual control button on the motor),

to conrm no limits are set.



1.2.1 Remove power from the motor by disconnecting the

power cable from the battery wand or power supply

and wait for 20 seconds.

1.2.2 Press and hold the manual control button on the

motor.

1.2.3 Reconnect power to the motor while press and hold

the manual control button .

The motor LED turns red/green

MANUAL

Page 3 of 24 version: 1.1

1.3. Network reset

This procedure will erase all network data stored in the motor, including Network ID and Group assignments. It will not

clear the end limits. Completing a Network reset will prevent a PowerView® remote or App from operating the window

covering until it is reprogrammed.

1.2.4 Press and hold the manual control button until the

motor jogs 1x.

1.2.5 Release the manual control button .

The end limits have been cleared.

1.3.1 Press and hold the manual control button on the

motor for 12 seconds.

The blind will jog 1x at 6 seconds and a

second time at 12 seconds

MANUAL

Page 4 of 24 version: 1.1

2. Pairing a remote

A PowerView® remote can control up to 6 individual groups of blinds (buttons 1 to 6 at the top of the remote). The

instructions below assign a blind to group 1.

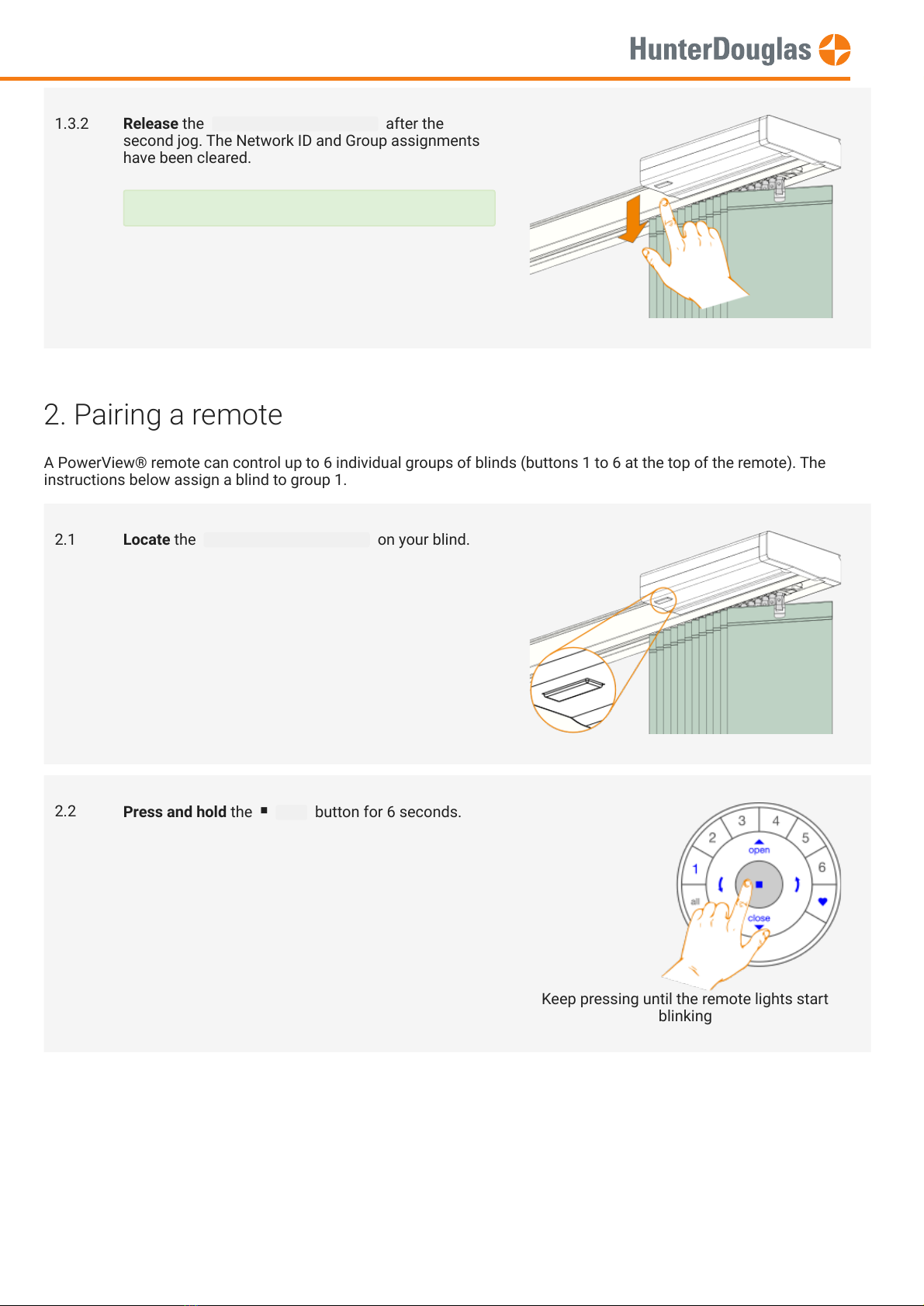

1.3.2 Release the manual control button after the

second jog. The Network ID and Group assignments

have been cleared.

The Network ID and Group assignments have been

cleared.

2.1 Locate the manual control button on your blind.

2.2 Press and hold the stop button for 6 seconds.

Keep pressing until the remote lights start

blinking

MANUAL

Page 5 of 24 version: 1.1

2.3 Press the group1 button.

IMPORTANT

Watch out to perform steps 2.4 and 2.5 within 3 seconds!



2.4 Press and hold the manual control button .

2.5 Press the open button.

The blind will jog 1x

2.6 Release the manual control button .

MANUAL

Page 6 of 24 version: 1.1

3. Checking motor direction

3.1. Put motor in program mode

2.7 Press and hold the stop button for 6 seconds.

The remote will exit programming mode

automatically after 20 seconds.

Keep pressing until the remote lights stop

blinking

IMPORTANT

Reversing motor direction is only possible with a fresh out of the box motor (no limits set) or when the end limits are

reset.

Before any limits are programmed, the motor direction has to be checked and reversed if needed.

If the open or close limit is already set, and the motor direction has to be reversed, perform a

reset

before continuing.



IMPORTANT

Watch out to perform steps 3.1.1 and 3.1.2 within 3 seconds!



3.1.1 Press and hold the manual control button .

MANUAL

Page 7 of 24 version: 1.1

3.2. Check and conrm

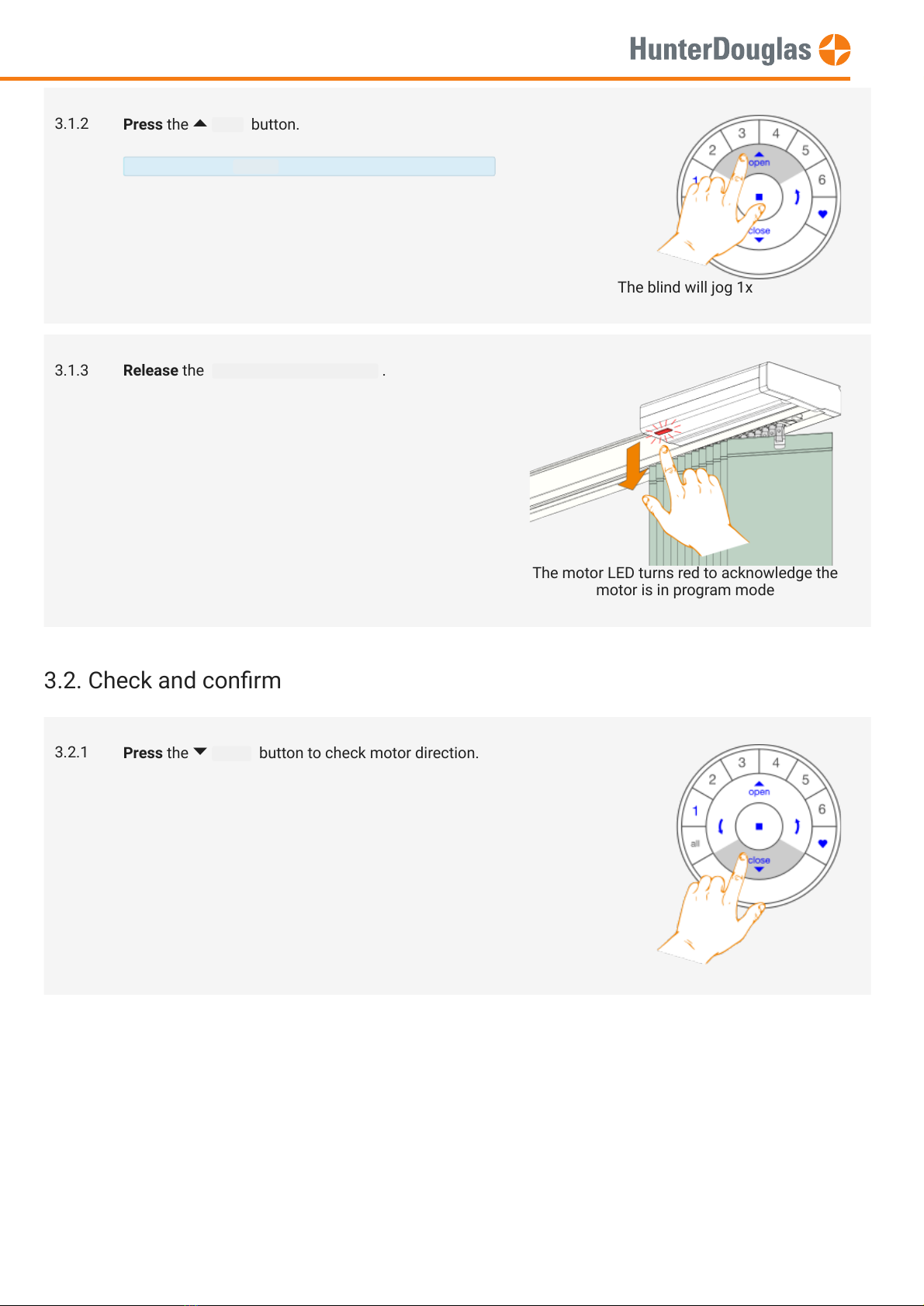

3.1.2 Press the open button.

Make sure



group1

on the remote is selected.

The blind will jog 1x

3.1.3 Release the manual control button .

The motor LED turns red to acknowledge the

motor is in program mode

3.2.1 Press the close button to check motor direction.

MANUAL

Page 8 of 24 version: 1.1

4. Setting end limits

It doesn’t matter if you start with setting the open or close limit rst. In this description we start with the open limit.

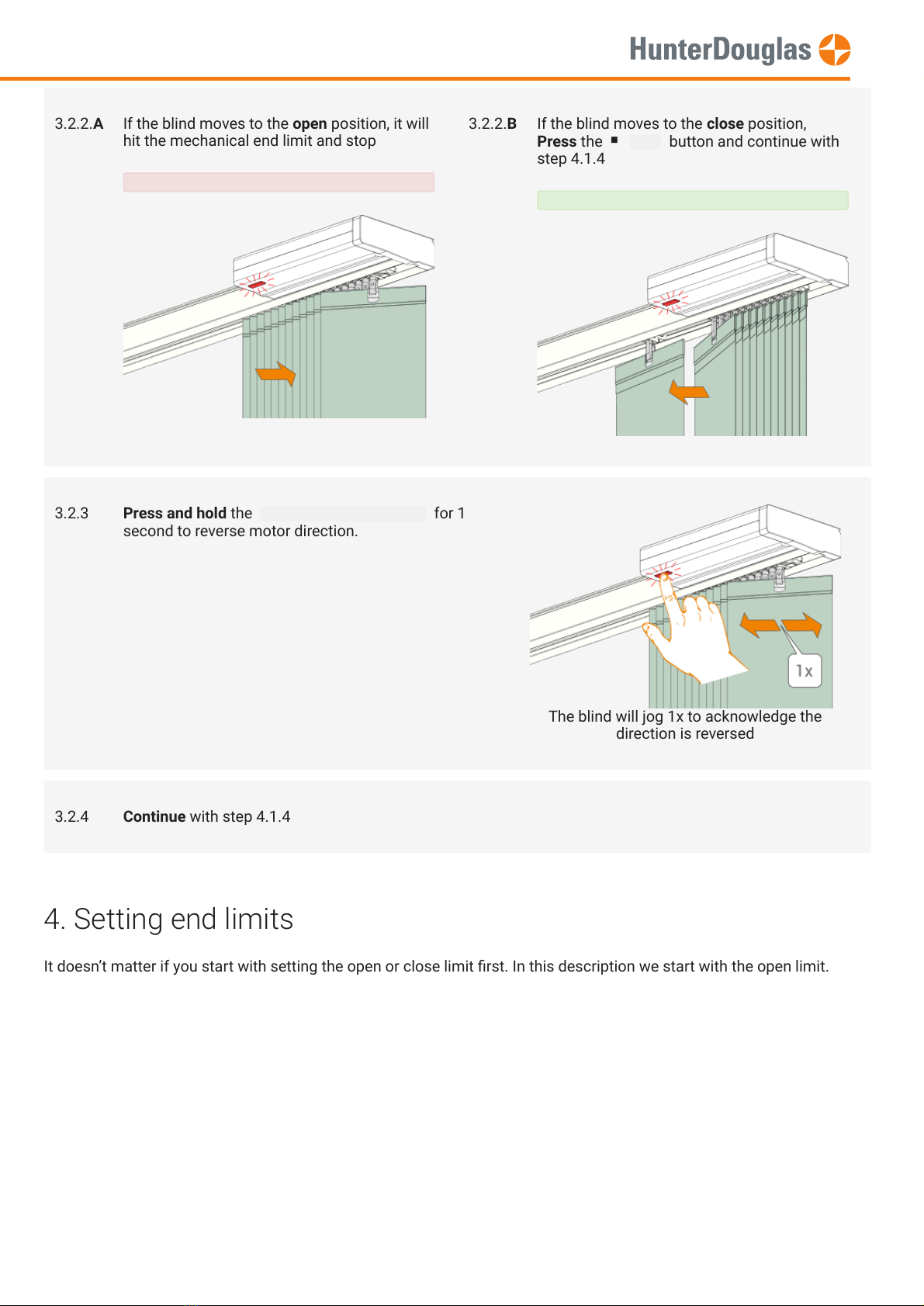

3.2.2.AIf the blind moves to the open position, it will

hit the mechanical end limit and stop

Motor direction NOT OK!

3.2.2.BIf the blind moves to the close position,

Press the stop button and continue with

step 4.1.4

Motor direction OK!

3.2.3 Press and hold the manual control button for 1

second to reverse motor direction.

The blind will jog 1x to acknowledge the

direction is reversed

3.2.4 Continue with step 4.1.4

MANUAL

Page 9 of 24 version: 1.1

4.1. Open limit

4.1.1 Press and hold the manual control button .

4.1.2 Press the open button.

Make sure



group1

on the remote is selected.

The blind will jog 1x

4.1.3 Release the manual control button .

The motor LED turns red to acknowledge the

motor is in program mode

4.1.4 Use the open , stop and close buttons to

move the blind about 20cm away from the stack

position.

MANUAL

Page 10 of 24 version: 1.1
