THANK YOU

USE AND CARE GUIDE

HUSKY 33 IN. 4-DRAWER MECHANICS TOOL CART

Questions, problems, missing parts?

Before returning to the store, call

Husky Customer Service

HUSKYTOOLS.COM

We appreciate the trust and confidence you have placed in Husky through the purchase of this cart. We strive to continually

create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Husky!

Model#HOUC3304JX1

1-888-HD-HUSKY

8 a.m. - 7 p.m., EST, Monday-Friday,

9 a.m. - 6 p.m., EST, Saturday

THD.com#1005 877 477

Table of Contents

Table of Contents.....................................................................2

Safety Information...................................................................2

Warranty.......................................................................................3

Pre-Assembly............................................................................4

Assembly............................................................................6

Operation...........................................................................8

Maintenance.....................................................................9

Safety Information

DANGER: Do not stand on this product. You may

fall or cause the product to tip.

DANGER: Do not move the product prior to closing

and locking all the drawers. The drawers could come

open and make the product unstable and tip.

DANGER: Do not mount this product on a truck

bed or any other moving object.

WARNING:

CAUTION: Do not lift this product directly with a

forklift or tow with any mechanical devices.

CAUTION: Do not exceed the maximum product

weight, including contents. Do not exceed the

maximum weight for each drawer.

See Specifications on page 4.

CAUTION: Only transport this product when empty.

Properly secure when transporting.

Care and Cleaning..........................................................9

Service Parts....................................................................10

Tools Required...........................................................................4

Hardware Included....................................................................4

Specifications............................................................................4

Package Contents......................................................................5

DANGER:

Do not open more than one drawer at a time.

CAUTION:

Do not let children approach the tool cart.

Keep the locking caster brakes set unless

you are moving the cart. This will help to prevent the

product from rolling.

DANGER:

Do not pull the tool cart, push it when moving.

CAUTION:Do not alter this product in any manner as it

DANGER:Do not step in the tray.

will void the warranty.

WARNING:Keep the product on a level surface

The product may become unstable and tip if

stored or moved on an uneven surface.

CAUTION: Do not use the side handle as a

point of leverage to lift the unit off of the ground.

Handle is not intended to withstand the force of

vertical lifting, and is only designed to aid in the

movement of unit around on casters. Failure to

adhere to this warning may cause handle to

break and cause personal injury and/or product

damage.

Warranty

The manufacturer warrants the product to be free from defects in materials and workmanship for a period of three (3) years from date of

purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is

found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the

manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications, alteration

neglect or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set-up, or used in

any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product

as a result of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to faulty material or

workmanship. This warranty shall not apply to the finish on any portion of the products such as surface and/or weathering, as this is

considered normal wear and tear.

The manufacturer does not warrant and specifically disclaims any warranty, whether express or implied, of fitness for a particular purpose,

other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential

or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.

Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com.

HUSKYTOOLS.COM

Pleas e contact 1-888-HD-HUSK Y fo r furthe r assistanc.e

Pre-Assembly

TOOLS REQUIRED

Phillips

screwdriver

Safety

goggles

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Part Description Quantity

AA Screw M6x15L 36

SPECIFICATIONS

Maximum capacity (per drawer) 75 lbs.

NOTE: Begin product assembly close to the final

intended location of your tool cart. This product is

heavy and may be difficult to move after assembly.

Bottom tray 250 lbs.

Maximum loading capacity 672 lbs.

BBAA

Bolt M8x15L

10MM/13MM Wrench

Part Code

L031134F

L031103M815

L3011002

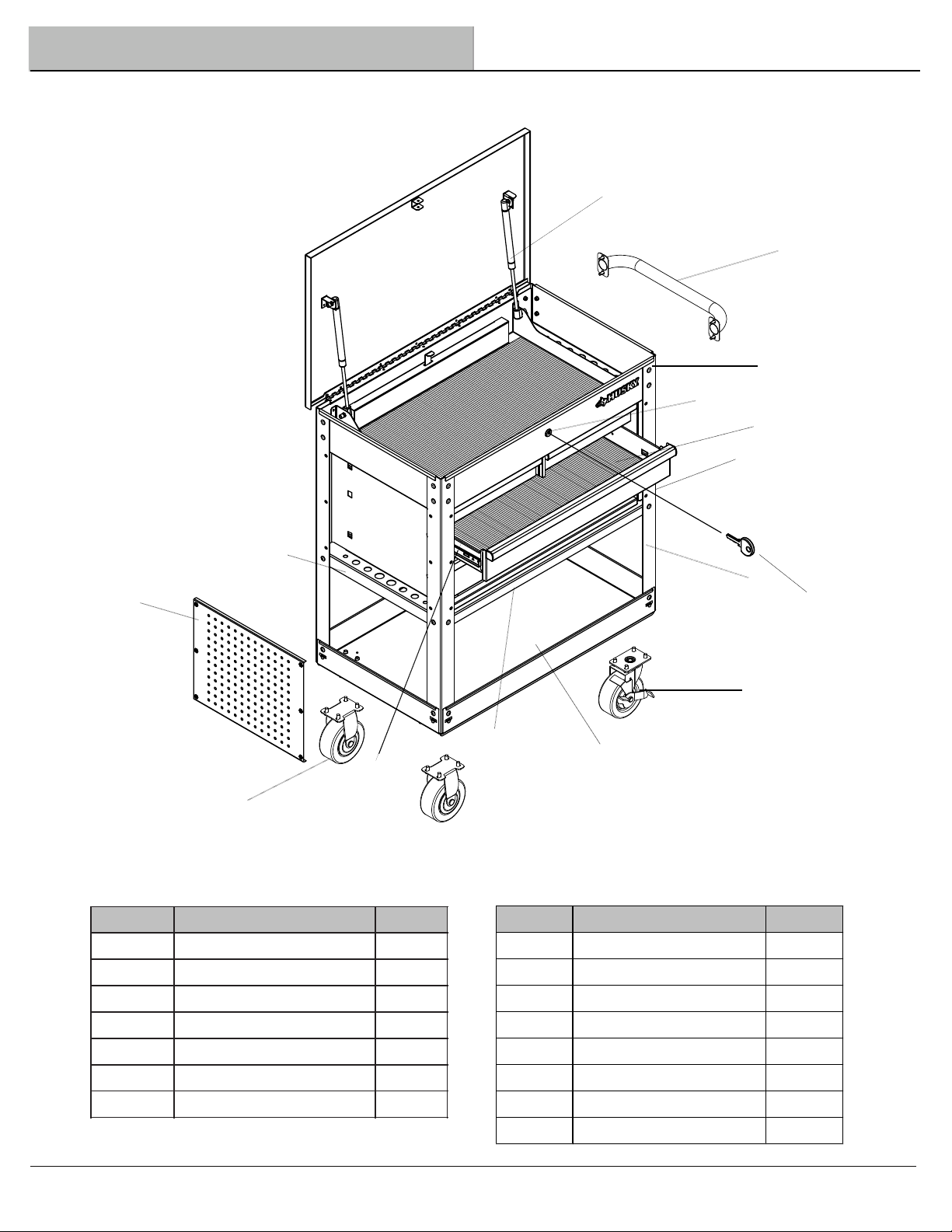

Pre-Assembly (continued)

PACKAGE CONTENTS

HUSKYTOOLS.COM

Part

Description

Quantity

Gas lift

Cabinet

Side handle

Cross support - R

Swivel caster with brake

Legs

Rigid caster

Pleas e contact 1-888-HD-HUSK Y fo r furthe r assistanc.e

Part Description Quantity

H Tray 1

I Lock 1

J Keys (set) 1

K Front rail 1

L Drawer slide (pair) 4

M Pegboard 1

N Cross support - L 1

O Drawer liner 5

Assembly

Installing the casters

□

Mount the two swivel casters with brake (E) to the bottom of

the tray (H) using four bolts (BB) per caster. The swivel casters with

brake (E) should be installed on the same side as the handle (C).

Mount the two rigid casters (G) to the tray (H) using four bolts (BB)

per caster.

Tighten all bolts (BB) with a 13 mm wrench.

Carefully return the tool cart to its upright position.

CAUTION: Do not over tighten the bolts.

Installing the legs

□ Place tray (H) on its side on top of the packaging material while

mounting casters to protect the product`s finish.

□ Mount the four support legs (F) to the tray (H) using two

NOTE: Do not fully tighten bolts yet to allow for some

movement during cabinet installation.

Installing the cross supports

screws (AA) per leg. Finger tighten only.

□ Attach the right cross support (D) as shown using two screws (AA).

□ Attach the front rail (K) to the legs as shown with two screws (AA).

Do not fully tighten screws at this time.

□ Attach the left cross support (N) as shown using two screws (AA).

Do not fully tighten screws at this time.

□ Attach the pegboard (M) to the legs of the cart using six screws (AA).

Do not fully tighten screws at this time.

4 Installing the pegboard

NOTE: The pegboard is designed to attach to either

the left or right side of the tool cart, according to your

preference.

Assembly (continued)

HUSKYTOOLS.COM

7 Attaching the handles

□ Attach the side handle (C) to the tool cart using four

Installing the cabinet

□ Carefully lower the cabinet (B) between the four support legs (F)

until each support leg is properly secured under the top lip of

Attaching the legs

□ Secure the cabinet (B) to the four legs (F) using twelve

the cabinet and the holes are in alignment.

NOTE: The holes in the tool cart are tapped and do not

require nuts.

WARNING:At least two people are needed for this step. screws (AA).

□ Tighten all screws on the cart at this time. Be careful not

to over tighten.

screws (AA). Do not over tighten.

Pleas e contact 1-888-HD-HUSK Y fo r furthe r assistanc.e

8 Installing the drawer liner

□ Place the drawer liners (O) in appropriately sized

drawers to protect the surface.

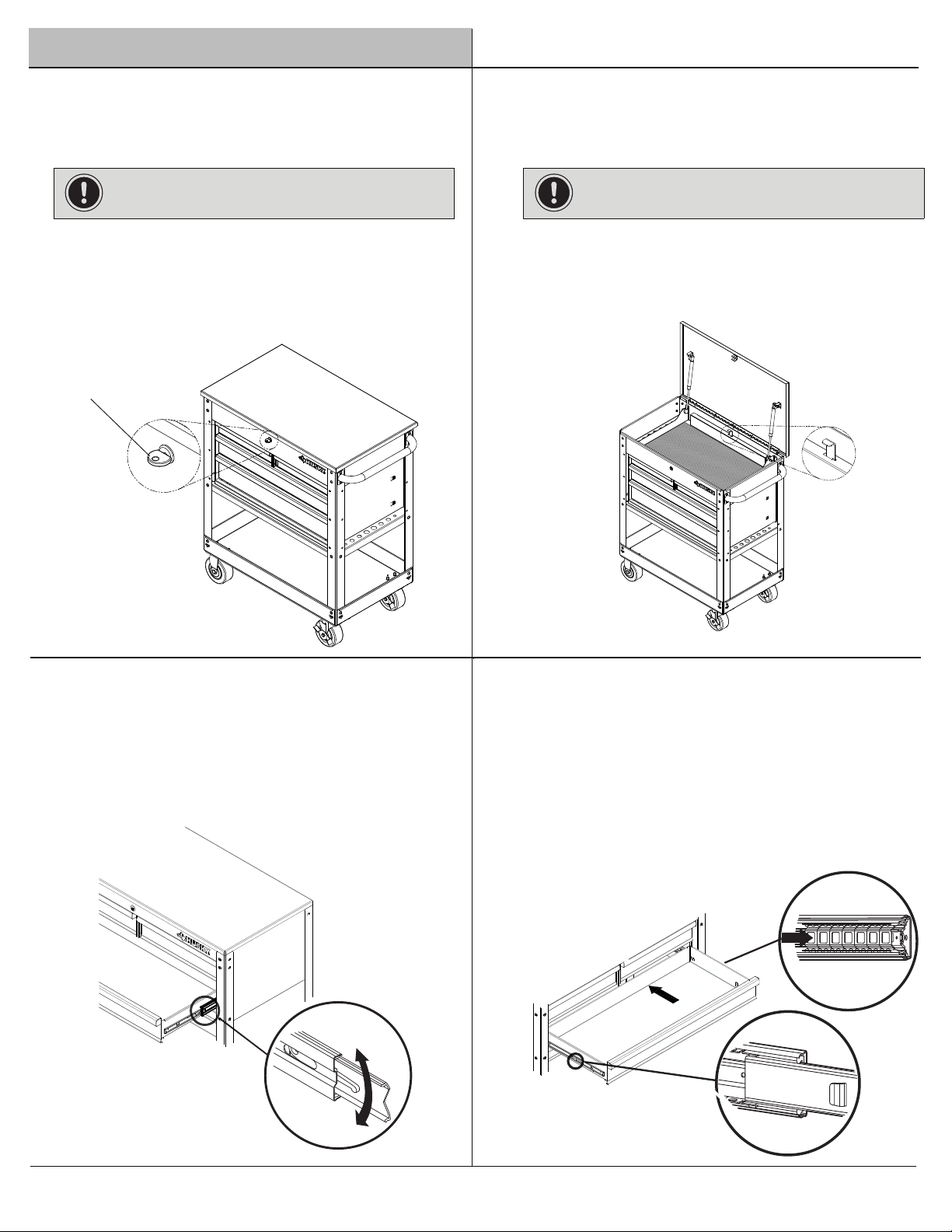

Operation

Installing the drawers

□ Pull the slides and slide carrier out until fully extended.

□ Hold the slide on the cabinet while aligning it with

the slide on the drawer.

□

□ Slowly push the drawer until it is fully closed to

engage the slide.

□ Open the drawer and close it to verify proper

operation.

Slightly insert one side and repeat for the other side.

3Removing the drawers

□ Fully extend and empty the drawer.

□ Depending on the slide, either lift or lower the

release lever on both sides so the slides can ride over

the stops. Pull out to remove.

1 Locking and unlocking the lid

IMPORTANT: The drawers must be fully closed before

The key will only lock the top lid and does

□ Insert the key (J) into the lock and turn one quarter turn

□ Remove the key (J).

□ Insert the key (J) into the lock and turn one quarter turn

□ Remove the key (J).

clockwise to unlock.

counterclockwise to lock.

2 Securing the drawers

IMPORTANT:

□ To lock the drawers: Move the locking lever down and pull on

□ To unlock the drawers: Move the locking lever up and to the

the drawers to ensure all drawers are secured.

right to secure the lever in the open position.

locking / unlocking the unit. not lock the drawers. See step 2 for securing the drawers.

Maintenance

Maintaining the casters 2 Maintaining the drawers

□ Grease the casters annually using high quality

bearing grease.

□ Periodically clean the drawer trim and inside

the drawers with a mild detergent and water.

□ Remove grease and oil with a standard,

nonflammable cleaning fluid.

□ The use of drawer liners is recommended to protect

the finish inside the drawers and make the drawers

easier to clean. Drawer liners can be purchased at

The Home Depot and can be cleaned with soap

□ Lubricate the slides semi-annually with grease or

equivalent.

□

This steel product has been coated with industrial powder coating

Care and Cleaning

□

To help protect the powder coated finish, do not allow harsh

□

Use a glass cleaner (Windex or equivalent product) to clean and

chemicals (oil, grease, or other chemical) to remain on the powder

and water.

for a durable finish.

coating surface.

maintain all surfaces of powder coating.

HUSKYTOOLS.COM

Pleas e contact 1-888-HD-HUSK Y fo r furthe r assistanc.e

Service Parts

Part Item No. Description Quantity

A K0509032 Gas lift 2

C D6TC040012 Side handle 1

E K03220053A Swivel caster with brake 2

G K03220263 Rigid caster 2

I K06120121 Lock 1

J K06120122 Keys (set) 1

L K0203016 Drawer slide (pair) 4

M D090010 Pegboard 1

O D28001 Drawer liner 5

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Husky Werkzeugaufbewahrung Handbücher

Husky

Husky HOEC5210B12M Bedienungsanleitung

Husky

Husky HMT406B Bedienungsanleitung

Husky

Husky HPRO72TLOCKERBLK Bedienungsanleitung

Husky

Husky HOTC6212B11M Bedienungsanleitung

Husky

Husky H72CH9HD Bedienungsanleitung

Husky

Husky G4801S-US Bedienungsanleitung

Husky

Husky HOTC5205JX1M Bedienungsanleitung

Husky

Husky H61MWC10PB Bedienungsanleitung

Husky

Husky HOTC6010BB2M Bedienungsanleitung

Husky

Husky H46MWC9GBXD Bedienungsanleitung

Husky

Husky HOTC5623BL2S Bedienungsanleitung

Husky

Husky H56MWC5GBXD Bedienungsanleitung

Husky

Husky H46X18MWC9RED Bedienungsanleitung

Husky

Husky H52MWC10WHT Bedienungsanleitung

Husky

Husky HOTC5213B1OS Bedienungsanleitung

Husky

Husky HOLT6202B11 Bedienungsanleitung

Husky

Husky H27CH6MS Bedienungsanleitung

Husky

Husky H61CH6TR12 Bedienungsanleitung

Husky

Husky HOTC7218B11MYS Bedienungsanleitung

Husky

Husky HOTC6212B11S Bedienungsanleitung

Husky

Husky UAC-H-26005 Bedienungsanleitung

Husky

Husky HOUC3304B11 Bedienungsanleitung

Husky

Husky H4TR1R Bedienungsanleitung

Husky

Husky HPRO72HUTCHBLK Bedienungsanleitung

Beliebte Werkzeugaufbewahrung Handbücher anderer Marken

Ryobi

Ryobi RWB03 Bedienungsanleitung

Scheppach

Scheppach ts 2100 Bedienungsanleitung

Cornwell Tools

Cornwell Tools CTB360AKBK Bedienungsanleitung

DIVERSIFIED WOODCRAFTS

DIVERSIFIED WOODCRAFTS SHAIN GSB-6024 Bedienungsanleitung

Cassese

Cassese CS200 CART Bedienungsanleitung

Kendall Howard

Kendall Howard ESDW-9630-1000 Bedienungsanleitung

Lista

Lista Align Montageanleitung

Workzone

Workzone 99609 Bedienungsanleitung

Stanley

Stanley STST83800-1 Bedienungsanleitung

Homak

Homak PROFESSIONAL Series Systemhandbuch

Perel

Perel ROLLER SHUTTER STORAGE CABINET Bedienungsanleitung

BGS technic

BGS technic 4107 Bedienungsanleitung

Clarke

Clarke CWB1250 Bedienungsanleitung

Ryobi

Ryobi RWB02 Bedienungsanleitung

Sealey

Sealey PTB66004 Bedienungsanleitung

General International

General International Excalibur 40-100 Stücklistenhandbuch

Newpo

Newpo Light Duty Workbench Stücklistenhandbuch

Kobalt

Kobalt 0827415 Bedienungsanleitung
