ILLUSTRATED PARTS LIST

532 41 86-30 11.21.07 SR Printed in U.S.A.

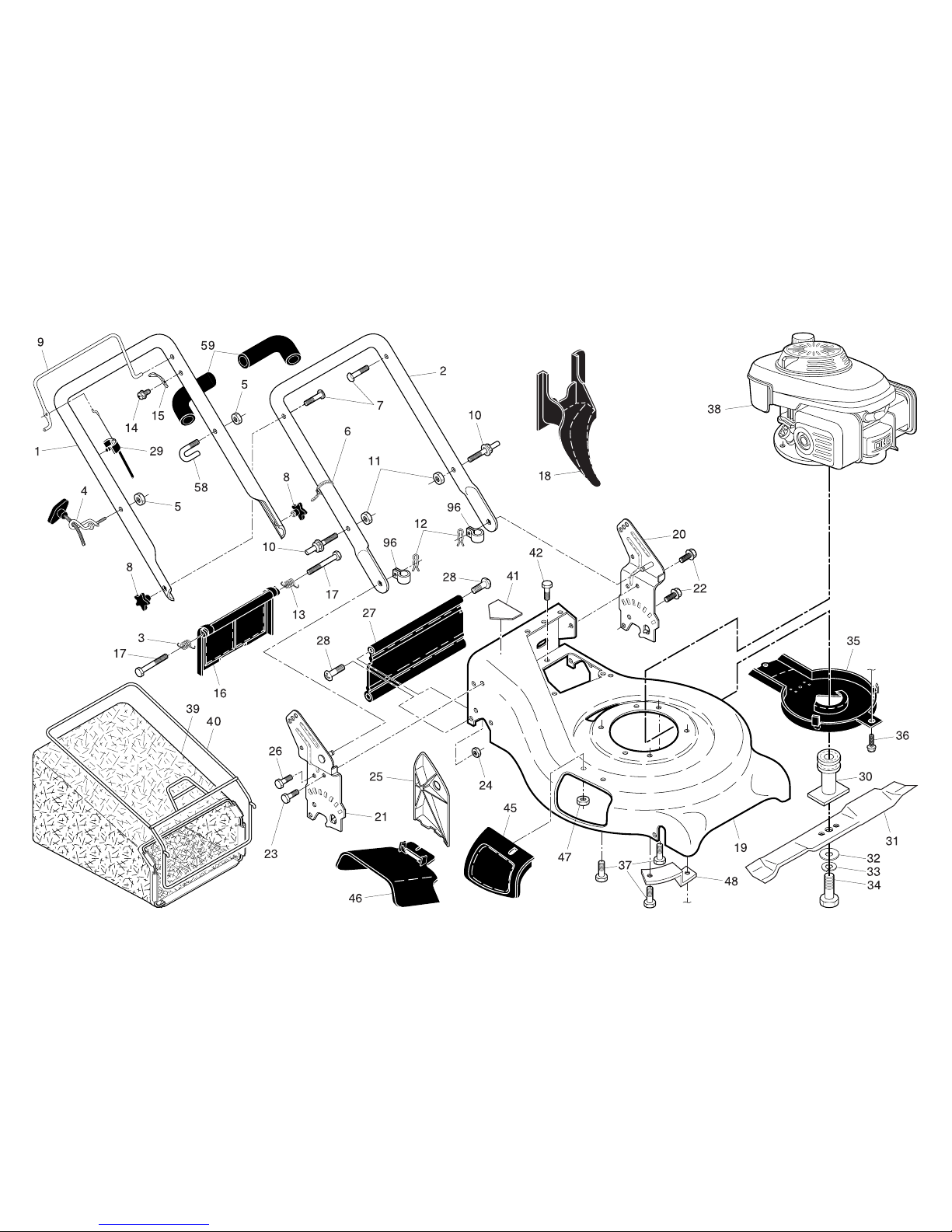

ROTARY LAWN MOWER - - MODEL NUMBER 5521RS (96143000208) - PRODUCT NUMBER 961 43 00-02

1 532 19 99-82 Handle, Upper (Includes Foam Grip)

2 532 19 72-02 Handle, Lower

3 532 40 54-16 Spring, Rear Door, RH

4 532 19 47-88 Guide, Rope, Side

5 532 13 20-04 Nut, Hex Lockwasher Insert 1/4-20

6 532 06 64-26 Wire, Tie

7 532 19 15-74 Bolt, Handle 5/16-18 x 1.75

8 532 18 55-88 Knob, Handle

9 532 19 70-19 Bail, Flat, Auto-Walk, Orange

10 532 18 88-21 Bolt, Carriage

11 532 75 11-53 Nut, Hex, Centerlock 5/16-18 UNC

12 532 05 17-93 Cotter, Hairpin

13 532 40 54-15 Spring, Rear Door, LH

14 532 75 06-34 Screw

15 532 12 51-62 Bracket, Upstop

16 532 40 88-88 Rear Door Assembly

17 532 18 41-93 Bolt, Rear Door

18 532 19 81-70 Plug, Mulcher

19 532 40 75-35 Kit, Housing

20 532 19 40-29 Handle Bracket Assembly, LH

21 532 19 40-31 Handle Bracket Assembly, RH

22 532 15 00-78 Screw, Hex Washer Head

23 532 16 31-83 Bolt, Hex Head 5/16-18 x 5/8

24 873 80 05-00 Nut, Hex, with Lock Washer Insert 5/16-18

25 532 16 13-33 Baffle, Side

26 532 16 34-09 Screw 12 x 5/8

27 532 40 84-42 Skirt, Rear

28 532 08 86-52 Screw, Hinge 1/4-20 x 1.25

29 532 19 12-21 Engine Zone Control Cable

30 532 18 91-79 Blade Adapter / Pulley

31 532 18 90-28 Blade, 21"

32 532 85 10-74 Washer, Hardened

33 532 85 02-63 Lockwasher, Helical Spring 3/8

34 532 85 10-84 Screw, Hex Head 3/8-24 x 1.38

35 532 40 58-43 Debris Shield

36 532 19 23-25 Screw

37 532 15 04-06 Bolt, Engine

38 - - - Engine, Honda, Model Number GCV160

(For engine service and replacement parts,

call Honda at 1-800-426-7701)

39 532 40 97-26 Grassbag

40 532 41 19-51 Frame, Grassbag

41 532 40 47-63 Danger Decal

42 532 05 45-83 Screw

45 532 19 05-10 Mulcher Door Assembly

46 532 19 05-12 Deflector, Discharge

47 532 08 83-49 Nut, Hex

48 532 19 09-39 Mounting Bracket, Debris Shield

58 532 18 20-03 Clip

59 532 18 27-48 Grip, Handle, Foam, Smooth

96 532 19 79-91 Clip, Cable

- - 532 40 47-64 Warning Decal (not shown)

- - 532 41 86-30 Owner’s Manual, English / French

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

ROTARY LAWN MOWER - - MODEL NUMBER 5521RS (96143000208) - PRODUCT NUMBER 961 43 00-02

1 532 40 73-44 Drive Control Assembly, Auto-Walk

2 532 41 16-73 Cover, Top, Auto-Walk Drive Control

3 532 40 62-82 Pulley

4 532 19 00-39 Lever, Auto-Walk Drive Control

5 532 41 16-64 Cover, Bottom, Auto-Walk Drive Control

6 532 18 16-98 Screw, Phillips Head #10 x 5/8

7 532 40 07-23 Plate, Trigger, Auto-Walk Drive Control

9 532 40 62-58 Cable, Drive Control

11 532 40 65-58 Spring, Return

13 532 40 48-39 Gear Case Assembly (See Breakdown)

14 532 19 34-43 Pulley, Drive

15 532 08 83-48 Washer, Flat

16 532 40 71-47 Rod, Connecting

17 532 40 96-16 Spring, Extension

18 532 19 61-62 Spring Selector

19 532 19 06-22 Knob, Selector Spring

20 812 00 00-22 E-Ring

21 532 41 24-50 Bearing, Support

22 532 19 10-39 Bearing, Ball

23 532 16 45-55 Retainer, Drive Assembly, Stamped

24 532 05 78-08 Screw, Tapping, Hex Head 1/4-20 x 3/4

25 532 40 07-83 Cover Drive

26 532 75 06-34 Screw, Threaded, Rolled #10-25 x 1/2

28 812 00 00-58 E-Ring 7/16

29 532 18 94-03 Cover, Dust, Wheel

31 532 40 48-45 Seal, Friction

32 532 41 31-05 Wheel & Tire Assembly, Rear

33 532 40 91-48 Nut, Hex, Flangelock 3/8-16

34 532 85 12-26 Washer

35 532 41 09-22 Shaft Assembly, Rear

36 532 41 09-33 Shaft Assembly, Front

37 532 16 14-63 Retainer, Front Shaft

38 532 16 34-09 Screw #12 x 5/8

39 532 40 70-59 Bolt, Shoulder, Semi-Gimlet Point

40 532 41 08-31 Wheel & Tire Assembly, Front 8 x 1-3/4

41 532 40 48-35 Pinion

42 532 19 74-80 O-Ring

44 532 40 65-80 V-Belt

47 532 06 77-25 Washer 1/2 x 1-1/2 x .134

49 532 16 34-09 Screw, Hi-Lo Thread

50 532 41 31-04 Belt Keeper

60 532 41 27-36 Case, Upper

61 532 41 27-57 Shaft, Output, Long

62 532 18 35-08 Seal, Output Shaft

63 532 18 35-11 Bushing

64 532 18 35-09 Washer

65 532 18 35-14 Seal, Worm Shaft

66 532 18 35-06 Bearing, Ball

67 532 41 27-42 Gear, 28 Teeth

68 532 41 27-39 Fixed Dog Clutch, LH

69 532 41 27-41 Pin, Output Shaft

70 532 41 27-40 Movable Dog Clutch, LH

71 532 41 27-56 Shaft, Output, Short

72 532 18 35-13 Screw, Case

73 532 41 27-47 Case, Lower

75 532 41 27-46 Pin, Worm Shaft

76 532 41 27-43 Movable Dog Clutch, RH

77 532 41 27-44 Fixed Dog Clutch, RH

78 532 41 07-31 Spring, Leaf

79 532 41 27-37 Shaft, Worm

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

ROTARY LAWN MOWER - - MODEL NUMBER 5521RS (96143000208) - PRODUCT NUMBER 961 43 00-02

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
