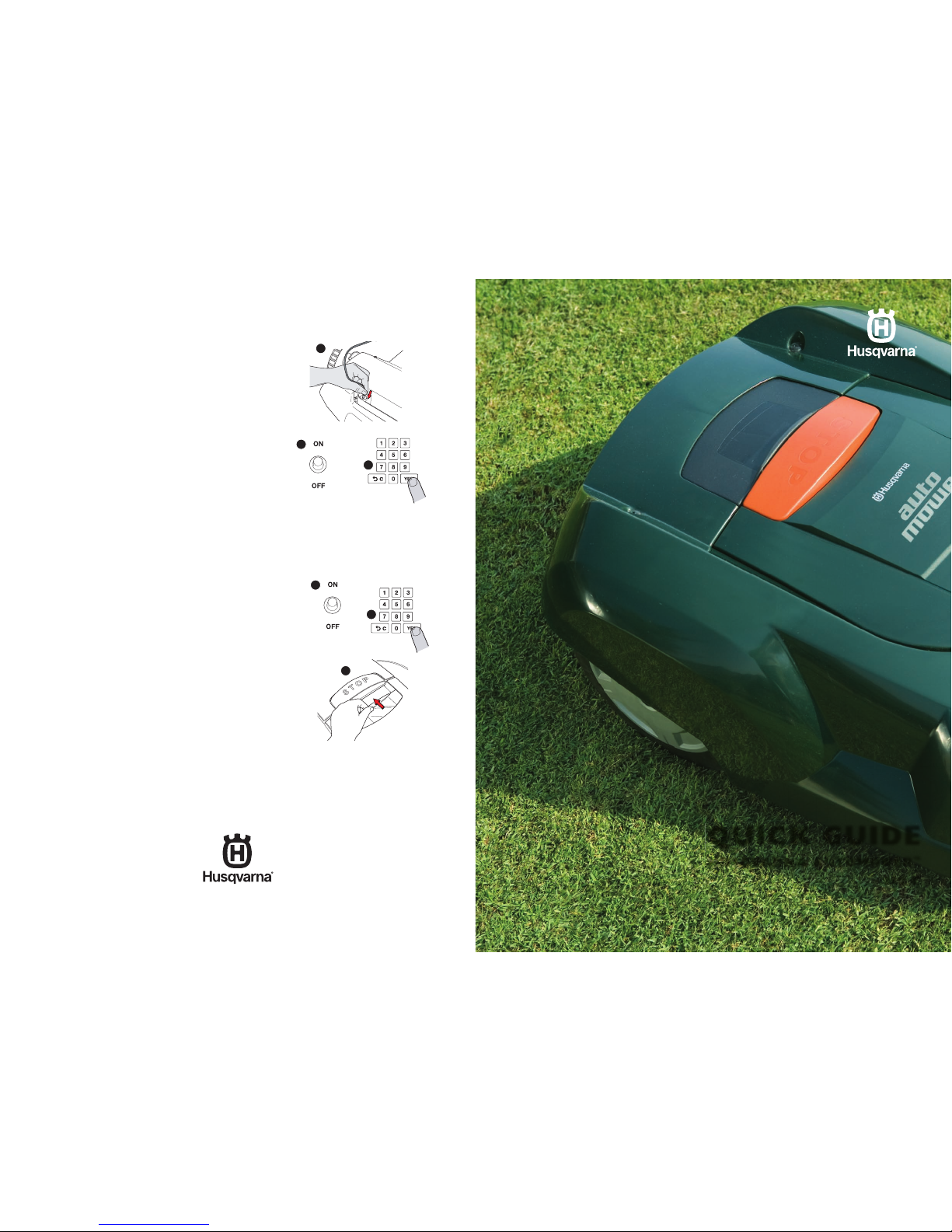

5STARTING AND STOPPING AUTOMOWER™

See chapters 4.1 and 4.2 in the Operator’s Manual.

STARTING

1. Open the control panel cover by pressing the STOP

button.

2. Set the main switch to ON position.

3. Enter the PIN code, conﬁrm with the YES button.

4. Close the cover.

STOPPING

Press the STOP button.

USE

Automower™ is recommended for lawns up to 500 m² /

0.12 acre. The size of the working area the mower can

handle depends on how much it is used. The larger the lawn

the more occasions per week Automower™ can work.

41. Connect the loop generator/charger charging cable to the

mower’s charger contact. The boundary loop must be

connected to a mains connected loop generator/charger.

2. Set the main switch to ON position.

3. Select and enter a four digit PIN code. All combinations

except 0000 are permitted.

4. Press the YES button.

5. Conﬁrm the selected PIN code by re-entering the PIN

code.

6. Press the YES button.

When you have selected a PIN code, the mower and loop

generator/charger are linked to each other and the mower

can be operated.

LINKING AUTOMOWER™ TO THE LOOP GENERATOR/CHARGER

See chapter 3.7 in the Operator’s Manual

EN_QG_2009_210C (kopia).indd 1 08-11-14 10.27.25

30 cm

Zone 1

Zone 2

30 cm / 12” 35 cm / 14”

10 cm / 4”

0 cm / 0”

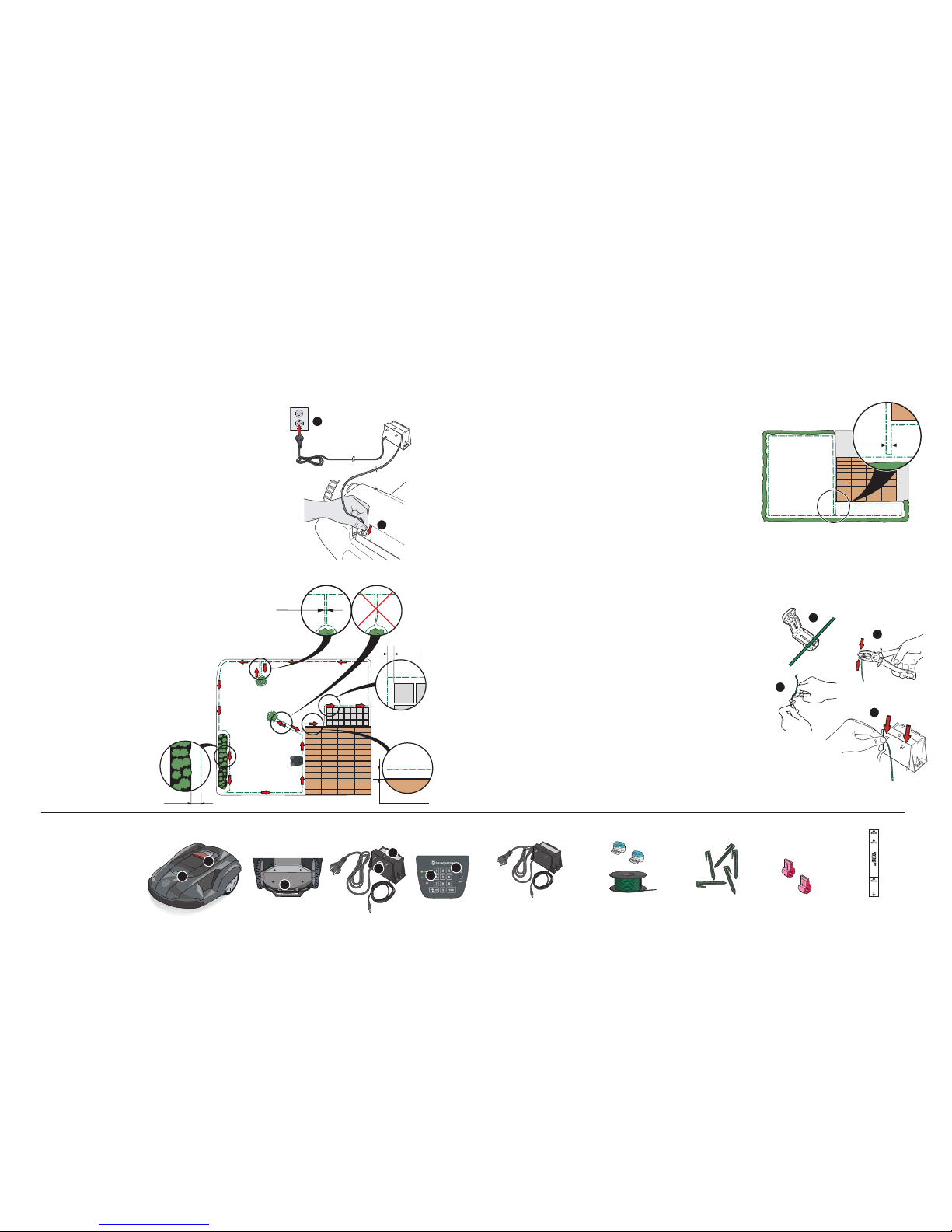

GETTING STARTED WITH

HUSQVARNA AUTOMOWER™

31. Open the connector and run the wire ends in the recesses

on each connector.

2. Press the connector together using a pair of pliers.

3. Cut off any surplus boundary wire.

Cut 1-2 cm / 0.5” above the connector.

4. Attach the connector to the contact pin on the loop

generator/charger.

PLACEMENT AND CONNECTION OF LOOP GENERATOR/CHARGER

AND CHARGING OF BATTERY

PLACING THE BOUNDARY WIRE

See 3.4 in the Operator’s Manual

1. Run the boundary wire ensuring it

forms a loop around the work area.

See chapters 3.2 and 3.3 in the Operator’s Manual.

1. The loop generator/charger must be placed where it is well

ventilated and is not exposed to direct sunlight.

2. Connect the loop generator/charger’s power cord to a

mains wall socket. The 120V transformer (USA) is for

indoor use only.

3. Connect the charger cable from the loop generator/

charger to the charger contact on the mower. The green

indicator lamp Battery should now now be lit with a

steady light.

Loop generator/charger Boundary wire and

coupler

Clinchers Connector Measurement gauge

CONNECTING THE BOUNDARY WIRE

See chapter 3.5 in the Operator’s Manual

1. Catch button to open the cutting

height adjustment cover

2. STOP button

3. Charger contact

4. Connection to boundary wire

5. LED for per formance inspection

of boundary wire

6. Indicator lamps

7. Keypad

ZONE C LASSIFICATION

If the mowing results in the garden are uneven due to the

shape of the garden, for example because of a long passage,

you have the option of dividing up your garden into zones.

When the mower is placed in zone 1, it will not mow in zone

2 and vice versa. Move the mower between the zones to

maintain even mowing results.

EN_QG_2009_210C (kopia).indd 2 08-11-14 10.27.29
