1 Introduction

1.1 Introduction

Serial number:

PIN code:

The serial number is on the product rating plate and on the product carton.

• Use the serial number to register your product on www.husqvarna.com.

1.2 Support

For support about the Husqvarna product, speak

to your servicing dealer.

1.2.1 Complete Operator’s Manual

A complete operator's manual is available on

Husqvarna’s website www.husqvarna.com. It is

more in detail about e.g. instructions about

installation, maintenance, troubleshooting and

menu structure.

1.2.2 Product description

Note: Husqvarna regularly updates the

appearance and function of the products. Refer

Support on page 2

The product is a robotic lawn mower. The product

has a battery power source and cuts the grass

automatically. Collection of grass is not

necessary.

The operator selects the operation settings with

the keys on the keypad.

The display shows the selected and possible

operation settings, and the operation mode of the

product.

The boundary wire and the guide wire controls

the movement of the product within the work

area.

1.2.2.1 Automower® Connect

Automower® Connect is a mobile application that

makes it possible to select the operation settings

remotely. Refer to

Connectivity on page 16

1.3 Capacity

How big an area the product can keep cut

depends primarily on the condition of the blades

and the type, growth and moisture of the grass.

The shape of the yard is also significant. If the

yard mainly consists of open lawn areas, the

product can mow more per hour than if the yard

consists of several small lawns separated by

trees, flower beds and passages. For working

capacity, refer to

Technical data on page 21

It is recommended to allow the product to mainly

mow in dry weather to obtain the best possible

result. The product can also mow in rain,

however wet grass easily sticks on the product

and there is a greater risk of slipping in steep

slopes. The blades must be in good condition to

obtain the best mowing result. In order to keep

the blades sharp for as long as possible it is

important to keep the lawn free from branches,

small stones and other objects. Replace the

2 - Introduction 903 - 001 - 21.09.2018

blades regularly. For information on replacing the

blades, see the complete Operator’s Manual on

brand’s website (www.husqvarna.com).

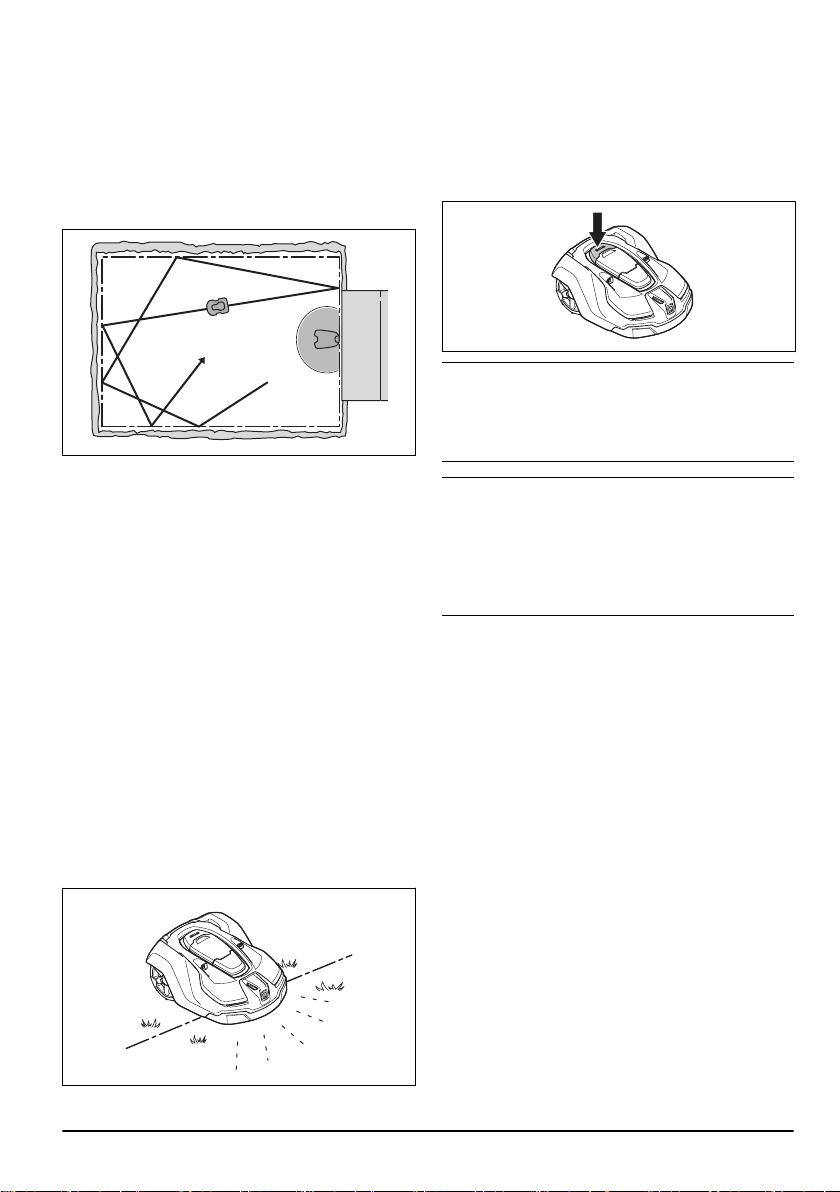

1.4 Movement pattern

The movement pattern of the product is random.

This means that the lawn is mown evenly without

any mowing lines.

1.5 Working method

The charging time can vary depending on,

among other factors, the ambient temperature.

Automower® 315X/430X/450X use GPS-assisted

navigation to start mowing in a place in the yard

where it has not been lately. For the other models

you might have to set manual exit settings to

make sure that the lawn is cut evenly, refer to the

complete Operator’s Manual on Husqvarna’s

website.

When the product body hits an obstacle or

approaches the boundary wire the product

reverses and selects a new direction. Sensors at

the front and back will sense when the product is

approaching the boundary wire. The front always

passes the boundary wire by a specific distance

before the product turns around. The distance

can be changed to adapt to the installation if

required.

The STOP button on the top of the product is

mainly used to stop the product when it’s running.

When the STOP button is pressed a hatch

opens, behind which there is a control panel. The

STOP button remains pressed in until the hatch

is closed again. This together with the START

button acts as a start inhibitor.

Note: Always press the START button before

closing the hatch to start the product. If the

START button is not pressed, a message beep is

heard and the product will not start.

Note: When the main switch is set to

for the

first time, a start-up sequence begins which

includes a number of important basic settings,

refer to

First start-up and calibration

in the

complete Operator’s Manual on Husqvarna’s

website.

1.6 Finding the charging station

The Automower® 310/315/315X/420/430X/

440/450X can be set to search for the charging

station in up to 3 different ways. The product

automatically combines these 3 search methods

to locate the charging station as fast as possible,

but also to avoid as much tracks forming as

possible. Automower® 105 always follows the

guide wire to the charging station.

903 - 001 - 21.09.2018 Introduction - 3

1.7 Product overview Automower® 105

25 19

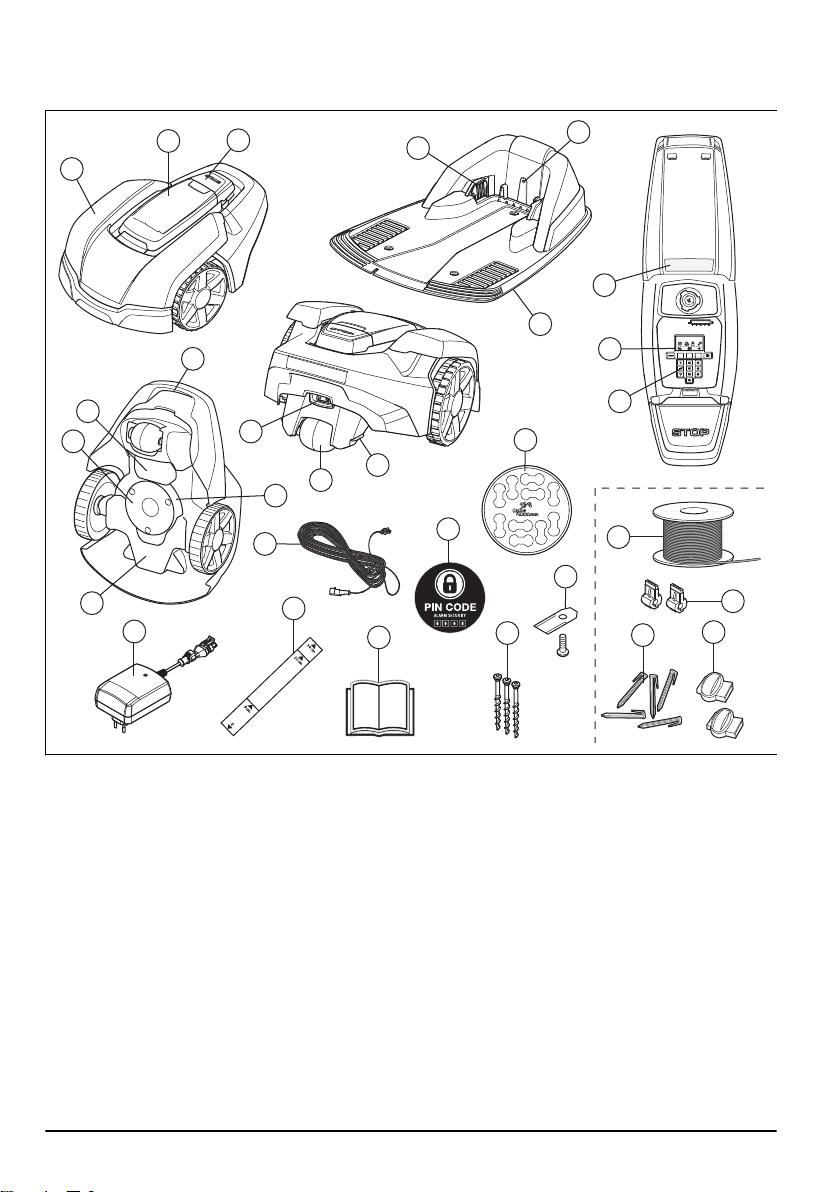

The numbers in the figure represent:

1. Body

2. Hatch to display, keypad and cutting height

adjustment

3. Stop button

4. Contact strips

5. LED for operation check of the charging

station, boundary wire and guide wire

6. Charging station

7. Handle

8. Battery cover

9. Blade disc

10. Skid plate

11. Chassis box with electronics, battery and

motors

12. Main switch

13. Rear wheel

14. Charging strip

15. Keypad

16. Display

17. Loop wire for boundary loop and guide wire

18. Connectors for the loop wire

19. Stakes

20. Couplers for the loop wire

21. Screws for securing the charging station

22. Blades

23. Operator’s Manual and Quick Guide

4 - Introduction 903 - 001 - 21.09.2018

24. Measurement gauge when installing the

boundary wire (the measurement gauge is

broken loose from the box)

25. Power supply (the appearance of the power

supply may differ depending on market)

26. Low voltage cable

27. Alarm decal

28. Cable markers

29. Rating plate

1.8 Product overview Automower® 310/315/315X

234

1816 17

29 30

The numbers in the figure represent:

1. Body

2. Hatch to cutting height adjustment

3. Hatch to display and keypad

4. Stop button

5. Replaceable cover

6. Rear wheels

7. Front wheels

8. Cutting height adjustment

9. Contact strips

10. LED for operation check of the charging

station and boundary wire

11. Charging station

12. Rating plate

13. Display

14. Keypad

15. Cutting system

16. Chassis box with electronics, battery and

motors

17. Handle

18. Main switch

19. Blade disc

20. Skid plate

21. Power supply (the appearance of the power

supply may differ depending on market)

22. Loop wire for boundary loop and guide wire

1Is a part of the Installation kit which is purchased separately.

903 - 001 - 21.09.2018 Introduction - 5

23. Couplers for the loop wire 2

24. Stakes 3

25. Connectors for the loop wire 4

26. Screws for securing the charging station

27. Measurement gauge when installing the

boundary wire (the measurement gauge is

broken loose from the box)

28. Operator’s Manual and Quick Guide

29. Cable markers

30. Extra blades

31. Low voltage cable

32. Alarm decal

1.9 Product overview Automower® 420/430X/440/450X

Automower 420/440 Automower 430X Automower 450X

24 25 27

14 15

The numbers in the figure represent:

1. Body

2. Hatch to display and keypad

3. Stop button

4. Front wheels

5. Rear wheels

6. Ultrasonic sensors

7. Headlights

8. Replaceable cover

9. Rating plate

10. Display

11. Keypad

2See note 1

3See note 1

4See note 1

6 - Introduction 903 - 001 - 21.09.2018

12. Cutting system

13. Chassis box with electronics, battery and

motors

14. Main switch

15. Handle

16. Blade disc

17. Skid plate

18. Contact strips

19. LED for operation check of the charging

station and boundary wire

20. Charging station

21. Power supply

22. Cable markers

23. Measurement gauge when installing the

boundary wire (the measurement gauge is

broken loose from the box)

24. Screws for securing the charging station

25. Operator’s Manual and Quick Guide

26. Alarm decal

27. Extra blades

28. Low voltage cable

29. Couplers for the loop wire 5

30. Loop wire for boundary loop and guide wire

31. Stakes 7

32. Connectors for the loop wire 8

1.10 Symbols on the product

These symbols can be found on the product.

Study them carefully.

WARNING: Read the

user instructions before

operating the product.

WARNING: Operate the

disabling device before

working on or lifting the

machine.

The product can only start

when the main switch is

set to

and the correct

PIN code has been en-

tered. Turn the main

switch to

before carry-

ing out any inspections

and/or maintenance.

WARNING: Keep a safe

distance from the ma-

chine when operating.

Keep your hands and feet

away from the rotating

blades.

WARNING: Do not ride

on the machine. Never

put your hands or feet

close to or under the ma-

chine.

Never use a high-pres-

sure washer or even run-

ning water to clean the

product.

This product conforms to the

applicable EC Directives.

Noise emission to surroundings. The

product’s emissions are set out in

and on the rating plate.

It is not permitted to dispose this

product as normal household waste.

Ensure that the product is recycled in

5Is a part of the Installation kit which is purchased separately.

6See note 1

7See note 1

8See note 1

903 - 001 - 21.09.2018 Introduction - 7

accordance with local legal

requirements.

The chassis contains components

which are sensitive to electrostatic

discharge (ESD). The chassis must

also be resealed in a professional

manner. For these reasons the chassis

shall only be opened by authorized

service technicians. A broken seal can

result in the entire or parts of the

guarantee no longer being valid.

The low voltage cable must not be

shortened, extended or spliced.

Do not use a trimmer nearby the low

voltage cable. Be careful when

trimming edges where the cables are

placed.

Operate the disabling device before

you use or lift the product.

1.11 Battery symbols

Read the user instructions.

Do not discard the battery into fire and

do not expose the battery to a heat

source.

Do not immerse the battery into water.

2 Safety

2.1 General safety instructions

The following system is used in the Operator’s

Manual to make it easier to use:

• Text written in

italics

is a text that is shown

on the display of the product or is a

reference to another section in the

Operator’s Manual.

• Text written in bold is one of the buttons on

the keypad of the product.

• Text written in

UPPERCASE

and

italics

refer

to the different operating modes available in

the product.

8 - Safety 903 - 001 - 21.09.2018

2.1.1 IMPORTANT. READ CAREFULLY BEFORE USE. KEEP FOR FUTURE

REFERENCE

The operator is responsible for accidents or hazards occurring to

other people or property.

This appliance is not intended for use by persons (including chil-

dren) with reduced physical, sensory or mental capabilities (that

could affect a safe handling of the product), or lack of experience

and knowledge, unless they have been given supervision or instruc-

tion concerning use of the appliance by a person responsible for

their safety.

This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capa-

bilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe

way and understand the hazards involved. Local regulations may

restrict the age of the operator. Cleaning and maintenance shall not

be made by children without supervision.

Never connect the power supply to an outlet if the plug or cord is

damaged. Worn or damaged cord increase the risk of electric

shock.

Only charge the battery in the included charging station. Incorrect

use may result in electric shock, overheating or leaking of corrosive

liquid from the battery. In the event of leakage of electrolyte, flush

with water/neutralizing agent. Seek medical help if it comes in con-

tact with the eyes.

Use only original batteries recommended by the manufacturer.

Product safety cannot be guaranteed with other than original batter-

ies. Do not use non-rechargeable batteries.

The appliance must be disconnected from the supply mains when

removing the battery.

WARNING: The product can be

dangerous if used incorrectly.

903 - 001 - 21.09.2018 Safety - 9

WARNING: Do not use the product

when persons, especially children or

animals, are in the work area.

WARNING: Keep your hands and feet

away from the rotating blades. Never

put your hands or feet close to or

under the product when the motor is

running.

2.2 Use

• The product may only be used with the

equipment recommended by the

manufacturer. All other types of use are

incorrect. The manufacturer’s instructions

with regard to operation/maintenance and

repair must be followed precisely.

• Warning signs shall be placed around the

work area if the product is used in public

areas. The signs shall have the following

text: Warning! Automatic lawnmower!

Keep away from the machine! Supervise

children!

Warning!

Automatic lawnmower!

Keep away from the machine!

Supervise children!

Warning!

Automatic lawnmower!

Keep away from the machine!

Supervise children!

• Use the PARK function or switch off the

main switch when persons, especially

children or pets, are in the work area. It is

possible to program the product for use

during hours when the area is free from

activity, e.g. at night.

•The product may only be operated,

maintained and repaired by persons that are

fully conversant with its special

characteristics and safety regulations.

Please read the Operator’s Manual carefully

and make sure you understand the

instructions before using the product.

•It is not permitted to modify the original

design of the product. All modifications are

made at your own risk.

•Check that there are no stones, branches,

tools, toys or other objects on the lawn that

can damage the blades. Objects on the lawn

can also lead to the product getting stuck

and help may be required to remove the

object before the product can continue

mowing. Always set the main switch in

position

before clearing a blockage.

• Start the product according to the

instructions. When the main switch is set to

1; make sure to keep your hands and feet

away from the rotating blades. Never put

your hands and feet under the product.

• Never touch moving hazardous parts, such

as the blade disc, before it has come to a

complete stop.

• Never lift up the product or carry it around

when the main switch is in position 1.

• The product must never be allowed to

collide with persons or other living creatures.

If a person or other living creature comes in

the product’s way it shall be stopped

immediately.

•Do not put anything on top of the product or

its charging station.

• Do not allow the product to be used with a

defective guard, blade disc or body. Neither

should it be used with defective blades,

screws, nuts or cables. Never connect a

damaged cable, or touch a damaged cable

before it is disconnected from the supply.

• Do not use the product if the main switch

does not work.

• Always switch off the product using the main

switch when the product is not in use. The

product can only start when the main switch

is set to 1 and the correct PIN code has

been entered.

10 - Safety 903 - 001 - 21.09.2018

Andere Handbücher für AUTOMOWER 310

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Husqvarna Rasenmäher Handbücher

Husqvarna

Husqvarna 917.376971 HU600F Bedienungsanleitung

Husqvarna

Husqvarna LC247Li Gebrauchsanweisung

Husqvarna

Husqvarna 967 271801-01 Bedienungsanleitung

Husqvarna

Husqvarna YTH2042TD Bedienungsanleitung

Husqvarna

Husqvarna AUTOMOWER 435X AWD Bedienungsanleitung

Husqvarna

Husqvarna 54 Leitfaden

Husqvarna

Husqvarna 7021 RS Bedienungsanleitung

Husqvarna

Husqvarna Automower 535 AWD Bedienungsanleitung

Husqvarna

Husqvarna AUTOMOWER 520 Bedienungsanleitung

Husqvarna

Husqvarna AUTOMOWER 420 Bedienungsanleitung

Husqvarna

Husqvarna MZ5424SR CA Bedienungsanleitung

Husqvarna

Husqvarna EZ4824TF BF Bedienungsanleitung

Husqvarna

Husqvarna YTH2648TDRF Bedienungsanleitung

Husqvarna

Husqvarna AUTOMOWER EPOS Bedienungsanleitung

Husqvarna

Husqvarna 115 312526R1 Bedienungsanleitung

Husqvarna

Husqvarna LT19538 Bedienungsanleitung

Husqvarna

Husqvarna 532424695 Bedienungsanleitung

Husqvarna

Husqvarna LB448S Bedienungsanleitung

Husqvarna

Husqvarna LC 153-HD Bedienungsanleitung

Husqvarna

Husqvarna 96045000407 Bedienungsanleitung

Husqvarna

Husqvarna 67521 ES Bedienungsanleitung

Husqvarna

Husqvarna TS 146XK Bedienungsanleitung

Husqvarna

Husqvarna YTH1542XP Bedienungsanleitung

Husqvarna

Husqvarna 289580 Bedienungsanleitung

Beliebte Rasenmäher Handbücher anderer Marken

RHINO

RHINO 1958 Bedienungsanleitung

Wolf Garten

Wolf Garten Compact plus 40 B Bedienungsanleitung

Cub Cadet

Cub Cadet LTX 1045 Bedienungsanleitung

Craftsman

Craftsman 917.378461 Bedienungsanleitung

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Bedienungsanleitung

Challenge

Challenge CH18V2 Betriebsanleitung

TALEN TOOLS

TALEN TOOLS AVR HGM30 Bedienungsanleitung

DEWEZE

DEWEZE ATM-725 Bedienungsanleitung

Weed Eater

Weed Eater 180083 Bedienungsanleitung

Better Outdoor Products

Better Outdoor Products Quick Series Bedienungsanleitung

Cub Cadet

Cub Cadet 23HP Z-Force 60 Betriebsanleitung

MTD

MTD 795, 792, 791, 790 Bedienungsanleitung

Toro

Toro Groundsmaster 3505-D Bedienungsanleitung

Dennis

Dennis FT 610 Bedienungsanleitung

AIRFORCE

AIRFORCE F-15 Gen 3 Bedienungsanleitung

MTD

MTD 126-220-000 Bedienungsanleitung

Toro

Toro 74806 Bedienungsanleitung

Stihl

Stihl RMA 443 PV Bedienungsanleitung
