Husqvarna CTH126 Einrichtungshandbuch

581 06 00-02

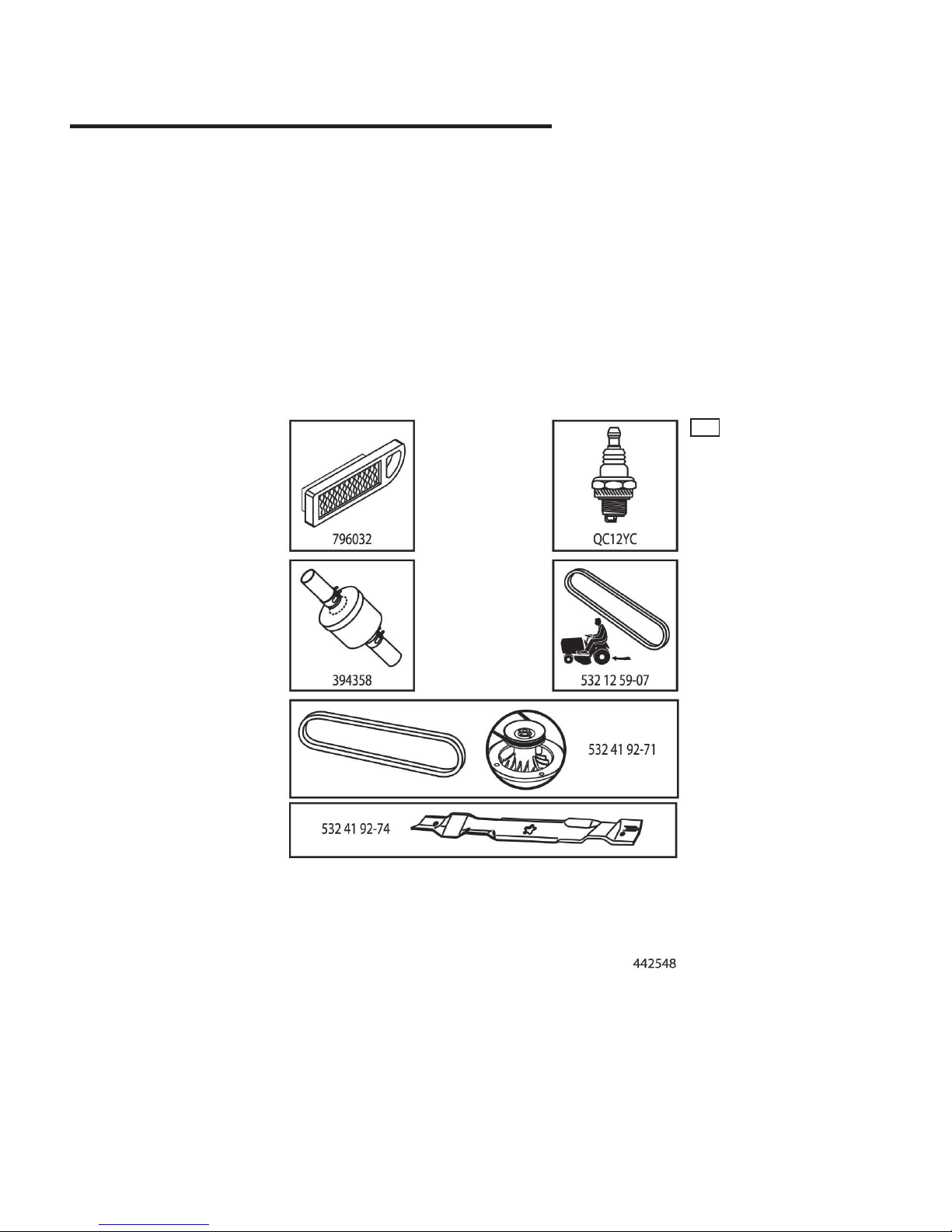

ILLUSTRATED PARTS LIST

MODEL NO. 96051000803

CUSTOMER CATALOG NO. CTH126

PRODUCT NO. 960 51 00-08

wheel_art_1-tex

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION

1 581 57 81-01 Decal, Operators

2 581 62 73-01 Decal, Hood Logo

3 581 57 97-01 Decal, Warning Eng. Symbols

4 532 43 99-53 Decal, Hood Panel

5 581 57 96-01 Decal, Chassis Hot Muffler

8 532 44 25-48 Decal, Rpl

9 532 14 50-05 Decal, Battery Dnge/Poi

10 581 57 80-01 Decal, Saddle Brake Parking

11 581 57 94-01 Decal, Warning DFlect/Ctfingr

12 581 58 00-04 Decal, Mower V-Belt Schematic

KEY PART

NO. NO. DESCRIPTION

13 581 72 40-01 Decal, Brake/Clutch Symbol

17 532 43 74-10 Decal, BS Engine

- - 581 72 48-01 Decal, Bypass

- - 532 44 14-09 Pad, Footrest, LH

- - 532 44 14-10 Pad, Footrest, RH

- - 532 43 40-53 Manual Oper. Euro

- - 532 43 40-54 Manual Oper. Scand

- - 532 43 40-55 Manual Oper. E-Bloc

- - 532 43 40-56 Manual Oper. Baltic

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 42 52-61 Rim Asm 6 x 3.25 Front

4 532 42 16-52 TubeFront13x5-6(ServiceItemOnly)

5 532 12 34-10 Tire F T 13 x 5.0 - 6

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 Bearing Flange (Front Wheel Only)

8 532 17 50-39 Cap Axle Blk 1 50 x 1 00

9 532 10 62-30 Tire R 16 x 6.5

10 532 00 71-54 Tube Rear (Service Item Only)

11 532 42 52-62 Rim Asm 8 x 5.375 Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

TRACTOR - - MODEL NO. CTH126 (96051000803), PRODUCT NO. 960 51 00-08

DECALS

FUSE

STARTER

SOLENOID

BATTERY

REVERSE SWITCH (NOT IN REVERSE)

SEAT SWITCH (NOT OCCUPIED)

FULL BAG

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR (C1)

(MATING SIDE)

DASH HARNESS

CONNECTOR (C1)

(MATING SIDE)

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH19

IGNITION SWITCH

CIRCUITPOSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

PTO SWITCH

(DISENGAGED)

BLACK

BLACK /WHITE

BLUE

BLUE BLACK

GREEN

BLACK

YELLOW

BLK/WHT

BLACK

BLK/WHT

DER

WHITE

GRAY

BLACK

YELLOW

POWER OUTLET

(OPTIONAL)

12V

BLACK

BLUE

BLACK

BROWN

HEADLIGHTS

LIGHT SWITCH

ORANGE

CLUTCH/BRAKE

(PEDAL UP)

WHITE

GREEN

BLUE RED

BAG PRESENT SWITCH

(BAG ATTACHED)

SHORTING CONNECTOR

BAG FULL SWITCH

(NOT FULL)

BUZZER

BLACK

BLUE BLACK

BROWN

DER RED

654

123

456

ELECTRIC CLUTCH

BLACKRED

REGULATOR STATOR

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

9-16AMPDC@3600 RPM

TRACTOR - - MODEL NO. CTH126 (96051000803), PRODUCT NO. 960 51 00-08

SCHEMATIC

79 21

S04S

With Service Minder Option

4646

108

107

106

141

TRACTOR - - MODEL NO. CTH126 (96051000803), PRODUCT NO. 960 51 00-08

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 41 97-91 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 40 02-52 Harness Socket Light w/4152J

22 532 00 41-52 Bulb Light

25 532 41 66-94 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 42 16-86 Cable, Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ign

33 532 41 19-35 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 532 42 95-33 Harness Ign. Dash

43 532 19 25-07 Solenoid

46 532 40 17-63 Gauge

50 532 17 46-51 Switch PTO

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT

71 532 42 94-12 Harness Ign. Chassis

79 532 17 52-42 Socket Asm. Bulb

90 532 43 53-95 Cover Terminal

99 817 67 04-12 Screw 1/4-20 x 3/4

106 532 17 48-14 Nut Speed 1/4-20

107 532 42 10-61 Switch Snapmount No #2

108 532 42 10-62 Switch Snapmount NC

141 532 41 69-77 Kit T2 ROS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NO. CTH126 (96051000803), PRODUCT NO. 960 51 00-08

ELECTRICAL

137

177 175

130

151

234

214

234

205 202 25

203

206

297

191

204

15 130

130

176

182

130

150

176

137

238

239

217

189

152

213

218

228

194

288

180

189

chassis-tex_TEX LT HUSQ_61_r1

282

162

287

162

308

159

309

159

311

284

310

283

199

282

194

183

236

236 34

235

319

159

334

118

119

118

119

306

125

146

TRACTOR - - MODEL NO. CTH126 (96051000803), PRODUCT NO. 960 51 00-08

CHASSIS AND ENCLOSURES

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

3 581 05 63-01 Logo

5 532 43 89-66 Dash

14 532 44 12-67 Hood

15 532 44 14-28 Lens LH

18 532 44 13-68 Grille

25 532 44 14-27 Lens RH

34 580 91 09-01 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 44 14-19 Fender

52 873 68 05-00 Nut Crown Lock 5/16

58 532 41 22-80 Drawbar Upper

62 872 11 06-08 Bolt 3/8-16 x 1 Gr. 5

68 817 49 05-08 Screw Thdrol. 5/16-18 x 1/2

125 581 68 48-01 Clip Fuel Line

118 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

119 873 68 06-00 Nut Crownlock 3/8-16 unc

130 532 41 63-58 Screw #10 x 0.750 BOS Thread

137 532 40 75-90 Bumper Dash

146 581 85 79-01 Bolt

150 532 40 66-62 Air Duct

151 532 40 78-07 Bracket Pivot

152 532 19 95-35 Shield Browning

159 817 00 06-12 Screw Hex Wsh Thdr 3/8-16 x 3/4

162 532 14 24-32 Screw Hex Wsh. Hi-Lo 1/4 x 1/2 unc

175 532 19 94-72 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-28 Bushing Steering

180 532 41 46-85 Chassis

182 532 40 71-76 Dash Lower

183 874 52 05-20 Bolt 5/16-18 x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

191 532 41 65-01 Insert Reflective RH

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

199 532 41 87-39 Plate Deck Lift

TRACTOR - - MODEL NO. CTH126 (96051000803), PRODUCT NO. 960 51 00-08

CHASSIS AND ENCLOSURES

202 532 44 13-42 Vent Side Hood RH

203 532 44 13-43 Vent Side Hood LH

204 532 44 13-75 Vent Top Hood

205 532 44 13-44 Skirt Side RH

206 532 44 13-45 Skirt Side LH

213 874 76 05-12 Bolt 5/16-18 x 3/4

214 532 19 91-45 Clip Retainer

217 532 40 91-67 Rod Pivot Hood

218 532 19 63-95 X-Piece Hood Stop

228 532 19 51-61 Stud Fastener

234 532 40 47-42 Bumper Hood

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Lock 5/16-18 unc

238 532 44 13-74 Trim

239 532 40 48-83 Clip Tinnerman

282 532 41 41-10 Clip Retainer

283 532 44 05-31 Console Deck Lift

284 532 44 05-30 Console Shift

287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8

297 532 40 66-65 Insert Reflective LH

306 873 90 06-00 Nut Lock

308 532 17 18-77 Bolt 5/16-18 unc x 3/4

309 532 43 02-46 Backplate Bagger SRD

310 532 44 66-36 Bracket Hangar Bag LH

311 532 44 66-37 Bracket Hangar Bag RH

319 532 17 46-62 Bracket Actuator Bagger

334 532 44 25-37 Bracket Engine

185

161

185

231

170

drive-tex_T2_pedal_28_r1

186

188

184

167

160

221

210

211

166

211

214

215

153

222

159

163

189

187

114

122

121

125

216

143

183

205

73 99

116

159

116

263

268 275

197

196

190

TRACTOR - - MODEL NO. CTH126 (96051000803), PRODUCT NO. 960 51 00-08

DRIVE

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 – – – – – – Transaxle, Hydro Gear T2-BABC-

1X2B-1GX1 (421645) (Order parts

from transaxle manufacturer.)

2 532 12 35-83 Key Square

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 19 72-96 Spring, Brake

29 532 42 32-39 Rod, Brake

33 812 00 00-01 Ring E

35 532 40 10-31 Rod, Brake, Park

37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove Offset

56 532 12 59-07 V-Belt, Drive

64 532 19 78-65 Shaft Asm. Pedal Brake Control

73 874 49 05-44 Bolt Hex 5/16-18 Gr. 5

80 581 55 07-01 Strap Torque

99 532 40 84-18 Rod Spring Bypass

114 873 80 05-00 Nut Lock 5/16-18 unc

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

121 532 17 56-11 Bracket Strap Torque

122 872 01 05-20 Bolt 5/16-18 x 2.50

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw THDROL 5/16-18 x 1/2

153 532 12 47-88 Retainer Spring 1"

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

163 532 41 33-22 Rod Control

TRACTOR - - MODEL NO. CTH126 (96051000803), PRODUCT NO. 960 51 00-08

DRIVE

166 532 42 91-64 Nut Push .625

167 532 40 52-57 Latch Brake Parking

170 532 41 34-30 Keeper Belt Centerspan

183 532 15 69-72 Spacer Axle

184 532 44 14-07 Handle Parking Brake

185 872 11 06-22 Bolt

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

196 817 00 06-16 Screw 3/8-16 x 1

197 532 19 58-04 Link Clutch Anti-Rotation

205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

210 532 40 09-80 Rocker Asm. Pedal Control

211 532 12 01-83 Bearing Nylon

214 532 42 12-63 Pedal Pad Forward

215 532 41 94-82 Pedal Reverse

216 532 19 61-31 Bracket Pulley Idler

221 532 40 31-87 Retainer Spring Clip Handle

222 879 21 20-10 Washer 21/32 x 1-1/4 10 Ga.

231 532 40 72-87 Idler V-Groove 1.688" Offset

263 817 00 06-12 Screw Hexwsh THDR 3/8-16 x 3/4

268 532 18 24-02 Guard, Muffler

275 819 13 16-14 Washer

OPTIONAL EQUIPMENT

Spark Arrester

69 2

122

engine-tex_BS_32

TRACTOR - - MODEL NO. CTH126 (96051000803), PRODUCT NO. 960 51 00-08

ENGINE

Andere Handbücher für CTH126

Inhaltsverzeichnis

Andere Husqvarna Rasenmäher Handbücher

Husqvarna

Husqvarna GTH2454T/96043002300 Betriebsanleitung

Husqvarna

Husqvarna 954 00 03-32 Einrichtungshandbuch

Husqvarna

Husqvarna L 221P Bedienungsanleitung

Husqvarna

Husqvarna LZ5225 / 965879501 Bedienungsanleitung

Husqvarna

Husqvarna R 214 Bedienungsanleitung

Husqvarna

Husqvarna YTH160 Bedienungsanleitung

Husqvarna

Husqvarna LTH1542 Bedienungsanleitung

Husqvarna

Husqvarna 917.374470 Bedienungsanleitung

Husqvarna

Husqvarna CTH2036 XP Bedienungsanleitung

Husqvarna

Husqvarna WB48S Bedienungsanleitung

Husqvarna

Husqvarna Z 548 Bedienungsanleitung

Husqvarna

Husqvarna AUTOMOWER 105 Bedienungsanleitung

Husqvarna

Husqvarna YTH170 Bedienungsanleitung

Husqvarna

Husqvarna CTH 224T Bedienungsanleitung

Husqvarna

Husqvarna Rider 111B Bedienungsanleitung

Husqvarna

Husqvarna M51-150WF Bedienungsanleitung

Husqvarna

Husqvarna LC 219 Bedienungsanleitung

Husqvarna

Husqvarna GTH220 Bedienungsanleitung

Husqvarna

Husqvarna M48 Pro, M53 S Pro Bedienungsanleitung

Husqvarna

Husqvarna Rider 155 Bedienungsanleitung

Husqvarna

Husqvarna 97045890101 Bedienungsanleitung

Husqvarna

Husqvarna 967324002-00 Bedienungsanleitung

Husqvarna

Husqvarna TC 242TX Bedienungsanleitung

Husqvarna

Husqvarna 1830EXL Bedienungsanleitung

Beliebte Rasenmäher Handbücher anderer Marken

RHINO

RHINO 1958 Bedienungsanleitung

Wolf Garten

Wolf Garten Compact plus 40 B Bedienungsanleitung

Cub Cadet

Cub Cadet LTX 1045 Bedienungsanleitung

Craftsman

Craftsman 917.378461 Bedienungsanleitung

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Bedienungsanleitung

Challenge

Challenge CH18V2 Betriebsanleitung

TALEN TOOLS

TALEN TOOLS AVR HGM30 Bedienungsanleitung

DEWEZE

DEWEZE ATM-725 Bedienungsanleitung

Weed Eater

Weed Eater 180083 Bedienungsanleitung

Better Outdoor Products

Better Outdoor Products Quick Series Bedienungsanleitung

Cub Cadet

Cub Cadet 23HP Z-Force 60 Betriebsanleitung

MTD

MTD 795, 792, 791, 790 Bedienungsanleitung

Toro

Toro Groundsmaster 3505-D Bedienungsanleitung

Dennis

Dennis FT 610 Bedienungsanleitung

AIRFORCE

AIRFORCE F-15 Gen 3 Bedienungsanleitung

MTD

MTD 126-220-000 Bedienungsanleitung

Toro

Toro 74806 Bedienungsanleitung

Stihl

Stihl RMA 443 PV Bedienungsanleitung
