Husqvarna J55S Leitfaden

SERVICE

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

IPL, J55 S, 96121000704, 2008-02, 532 41 60-64

J55S

532 41 60-64

ROTARY LAWN MOWER - - MODEL NUMBER J55S (96121000704) PRODUCT NUMBER 961 21 00-07

KEY PART

NO. NO. DESCRIPTION

1 532 41 60-58 Upper Handle

2 532 14 92-93 Engine Zone Control Cable

5 532 06 64-26 Wire Tie

6 532 41 66-68 Handle Knob

8 532 19 05-27 Control Bar

9 532 19 58-00 Support Bracket, Handle, LH

10 532 17 09-75 Handle Bracket Assembly, RH

11 532 19 57-99 Support Bracket, Handle, RH

12 532 17 09-77 Handle Bracket Assembly, LH

14 532 14 97-41 Screw, Thread Cutting 5/16-18 x 3/4

18 532 13 20-04 Locknut, Keps

19 532 19 47-88 Rope Guide

20 532 15 41-47 Foot Guard

24 532 06 91-80 Nut, Hex

25 532 40 91-48 Locknut, Hex 3/18-16

27 532 41 08-31 Wheel & Tire Assembly, Rear

28 532 14 27-48 Shoulder Bolt

29 532 40 16-30 Curved Washer

30 532 40 78-71 Axle Arm Assembly

31 532 13 28-00 Knob, Selector

32 532 41 05-95 Spring, Selector

33 532 19 60-10 Discharge Guard

34 532 40 16-29 Spacer

35 532 41 08-07 Bracket, Wheel Adjuster

36 532 15 41-32 Bracket, Housing

38 532 19 60-11 Deflector, Discharge

41 532 15 04-06 Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8

42 532 15 21-24 Spring, Torsion

43 873 80 04-00 Locknut, Hex

44 532 40 06-60 Kit, Mower Housing (Includes Key Number 52)

45 532 14 72-86 Rod, Hinge

KEY PART

NO. NO. DESCRIPTION

46 532 18 91-79 Blade Adapter / Pulley

47 532 19 93-79 Blade, 22"

48 532 85 10-74 Washer, Hardened

49 532 85 02-63 Washer, Lock, Helical

50 532 85 10-84 Screw, Hex Head 3/8-24 x 1-3/8 (Grade 8)

52 532 18 21-66 Decal, Danger

54 532 08 83-48 Washer, Flat 3/8

55 532 19 09-39 Mounting Bracket, Debris Shield

56 532 08 58-25 Screw, Hex Washer Head #10-24 x 1/2

57 532 05 17-93 Hairpin Cotter

58 532 41 66-67 Lower Handle

59 532 19 17-30 Locknut, Hex 1/4-20

61 532 75 15-92 Locknut, Hex

62 532 40 58-43 Debris Shield

63 532 19 23-25 Screw, Debris Shield

64 - - - Engine, Briggs & Stratton, Model Number

124T02 (Order parts from engine manufacturer)

67 532 19 74-80 O-Ring

68 532 70 04-17 Control Throttle

69 532 18 33-65 Screw Hex 1/4 x 20 x 2.17

70 532 11 11-90 B&S Cable Clamp (#213146)

71 532 08 38-16 Screw #10 x 5/8

72 532 19 79-91 Clip, Cable

74 532 16 42-65 Handle Grip

75 532 19 92-55 Stud

76 532 75 11-53 Nut, Hex

- - 532 18 21-34 Warning Decal (not shown)

- - 532 41 13-39 Operator’s Manual, European

- - 532 41 13-40 Operator’s Manual, Scandinavian

- - 532 41 13-41 Operator’s Manual, East Bloc

- - 532 41 13-42 Operator’s Manual, Baltic

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

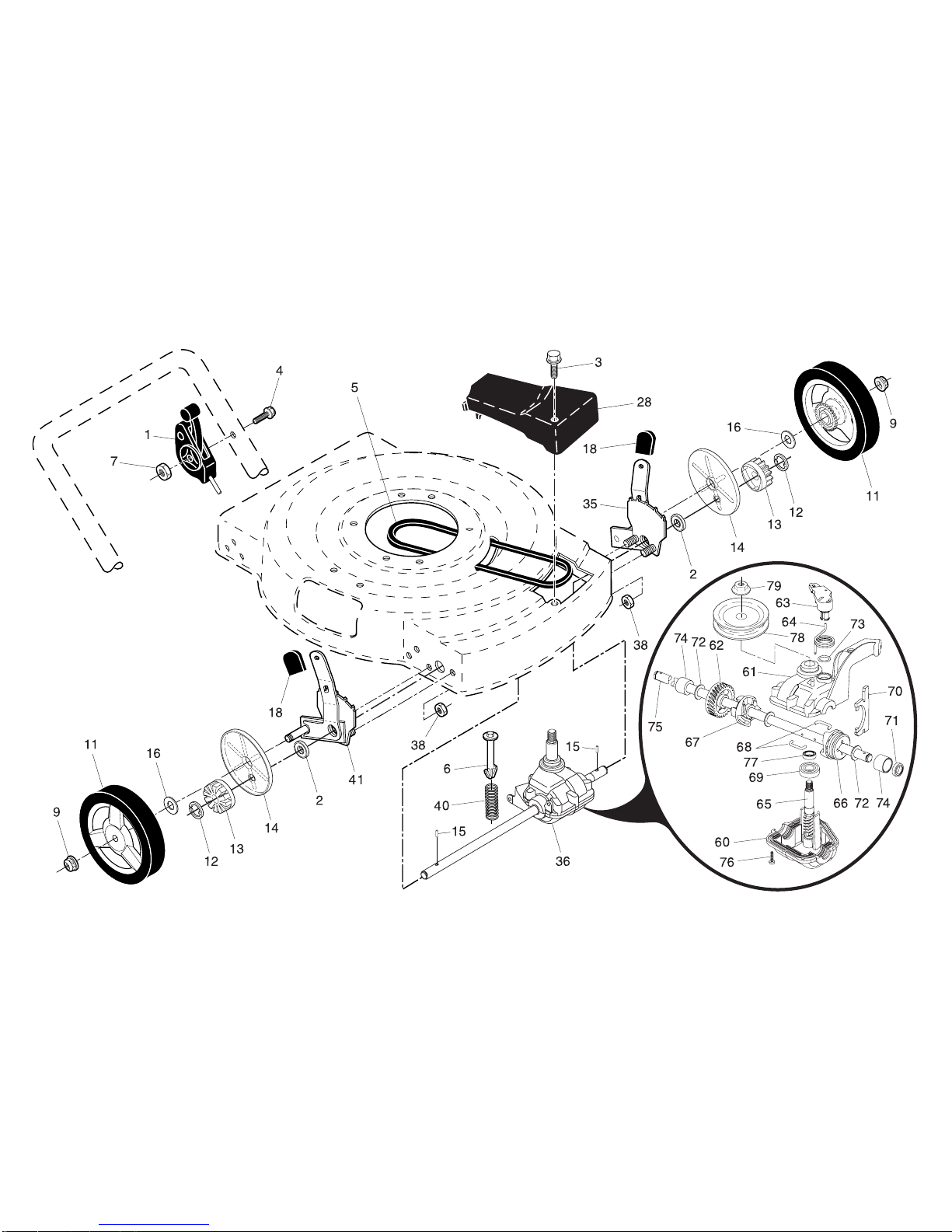

ROTARY LAWN MOWER - - MODEL NUMBER J55S (96121000704) PRODUCT NUMBER 961 21 00-07

KEY PART

NO. NO. DESCRIPTION

1 532 18 45-88 Drive Control Assembly (Includes Cable)

2 532 19 10-19 Bearing, Wheel Adjuster

3 532 14 36-03 Screw, Tapping, Pan Head #10-24 x 2-3/4

4 532 15 87-55 Screw, Machine, Pan Head 1/4-20 x 2-3/16

5 532 14 65-27 V-Belt

6 532 15 04-95 Bolt, Hex Head 1/4-20 x 2

7 532 19 17-30 Nut, Hex

9 532 40 91-48 Locknut, Hex

11 532 41 10-81 Wheel & Tire Assembly

12 812 00 00-58 E-Ring

13 532 40 38-49 Pinion

14 532 18 94-03 Dust Cover

15 532 40 48-45 Pawl, Drive

16 532 06 77-25 Washer

18 532 13 28-00 Knob, Selector

28 532 19 60-08 Drive Cover

35 532 40 63-45 Kit, Wheel Adjuster, LH

(Includes Knob and Bearing)

36 532 41 52-26 *Gear Case Assembly, Complete

38 873 80 04-00 Locknut, Hex

40 532 13 70-90 Spring

41 532 40 63-44 Kit, Wheel Adjuster, RH

(Includes Knob and Bearing)

KEY PART

NO. NO. DESCRIPTION

60 532 18 34-97 Case, Lower

61 532 18 34-98 Case, Upper

62 532 18 34-99 Gear, 27 Teeth

63 532 18 35-00 Lever, Clutch

64 532 18 35-01 Spring, Return

65 532 41 69-88 Shaft, Input

66 532 18 35-03 Dog, Movable

67 532 18 35-04 Dog, Fixed

68 532 18 35-05 Wire, Formed

69 532 18 35-06 Bearing, Ball

70 532 18 35-07 Fork, Shift

71 532 18 35-08 Seal, Output Shaft

72 532 18 35-09 Washer

73 532 18 35-10 Seal, Case

74 532 18 35-11 Bushing

75 532 19 65-61 Shaft, Output

76 532 18 35-13 Screw

77 532 18 35-14 Seal, Input Shaft

78 532 41 69-87 Pulley, Drive

79 532 41 69-86 Locknut, Hex

*NOTE: We advise Total Multis EP00 semi-liquid

grease or a comparable grade (quantity 1.15 oz)

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
