Husqvarna LTH152 Einrichtungshandbuch

ILLUSTRATED PARTS LIST

MODEL NO. 96041003010

CUSTOMER CATALOG NO. LTH152

PRODUCT NO. 960 41 00-30

586 05 22-26

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

wheel_art_1-tex

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 13 83-36 Rim Asm 6" Front

4 532 05 99-04 Tube Front (Service Item Only)

5 532 10 62-22 Tire Front 15 x 6-6

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 Bearing Flange (Front Wheel Only)

8 532 17 50-39 Cap Axle Blk 1 50 x 1 00

9 532 42 05-31 Tire Rear 18 x 9.5-8 Turf Saver

10 532 12 49-26 Tube Rear (Service Item Only)

11 532 13 83-37 Rim Asm 8" Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 581 57 81-01 Decal, Operators

2 581 62 73-01 Emblem, Hood

3 581 57 97-01 Decal, Warning Eng. Symbols

4 532 43 79-18 Decal, Hood Panel

5 581 57 96-01 Decal, Chassis Hot Muffler

6 581 72 41-01 Decal, Fender 100 DB/CE

7 581 57 91-01 Decal, Cutfinger CE

8 532 43 35-12 Decal, Rpl

9 532 14 50-05 Decal, Battery Dnge/Poi

10 581 57 80-01 Decal, Saddle Brake Parking

11 581 57 92-01 Decal, Warning

12 581 58 00-01 Decal, Mower V-Belt Schematic

13 581 72 40-01 Decal, Brake/Clutch Symbol

- - 581 72 48-01 Decal, Bypass

- - 532 43 96-81 Pad, Footrest, LH

- - 532 43 99-66 Pad, Footrest, RH

- - 581 72 46-01 Decal, Drawbar Load Limit

- - 585 97 60-40 Manual Oper. Euro

- - 585 97 60-50 Manual Oper. Scand

- - 585 97 60-20 Manual Oper. E-Bloc

- - 585 97 60-30 Manual Oper. Baltic

TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30

DECALS

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH10

IGNITION SWITCH

CIRCUIT

POSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

03107

ATTACHMENT CLUTCH

(CLUTCH OFF)

REGULATOR STATOR

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

9-16 AMP DC @ 3600 RPM

RED

BLACK

BLACK /WHITE

ORANGE

BROWN

BLUE

BLACK

BLACKBLACK

BLACK

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30

SCHEMATIC

TR01S

With Service Minder Option

4646

106

79 21

TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30

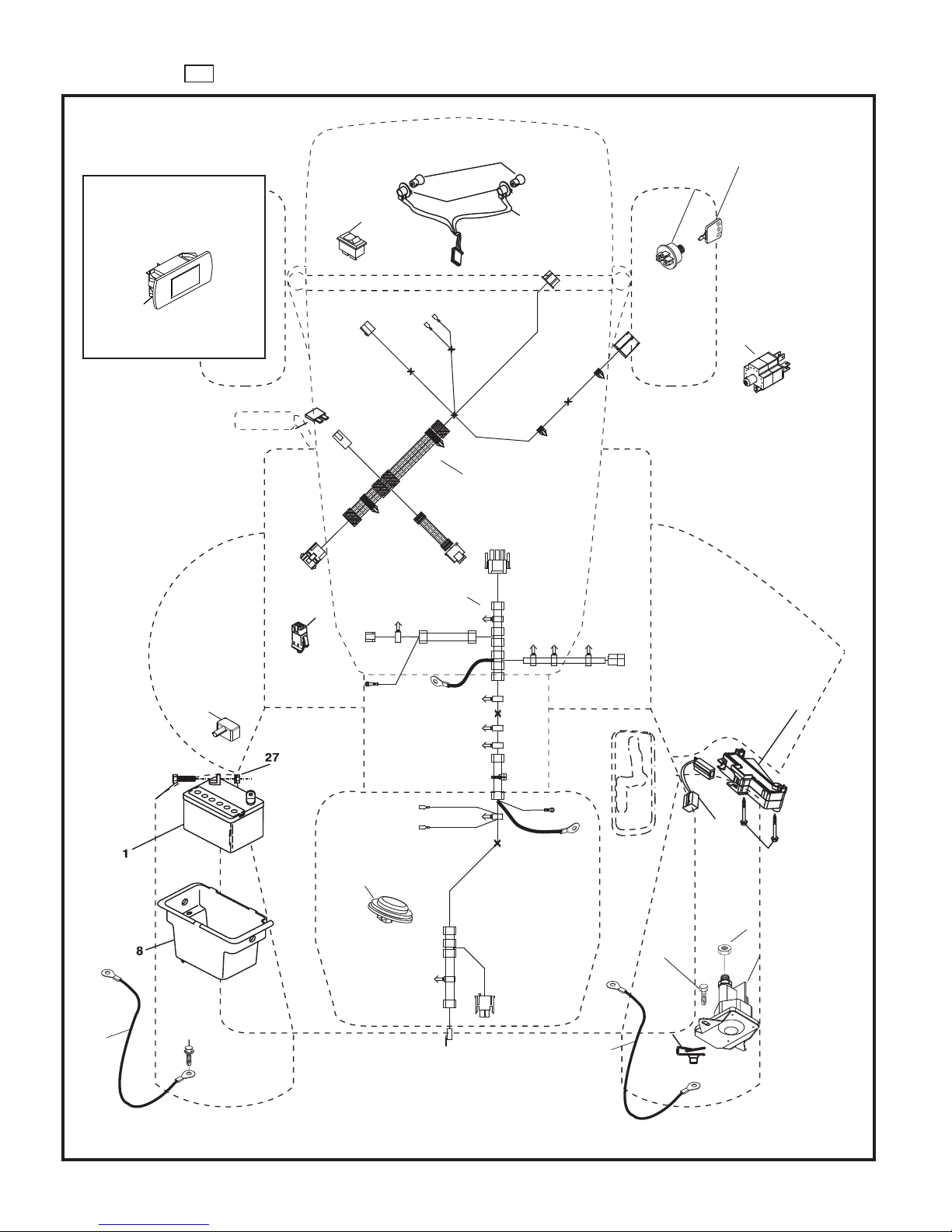

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 19 32-28 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 40 02-52 Harness Socket Light w/4152J

22 532 00 41-52 Bulb Light

25 581 49 80-01 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 42 16-86 Cable, Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ign

33 532 41 19-35 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 581 02 31-01 Harness Ign. Dash

43 532 19 25-07 Solenoid

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT

71 581 02 30-01 Harness Ign. Chassis

79 532 17 52-42 Socket Asm

87 532 19 78-02 Switch Interlock Clutch Cable

90 532 43 53-95 Cover Terminal

92 532 19 66-15 Harness Pigtail Reverse Switch

93 532 19 25-40 Screw Plastite 10-14 x 2.0

94 532 19 18-34 Module Reverse ROS

99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4

106 532 17 48-14 Palnut 1/4 Lugs

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30

ELECTRICAL

TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30

CHASSIS AND ENCLOSURES

183

236

236 34

235

137

177

175

130

151

234

214

234

205 202 25

203

206

14 191

297

204

15 130

130

176

182

130

150

176

137

238

239

217

189

152

213

218

228

194

180

189

chassis-tex_TEX LT HUSQ_55_r1

159

194

162

282

285

286

283

199

284

287

306

125

146

181

TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30

CHASSIS AND ENCLOSURES

3 581 05 63-01 Logo

5 532 43 89-64 Dash

14 532 44 12-67 Hood

15 532 44 14-28 Lens LH

18 532 44 13-68 Grille

25 532 44 14-27 Lens RH

34 580 91 08-01 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 44 12-66 Fender

52 873 68 05-00 Nut Crown Lock 5/16

58 532 41 22-80 Drawbar, Upper

68 817 49 05-08 Screw THDROL 5/16-18 x 1/2

125 581 68 48-01 Clip Fuel Line

130 532 41 63-58 Screw 10 x .750 BOS Thread

137 532 40 75-90 Bumper Dash

146 581 85 79-01 Bolt

150 532 40 75-37 Air Duct

151 532 40 78-07 Bracket Pivot

152 532 19 95-35 Shield Browning

159 817 00 06-12 Screw 3/8-7/16 x 3/4

162 532 14 24-32 Screw

175 532 19 94-72 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-28 Bushing Steering

180 532 41 50-63 Chassis

181 532 43 97-46 Bushing Fender

182 532 40 71-76 Dash Lower

183 874 52 05-20 Bolt 5/16-18 x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

191 532 41 65-01 Insert Reflective RH

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

199 532 41 34-85 Plate Deck Lift

202 532 44 13-42 Vent Side Hood RH

203 532 44 13-43 Vent Side Hood LH

204 532 44 13-75 Vent Top Hood

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

205 532 44 13-44 Skirt Side RH

206 532 44 13-45 Skirt Side LH

213 874 76 05-12 Bolt 5/16-18 x 3/4

214 532 19 91-45 Clip Retainer

217 532 40 91-67 Rod Pivot Hood

218 532 19 63-95 X-Piece Hood Stop

228 532 19 51-61 Stud Fastener

234 532 40 47-42 Bumper Hood

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Lock 5/16-18 UNC

238 532 44 13-74 Trim

239 532 40 48-83 Clip Tinnerman

282 532 41 41-10 Clip Retainer Console

283 532 44 20-39 Console Deck Lift

284 532 44 41-64 Console Shift

285 532 41 63-15 Console Insert R.H.

286 532 41 63-17 Console Insert L.H.

287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8

297 532 40 66-65 Insert Reflective LH

306 873 90 06-00 Nut

- - - 532 43 99-76 Plug Dash SRVMNDR

231

170

161

184

216

143

125

226

227

125

80 125

221

211

175

279 176

178

174

166

276

153

233

166

159

167

160

188

186

189

187

185

159

116

drive-tex_K46_fender_22_r2

225

125

205

230

183

205

185

190

TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30

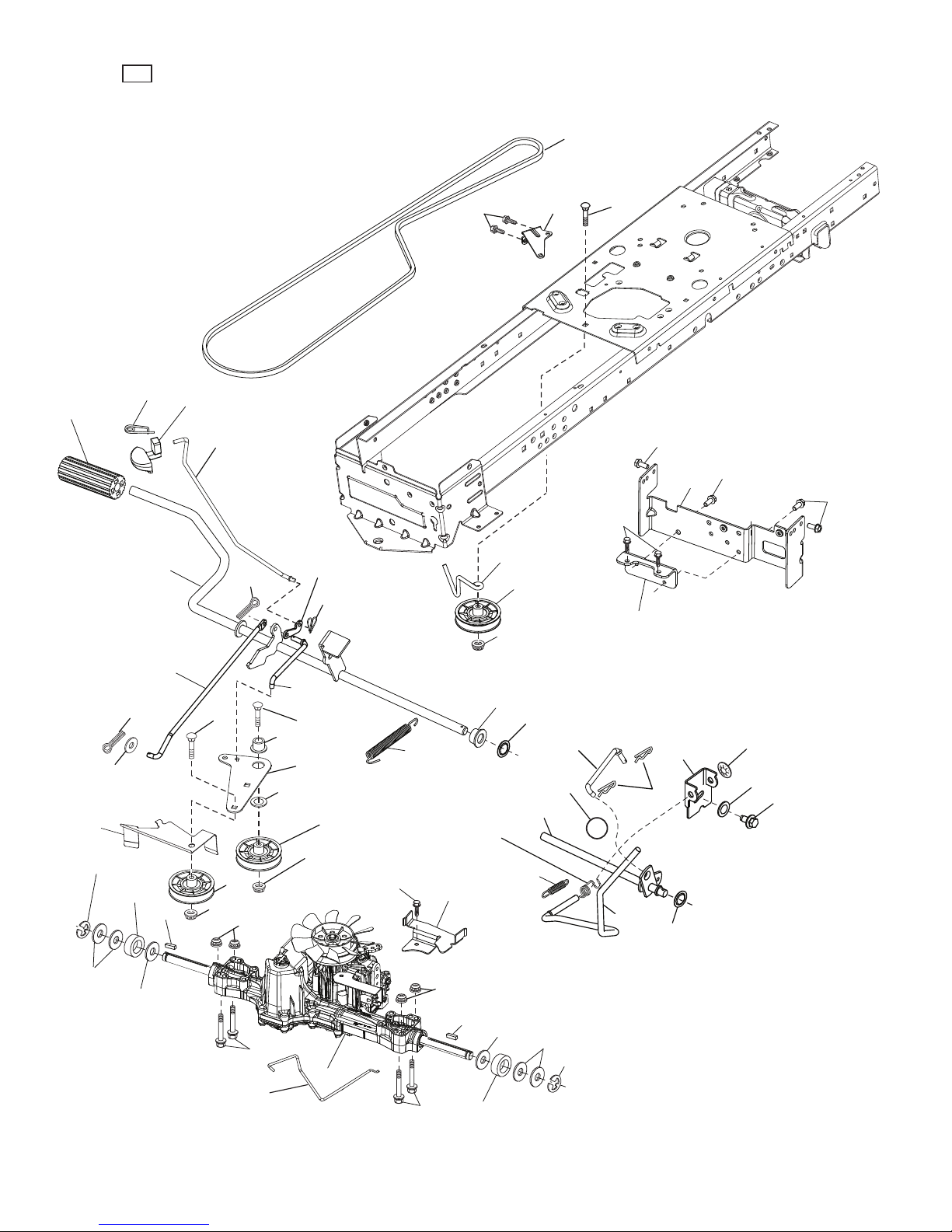

DRIVE

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 – – – – – – Transaxle, TuffTorq K46BA

(448348)(Order parts from trans-

axle manufacturer.)

2 532 12 35-83 Key Square

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 41 36-78 Spring, Brake

22 532 19 76-60 Rod Shift

23 532 12 12-74 Knob

29 532 40 38-06 Rod, Brake

33 812 00 00-01 Ring E

35 532 40 10-31 Rod, Brake, Park

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove

56 532 13 09-69 V-Belt, Drive

64 532 19 62-00 Shaft Asm. Pedal Brake Control

73 874 49 05-40 Bolt 5/16-18 x 1/2 Gr. 5

80 532 44 06-19 Strap Torque

99 532 41 57-42 Rod Spring Bypass

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16 - 18 x 3/4

143 817 49 05-08 Screw 5/16 - 18 x 1/2

153 532 12 47-88 Retainer Spring 1"

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

166 532 42 91-64 Nut Push

167 532 40 52-57 Latch Brake Parking

170 532 41 34-30 Keeper Belt Centerspan

174 532 19 72-89 Nut Push

175 532 40 85-39 Shaft Asm Shift

176 532 19 62-14 Arm Clevis Rod Shift

178 532 19 74-56 Spring Shift

183 532 13 70-57 Spacer Split

184 532 44 14-07 Handle Parking Brake

185 872 11 06-22 Bolt

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

211 532 19 62-12 Bushing Brake Shaft

216 532 19 61-31 Bracket Pulley Idler

221 532 40 31-87 Retainer Spring Clip Handle

225 532 40 33-19 Keeper Belt Trans.

227 817 49 05-12 Screw 5/16-18 x 3/4

226 532 40 15-64 Bracket Mount Torque

230 532 18 89-67 Washer Hardened

231 532 40 72-87 Idler V-Groove 1.688" Offset

233 532 40 52-96 Washer Serrated

276 874 78 07-16 Bolt 7/16-14 x 1 Gr. 5

279 532 41 31-50 Link Shift

TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30

DRIVE















30!2+ª!22%34%2ª+)4















 







ENGINETEX?KOHL?









122

TRACTOR - - MODEL NO. LTH152 (96041003010), PRODUCT NO. 960 41 00-30

ENGINE

Andere Handbücher für LTH152

Inhaltsverzeichnis

Andere Husqvarna Rasenmäher Handbücher

Husqvarna

Husqvarna Automower 305 Bedienungsanleitung

Husqvarna

Husqvarna LR120 Bedienungsanleitung

Husqvarna

Husqvarna LC 141VLi Bedienungsanleitung

Husqvarna

Husqvarna Rider 155 Bedienungsanleitung

Husqvarna

Husqvarna ROTARY LAWN MOWER 917.38451 Bedienungsanleitung

Husqvarna

Husqvarna LC 356VP Bedienungsanleitung

Husqvarna

Husqvarna L221AHK Bedienungsanleitung

Husqvarna

Husqvarna WG4815E, WG3613E Bedienungsanleitung

Husqvarna

Husqvarna 54 MULCH Bedienungsanleitung

Husqvarna

Husqvarna 87521RSX Bedienungsanleitung

Husqvarna

Husqvarna ts 352 Bedienungsanleitung

Husqvarna

Husqvarna 917.287581 Bedienungsanleitung

Husqvarna

Husqvarna 87521RES Bedienungsanleitung

Husqvarna

Husqvarna AUTOMOWER 310 Bedienungsanleitung

Husqvarna

Husqvarna CT154 Bedienungsanleitung

Husqvarna

Husqvarna MZ52LE Bedienungsanleitung

Husqvarna

Husqvarna M105-77XC Bedienungsanleitung

Husqvarna

Husqvarna AUTOMOWER 310 MARK II Bedienungsanleitung

Husqvarna

Husqvarna 6522CH Bedienungsanleitung

Husqvarna

Husqvarna RC 318T AWD Bedienungsanleitung

Husqvarna

Husqvarna TITANIUM 46SDR Bedienungsanleitung

Husqvarna

Husqvarna EZ4220 Bedienungsanleitung

Husqvarna

Husqvarna AUTOMOWER SOLAR HYBRID Bedienungsanleitung

Husqvarna

Husqvarna HU700H Bedienungsanleitung

Beliebte Rasenmäher Handbücher anderer Marken

RHINO

RHINO 1958 Bedienungsanleitung

Wolf Garten

Wolf Garten Compact plus 40 B Bedienungsanleitung

Cub Cadet

Cub Cadet LTX 1045 Bedienungsanleitung

Craftsman

Craftsman 917.378461 Bedienungsanleitung

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Bedienungsanleitung

Challenge

Challenge CH18V2 Betriebsanleitung

TALEN TOOLS

TALEN TOOLS AVR HGM30 Bedienungsanleitung

DEWEZE

DEWEZE ATM-725 Bedienungsanleitung

Weed Eater

Weed Eater 180083 Bedienungsanleitung

Better Outdoor Products

Better Outdoor Products Quick Series Bedienungsanleitung

Cub Cadet

Cub Cadet 23HP Z-Force 60 Betriebsanleitung

MTD

MTD 795, 792, 791, 790 Bedienungsanleitung

Toro

Toro Groundsmaster 3505-D Bedienungsanleitung

Dennis

Dennis FT 610 Bedienungsanleitung

AIRFORCE

AIRFORCE F-15 Gen 3 Bedienungsanleitung

MTD

MTD 126-220-000 Bedienungsanleitung

Toro

Toro 74806 Bedienungsanleitung

Stihl

Stihl RMA 443 PV Bedienungsanleitung
