Husqvarna R152SV Einrichtungshandbuch

583 87 52-27 12.19.13 BY

ILLUSTRATED PARTS LIST

MODEL NUMBER R 152SV

PRODUCT NUMBER 961 41 01-34

MFG. ID. NUMBER 96141013410

HUSQVARNA LAWN MOWER - MODEL NUMBER R 152SV (96141013410) PRODUCT NUMBER 961 41 01-34

40 42

54 55

HUSQVARNA LAWN MOWER - MODEL NUMBER R 152SV (96141013410) PRODUCT NUMBER 961 41 01-34

1 532 19 05-82 Handle, Grassbag, Rear

2 532 06 53-22 Hairpin Cotter

3 532 18 34-83 Rod, Rear Handle, Grassbag

4 532 40 18-98 Grassbag

5 532 18 85-06 Frame, Grassbag

6 812 00 00-14 E-Ring

7 532 19 05-81 Door, Grassbag

8 532 18 34-79 Rod, Pivot

9 872 14 04-05 Bolt

10 873 80 04-00 Nut, Hex, Nylock 1/4-20

11 532 19 06-92 Tube, Rear Skirt

13 532 41 49-58 Cover, Front

14 532 19 94-22 Screw, Hex Washer Head

15 532 15 04-06 Bolt, Engine Mounting

16 532 41 50-76 Blade, 21"

17 532 85 10-74 Washer, Hardened

18 532 85 02-63 Washer, Lock

19 532 19 17-60 Bolt, Hex Head, Grade 8 3/8-24

20 532 18 67-66 Adapter, Blade

21 532 19 05-16 Debris Shield

22 817 60 04-06 Screw, Hex Head, Serrated

27 532 18 21-66 Decal, Danger

28 532 43 33-69 Mulcher Door Assembly

34 532 19 06-19 Adjustment Bracket, Lower Handle, LH

35 532 18 23-98 Knob, Star

36 532 19 41-87 Bolt, Shoulder

37 532 43 34-20 Discharge Deflector Assembly

38 532 19 06-21 Adjustment Bracket, Lower Handle, RH

39 532 19 15-74 Bolt, Handle

40 532 06 64-26 Wire Tie

42 532 18 70-96 Handle Assembly, Lower

43 580 84 91-02 Bail, Control

45 580 63 87-06 Handle, Upper

46 532 42 74-97 Cable, Engine Zone Control

47 532 17 88-48 Screw, Hex Washer Head #10-16 x 5/8

48 532 43 00-34 Bracket, Upstop

49 532 13 20-04 Nut, Hex

50 532 18 85-01 Rope Guide

51 532 43 33-66 Kit, Lawn Mower Housing Assembly

52 - - - Engine, Briggs & Stratton, Model Number 100602-

2980-H8 (Order parts from Briggs & Stratton)

54 532 43 33-59 Discharge Chute Assembly

55 532 19 41-92 Stud, Shoulder, T45

56 812 00 00-58 E-Ring, T45

81 532 19 41-89 Screw 13-16 x 5/8

86 532 43 22-34 Nut, Insert

- - 115 67 63-20 Opeator's Manual, European

- - 115 67 63-10 Opeator's Manual, Scandinavian

- - 115 67 63-50 Opeator's Manual, East Bloc

- - 115 67 63-40 Opeator's Manual, Baltic

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

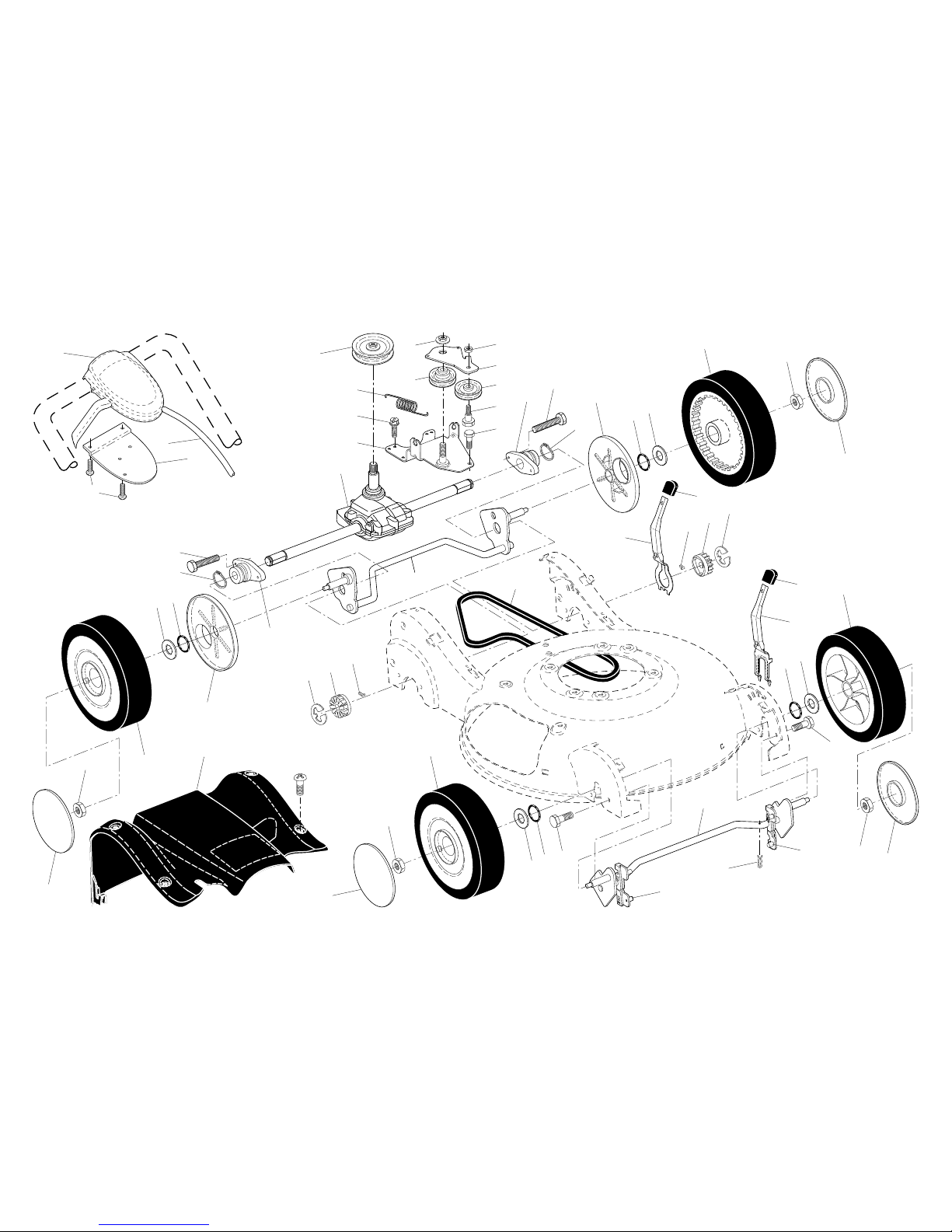

HUSQVARNA LAWN MOWER - MODEL NUMBER R 152SV (96141013410) PRODUCT NUMBER 961 41 01-34

24 25

HUSQVARNA LAWN MOWER - MODEL NUMBER R 152SV (96141013410) PRODUCT NUMBER 961 41 01-34

1 532 42 56-65 Drive Control Assembly (Includes Cable)

6 532 18 16-98 Screw, Torx Head #8 x 5/8

7 532 40 07-23 Bracket, Mounting, Drive Control

9 532 19 70-11 Cable, Drive Control

12 812 00 00-12 Ring, Retaining

13 532 19 41-86 Screw

14 532 40 80-27 Bearing / Axle Support

15 532 41 92-11 Gear Case Assembly, Complete

16 532 40 65-58 Spring, Return

17 532 40 80-05 Bracket, Gear Case / Drive Pulley

18 532 16 34-09 Screw

19 532 44 32-62 Pulley, Drive

20 532 43 26-77 Drive Cover Assembly

(Includes Mounting Screw and Pushnut)

22 532 19 37-91 Pulley Assembly, V-Groove

23 532 19 74-80 O-Ring

24 532 40 91-49 Nut, Hex, Flangelock

25 873 93 05-00 Nut, Hex, Lock

26 532 41 67-36 Idler Arm

27 532 16 60-43 Pulley

28 532 16 08-29 Bolt, Hex Head, Shoulder

29 817 06 04-10 Screw 1/4-20 x 1/16

30 532 18 34-57 Cover, Dust, Wheel

31 532 08 83-48 Washer, Flat 3/8

32 532 19 26-22 Wheel Assembly, Rear 9 x 2-1/4

33 532 40 91-48 Nut, Hex

34 532 18 34-42 Hubcap

35 532 42 52-42 Knob

37 532 40 48-45 Pawl

38 812 00 00-58 E-Ring

39 532 40 38-49 Pinion

43 532 19 05-20 Lever, Selector, Wheel Height, Rear

44 532 19 05-18 Lever, Selector, Wheel Height, Front

46 532 19 22-32 Wheel Assembly, Front 9 x 2-1/4

47 532 18 34-38 Bushing, Front Axle

48 532 16 96-75 Retainer, Hairpin Cotter

49 532 19 64-69 Torque Shaft Assembly, Front

50 532 40 80-31 Belt, Drive

53 532 41 67-40 Rear Axle Assembly

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
