SPECIFICATIONS:

Engine: 3100 ±100 RPM

Gasoline Capacity: 1.2 qt.

Gasoline Type: Unleaded Regular

Oil Type: SAE 30 (above 32°F) (API-SG-SL)

SAE 5W-30(below 32°F)

Oil Capacity: 20 oz.

Spark Plug: Champion RC12YC (Gap: .030")

Ground Speed: Forward: 0-4 mph

Reverse: 0-1 mph

Blade Bolt Torque: 45 - 55 Ft. Lbs.

Mandrel Pulley Nut Torque: 65 - 70 Ft. Lbs

Brake Puck Clearance: .020"

RETURN TO

MAIN MENU

Slide 3

FOR REFERENCE ONLY

LRV Controls & Maintenance Info

RETURN TO

MAIN MENU

Model Plate

• Use the product number and the maintenance level for the complete

model number, 96022000900.

RETURN TO

MAIN MENU

Slide 4

FOR REFERENCE ONLY

LRV Controls & Maintenance Info

RETURN TO

MAIN MENU

GENERAL INFORMATION – Maintenance Schedule

• xxxxxx

RETURN TO

MAIN MENU

Slide 5

FOR REFERENCE ONLY

LRV Controls & Maintenance Info

RETURN TO

MAIN MENU

AXLE AND SPINDLES

• Front wheel axles and front spindles

should be properly lubricated.

• Wheel Axles should be lubricated

with a dry, powdered graphite type

lubricant.

• Spindles should be lubricated with a

spray type silicone base lubricant.

FRONT WHEEL AXLE

FRONT SPINDLE

RETURN TO

MAIN MENU

Slide 6

FOR REFERENCE ONLY

LRV Controls & Maintenance Info

RETURN TO

MAIN MENU

GENERAL INFORMATION: Oil Change Note

The LRV does not have a location for

an oil drain.

The proper way to remove the engine

oil is through the dipstick tube,

using a siphon pump or an oil

extractor.

DIPSTICK

RETURN TO

MAIN MENU

Slide 7

FOR REFERENCE ONLY

LRV Controls & Maintenance Info

RETURN TO

MAIN MENU

• xxxxxx

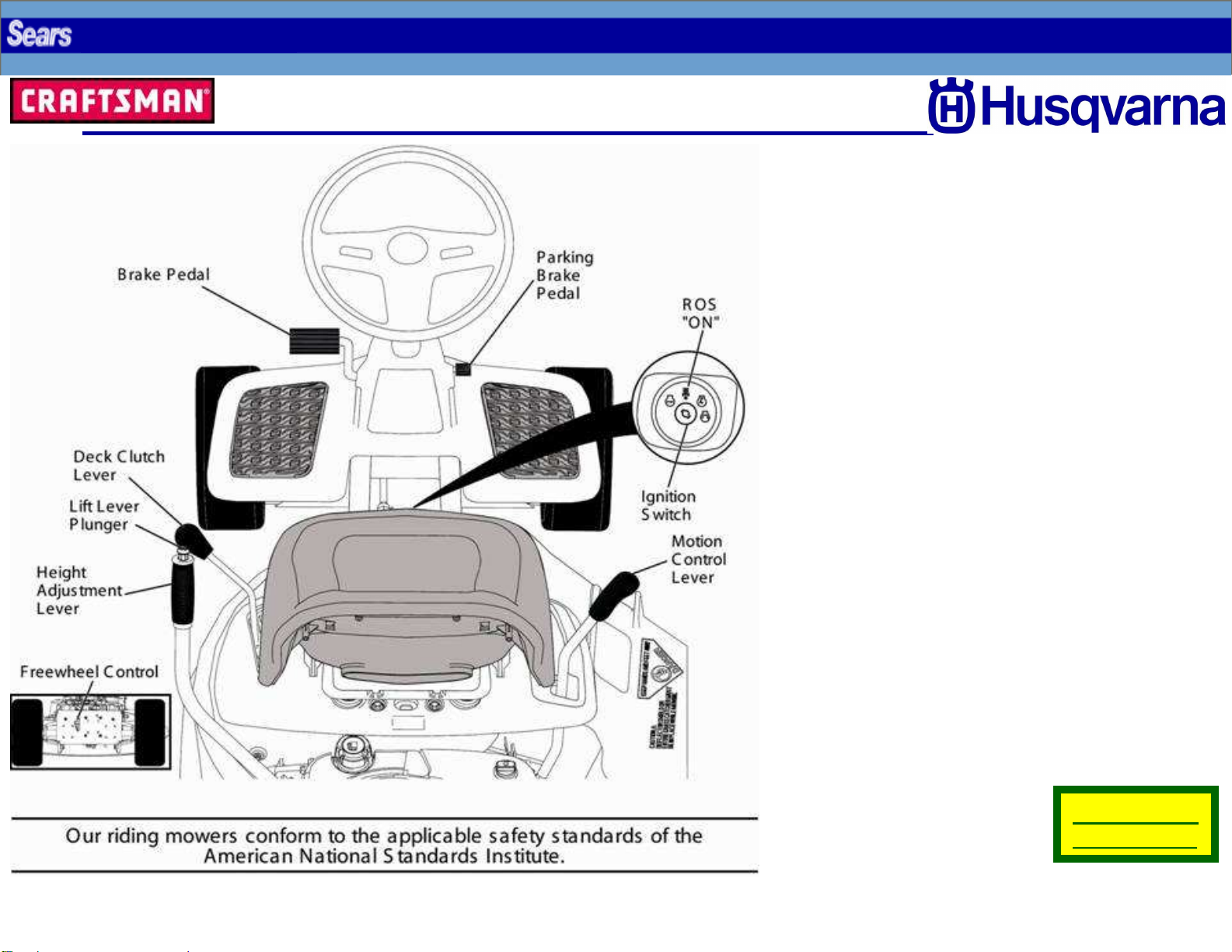

CONTROLS DECK CLUTCH LEVER

- Used to

engage the mower blade.

BRAKE PEDAL -

Used for braking

the riding mower and starting the

engine.

HEIGHT ADJUSTMENT LEVER -

Used to adjust mower cutting

height.

IGNITION SWITCH -

Used for

starting and stopping the engine.

LIFT LEVER PLUNGER -

Used to re

lease height adjustment lever

when changing its position.

MOTION CONTROL LEVER -

Selects the speed and direction of

the riding mower.

RETURN TO

MAIN MENU

Slide 8

FOR REFERENCE ONLY

LRV Controls & Maintenance Info

RETURN TO

MAIN MENU

Parking Brake

• Fully depress the clutch/brake

pedal with left foot.

• Depress the parking brake pedal

with right foot.

• Release the clutch/brake pedal.

• Release the parking brake pedal

• The parking brake should now be

engaged.

CLUTCH / BRAKE PEDAL

(FULLY DEPRESSED)

PARKING BRAKE PEDAL

(DEPRESSED)

RETURN TO

MAIN MENU

Slide 9

FOR REFERENCE ONLY

LRV Controls & Maintenance Info

RETURN TO

MAIN MENU

Parking Brake

• These pictures show the position of the clutch/brake pedal and the

parking brake rod that sets the parking brake.

BRAKE CABLE

PARKING BRAKE ROD

ENGAGED

PARKING BRAKE ROD

DIS-ENGAGED

CLUTCH/BRAKE PEDAL

(FULLY DEPRESSED)

ENGAGED POSITION

RETURN TO

MAIN MENU

Slide 10

FOR REFERENCE ONLY

LRV Controls & Maintenance Info

RETURN TO

MAIN MENU

Freewheel Control

• At left is the disengaged position of the freewheel control so the drive system

will move the rider.

• At right is the engaged position of the freewheel control so the rider can be

pushed.

FREEWHEEL CONTROL ENGAGEDFREEWHEEL CONTROL DIS-ENGAGED

RETURN TO

MAIN MENU
