HyperX QuadCast HX-MICQC-BK Bedienungsanleitung
Document No. 480HX-MICQC.A01
HyperX QuadCastTM
Page 1 of 16
HyperX QuadCastTM
Part Numbers
HX-MICQC-BK
Document No. 480HX-MICQC.A01
HyperX QuadCastTM
Page 2 of 16
TABLE OF CONTENTS
Overview ................................................................................................................................... 3!
Specifications .......................................................................................................................... 4!
Microphone Controls ............................................................................................................... 5!
Using with PC or Mac .............................................................................................................. 7!
Using with PS4™ ................................................................................................................... 11!
Connecting Headphones....................................................................................................... 12!
Controlling Microphone Monitoring ..................................................................................... 13!
Installing the Mount Adapter ................................................................................................ 15!
Document No. 480HX-MICQC.A01
HyperX QuadCastTM
Page 3 of 16

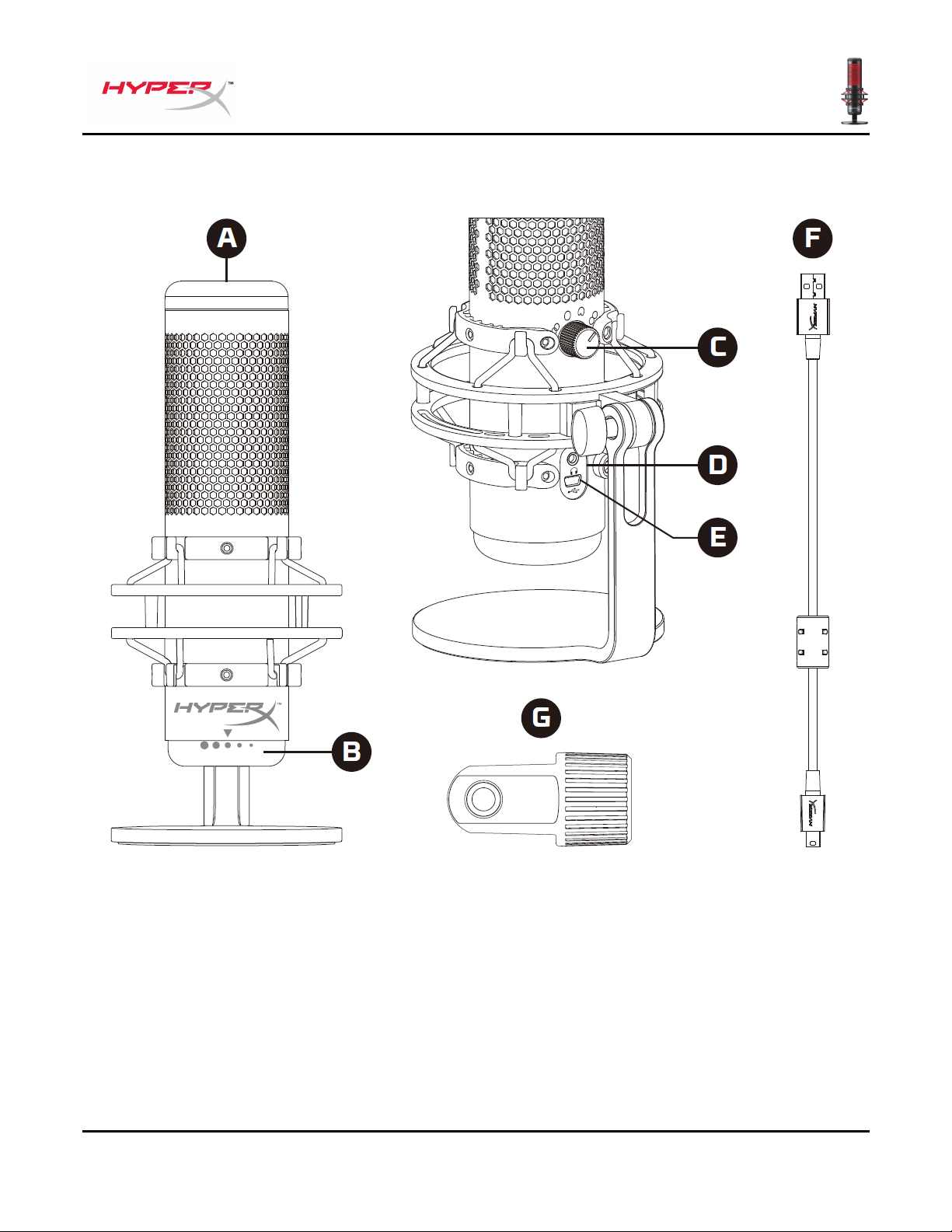

Overview
A. Tap-to-Mute Sensor
B. Gain Control Knob
C. Polar Pattern Knob
D. Headphone Jack
E. USB Cable Port
F. USB Cable
G. Mount Adapter*
*Supports both 3/8” and 5/8” thread sizes
Document No. 480HX-MICQC.A01
HyperX QuadCastTM
Page 4 of 16
Specifications
Microphone
Power consumption: 5V 125mA
Sample/bit rate: 48kHz/16-bit
Element: Electret condenser microphone
Condenser type: Three 14mm condensers
Polar patterns: Stereo, Omnidirectional, Cardioid, Bidirectional
Frequency response: 20Hz - 20kHz
Sensitivity: -36dB (1V/Pa at 1kHz)
Cable length: 3m
Weight:
• Microphone: 254g
• Shock mount and stand: 364g
• Total with USB cable: 710g
Headphone Output
Impedance: 32 Ω
Frequency response: 20Hz - 20kHz
Maximum power output: 7mW
THD: ≤ 0.05% (1kHz/0dBFS)
SNR: ≥ 90dB (1kHZ, RL=∞)
Document No. 480HX-MICQC.A01
HyperX QuadCastTM
Page 5 of 16
Microphone Controls
Selecting a Polar Pattern
Rotate the polar pattern knob to select one of the four polar patterns.
Symbol
Sound Direction
Polar Pattern
Scenarios
Stereo
Vocals, instruments
Omnidirectional
Multi-person
podcasts, conference
calls
Cardioid
Podcasts, streaming,
voiceovers,
instruments
Bidirectional
Face-to-face
interviews
Document No. 480HX-MICQC.A01
HyperX QuadCastTM
Page 6 of 16
Adjusting Gain Control
Rotate the gain control knob to adjust the gain of the microphone.
Muting the Microphone
Tap the top of the microphone to mute/unmute the microphone. The microphone LED will indicate the
current mute status of the microphone.
Microphone LED
Mute Status
Red
Mute off
Off
Mute on
Document No. 480HX-MICQC.A01
HyperX QuadCastTM
Page 7 of 16
Using with PC or Mac
Connect the microphone to a USB port on the PC or Mac with the included USB cable.
Windows
To ensure the microphone is configured correctly on the PC, follow the steps below:
1. Right-click on the sound icon on the system
tray and select Sounds.
Document No. 480HX-MICQC.A01
HyperX QuadCastTM
Page 8 of 16
2. On the Playback tab, select Speakers
HyperX QuadCast and click on the Set
Default button.
3. On the Recording tab, select Microphone
HyperX QuadCast and click on the Set
Default button.
Document No. 480HX-MICQC.A01
HyperX QuadCastTM
Page 9 of 16
macOS
To ensure the microphone is configured correctly on the macOS, follow the steps below:
1. Open System Preferences and select Sound.
Document No. 480HX-MICQC.A01
HyperX QuadCastTM
Page 10 of 16

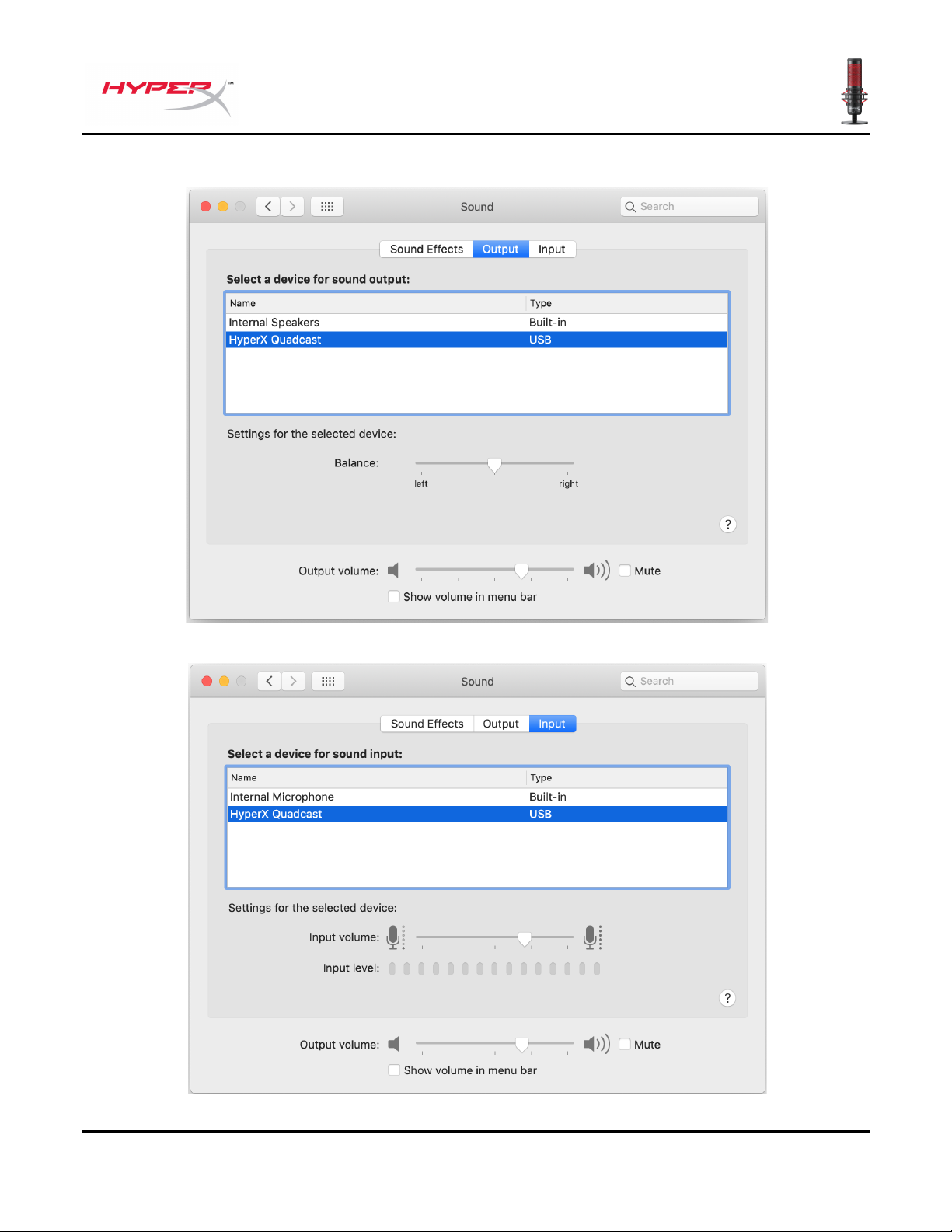

2. On the Output tab, select HyperX QuadCast.
3. On the Input tab, select HyperX QuadCast.
