HHC315C

2HHC315C

This product is supported by Midland Power. Contact us

directly for assistance and warranty help. Do not return this

product to store.

You must register online for your warranty to be valid.

It only takes a minute, do it now while you still have your

purchase receipt.

Support for your product is available online, including

parts, service center locations, and live expert advice.

Or call us anytime at 1-877-528-3772.

www.hyundaipower.ca/register-warranty

Visit us Online at

www.hyundaipower.ca

HYUNDAI

THIS PRODUCT MEETS ALL CERTIFICATION REQUIREMENTS FROM:

READ THIS ENTIRE GUIDE BEFORE USING THIS

PRODUCT AND SAVE FOR LATER USE.

This user guide contains important instructions including

safety, setup, operation, and maintenance that must be

followed. All information in this guide is based on information

available at the time of print. This guide or revised editions

can be found on our website for download. No part of this

publication may be reproduced without written permission.

Thanks for choosing the HCC Series!

You're excited to get started, we'll keep this brief.

TABLE OF CONTENTS

1. Safety 5

2. Learn About Your Air Compressor 8

2.1 Component Identiﬁcation 8

2.2 Control Functions 9

2.3 Make Sure You Have Everything 10

3. Getting Started 11

3.1 Initial Inspection 11

3.2 Assembly 11

4. Operation 13

4.1 Starting Your Air Compressor 13

4.2 Stopping your Air Compressor 14

5. Maintenance 15

5.1 Maintenance Schedule 15

5.2 Draining the Air Tank 16

5.3 Checking for Air Leaks 16

5.4 Checking the Safety Relief Valve 17

6. Storage 18

7. Troubleshooting 19

9. Limited Warranty 21

HYUNDAI

1. SAFETY

DANGER!

NEVER breathe air from the air compressor. The air may

contain carbon monoxide, toxic vapours, and/or solid particles.

Compressed air will damage your lungs and may cause injury

or death.

1.1 OPERATOR SAFETY

WARNING!

ALWAYS inspect air compressor, air hose, and air tools for damage or

obstruction before each use. Repair or replace damaged items before

use.

ALWAYS operate air compressor in a well-ventilated area free of

combustible or ammable materials.

ALWAYS operate air compressor in an open area at least 12 inches away

from any wall or obstruction that could restrict airow.

NEVER operate the air compressor in an enclosed area.

NEVER move air compressor while power switch is set to ON.

NEVER point any nozzle or sprayer toward yourself or another person.

ALWAYS wear certied eye and ear protection. Long durations of use

may contribute to hearing loss.

ALWAYS wear certied breathing masks to reduce the risk of inhaling

harmful particles and vapours. Sprayed materials such as paint or

solvents contain harmful vapours and poisons.

ALWAYS keep air compressor at least 20 feet away while spraying

ammable materials.

ALWAYS keep ammable materials in a secure location away from the air

compressor.

NEVER restrict ventilation openings of the air compressor. This may

cause overheating and re.

NEVER touch exposed motor or pump components during or

immediately after use of the air compressor. These components will

remain hot for some time after shutdown.

Condensation will form inside the air tank. Make sure to completely

drain condensed water from the tank after each use to prevent rust and

thinning of air tank.

ALWAYS use ear and eye protection when draining the air tank, escaping

air may contain moisture and debris.

All air tools have a recommended air pressure. Operating an air tool

6HHC315C

at a pressure that exceeds its rating may damage the tool and causes

a risk of bursting. Before using any air tool, check the manufacturer’s

recommended air pressure and set the outlet pressure accordingly.

This air compressor has a duty rating of 50%. Do not allow the air

compressor to run continuously for more than 30 minutes, doing so will

decrease the service life of the compressor.

Air compressors vibrate in normal use. During and after each use, inspect

the equipment as well as the power cord for damage resulting from

vibration. Have damaged items repaired or replaced as necessary. Do not

use plugs or cords that show signs of damage.

Make sure that the air compressor is in a stable and secure position

before operating.

Shut OFF air compressor immediately if the device begins to operate

abnormally. Then disconnect power and air hose and investigate the

problem.

Secure loose clothing, hair, and jewellery that may be caught in the

moving parts of the air compressor.

1.2 AC SAFETY

WARNING!

NEVER modify the provided plug.

All electrical work must be performed by a qualied electrician.

Plug the air compressor power cord directly into a grounded wall socket.

Do not use an extension cord unless necessary. Use a longer air hose

instead.

If you must use an extension cord, use only a 3-wire extension cord with

a grounding wire. Cords must have a gauge of 12AWG or thicker and

should not exceed 25-feet.

Make sure air compressor is properly grounded. Failure to ground the unit

may increase the risk of electrical shock.

Check with a qualied electrician if in doubt as to whether the product is

properly grounded.

If air compressor is stored outdoors, check all the electrical components

on the control panel before each use. Moisture can damage the

compressor and can lead to an electric shock.

HYUNDAI

1.3 MAINTENANCE SAFETY

WARNING!

ALWAYS release pressure, shut power OFF, and disconnect hose before

performing maintenance or repairs.

NEVER modify or repair the air tank. Never drill, weld, or make any

modications of any kind to the air tank or its attachments.

NEVER modify the power switch, safety release valve, or any other

component that controls air tank pressure. The air tank is designed to

withstand specic operating pressures. NEVER adjust or substitute parts

to alter the factory set operating pressures.

NEVER remove or modify safety guards or covers. NEVER operate the air

compressor if guards or covers are damaged or removed.

The air compressor should only be serviced by an authorized service

center unless you have the proper tools and are mechanically procient.

Allow the air compressor to cool down for one hour after use before

performing any maintenance.

If the air tank develops a leak, shut power OFF and replace immediately

with a new tank.

8HHC315C

2. LEARN ABOUT YOUR AIR COMPRESSOR

This section will show you how to identify key parts of your air compressor. Going

over the terminology below will make sure we’re on the same page.

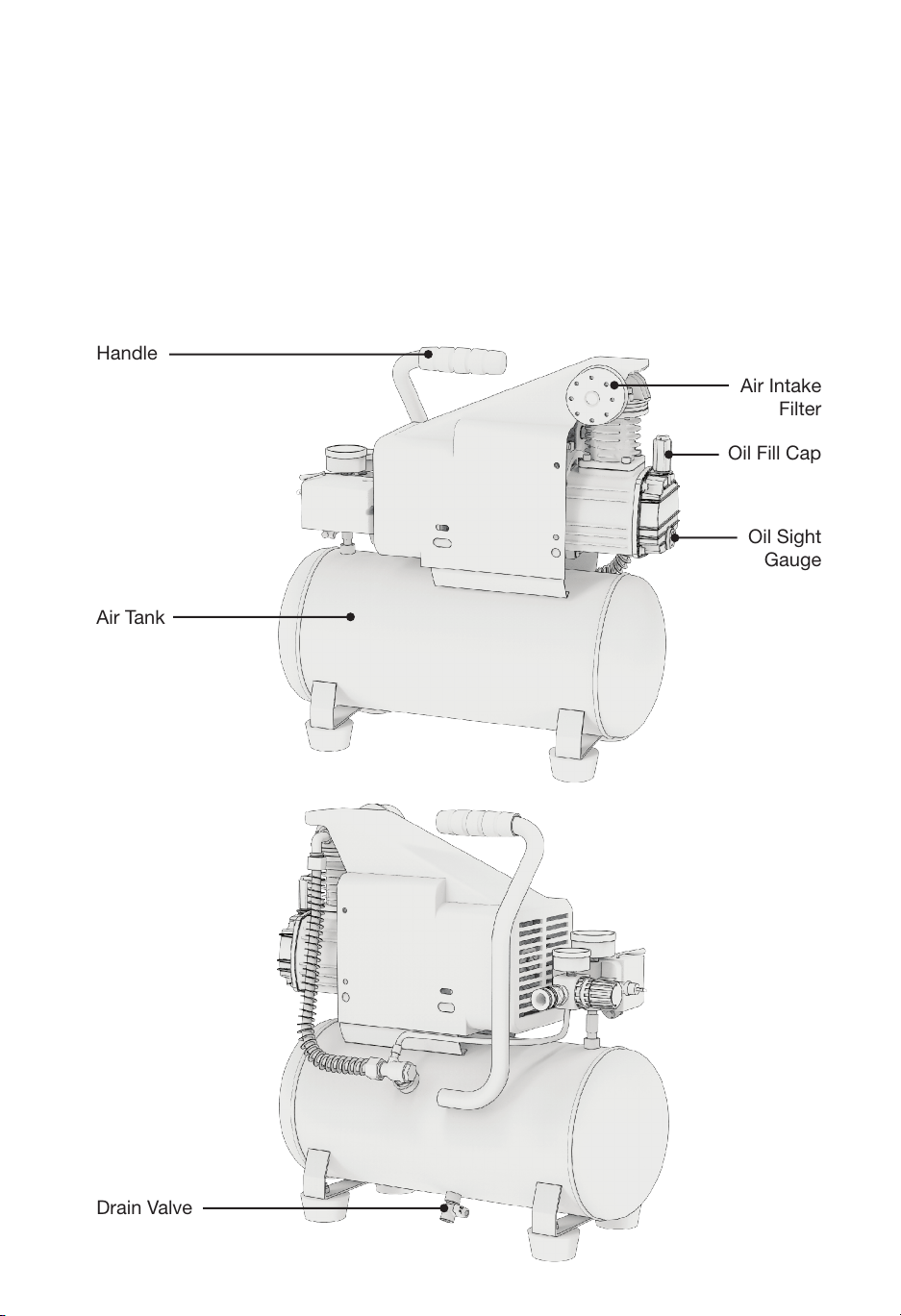

2.1 COMPONENT IDENTIFICATION

Air Tank

Drain Valve

Oil Sight

Gauge

Oil Fill Cap

Air Intake

Filter

Handle

HYUNDAI

2.2 CONTROL FUNCTIONS

Air Pressure Regulator Knob

Controls the air pressure that will be delivered to your air tool.

To increase the pressure, turn the knob clock wise, and to decrease the

pressure, turn the knob counterclockwise.

Can only decrease the amount of pressure being delivered from the air

tank, can not increase pressure.

Air Intake Filter

Prevents dust and debris from entering and damaging the air compressor.

Drain Valve

Used to drain excess moisture and condensation from the tank.

Quick Connect

Air Outlet

Outlet

Pressure Gauge

Tank

Pressure Gauge

Power Switch

Air Pressure

Regulator Knob

Safety

Relief Valve
