Hyundai HHC4GAC Bedienungsanleitung

HHC4GAC_UG_EN_0214

Thank you for purchasing a Hyundai Air Compressor.

Please register your product in order for us to ensure your continuous satisfac-

tion with our product.

This manual covers the safety, operation, and maintenance procedures for the

HHCSeries 4 Gallon air compressor.

All information in this publication is based on the latest product information

available at the time of approval for printing. No part of this publication may be

reproduced without written permission.

If a problem should arise, please contact us by using the contact information

found at the end of this manual.

It is important that this manual be read and fully understood before operating

the compressor. Failure to do so may cause serious injuries and/or equipment

damage.

CONTENT

1.0 Safety Instructions

1.1 General Operations Safety

1.2 AC Safety Guidelines

1.3 Maintenance Safety

1.4 Air Tank Safety

1.5 Attachments and Accessories Safety

1.6 Risk of Explosion or Fire

1.7 Risk of Bursting

1.8 Risk of Electrical Shock

1.9 Risk to Breathing

1.10 Risk of Burn

1.11 Risk of Falling

1.12 Risk of Moving Parts

2. Specications

3. Features

4. Compressor Diagram

5. Parts List

6. Start-up/Operation Instructions

7. Maintenance

8. Troubleshooting

9. Glossary

10. Warranty

HHC4G User Manual

1.1 - GENERAL OPERATION SAFETY

1. Always perform a pre-operation check before using the air compres-

sor.

2. Operators of the unit should always be wearing appropriate approved

eye and hearing protection. Under some conditions, long durations of

use may contribute to hearing loss.

3. Always operate the air compressor according to the instructions for

safe and dependable service.

4. Always clean and properly maintain the equipment after use.

5. To avoid harm, never operate the compressor in an enclosed area.

6. Pay attention to all warning labels and be careful not to touch the

marked parts of the compressor during and immediately after opera-

tion because they may cause burns.

1.2 - AC SAFETY GUIDELINES

Before connecting the compressor to an electrical device or power cord:

1. Make sure that all parts are in right working order. Faulty devices or

power cords can lead to an electrical shock.

2. Turn off the air compressor immediately if the device begins to operate

abnormally. Then disconnect the device and investigate the problem.

1.3 - MAINTENANCE SAFETY

1. Turn off the air compressor before performing any maintenance. Oth-

erwise, it can cause severe personal injury and/or death.

2. Allow the air compressor to cool down before performing any main-

tenance.

3. Only qualied, licensed, and/or certied maintenance personnel with

knowledge of fuels, electricity, and machinery hazards should perform

maintenance procedures.

1.4 - AIR TANK SAFETY

1. Drain the tank daily or after each use. Make sure to properly drain

condensed water from the tank in order to prevent rust and/or thinning

of the steel tank.

2. If the tank develops a leak, replace it immediately with a new tank or

new compressor outt.

3. Do not attempt to modify or repair the compressor tank. Never drill,

weld, or make any modications of any kind to the tank or its attach-

ments.

4. Do not attempt to modify the pressure switch, safety valve, or any

other components that control tank pressure. The tank is designed to

6HHC4G User Manual

withstand specic operating pressures. Never make adjustments or

substitute parts to alter the factory set operating pressures.

1.5 - ATTACHMENTS AND ACCESSORIES SAFETY

1. Do not exceed the pressure rating of air tools, spray guns, air oper-

ated accessories, air tires, hoses, and other inatables. Exceeding

pressure ratings may cause them to explode or become damaged,

resulting in serious injury.

2. Make sure to follow the equipment manufacturer’s recommendation

and never exceed the maximum allowable pressure rating of attach-

ments.

3. Never use the compressor to inate small, low pressure objects, such

as children’s toys.

1.6 - RISK OF EXPLOSION OR FIRE

1. Make sure the air compressor is in a well-ventilated area, free of any

combustible or ammable materials, gasoline, or solvent vapours.

2. Make sure to keep the compressor at least 20 feet away when spray-

ing ammable materials.

3. Keep all ammable materials in a secure location away from the air

compressor.

4. Do not restrict any of the compressor’s ventilation openings. This may

cause overheating and could cause a re.

5. Make sure to operate the compressor in an open area at least 3 feet

away from any wall or obstruction that could restrict the airow of the

compressor.

1.7 - RISK OF BURSTING

1. Make sure to drain the tank after each use. If the tank develops a

leak, replace it immediately with a new tank or new compressor outt.

2. Do not attempt to modify or repair the tank. Any drilling, welding, or

other forms of modication may result in serious injury to you and/

or others.

3. Do not adjust regulator to result in output higher than marked maxi-

mum pressure of attachment.

1.8 - RISK OF ELECTRICAL SHOCK

1. Do not operate in wet environments.

2. Do not expose the compressor to rain.

3. Make sure the compressor is properly grounded. Failure to ground

the unit may increase the risk of electrical shock.

HHC4G User Manual

4. All electrical work must be performed by a qualied or licensed/certi-

ed electrician.

1.9 - RISK TO BREATHING

1. Always operate the compressor in a well-ventilated area.

2. Wear appropriate safety masks to reduce the risk of inhaling any

harmful vapours.

3. Do not breathe compressed air from the compressor. The com-

pressed air is not breathable and may contain carbon monoxide, toxic

vapours, and/or solid particles.

4. Sprayed materials such as paint, paint solvents, paint remover, insec-

ticides, weed killers, etc. contain harmful vapours and poisons.

1.10 - RISK OF BURN

1. Do not touch any exposed metal components during or immediately

after use of the compressor. The compressor will remain hot for

several minutes after it has been shutdown.

2. Do not move the unit while the compressor is running.

1.11 - RISK OF FALLING

1. Make sure that the compressor is in a stable and secure position

before operating.

1.12 - RISK OF MOVING PARTS

1. The compressor cycles automatically when the pressure switch is in

the ON position.

2. Do not remove and safety guards or covers. If guards and/or covers

are damaged or removed, do not operate the compressor.

3. Make sure to release pressure, turn off, and disconnect the compres-

sor before performing any maintenance or repairs.

4. Secure any and all loose clothing, hair, or jewellery that may be caught

in the moving parts or the air vents of the compressor.

5. attachments.

6. Never use the compressor to inate small, low pressure objects, such

as children’s toys.

8HHC4G User Manual

SECTION 2 - SPECIFICATIONS

MODEL HHC4GAC

RUNNING HORSEPOWER 1.5 HP

MAX PSI 125 PSI

SCFM @ 40 PSI 3.5 CFM

SCFM @ 90 PSI 2.4 CFM

TANK SIZE 4 Gal

SECTION 3 FEATURES

Pressure Switch

This controls the power to the motor and the cut-in/cut-out pressure set-

tings. Also serves as the Auto-On/Off positions for the unit.

Safety Valve

This valve allows excess tank pressure to escape into the atmosphere. It

should open when tank pressure exceeds the maximum pressure rating.

Check Valve

This valve closes when the pump is not in operation in order to retain air

pressure in the tank.

Tank Pressure Gauge

Indicates the reserve air pressure in the tank.

Outlet Pressure Gauge

Indicates the outgoing air pressure to the tool or accessory.

Regulator

Controls the air pressure leaving from the tank.

Drain Valve

Used to drain excess moisture and condensation from the tank.

Air Compressor Pump

Oil-free pump that compresses the air.

Pressure Release Valve

This valve automatically releases compressed air momentarily when the

compressor reaches cut-out pressure.

Universal Quick Connect Body

HHC4G User Manual

Allows for easy attachment and removal of the air hose.

Motor Thermal Overload Protector

If the motor begins to overheat, this protector will shut off the motor.

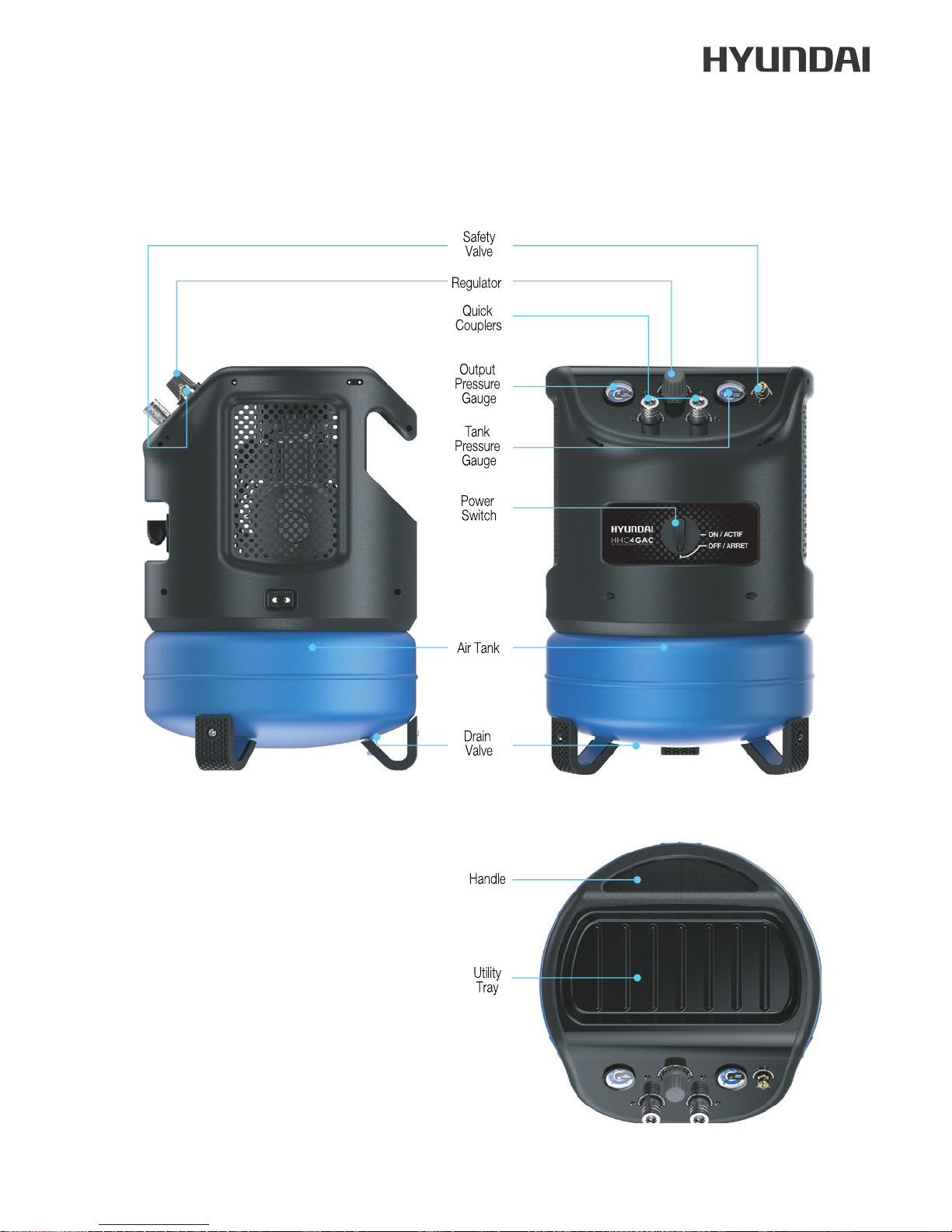

SECTION 4 - DIAGRAMS

10 HHC4G User Manual

SECTION 5 - PARTS LIST

71 73

37 53

62 63

33 29

19 27
