ELECTRIC LAWN MOWER
HTDE1400
WARNING: Read thoroughly the instruction manual before use.
CONTENTS
1. SAFETY INSTRCUTIONS....................................................................................................................3
2. TECHNICAL DATA............................................................................................................................... 9
3. ASSEMBLY...........................................................................................................................................10
4. OPERATION......................................................................................................................................... 11
5. MAINTENANCE AND STORAGE.................................................................................................... 12
6. DECLARATION OF CONFORMITY.................................................................................................13
7. WARRANTY......................................................................................................................................... 14
8. PRODUCT FAILURE.......................................................................................................................... 15
9. WARRANTY EXCLUSIONS.............................................................................................................. 16
02
1. SAFETY INSTRUCTIONS
A) LEARNING
Please read the operating instructions carefully.
Familiarize yourself with the controls and proper use
of the device.
Never allow children to use the device.
Never allow persons unfamiliar with the operating
instructions to operate the device.
Local regulations may restrict the age of the user.
Never operate the device in the presence of people,
especially children, or pets.
The user is responsible for accidents or risks of
accidents to other people or their property.
Use the lawnmower only for the purpose for which it
was designed, namely mowing and collecting grass.
Any other use might be dangerous and might damage
the machine.
B) Preparation
When using the device, dress appropriately, always
wear sturdy shoes and long pants.
Do not operate the device barefoot or with open
sandals. Do not wear loose clothes or jewellery. Loose
clothing, jewellery or long hair may be caught in
moving parts.
Wear protective glasses during use.
Wearing a mask is recommended to prevent dust
irritation.
Before use, always perform a visual inspection,
especially of the blade, making sure that the screws
and knife assembly are neither worn nor damaged.
Replace worn or damaged blades and all screws to
maintain balance.
Examine closely the area where you are going to use
the mower and remove all objects that could be
thrown by the machine (stones, twigs, wire, bones
03
etc.).
Before mowing, install and check the condition of the
grass catcher.
C) WARNINGS AND HAZARDS
Moisture and electricity do not mix well.
The handling / connection of the cables should be
done in a dry place.
Use a 30mA residual current device (RCD).
Always avoid contact between an electrical plug or
cable and a wet area (puddle or wet grass)
The connections between the cables and sockets
should be waterproof. Only use the extensions with
waterproof sockets by moulding or according to
current standards, available on the market.
Power supply cables should not be of a lower quality
than type H05RN-F. H05RR-f.H05WF.H05VVH2-F.
For outdoor use, with a minimum cross-section of 1.5
m².
Attach the cable to its hook before starting the
equipment.
The permanent connection of any electrical device in
a building should be performed by a qualified
electrician, in accordance with current electrical
standards.
A wrong connection can cause serious injury or death.
Before connecting the device, check that the sockets
and extension cords are in good condition. Do not use
the device if it is damaged or worn.
Never use the device if the guards are defective or
without safety devices, such as the grass catcher in
place.
Use only an extension cord attached to a coupler
according to IEC 60320-2-3 standard.
D) Use and operation
Always direct the cable away from the device.
04
Mow in daylight or under adequate artificial light.
Avoid operating the device on wet grass or in the rain.
Never run the lawnmower over the power cable.
When mowing, the cable should always be behind the
mower and in the area where the grass has already
been cut.
Use the cable hook to avoid unexpected
disconnection of the cable.
Make sure that the plug is properly inserted and avoid
forcing the plug.
Never pull the lawnmower by its power cable and
never pull on the power cable to remove it from the
socket.
Do not expose the cable to heat sources. Do not allow
it to come into contact with solvents, oil, fuels or sharp
objects.
If a cable is damaged during use, unplug the plug
immediately. DO NOT TOUCH THE CABLE BEFORE
UNPLUGGING THE PLUG.
E) Disconnect the device from power sources
Every time you leave the device
Before you solve a problem.
Before checking, cleaning or working on the device.
If the device starts vibrating abnormally.
Always be careful to your position on the slopes.
Mow facing the slopes, never from top to bottom.
Be extremely careful when changing direction on
slopes.
Do not mow on slopes higher than 20°.
Walk, never run, never let yourself be pulled by the
lawnmower.
Be extremely careful when pulling the lawnmower
towards yourself.
Stop the engine if you have to tilt the lawnmower to
transport it, when passing through areas other than
grass, and when transporting it to another area to
05
mow.
Never operate the lawnmower with defective guards
or without safety devices, such as a deflector or grass
catcher, which are not in place.
On trailed or powered models, disengage before
starting the engine.
Turn the engine on with the engine switch on, carefully
as instructed, and with your feet well away from the
blade.
Do not tilt the mower when you start the engine.
Place the engine on a flat surface, without obstacles
or excessively high grass.
Do not place your hands or feet under rotating parts.
When working on the grass catcher or ejection duct,
always switch off the engine.
Never lift or carry a lawnmower with the engine
running.
Stop the engine and disconnect the power cable:
Before performing any work behind the cutting deck or
unlocking the blade and before checking, cleaning or
working on the lawnmower.
After striking a foreign object, stop and disconnect the
mower, check for damage and repair before restarting
and operating it.
If the mower starts to vibrate abnormally, stop the
mower, check and eliminate the cause of vibration.
When you leave the mower unattended.
Stop the engine:
Every time you remove or replace the grass catcher.
Before adjusting the cutting height of the grass.
When mowing, always keep a safe distance from the
rotating blade. This distance corresponds to the length
of the handlebar.
After a failure, immediately stop the engine, do not go
on mowing, take the machine to an authorized service
centre and ask for qualified personnel to solve the
06
problem.
F) Maintenance and storage
Regular maintenance is essential for safety and to
maintain performance levels.
Check all bolts, nuts and screws to ensure that the
device is in good working conditions.
Inspect the condition of the grass catcher frequently. It
should always remain in perfect condition.
Also inspect the deflector and all protection devices.
Replace worn or damaged parts
Use only original accessories and replacement parts.
Store the device only in a dry place.
To reduce the risk of fire, remove grass, leaves and
excess grease from the mower and especially from
the engine.
Empty, clean the grass catcher and let it dry before
storing.
Periodically check the electrical cables and replace
them if they are damaged or if the insulation has been
damaged.
Never touch a poorly insulated cable if it is still
connected to the power supply. Unplug the cable from
the socket before any intervention.
Wear sturdy gloves when removing and reassembling
the blade.
Check the balance of the blade after sharpening.
For safety reasons, do not use the mower with worn
cables or damaged parts.
Parts should be replaced and not repaired.
Use original spare parts.
Non-equivalent quality parts can damage the mower
and be dangerous to your safety.
07
G) Symbols
Waste from electrical products should not be disposed of with household waste.
Please recycle them in the dedicated facilities.
Check with your local authority or retailer for information on recycling.
Complies with all regulatory standards in force in the EU country where the product is
bought
Risk of personal injury, death, or damage to the device in case of non-compliance.
Read the instructions for use.
Risk of splashing; keep people away.
This product is doubly electrically insulated.
Beware of sharp blades. The blades continue rotating after the engine has stopped.
Unplug the device from the mains before maintenance, i.e. if the power cord is
damaged.
Guaranteed level of sound emission
Keep the power cord away from cutting tools.
08
2. TECHNICAL DATA

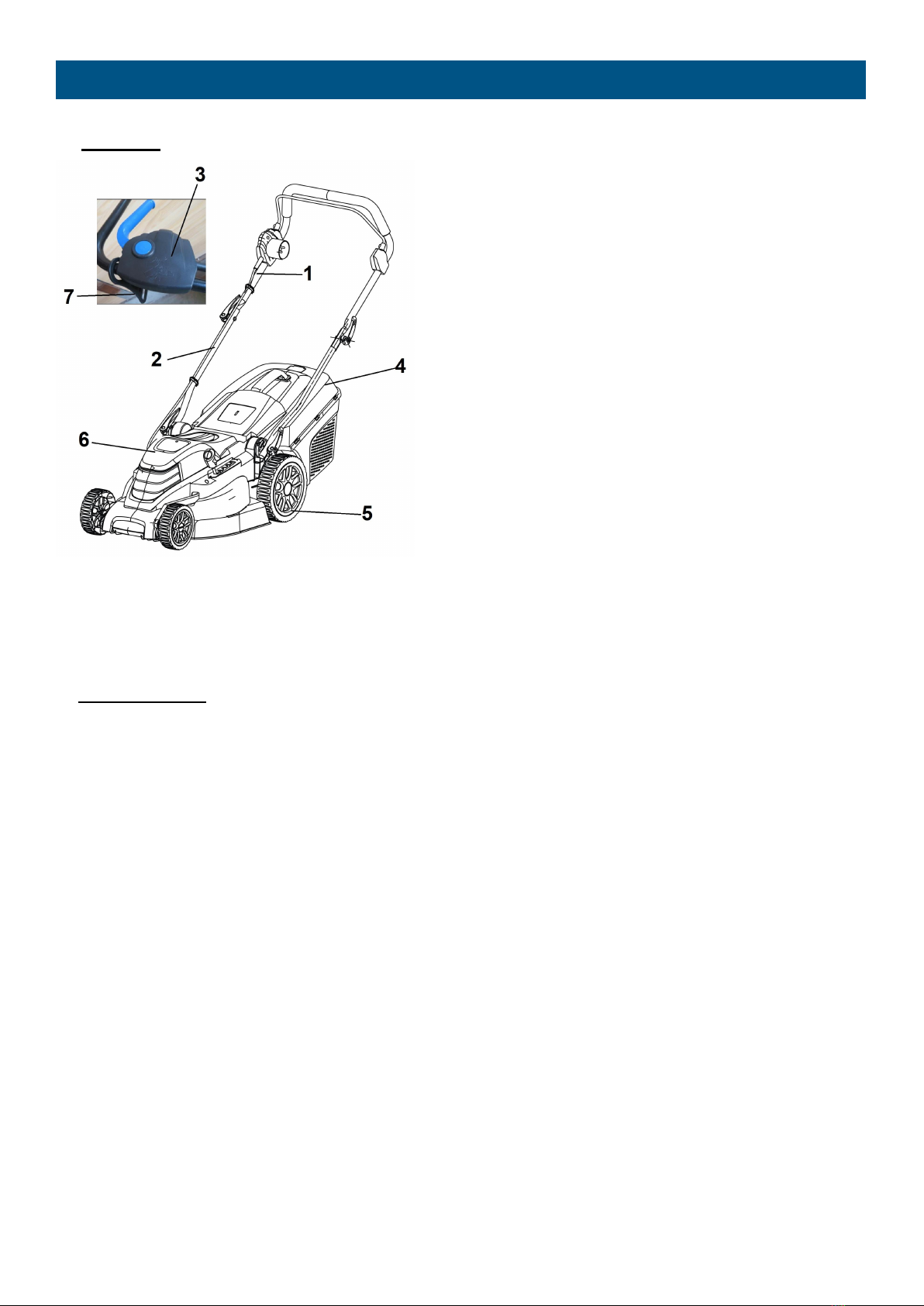

a) Parts list
1. Upper handle
2. Lower handle
3. Switch box
4. Grass collection compartment
5. Wheels
6. Motor protection
7. Cable hook
b) Technical data
- Voltage: 230-240V~50Hz
- Power index: 1400W
- No-load speed: 3450min-1
- Cutting height: 25-75mm, 5 Positions
- Cutting width: 380mm
-Protection class: II
- Degree protection: IPX4
- Net weight: 12.4 kg
Sound pressure level LpA (measured at the operator level according to EN836): 79.5 dB(A),
k=3dB(A)
Sound power level (measured according to European
Directive 2000/14/EC: 91.3 dB(A), K=1.91dB(A)
Vibration value: 2.32 m/s2 ; k=1.5 m/s2
This tool is doubly insulated. It is equipped with two insulating sleeves to protect you from any
possibility of electrical shock.
NOISE RELATED DATA
Guaranteed and declared noise intensity level: 96 db (A).
The noise level for the user may be higher than 85dB(A), therefore, hearing protection measures
are needed.
09
3. ASSEMBLY
Preparation:

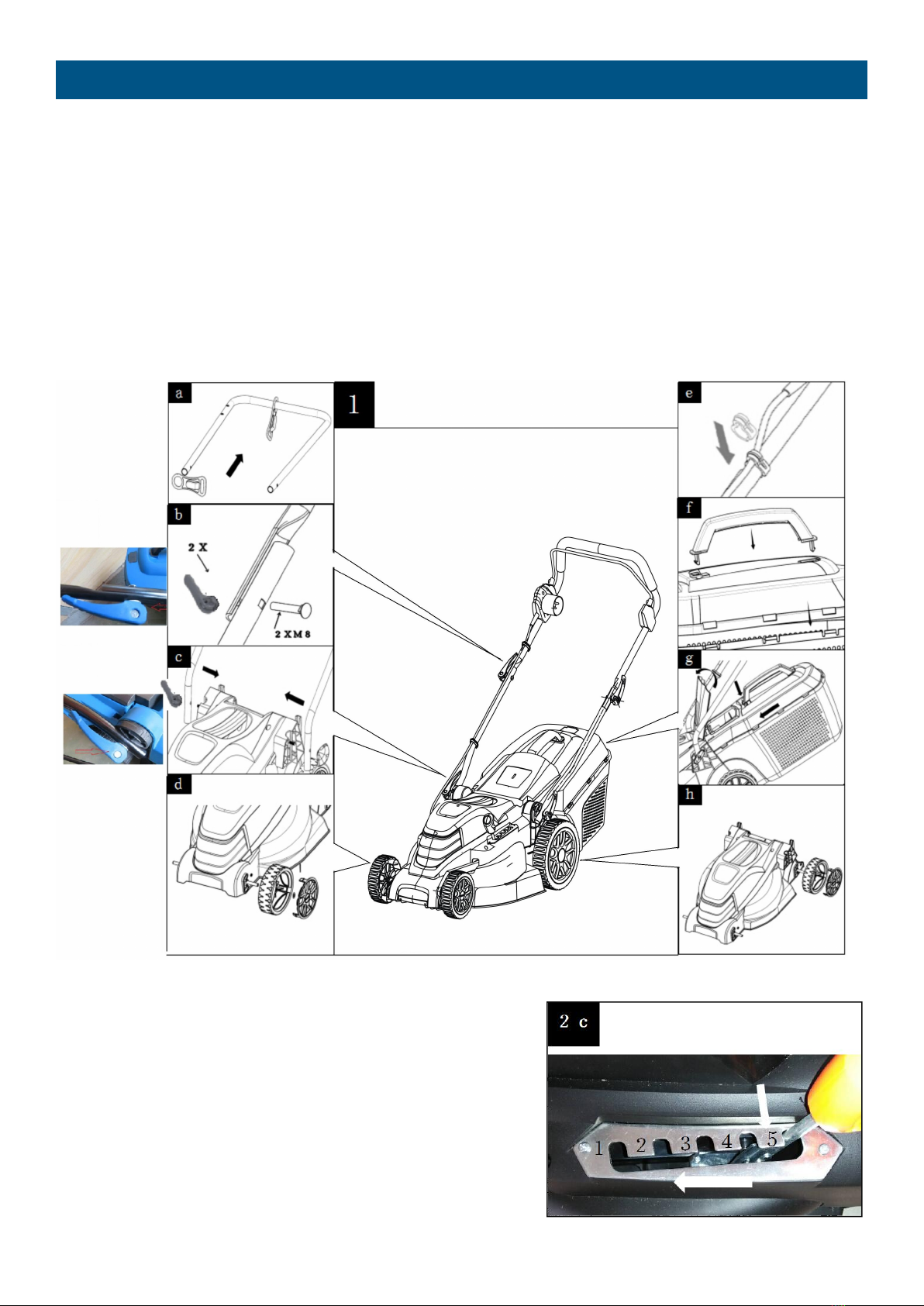

1) Place the cable hook on the upper handle (fig.1a)
2) Secure the upper and lower handles with the screws and bolts provided (fig.1b)
3) Insert the handles into the mower body (fig.1c)
4) Adjust each wheel to its axis, secure them with the "R" pins (fig. 1d)
5) Attach the cable holders (fig.1e)
6) Mounting the grass collection compartment. Assemble the two halves and attach them to each
other (fig.1f)
7) Lift the flap and place the grass collection compartment on the legs (fig.1g)
8) fasten the trims (fig. 1h)
CUTTING HEIGHT ADJUSTMENT
Use the cutting height adjustment handle (push forward or
backward) to adjust the cutting height. There are 5 cutting
positions.
Cutting height positions (fig.2c)
1) 25mm (lowest cutting height position)
2) 38mm
3) 50mm
4) 63mm
5) 75mm (highest cutting height position)
10
Inhaltsverzeichnis
Andere Hyundai Rasenmäher Handbücher
Hyundai
Hyundai HTDT511RP Bedienungsanleitung
Hyundai
Hyundai HYM40Li330P Bedienungsanleitung
Hyundai
Hyundai LM3601E Bedienungsanleitung
Hyundai
Hyundai HYM430SPER Bedienungsanleitung
Hyundai
Hyundai HR3302E Bedienungsanleitung
Hyundai
Hyundai HYM3800E Bedienungsanleitung
Hyundai
Hyundai HYM40P Bedienungsanleitung
Hyundai
Hyundai HTDT561ES-1 Bedienungsanleitung
Hyundai
Hyundai HTDER50PW Gebrauchsanweisung
Hyundai
Hyundai HYM60Li380 Bedienungsanleitung
Hyundai
Hyundai LM3601ES Bedienungsanleitung
Hyundai
Hyundai HTDT5075-A1 Bedienungsanleitung
Hyundai
Hyundai HYM46SPE-2 Bedienungsanleitung
Hyundai
Hyundai HYSW1600E Bedienungsanleitung
Hyundai
Hyundai HYM40P Bedienungsanleitung
Hyundai
Hyundai LM3301E Bedienungsanleitung
Hyundai
Hyundai HTDT4661 Bedienungsanleitung
Hyundai
Hyundai HYM430SPR Bedienungsanleitung
Hyundai
Hyundai HTDE1800 Bedienungsanleitung
Hyundai
Hyundai HYM510SP Bedienungsanleitung
Beliebte Rasenmäher Handbücher anderer Marken
TALEN TOOLS
TALEN TOOLS AVR HGM30 Bedienungsanleitung
DEWEZE
DEWEZE ATM-725 Bedienungsanleitung
Weed Eater
Weed Eater 180083 Bedienungsanleitung
Husqvarna
Husqvarna Poulan Pro PP185A42 Bedienungsanleitung
Better Outdoor Products
Better Outdoor Products Quick Series Bedienungsanleitung
Cub Cadet
Cub Cadet 23HP Z-Force 60 Betriebsanleitung
