IAI LQ-401CL Bedienungsanleitung

1060E-1409

LQ-401CL

RGB Color & NIR

4CMOS Line Scan Camera

Document Version:1.2

LQ-401CL_Ver.1.2.Dec2014

User's Manual

LQ-401CL

Notice

The material contained in this manual consists of information that is proprietary to JAI Ltd., Japan

and may only be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the

use of its product and assumes no responsibility for any errors which may appear or for damages

resulting from the use of the information contained herein. JAI Ltd., Japan reserves the right to

make changes without notice.

Company and product names mentioned in this manual are trademarks or registered trademarks of

their respective owners.

Warranty

For information about the warranty, please contact your factory representative.

Certifications

CE compliance

As defined by the Directive 2004/108/EC of the European Parliament and of the Council, EMC

(Electromagnetic compatibility), JAI Ltd., Japan declares that LQ-401CL complies with the

following provisions applying to its standards.

CISPR Pub.22 (EN55022) (Emission admissible value and measuring method)

CISPR Pub.24 (EN55024) (Immunity admissible value and measuring method)

IEC61000-4-2(Electrostatic discharge immunity test)

FCC

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-Consult the dealer or an experienced radio/TV technician for help.

Warning

Changes or modifications to this unit not expressly approved by the party

responsible for FCC compliance could void the user’s authority to operate the

equipment.

LQ-401CL

Supplement

The following statement is related to the regulation on “ Measures for the Administration

of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “.

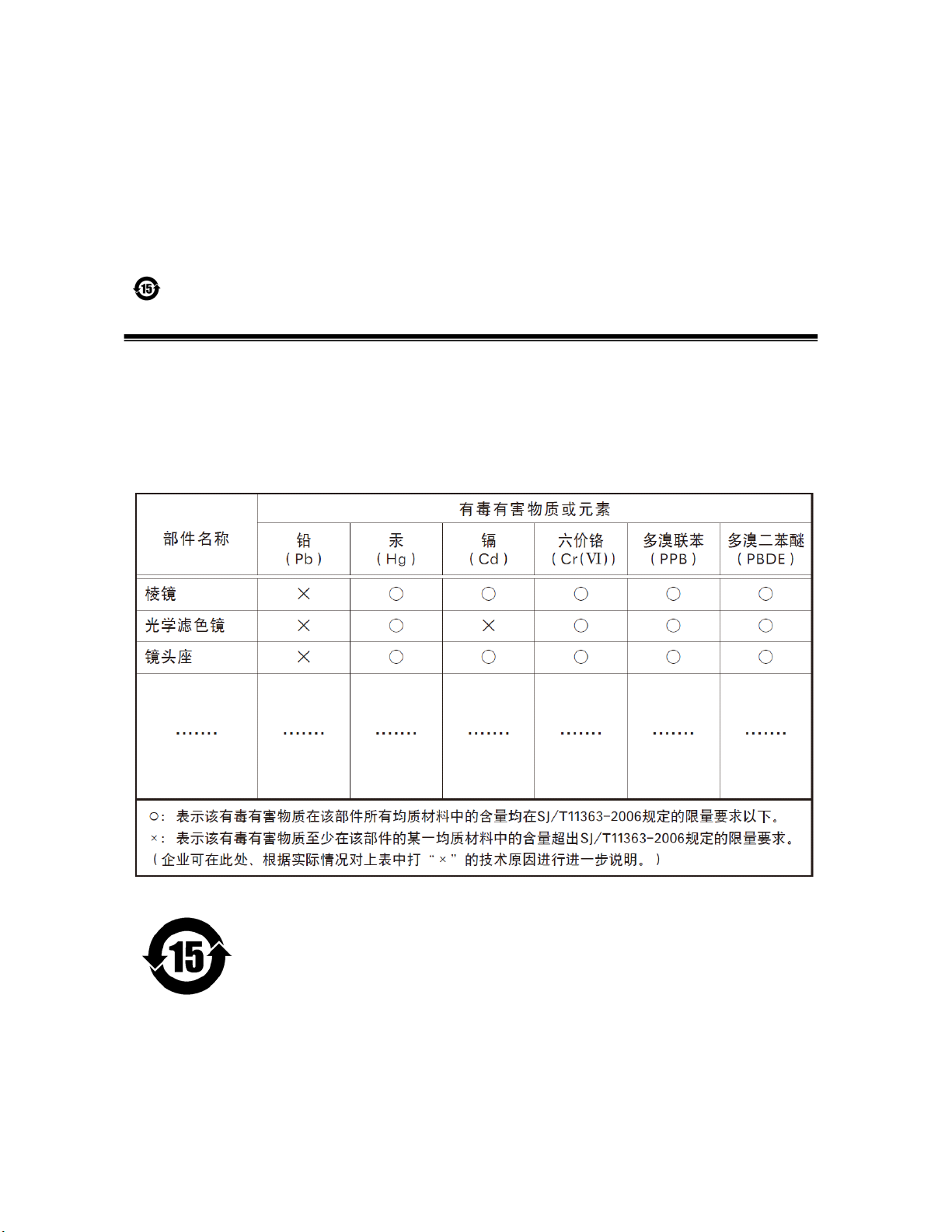

The table shows contained Hazardous Substances in this camera.

mark shows that the environment-frien dly u se period of containe d Hazard ous

Substances is 15 years.

嶷勣廣吭並㍻

嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕

功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇



云恢瞳ゞ嗤蕎



嗤

墾麗嵎賜圷殆兆各式根楚燕〃泌和



桟隠聞喘豚㍉

窮徨佚連恢瞳嶄根嗤議嗤蕎嗤墾麗嵎賜圷殆壓屎械聞喘議訳周和音氏窟伏翌

亶賜融延、窮徨佚連恢瞳喘薩聞喘乎窮徨佚連恢瞳音氏斤桟廠夛撹冢嶷麟半

賜斤児繁附、夏恢夛撹冢嶷鱒墾議豚㍉。

方忖仝15々葎豚㍉15定。

・・・・・

LQ-401CL

- Table of contents –

1. General ....................................................................................................... 6

2. Camera composition ........................................................................................ 6

3. Main features ................................................................................................ 7

4. Locations and functions .................................................................................... 8

4.1. Locations and functions............................................................................... 8

4.2. Rear Panel .............................................................................................. 9

5. Connectors and pin assignment......................................................................... 10

5.1. 12-Pin Connector..................................................................................... 10

5.1.1 Pin assignment ................................................................................... 10

5.1.2 Conformable connector (Example)............................................................ 10

5.2. Digital Output / Interface Connectors for Camera LinkTM ..................................... 10

5.2.1 Pin assignment ................................................................................... 10

5.2.2 Conformable connector and cable assembly ................................................ 11

5.3.3 Camera Link Interface (Bit allocation) ....................................................... 11

5.3.4 Camera link output port ........................................................................ 13

5.3.5 Bit allocation of the output video............................................................. 14

6. Functions and Operation................................................................................. 14

6.1. Basic functions ....................................................................................... 14

6.2 Key functions .......................................................................................... 16

6.2.1 Line rate (Command LR)........................................................................ 16

6.2.2 Electronic shutter (Exposure) (Command PER, PEG, PEB, PEIR) ......................... 16

6.2.3 External Trigger.................................................................................. 17

6.2.4 Serial communication ........................................................................... 17

6.2.3 EEN (Exposure Enable) function ............................................................... 17

6.2.4 White balance .................................................................................... 17

6.2.5 Gain control ...................................................................................... 18

6.2.6 Black level ........................................................................................ 20

6.2.7 PRNU (Pixel Response Non-Uniformity ) correction ........................................ 20

6.2.8 DSNU (Dark Signal Non-Uniformity) correction ............................................. 21

6.2.10 Shading correction............................................................................... 21

6.2.11 Lateral chromatic aberration .................................................................. 23

6.2.12 Aperture filter.................................................................................... 26

6.2.13 Binning ............................................................................................ 26

6.2.14 Sub-sampling ..................................................................................... 27

6.2.15 Windowing ........................................................................................ 27

6.2.16 Test pattern generator ......................................................................... 27

6.3. Operation modes..................................................................................... 28

6.3.1 Camera Default Settings........................................................................ 29

6.3.2 No-Shutter mode with Internal Trigger ...................................................... 29

6.3.3 No-Shutter mode with external trigger ...................................................... 31

6.3.4 Shutter-Select mode with internal trigger................................................... 33

6.3.5 Shutter-Select mode with external trigger .................................................. 36

6.3.6 Pulse Width Control (PWC) mode ............................................................. 39

6.3.7 The minimum interval of the external trigger .............................................. 41

6.3.8 The minimum trigger pulse width............................................................. 41

6.3.9 Compatibility of trigger modes and functions............................................... 42

6.3.10 Trigger modes and auto white balance modes matrix table ............................ 42

7. Functions listed alphabetically by command acronyms............................................. 43

7.1 Command AHRS –Request Status After One-Push AWB........................................ 43

7.2 Command AL –Automatic Line Rate Reference Level ......................................... 43

7.3 Command AR –Automatic Line Rate Setting .................................................... 43

7.4 Command ARST –Auto Reset Mode ............................................................... 43

7.5 Command AH - Activate One-Push Auto White Balance (AWB) - Shutter ................... 45

7.6 Command AW –Activate One-Push Auto White Balance (AWB) - Gain ...................... 46

LQ-401CL

7.7 Command BA –Bit Allocation ...................................................................... 46

7.8 Command BI –Binning .............................................................................. 46

7.9 Command BL –Master Black Level ................................................................ 46

7.10 Commands BLR, BLB and BLIR –Black Level Red, Blue and NIR.............................. 47

7.11 Command BLM - Black Level Mode.............................................................. 47

7.12 Command CABR, CABB and CABIR Chromatic aberration Red, Blue NIR .................... 47

7.13 Command EI –Interlocked R, G, B & NIR Exposure............................................. 47

7.14 Command GA –Master Gain Level ................................................................ 48

7.15 Commands GAR, GAB and GAIR –Gain Level Red, Blue and NIR. ............................ 48

7.16 Command GM - Gain Mode ..................................................................... 48

7.17 Command HPFC –Aperture Control............................................................... 48

7.18 Command LR - Line Rate (Scan Rate) ............................................................ 48

7.19 Command MAV –Chromatic Aberration Control ................................................ 49

7.20 Command MAVCG –Chromatic Aberration Select .............................................. 49

7.21. Command NR - Noise Reduction............................................................ 49

7.22 Command OS1,2,3,4,5,6 –Camera Link Video Output Select ................................ 49

7.22 Command PBC –Enable Pixel Black (FPN) Correction ......................................... 49

7.23 Command PBR –Run Pixel Black Correction and Store to User Area ......................... 50

7.24 Command PBS - Request Status After Pixel Black Correction.............................. 50

7.25 Command PER,PEG,PEB and PEIR –Programmable Exposure for R,G,B,and NIR ........... 50

7.26 Command PGC –Select pixel gain correction mode............................................. 50

7.27 Command PGR –Pixel Gain Correction and Store in User Area................................ 51

7.28 Command PGS - Request Status After Pixel Gain Correction .............................. 51

7.29 Command SCB –Select cable ...................................................................... 51

7.30 Command SDC –Select Shading Correction Mode................................................ 51

7.31 Command SDR –Run Shading Correction and store to user area............................. 51

7.32 Command SDS –Request Status After Executing Shading Correction Command .......... 52

7.33 Command SRO –Sensor Read Out................................................................. 52

7.34 Command SGR, SGG, SGB, SGIR –Sensor Gain Set R, G, B and NIR........................ 52

7.35 Command TG –Trigger Origin ..................................................................... 52

7.36 Command TI –Trigger Input ....................................................................... 52

7.37 Command TP –Trigger Polarity ................................................................... 52

7.38 Command TR –Trigger Mode ...................................................................... 53

7.39 Command TS –Test Pattern ....................................................................... 53

7.40 Command WB –White Balance .................................................................... 53

8. Serial communication and command list.............................................................. 54

8.1. Serial communication ............................................................................... 54

8.2. Command list ......................................................................................... 55

9. Camera Control Tool for LQ-401CL..................................................................... 61

9.1. Software Install ...................................................................................... 61

9.2. Open the Control Tool .............................................................................. 61

9.3. Connect a camera ................................................................................... 61

9.4. Camera control window............................................................................. 62

9.5 Menus .................................................................................................... 62

9.5.1 File menu ......................................................................................... 62

9.5.2 Settings menu .................................................................................... 62

9.5.3 Line Correction menu ........................................................................... 63

9.5.4 Help menu ........................................................................................ 63

10. External appearance and Dimensions ................................................................ 64

11. Specifications ........................................................................................... 66

11.1 Typical data ............................................................................................. 66

11.2 Camera Spectral sensitivity........................................................................ 68

Appendix .......................................................................................................... 69

1. Precautions.............................................................................................. 69

2. Typical Sensor Characteristics ....................................................................... 69

3. Caution when mounting a lens on the camera..................................................... 69

4. Caution when mounting the camera ................................................................ 70

LQ-401CL

5. Exportation.............................................................................................. 70

6. References .............................................................................................. 70

Change history ................................................................................................... 71

User's Record ..................................................................................................... 72

LQ-401CL

1. General

The LQ-401CL is a 4CMOS line scan camera using four 4096 pixel line sensors mounted on a prism,

for the R, G, B and NIR channels. It operates with an 84 MHz pixel clock, resulting in a maximum line

rate of 18,252 lines per second.

The camera outputs digital data in 4 x 8 bits or 4 x 10 bits format via Camera Link. The camera is

configured by software through the serial communication port of the Camera Link interface, or via

RS-232C through a 12-pin connector.

The camera accepts an M52 mount or F-mount lens, depending on the version selected.

The LQ-401CL is a suitable camera for various applications such as inspection of fruits,

vegetables ,circuits boards or electronic/mechanical parts, as the NIR image can catch scratches or

blemishes on object surfaces which the RGB color image cannot find.

The latest version of the operation manual can be downloaded from www.jai.com .

The latest camera control tool for the LQ-401CL can be downloaded from www.jai.com .

For camera revision history, please contact your local JAI distributor

2. Camera composition

Two camera versions are available

LQ-401CL-M52 M52 mount

LQ-401CL-F F mount

The standard camera composition is as follows.

Camera body 1

Sensor protection cap 1

Dear Customer (sheet) 1

The following optional accessories are available.

Power supply unit

PD-12 series

LQ-401CL

3. Main features

4CMOS line scan camera with 4096 pixel resolution

Dichroic beam splitter prism to separate R,G,B and NIR wavelengths

18,252 lines per second scan rate

84 MHz pixel clock

4 x 8 bits or 4 x 10 bits output through Camera Link interface

PRNU and DSNU Flat-field correction

Individual gain control in the range of -4dB to +14dB with a fine gain control

Flat shading correction and color shading compensation

One-push auto white balance using gain control or shutter control

Binning function to increase sensitivity

Sub-sampling and windowing functions for faster line rate

Auto reset function

Noise reduction function

Test pattern generator(color bar, gray, white) for setup and trouble shooting

Electronic shutter (for selected modes)

Short ASCII commands set up via RS 232C or Camera Link

M52 mount and F mount versions

Field upgrade function by using exclusive update tool

LQ-401CL

4. Locations and functions

4.1. Locations and functions

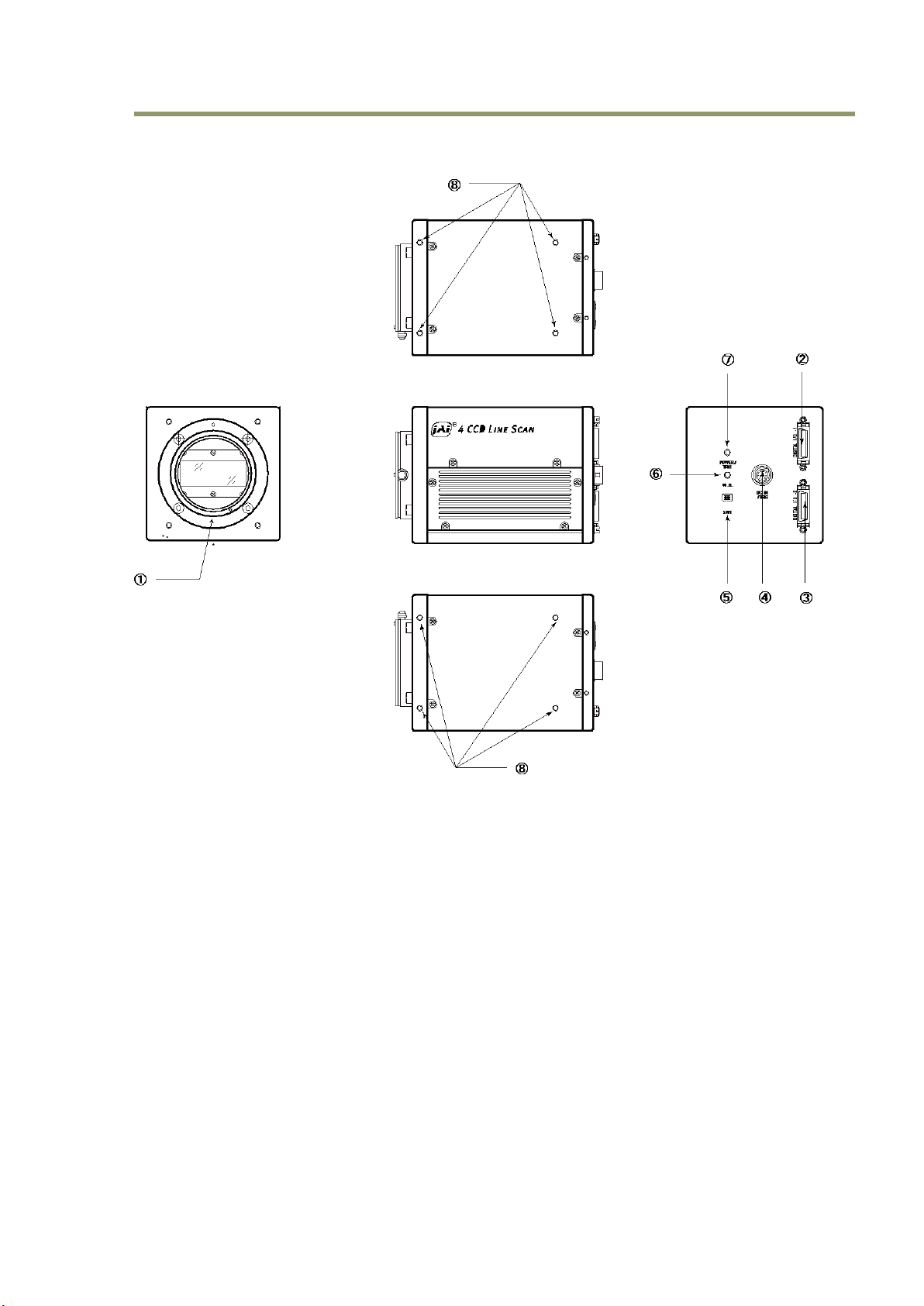

Fig. 1 Location of external features

1 Lens mount M52 mount (*1)Note)

2 Camera Link connector 1 base connector (1) (*2)Note)

3 Camera Link connector 2 medium connector (2) (*2)Note)

4 12-pin Hirose connector DC +12, External trigger and RS-232C

5 DIP switch SW-1 ( refer to chapter 4.2 for the details)

6 Button For one-push auto white balance (Gain based)

7LED indicator Power, trigger input and operation indications

8 Camera mounting holes 8 x M3, depth 5mm (*3) Note)

*1) Note: Rear protrusion on M52 mount lens must be less than 13mm.

F mount is also available. Rear protrusion for F mount lens is the same as M52 mount.

*2) Note: When a Camera LinkTM cable is connected to the camera, please do not excessively tighten

screws by using a driver. The Camera Link receptacle on the camera might be damaged.

For security, the strength to tighten screws is less than 0.291 Newton meter (Nm).

Tightening by hand is sufficient in order to achieve this.

*3) Note: The depth of mounting hole is 5 mm. If the longer screws than 5 mm are used, they may

damage the circuit board inside.

LQ-401CL

4.2. Rear Panel

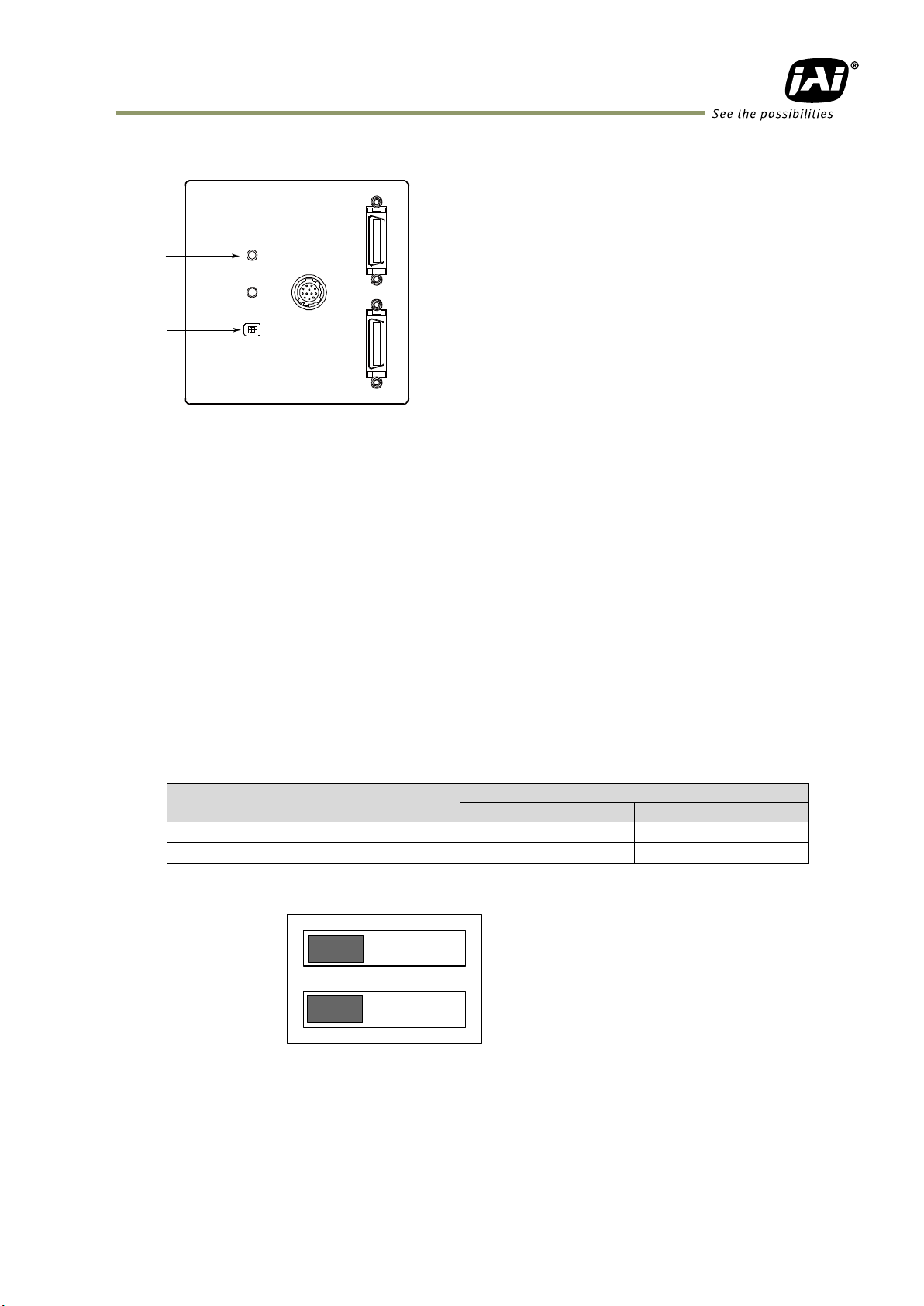

Fig2. Rear panel

①LED

Green (Steady)

Operating, but not receiving external trigger input

Green (Flashing)

Operating and receiving external trigger input.

Note that the flashing frequency does not correspond to the frequency of the trigger signal.

The flashing does not occur in the No-shutter internal and Shutter-Select internal modes.

Orange

Initializing and cannot operate

1) Initializing for approx. 800 ms

2) One-push auto white balance is engaged.

②DIP switch

SW-1 function

Function

Settings

OFF

Serial communication

12-Pin

Camera Link (CC1)

Termination of External trigger

75Ω

TTL

Note: Factory default settings for both functions are “OFF”.

Fig.3 DIP switch

D IG ITAL I / O - 1D IG ITA L I / O - 2

POW ER /

TRIG

W . B .

DC IN

/TRIG

S W 1

①

②

OFF ON

Serial

Communication

75 Ω

Inhaltsverzeichnis

Andere IAI Überwachungskamera Handbücher

IAI

IAI AP-3200T-PMCL Installationshandbuch

Beliebte Überwachungskamera Handbücher anderer Marken

CCTV Center

CCTV Center 27Z540 Series Bedienungsanleitung

VHD

VHD DA-S36 Bedienungsanleitung

CIS

CIS VISION:mini VCC-F22S29ACL Kurzanleitung

Eagleye

Eagleye IS-NIPHB40NSC130 Series Bedienungsanleitung

JAI

JAI LQ-201CL Bedienungsanleitung

Uniq

Uniq UP-1800CL-12B Bedienungsanleitung

Hitachi Kokusai Electric

Hitachi Kokusai Electric SK-HD1200 Bedienungsanleitung

Channel Vision

Channel Vision 6404 Bedienungsanleitung

Rausch

Rausch minCam Bedienungsanleitung

Retina

Retina RET1032 Bedienungsanleitung

Intellisystem

Intellisystem IT-VCHD1600JSE Bedienungsanleitung

Hitachi

Hitachi HV-F31CL Bedienungsanleitung

VIDCOM

VIDCOM KIR-R639D40 Bedienungsanleitung

Sony

Sony HDC5500 Bedienungsanleitung

Sony

Sony KDP-673SH20 Bedienungsanleitung

Ikegami

Ikegami ISD-A20 Bedienungsanleitung

Basler Vision Technologies

Basler Vision Technologies Sprint Bedienungsanleitung

FLIR

FLIR Ax5 series Bedienungsanleitung
