iBall Baton 150m Wireless-N ADSL
router configuration
Are you looking for some help to configure iBall baton 150m Wireless-N ADSL router?
Let me tell you this...you will learn more than that today. I promise you that.
This guide will explain you in a step by step process on how to configure your iBall
baton 150m wireless-n router.
You might be using BSNL, Airtel, MTNL or Reliance as your ISP and I will include a
complete tutorial covering all the major ISPs.
Steps involved In configuring your
iBall Baton router
Follow the below-mentioned steps. Don't skip if you are not a pro. Happy learning...
STEP 1: Setting Up Your iBall router

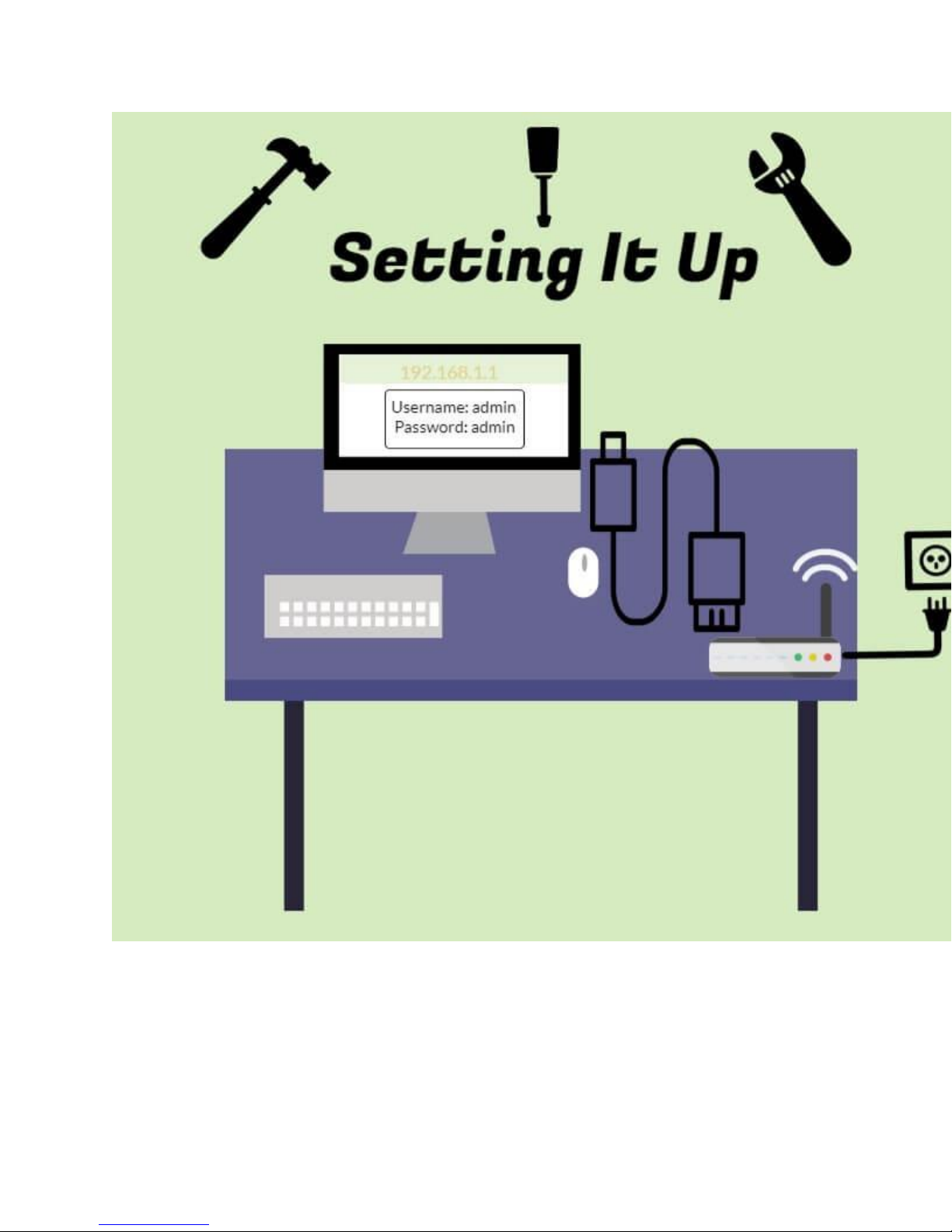

First look at the below image carefully and try to understand the wiring system.
Plugin your router to an electric outlet. Take the RJ45(Lan cable), which is usually
provided along with the modem and then insert one of its head on the LAN port of your
router and connect the other end of the cable to your PC/Laptop.
Also, connect the telephone cable (RJ11) to the router's WAN port.
After completing the setup process, turn on your LAPTOP/PC and the router.
STEP 2: Login to your iBall router configuration page
Now, fire up any browser on your PC and type this into its address bar: 192.168.1.1
You might wonder what was that? If I put it simply, this is your iBall router login IP
address and whenever you need to make any changes to your router settings, you have
to login with this IP.
Now, once you hit enter after putting that IP, a screen will popped up asking you to put
a username and password. Like this:
Put username as admin and password also admin
If you are not able to login to your modem, then you need to probably Reset the modem
from its back panel.

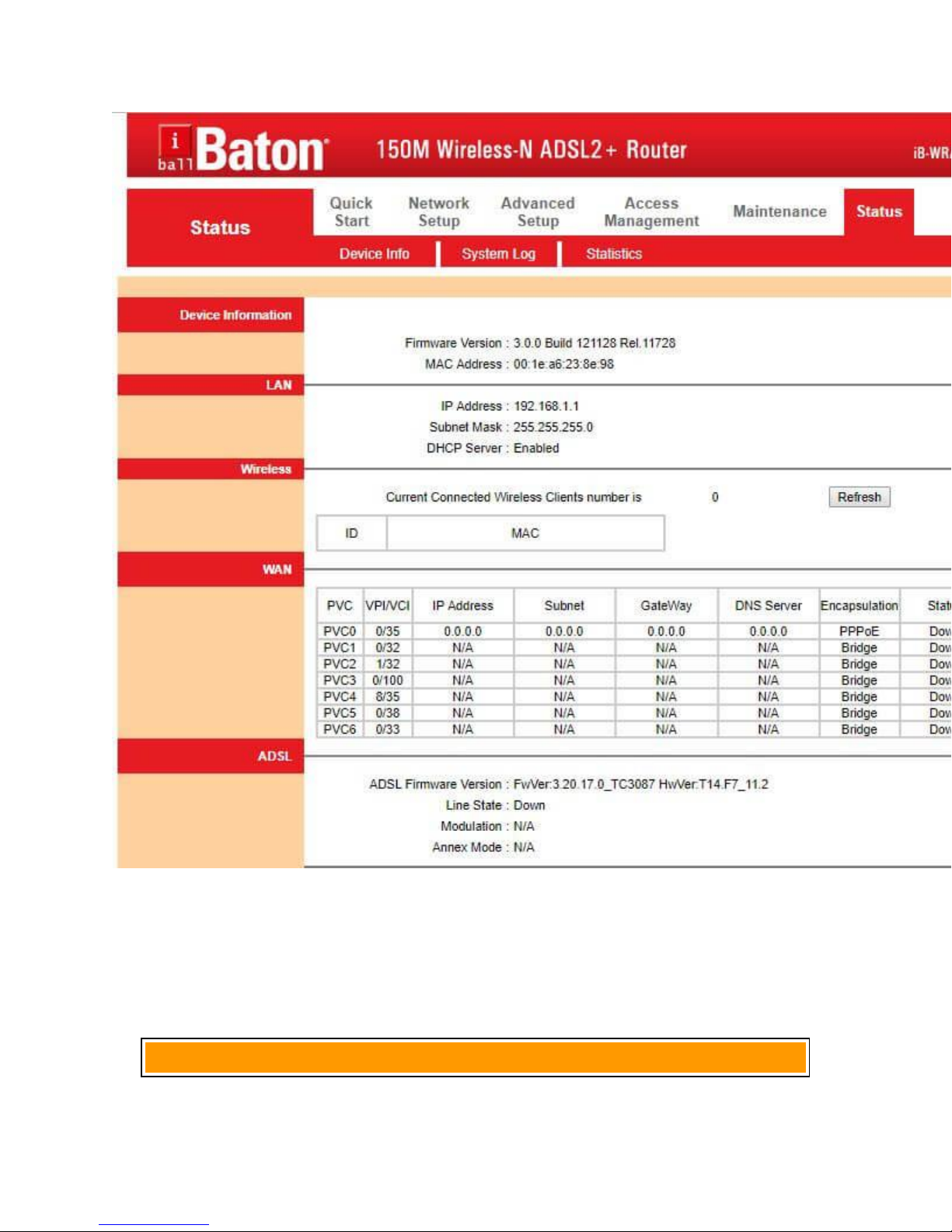

After putting username and password, a status page will appear like this which is also
your iBall router login page:
Don't be overwhelmed with all these settings, most of us will only need a few feature of
it and I am here to guide you for that. So, relax and let's head on to our next step.
So, relax and let's head on to our next step.
STEP 3: Get your broadband username and password
If you know your broadband username and password, that's good. Jump directly to step
4. But if you do not know what's your broadband username and password is, then you
gotta contact your ISP. Simply dial customer care number and ask for your broadband
username and password
But if you do not know what's your broadband username and password is, then you
gotta contact your ISP. Simply dial customer care number and ask for your broadband
username and password
Here are the customer care numbers of some major ISPs that you might find useful:
BSNL Broadband customer support center: 18003451500
Airtel Broadband customer support center: 18001030121 (Fixed Line)
Reliance Broadband customer support center: 180030007777
Once you find your broadband username, we will move on to our next and final step.
STEP 4: Configuring your iBall router
Final step. After login to your router, click on Network Setup →WAN
At first, you might get overwhelmed with so many parameters, but trust me, you need
only a few of them.
Let me show you.....
So the very first thing you need to do is put value for VPI and VCI. The VPI and VCI value
varies from ISP to ISP. Please follow the table listed below showing you the VPI and VCI
values of different different ISPs.
I have shown below an iball router configuration page for BSNL broadband connection
where VPI/VCI value is placed as 0/35. Rest of the values will remain same no matter
which ISP you are using.
Now, look at the chart for VPI and VCI value of your ISP and put it on the respective
field.
Now select ISP as PPPoA/PPPoE.
Servicename - You can put any name here. Does not really matter. If you are using
BSNL broadband then put it as 'BSNL'.
Username - This is important. Put your broadband username that your ISP has
provided correctly. If you do not know what your broadband username is, then you can
call your ISP customer care number. I have already mentioned the customer care
number for some ISPs above.
Password - Please ask your ISP for your broadband password too. For BSNL
broadband, the default password is password itself.
After filling the parameters that I have shown you above, hit the SAVE button. No need
to make any changes here.
Configuring Wireless settings on your iBall router
To configure WiFi on your router, click on the Network Setup →Wireless
Click on Activated to turn on the Access point.
SSID - This would be your WiFi name that gets displayed when you turn on wifi on your
smartphone or PC/Laptop. You can also give some fancy name like
'!!Malware_Found$$!!' to make it more secure.
Authentication Type - select WPA-PSK which is by far the most secure one.
Encryption - TKIP/AES.
Pre-Shared Key - Here you need to put a password for your WiFi. Put a strong password
by including both special character and numerics.
That's it, no need to tweak any more settings. Hit the SAVE button now and voila, you're
ready to go.
If you want to change wifi password of your iBall router in future then re-login with the
IP address i.e 192.168.1.1 and change the value that is written under Pre-shared Key
option. That simple....
I hope you have successfully configured your device by now. Since you have come to
Bpedia, I want to add a bonus tip to for you guys to secure your modem.
Bonus Tip
First thing first.
To secure your iBall router, change the default login password which is usually cited as
admin. You can do so by going under Maintenance tab and clicking on Administration.
Here, put a strong password for your iBall router and click on save.
As soon as you click on save button, it will again ask for username and password
again, put the new password now and re-login.
Don't forget to write down the new password though.
The second thing you can do is change your default IP address of your router. In
general, it is 192.168.1.1 but you can change it to some other IP like 192.168.1.5 to
make it more secure. You can do that by going under Network Setup →LAN and change
the Main IP address.
When you click on the Save button after changing the IP address of your iBall router,
the page might reload for few minute. Close it and try to open the router page with
changed IP address.
You can also drop a message on our Facebook fan page if you need any support.
Please share it and support us by liking our page on Facebook and following us on
Twitter and Google+ . Keep visiting Bpedia. See you soon.
