IBM ThinkPad i Series 1500 Bedienungsanleitung

Part Number: 08K8620

ThinkPad i Series 1400/1500 Setup Guide

This guide provides information for setting up your computer for the first time.

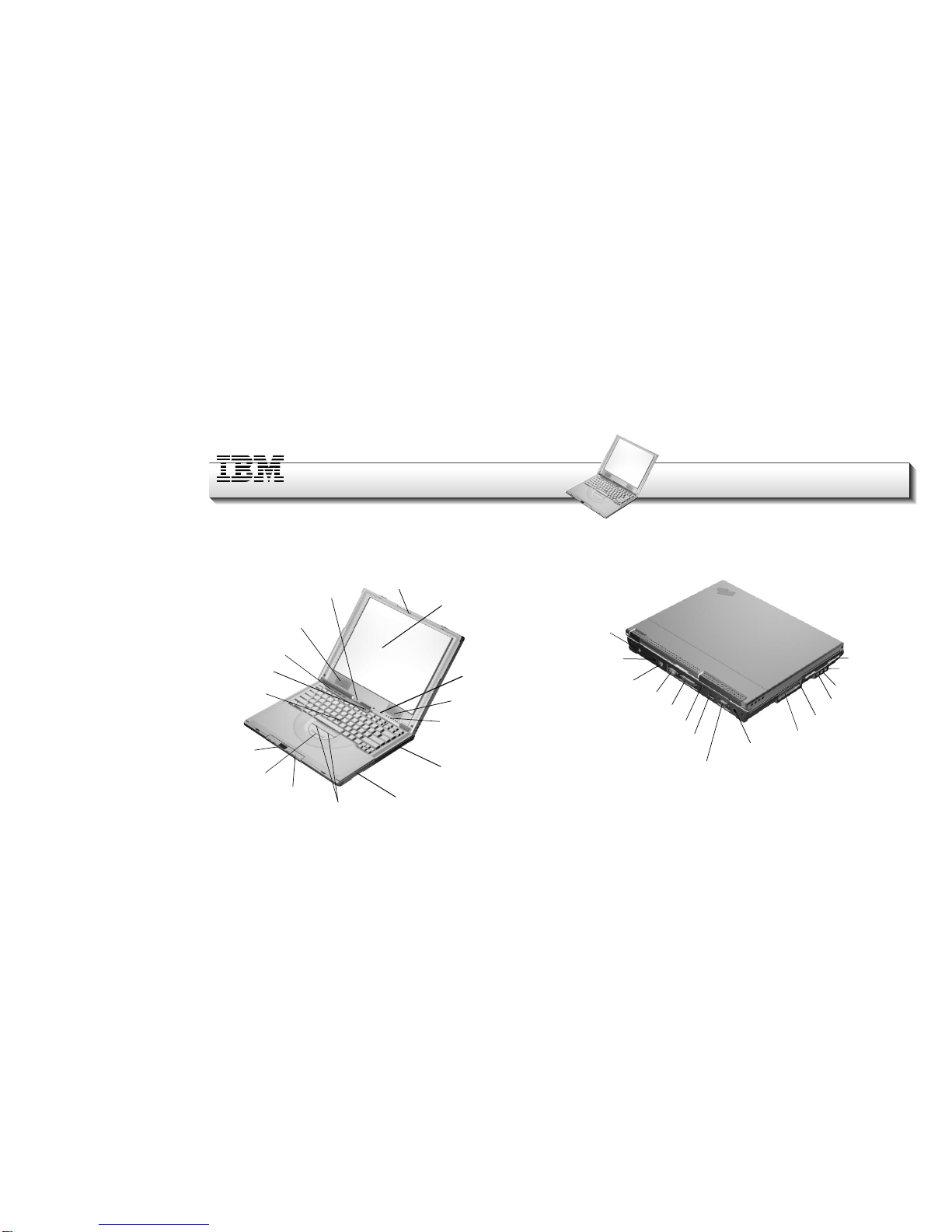

Front View

Internal left

speaker

Microphone

Keyboard

light switch

Keyboard light

Internal right

speaker

System-status

indicators

TrackPoint stick

Power switch

Easy Launch

buttons

Liquid Crystal Display

(LCD)

TrackPoint buttons

Audio volume

control CD-ROM or

DVD-ROM drive

Battery pack

Media Center

Internet Scroll Bar

Rear View

PS/2 mouse

and keyboard

connector

Parallel connector

Security keyhole

Serial connector

External-monitor

connector

Power jack

Universal serial bus

(USB) connector S-video jack

PC Card eject button

PC Card slot

Microphone jack

Diskette drive

Modem connector Line-in jack

Headphone jack

Notes:

1. The keyboard light feature is available only on select models.

2. The S-video feature is available only on select models.

 Copyright IBM Corporation 1999 1

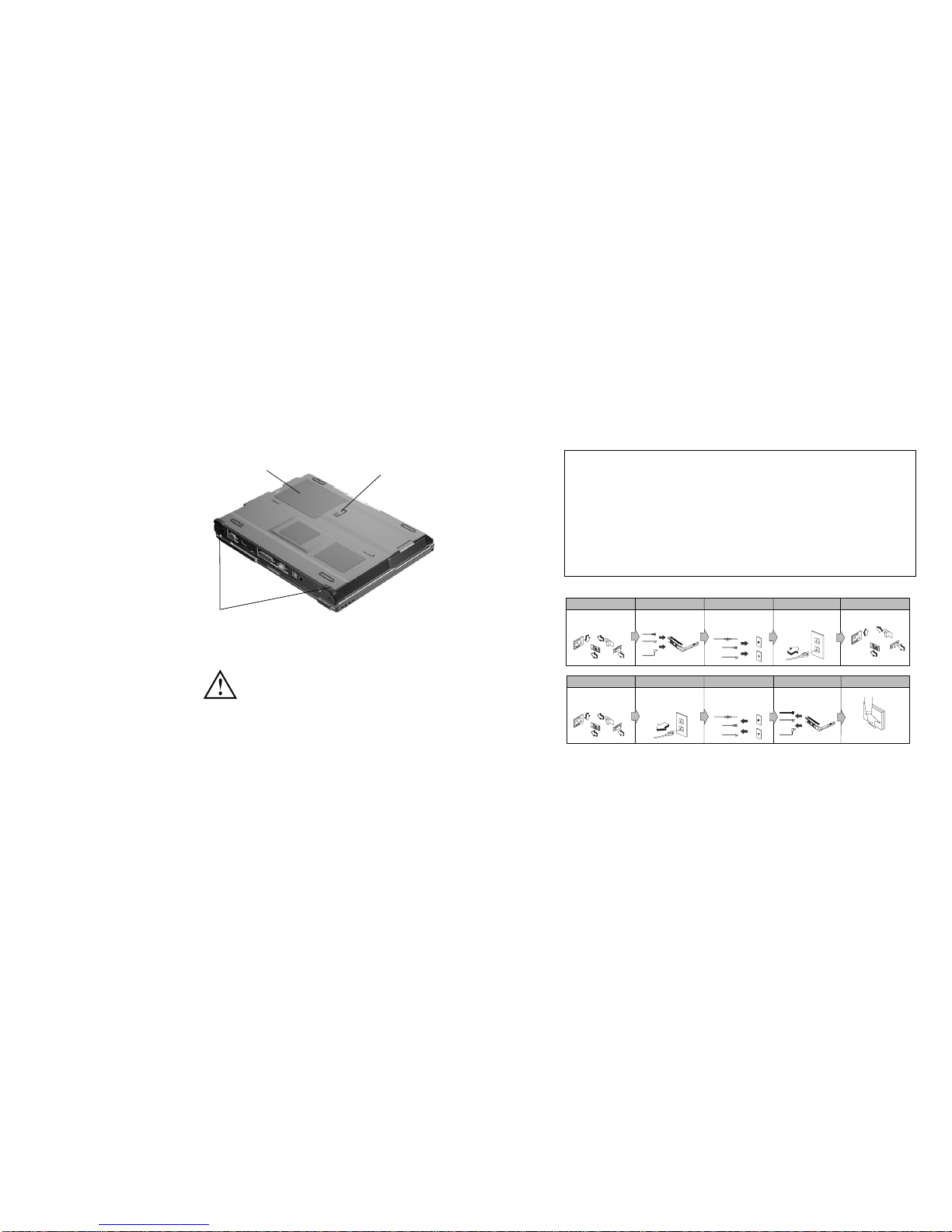

Bottom View

Tilt feet

Memory door Battery-pack

latch

Electrical Safety Notice

DANGER

Electrical current from power, telephone, and com-

munication cables is hazardous. To avoid shock

hazard, connect and disconnect cables as shown

below when installing, moving, or opening the

covers of this product or attached devices. The

3–pin power cord must be used with a properly

grounded power outlet.

Turn everything OFF. First, attach all cables

to devices. Attach the signal

cables to the

receptacles.

Attach the power

cord to an outlet. Turn the device ON.

To Connect

Turn everything OFF. First, remove the

power cord from

the outlet.

Remove the signal

cables from the

receptacles.

Remove all cables

from device.

To Disconnect

Note: In the U.K., by law:

The telephone line cable must be connected after the

power cord.

The power cord must be disconnected after the tele-

phone line cable.

Setting Up Your Computer

You are now ready to assemble and start your computer.

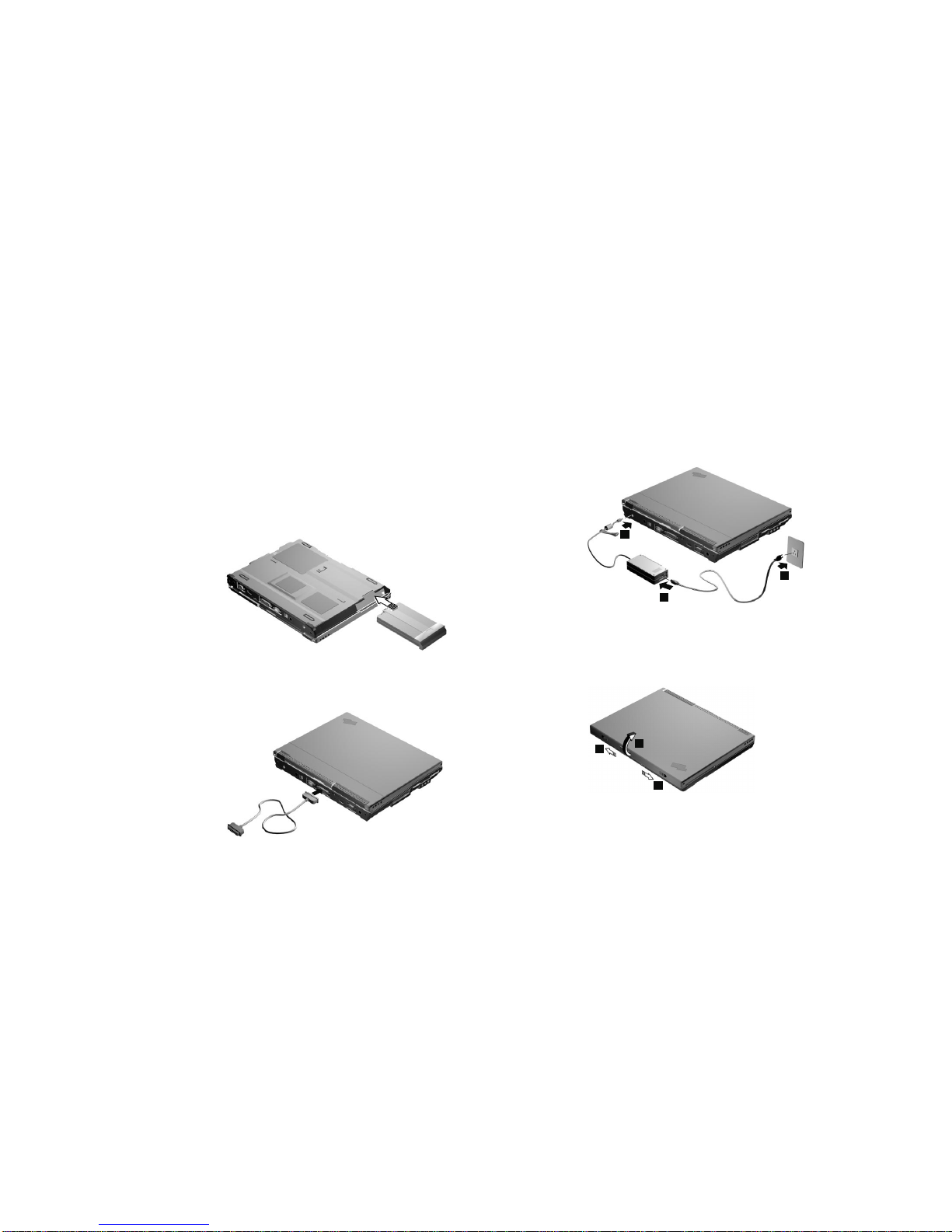

1. Turn the computer over and insert the battery pack into the

battery compartment located near the right front end of the

computer.

2. If you want to connect a printer to your computer, connect

one end of the printer cable to the parallel connector and the

other end to your printer. Then power on the printer.

3. Connect the AC Adapter to the computer's power jack (at the

rear of the computer) in the order shown.

4. Open the liquid crystal display.

Pull the liquid crystal display (LCD) latches (1) and open the

LCD (2). Then position the LCD so that it is convenient for

viewing.

5. Power on the computer.

a. Press the power switch.

b. Adjust the display's brightness (Fn+Home or Fn+End).

 Copyright IBM Corporation 1999 3

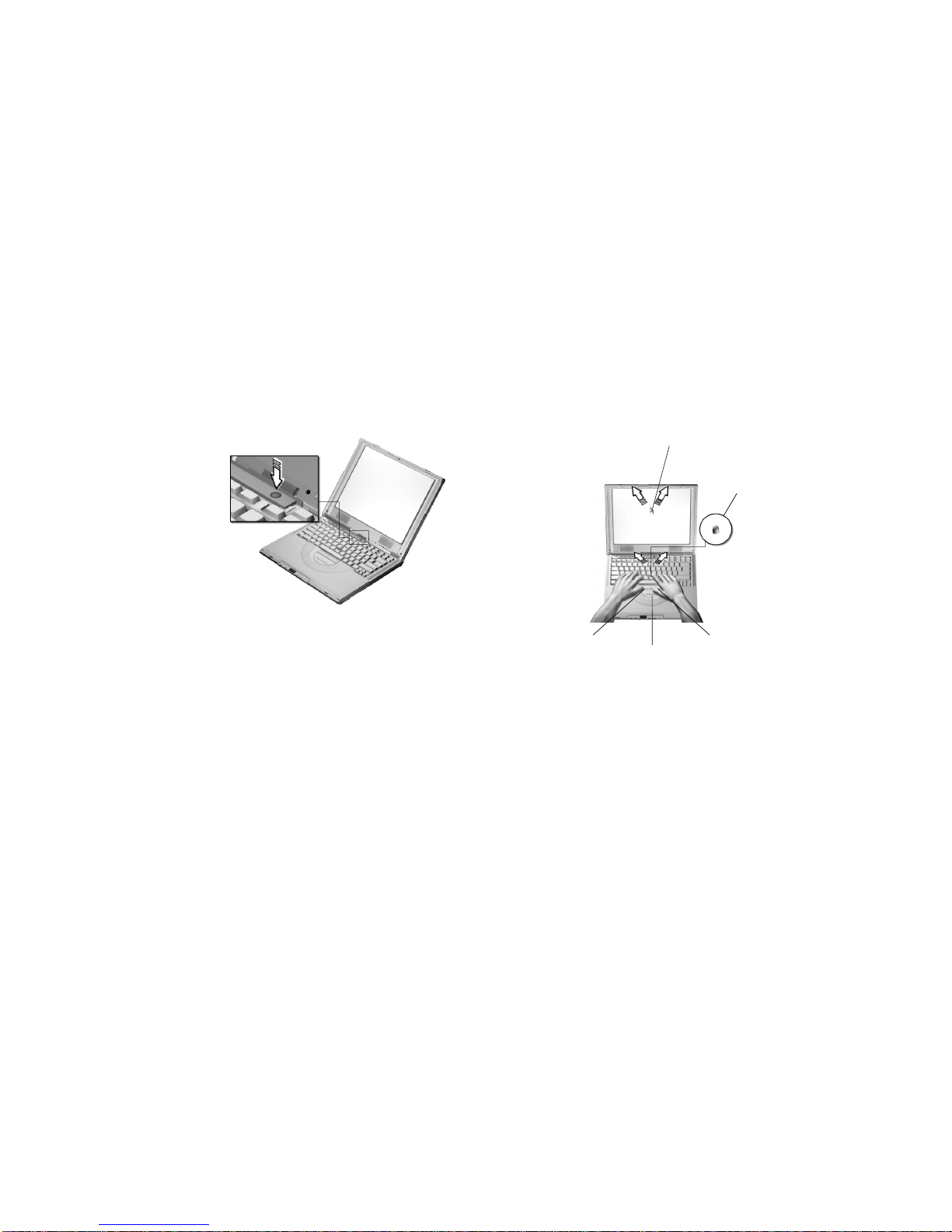

Using the TrackPoint

The TrackPoint is a unique device for moving the cursor on the

screen. You can perform all mouse operations with the

TrackPoint. The left and right click buttons function like the left

and right click buttons on a mouse. For an explanation of the

Internet Scroll Bar, see the

User's Reference

To move the cursor, use the red-topped stick at the center of the

keyboard. Press gently with your left or right index finger in the

direction you want to move the cursor. To select and drag an

object, press and hold one of the click buttons with either thumb

as required by your software.

Click means to press the left click button once. Double-click

means to press the left click button twice within 1 second.

Cursor

Stick

Right click button

Internet Scroll Bar

Left click button

For more information about the TrackPoint, see the

User's Refer-

ence

Customizing Your Computer

The ThinkPad Software Selections program provides a col-

lection of setup wizards to help you customize your computer for

your specific needs.

To start the ThinkPad Software Selections program, eject the

CD-ROM tray and insert the ThinkPad Software Selections

CD; then close the tray. Follow the instructions on the screen.

Registering Your Computer

After setting up Windows 98, take a few moments to complete

the ThinkPad registration. The information provided by you will

help IBM to better serve you in the future. To register from the

Windows desktop, do the following:

1. If you wish to register electronically, you need to connect

your computer to a phone line.

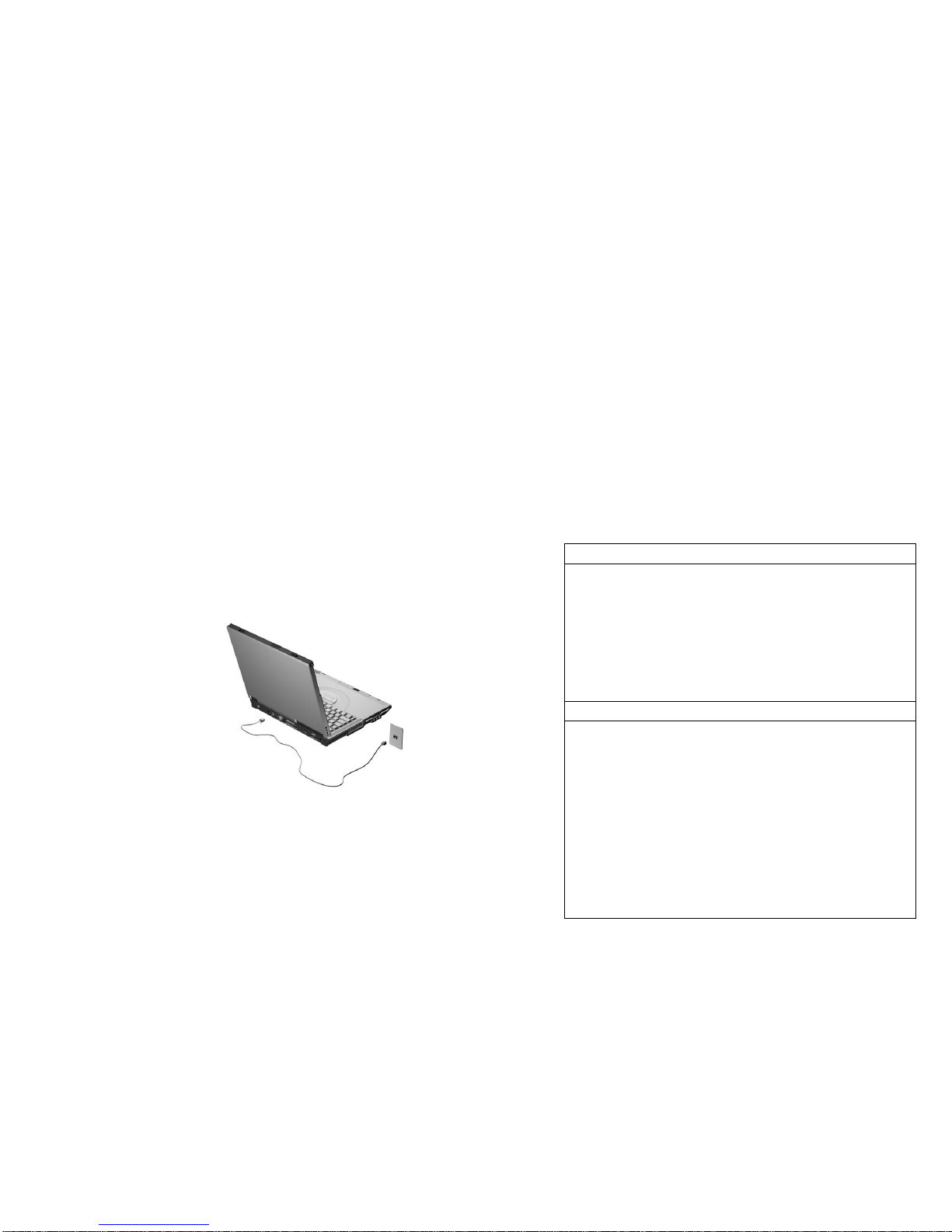

Connect one end of the modem cable to the modem con-

nector at the rear of the computer and the other end to an

analog phone line.

2. Double-click on the Register icon.

3. Follow the instructions on the screen to complete the regis-

tration.

You can also register your computer at the following web

site:

http://www.pc.ibm.com/register

Getting More Information

After you have completed setting up your computer and

Windows, please read Chapter 1 of the

User's Reference

before

you start using the computer. If you want to learn more about

your computer and its options, see the following:

User's Reference

Getting familiar with your computer

Extending the features of your computer

Protecting your computer

Solving computer problems

Getting service

Features and specifications

Product warranties and notices

Online User's Guide

Using your computer outside your home country

Using audio, modem and DVD features

Protecting your computer

Using your computer with a battery pack

Using your computer with a PC Card

Resolving system resource conflicts

Solving computer problems

Installing software

Handling the ThinkPad

Getting service

 Copyright IBM Corporation 1999 5

Note: To see the Online User's Guide, click Start, move the cursor

to Programs, ThinkPad i Series 1400/1500, then click

ThinkPad i Series 1400/1500 User's Guide.
