IBM ThinkPad X20 Bedienungsanleitung
Part Number: 12P0278
Setup Guide
ThinkPad X20
Checklist for unpacking
Thank you for purchasing the IBM ThinkPad X20 computer. Match the items on this list with the items in the box. If any item is missing or damaged,
please contact your place of purchase.
Ø Computer
Ø AC adapter
Ø Power cord
Ø Battery pack
Ø Miscellaneous parts
TrackPointcaps
Ø Telephone cable
Ø Books
User's Reference
Setup Guide
Manual Package for
MicrosoftWindows
Ø ThinkPad Software Selections CD
Note: Some models may contain additional items that are not listed.
Copyright IBM Corporation 2000 1
All manuals and user guides at all-guides.com
all-guides.com

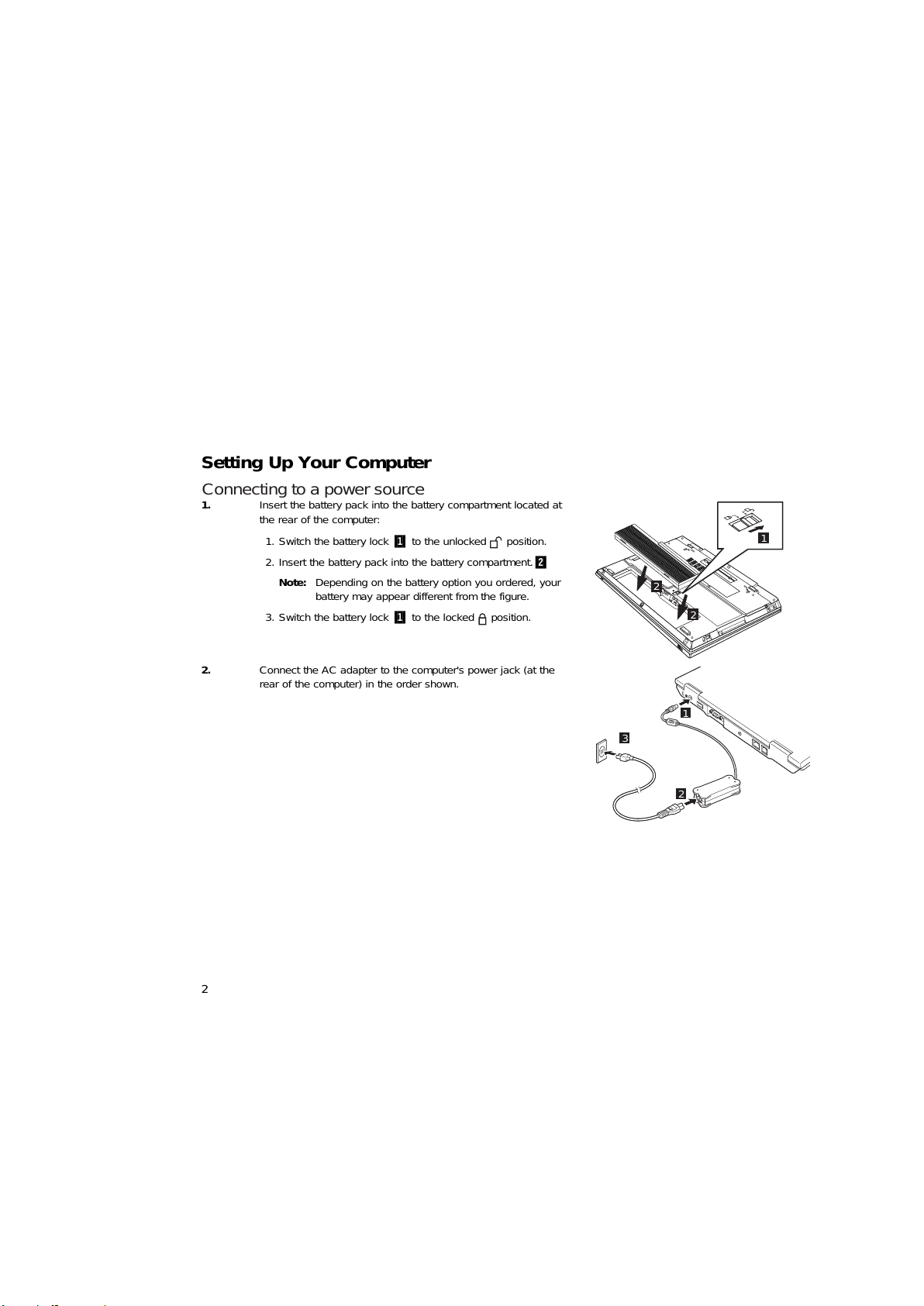

Setting Up Your Computer
Connecting to a power source
1. Insert the battery pack into the battery compartment located at
the rear of the computer:
1. Switch the battery lock .1/ to the unlocked position.
2. Insert the battery pack into the battery compartment..2/
Note: Depending on the battery option you ordered, your
battery may appear different from the figure.
3. Switch the battery lock .1/ to the locked position.
1
2
2
2. Connect the AC adapter to the computer's power jack (at the
rear of the computer) in the order shown.
1
3
2
2
All manuals and user guides at all-guides.com
Turning on the system
1. Open the liquid crystal display (LCD).
Slide the LCD latches .1/ and open the LCD .2/. Then position
the LCD so that it is convenient for viewing. 2
1
1
2. Push the power switch.
Copyright IBM Corporation 2000 3
All manuals and user guides at all-guides.com
Using the TrackPoint
The TrackPoint is a unique device for moving the cursor on the screen.
You can perform all mouse operations with the TrackPoint. The left and right
click buttons function like the left and right click buttons of a mouse.
To move the cursor, use the red-topped stick at the center of the keyboard.
Press gently with your left or right index finger in the direction you want to
move the cursor. To select and drag an object, press and hold one of the
click buttons with either thumb as required by your software.
Click means to press the left click button once. Double-click means to
press the left click button twice within 1 second.
For more information about the TrackPoint, see the
User's Reference
.
Cursor
Center button
Left click button Right click button
Stick
4
All manuals and user guides at all-guides.com
Using the volume control
You can adjust the sound level produced by the built-in speakers by using
the following three buttons:
.1/
Volume down
.2/
Volume up
.3/
Mute
– If the sound is muted when you turn off the computer, it remains
muted when you turn the computer on again.
– To turn on the sound, press the Volume up or Volume down button.
When you press one of these buttons, the volume indicator appears on the
screen for a few seconds. For more details on volume control, see the
ThinkPad online user's guide.
Setting up Windows
The computer is preloaded with Windows 98 or Windows 2000. To set
up the operating system, follow the instructions on the computer screen.
Copyright IBM Corporation 2000 5
All manuals and user guides at all-guides.com
Using Access ThinkPad
Your computer features the unique ThinkPad Button.
Press the ThinkPad Button anytime to open the online help and information
center-Access ThinkPad.
User information and documentation about your ThinkPad model is available
through Access ThinkPad and ThinkPad Assistant. So there is no need to
carry heavy manuals or reference books.
You can Perform a Quick Search of the ThinkPad Assistant index, or search
the full text of the help system in ThinkPad Assistant, to find the information
you need.
If you are logged on to the Internet, click one of the Internet portal buttons in
Access ThinkPad to:
Get help and user support
Update software
Find business solutions
Learn about accessories
6
All manuals and user guides at all-guides.com
all-guides.com
Service and support information
Getting help around the world
International Warranty Service (IWS) is available for customers who are
moving products or traveling to countries where their product (as identi-
fied by the 4–digit machine type) is sold and service delivery methods
of the country providing the service will be in effect. IBM reserves the
right to change or modify its service delivery methods by country at any
time without notice. Service procedures differ by country, and some
service and parts may not be available in all countries because of the
laws of that particular country. In some countries, fees may apply to
service provided on-site in remote locations.
To register, call one of the following IWS Offices:
Southeast Asia, Australia, New
Zealand, and Hong Kong: 61-2-9354-4171
Canada, Latin America, and the
U.S.: 1-800-497-7426
or 248-740-1215
Europe, Middle East, and Africa: 44-1475-893638
Japan, Korea, China (except
Hong Kong), and Taiwan: 81-46–273-7598
The IWS office will issue an International Warranty Service Certificate,
which you can use wherever IBM or IBM resellers sell and service this
product.
Before you call for service, have on hand:
The exact wording of any error messages
Information on the configuration of your hardware and software
A description of the problem
Information on any options installed on your system, including serial
number
Copyright IBM Corporation 2000 7
All manuals and user guides at all-guides.com
Trademarks
The following terms, in this publication, are trademarks of the IBM Cor-
poration in the United States or other countries or both:
IBM
ThinkPad
ThinkPad Assistant
TrackPoint
Microsoft, Windows, Windows NT, and the Windows logo are trade-
marks of Microsoft Corporation in the United Sates and/or other coun-
tries.
Your Name:
_______________________________
Company Name:
_______________________________
Model Number:
_______________________________
Serial Number:
_______________________________
Company or Reseller Service:
_______________________________
IBM Service Website:
_______________________________
IBM Service Number:
_______________________________
8
