IBM IntelliStation POWER 285 Bedienungsanleitung

Quick start guide for IntelliStation POWER 285 (9111-285)

IBM Systems

CAUTION: The fully populated enclosure weighs about 95 lbs (43 kg). You should

have at least three people available to lift and install the system unit.

The exclamation mark surrounded by a gray triangle denotes caution. A CAUTION

notice indicates the presence of a hazard that has the potential of causing

moderate or minor personal injury. Before doing a step that contains a caution icon,

read and understand the caution statement that accompanies it.

1Before you begin

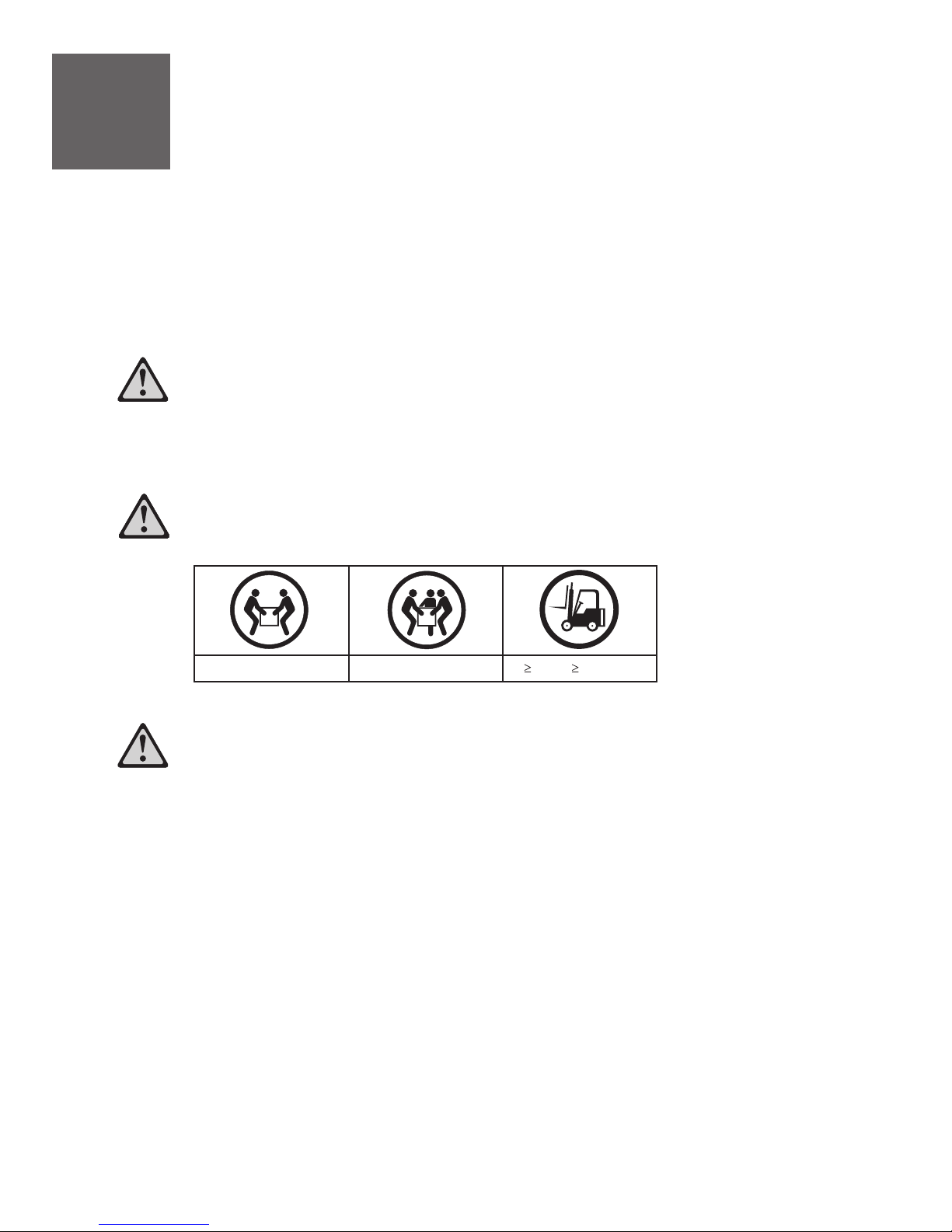

Use safe practices when lifting.

This Quick start guide contains an abbreviated set of setup instructions designed to help you quickly

unpack and set up a standard system. Users unfamiliar with this IBM hardware should use the fully

detailed setup instructions found in the IBM Systems Hardware Information Center. For details about

how to access the information center, see task 5 .Finish your system setup

18-32 kg (39.7-70.5 lbs) 32-55 kg (70.5-121.2 lbs) 55 kg ( 121.2 lbs)

Inventory

Complete an inventory of the external parts.

Locate the kitting report (inventory list) in the bag that contains the information center CD

(SK3T-8159). Make sure you received all of the parts that you ordered. Your order information

should be located in an envelope adhered to the outside of your system box. You can also

obtain order information from your marketing representative or IBM Business Partner.

If you have incorrect, missing, or damaged parts, contact any of the following:

Your IBM reseller

IBM Rochester manufacturing automated information

line at 1-800-300-8751 (United States only)

Directory of worldwide contacts at www.ibm.com/planetwide.

Select your location to view the service and support contact information.

3.1

3.2

3.3

Route the power cords through the rings or clamps, if available, on the

back of the workstation, and connect to the system unit, monitor, and

HMC.

Connect the mouse and keyboard cables to the appropriate ports on the

back of the HMC. If your mouse and keyboard use Universal Serial Bus

(USB) cables, you can connect these to the ports on the front of the

HMC.

Do not connect the power cords to a power source until

instructed to do so.

Important: Ensure that if there is a voltage switch next to the power

connector on the monitor, it is in the appropriate position for the voltage

used in your geography.

3.4 Attach the monitor cable to the monitor connector on the HMC

and tighten the screws.

Tip: If you are using the rack-mounted LCD monitor and

keyboard (7316-TF3), use the C2T-to-KVM adapter breakout

cable to attach to the HMC.

A Hardware Management Console (HMC) is a system that connects to the workstation and

manages it through a network.

If you are using a rack-mounted HMC, these steps assume that it is already installed in the rack.

If you need to install the HMC into the rack, follow the instructions in the IBM Systems Hardware

Information Center, and return to this guide when you are ready to begin cabling your HMC. For details

about how to access the information center, see task 5

If you are not using an HMC to manage your workstation, you can use either the Integrated

Virtualization Manager or the Advanced System Management Interface (ASMI). To use the

Integrated Virtualization Manager, follow the setup instructions in the IBM Systems

Hardware Information Center. For details about how to access the information center, see

task 5 . To use the ASMI, go to task 4

Finish your system setup Cable the system unit and

access the ASMI

Finish your system setup.

If you are using any optional adapters, connect the cables to the appropriate

adapter connectors in the PCI slots of your system unit and HMC.

Cable the HMC and the system unit

3.5

3.6

If you are not using a modem, skip to step 3.6.

If you are using the integrated HMC modem, connect the telephone cable to

the modem and to the analog jack on the wall. If you are using an external

modem, connect the modem data cable to the external modem and to a serial

port on the HMC. Then connect the telephone cable to the external modem

and to the analog jack on the wall.

Connect the Ethernet cable to the Ethernet port on the HMC and to the

Ethernet port labeled HMC1 on the system unit.

For a stand-alone HMC, use the integrated Ethernet port. For the 7310-CR2 rack-

mounted HMC, use the bottom-right Ethernet port. For the 7310-CR3 rack-

mounted HMC, use the left port of the two planar board Ethernet ports.

3.7

3.8

If using an external modem, plug the power cord into the modem.

Plug the power cords for the monitor, HMC, and external modem into a power

source. Do not connect the system unit to a power source until instructed to do so.

CAUTION: This product is equipped with a three-wire power cable and plug

for the user's safety. Use this power cable with a properly grounded

electrical outlet to avoid electrical shock.

You have completed the basic setup. Go to task 5 Finish your system setup.

3.9

3.10

3.11

Start and configure the HMC, which includes the Guided Setup Wizard. You can

find the instructions for configuring the HMC in the Hardware Information Center.

For details about how to access the information center, see task 5

Finish your

system setup

Connect the system unit to a power source and wait for the control panel on

the front of the server to display . This might take several minutes.01

Press the white Power On button on the control panel.

4.1

4.2

CAUTION: This product is equipped with a three-wire power cable and plug

for the user's safety. Use this power cable with a properly grounded

electrical outlet to avoid electrical shock.

The ASMI is an interface to the service processor that is required in order to perform general and

administrator-level service tasks, such as reading service processor error logs, reading vital product

data, setting up the service processor, and controlling the system power.

This task assumes that you are using a PC to access the ASMI through a Web browser. If you are using

an ASCII terminal, see the instructions in the IBM Systems Hardware Information Center. For details

about how to access the information center, see task 5 Finish your system setup.

Cable the system unit and access the ASMI

Using a PC that has Microsoft Internet Explorer 6.0, Netscape 7.1, or Opera 7.23

installed, connect an Ethernet cable from the PC to the port labeled HMC1 on the

back of the system unit. If HMC1 is occupied, use the port labeled HMC2.

(R)

4.3 Configure the Ethernet interface on the PC to an IP address and subnet mask

within the same subnet as the system unit.

If you do not know how to do this, see the instructions in the

. For details about how to access the information

center, see

Possible values:

Note:IBM Systems

Hardware Information Center

task 5 Finish your system setup.

Server connector

HMC1

HMC2

Subnet mask

255.255.255.0

IP address

192.168.2.147

192.168.3.147

For example, if you connected your PC or mobile computer to HMC1, the IP

address for your PC or mobile computer might be 192.168.2.1 and the subnet mask

would be 255.255.255.0. Set the gateway IP address to the same IP address as that

of the PC or mobile computer.

Route the power cords through the rings or clamps, if available, on the back of the

workstation, and connect the system unit to a power source. Wait for the control

panel on the front of the server to display .01

4.5

4.7

4.6

4.4 Using a Web browser, enter the IP address into the field that corresponds to

the port to which your PC is connected.

When the login dialog box is displayed, enter either one of the default user IDs

and passwords:

Address

When you are prompted, change the default password.

If you are using any optional adapters, connect the cables to the appropriate

adapter connectors in the PCI slots of your system unit and PC.

User ID

general

admin

Password

general

admin

Finish your system setup

Using a Web browser, go to www.ibm.com/server/library/infocenter/hardware or go

to the preinstalled version on the HMC.

From the navigation bar, click

Answer the questions in the interactive interview, and follow the procedures in the

resulting checklist.

Systems Hardware information IntelliStation

POWER information Initial server setup Create a customized initial

server setup checklist.

You have completed the basic tasks to set up your workstation.

You can now access the . Follow these steps to create a

customized checklist that helps you configure your and console, install software, apply

fixes, and establish connections with your service provider:

IBM Systems Hardware Information Center

workstation

If you cannot access the online version of the information center, it is also provided

on a CD with your system (SK3T-8159).

5.1

5.2

5.3

International Business Machines Corporation 2005, 2007

Printed in USA

September 2007

Mail comments to:

IBM Corporation

Attention Department DDR

3605 Highway 52 North

Rochester, MN U.S.A. 55901-7829

Fax comments to:

1-800-937-3430 (U.S. or Canada)

1-507-253-5192 (outside the U.S. or Canada)

Internet URL: http://www.ibm.com/systems/infocenter/hardware

References in this publication to IBM products or

services do not imply that IBM intends to make

them available in every country or region.

IBM, the IBM logo, IntelliStation, and POWER are trademarks

and/or registered trademarks of International Business

Machines Corporation.

Microsoft, Windows, Windows NT, and the Windows

logo are trademarks of Microsoft Corporation in

the United States, other countries, or both.

Other company, product, and service names may

be trademarks or service marks of others.

SA41-5168-03

29R1715
