Introduction

This manual was written to assist you in the installation of your IBM Ultrastar 18LZX or ULtrastar 36ZX.

The instructions are applicable to most computer systems. Contact a qualified installer for assistance if

necessary.

International Business Machines Corporation provides this publication "AS IS" without warranty of any

kind, either express or implied, including, but not limited to, the implied warranties of merchantability or

fitness for a particular purpose. Some states do not allow disclaimers of express or implied warranties in

certain transactions. Therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Product data and specifi-

cations are subject to change without notice. Changes are periodically made to the information herein;

these changes will be incorporated in new editions of the publication. IBM may make improvements or

changes in the products or the program described in this publication at any time.

This publication may contain reference to or information about IBM products (machines and programs),

programming, or services that are not available in your country. Such references or information must not

be construed to mean that IBM intends to make available such IBM products, programming, or services

in your country.

Product description data contained herein represent IBM’s design objectives and is provided for com-

parison among IBM products; actual results may vary based on a variety of factors. The product data

contained herein does not constitute a warranty. Questions regarding IBM warranty terms or the

methodology used to derive data should be referred to an IBM representative.

Technical information about IBM hard disk drive products can be obtained via the Internet at:

http://www.ibm.com/harddrive

or by calling the IBM Hard Disk Drive Technical Support Center at 888.426.5214.

Government Users - Documentation related to restricted rights - Use, duplication,or disclosure is subject

to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

IBM is a registered trademark of the International Business Machines Corporation. The following are also

trademarks or registered trademarks of the International Business Machines Corporation in the United

States, other countries, or both: Ultrastar and OS/2. Any other products or trademarks are the property

of their respective owners.

IBM storage products

Page 3

IBM Hard Disk Drive Technical Support Center version 2.0

34L3743IG10

Hardware description

The Ultrastar 18LZX and 36ZX offers the following features:

ŸCapacities of 9GB,18GB, or 36GB

Ÿ68 or 80 pin connectors

Ÿ68 pin SCSI connectors using the SCSI P connector

Ÿ80 pin SCSI connectors using the SCA-2 connector

Low Voltage Differential (Ultra2)

80 pin SCA-2

DMVS-36D

36.70GB

Low Voltage Differential (Ultra2)

68 pin

DMVS-36V

36.70GB

Low Voltage Differential (Ultra2)

80 pin SCA-2

DMVS-18D

18.35GB

Low Voltage Differential (Ultra2)

68 pin

DMVS-18V

18.35GB

Low Voltage Differential (Ultra2)

80 pin SCA-2

DMVS-09D

9.11GB

Low Voltage Differential (Ultra2)

68 pin

DMVS-09V

9.11GB

SCSI Electrical Signal Type

Connector Type

Model

Capacity

These drives offer an advanced LVD interface that supportstransfer rates of up to 80 MB/sec. To take

advantage of the higher transfer rate of 80 MB/sec, your computer will need a controller that supports the

LVD interface. If you have a SCSI controller that does not support this interface, the data transfer

speeds will be lower than 80MB/sec due to the lower speed of the controller. If you have a slower con-

troller, you may wish to purchase an LVD controller card to take advantage of the drive’s 80 MB/sec data

transfer rate. To determine if your current controller card is LVD, check the documentation that came

with your controller or contact the controller manufacturer.

If you currently have single-ended wide SCSI drives and a non-LVD controller, the LVD model Ultrastar

18LZX or 36ZXmay be attached to the existing cable. If you choose to replace your non-LVD controller

with an LVD model single-ended wide SCSI drives can be attached to the same bus with an LVD drive.

However, there are some LVD controllers that do not support single-ended wide SCSI drives. Check the

documentation that came with your controller or contact the manufacturer to ensure that your LVD

controller will support single-ended wide SCSI drives.

Before you begin installation, please read the “Handling Precautions” on the following page.

IBM storage products

Page 4

IBM Hard Disk Drive Technical Support Center version 2.0

34L3743IG10

Handling precautions

CAUTION! Disk drives must be handled with caution!

Drives can be easily damaged by shock from static

electricity or by rough handling. It is very easy to

unintentionally cause shocks which exceed

specifications.

•To prevent damage from impact or vibration always set the drive down gently.

•Do not open the ESD bag containing the drive until required.

•Handle the drive carefully by the edges. Do not touch the exposed printed circuit

board or any electronic components.

•Do not press on the top or bottom of the drive.

•Do not cover the drive’s breather hole.

ŸBefore handling the drive, discharge any static electricity from you and your clothing. With one hand,

touch an unpainted metal surface on your computer chassis, then touch the ESD bag with the other

hand. Remain in contact with the chassis and the bag for at least two seconds..

IBM storage products

Page 5

IBM Hard Disk Drive Technical Support Center version 2.0

34L3743IG10

Installation Steps

Step 1: Installation checklist

Items needed for installation:

___ TheUltrastar drive, four mounting screws, jumpers, and installation instructions. Save the

packaging including the ESD bag.

___ A small flat-blade screwdriver

___ Your computer or storage enclosure documentation

___ A bootable DOS or Windows diskette. See the section in the appendix entitled Making a

bootable diskette.

___ Mounting brackets, if required for your computer

Step 2: Preparing for installation

ŸŸ Back up the data on the drive currently in your system to data loss during installation.

•Turn the system off.

ŸDisconnect the power cord from the wall outlet.

ŸRemove the cover from your computer.

ŸDischarge any static electricity from you and your clothing. With one hand touch an unpainted

metal surface on your computer chassis, then touch the ESD bag with the other hand. Remain in

contact with the chassis and the bag for at least two seconds.

ŸRemove the drive from its package. Place it carefully on a static free surface.

ŸRecord the following information:

Serial # ____________________

Place of Purchase_________________

Drive P/N __________________

Date of

Purchase

__________________

Drive Model ________________

IBM storage products

Page 6

IBM Hard Disk Drive Technical Support Center version 2.0

34L3743IG10

Step 3: Setting the jumpers

The installation of your drive may require the placement of certain jumpers on the jumper block. Jumpers

are small electrical conductors covered with plastic and are used to connect pairs of pins on a jumper

block. Each jumper enables a particular function in the drive. The jumpers are located on the opposite

end of the interface connector (see diagrams below). All pins have a pin pitch of 2mm,with the exception

of Termination Power pins. Jumpers can be purchased at any local computer store.

ŸSet the following jumpers as needed:

Termination Power jumper (68 pin drives only)

Place a jumper on External Termination Power if your host adapter or another device does not supply

termination power. These pins require a 2.54mm jumper.

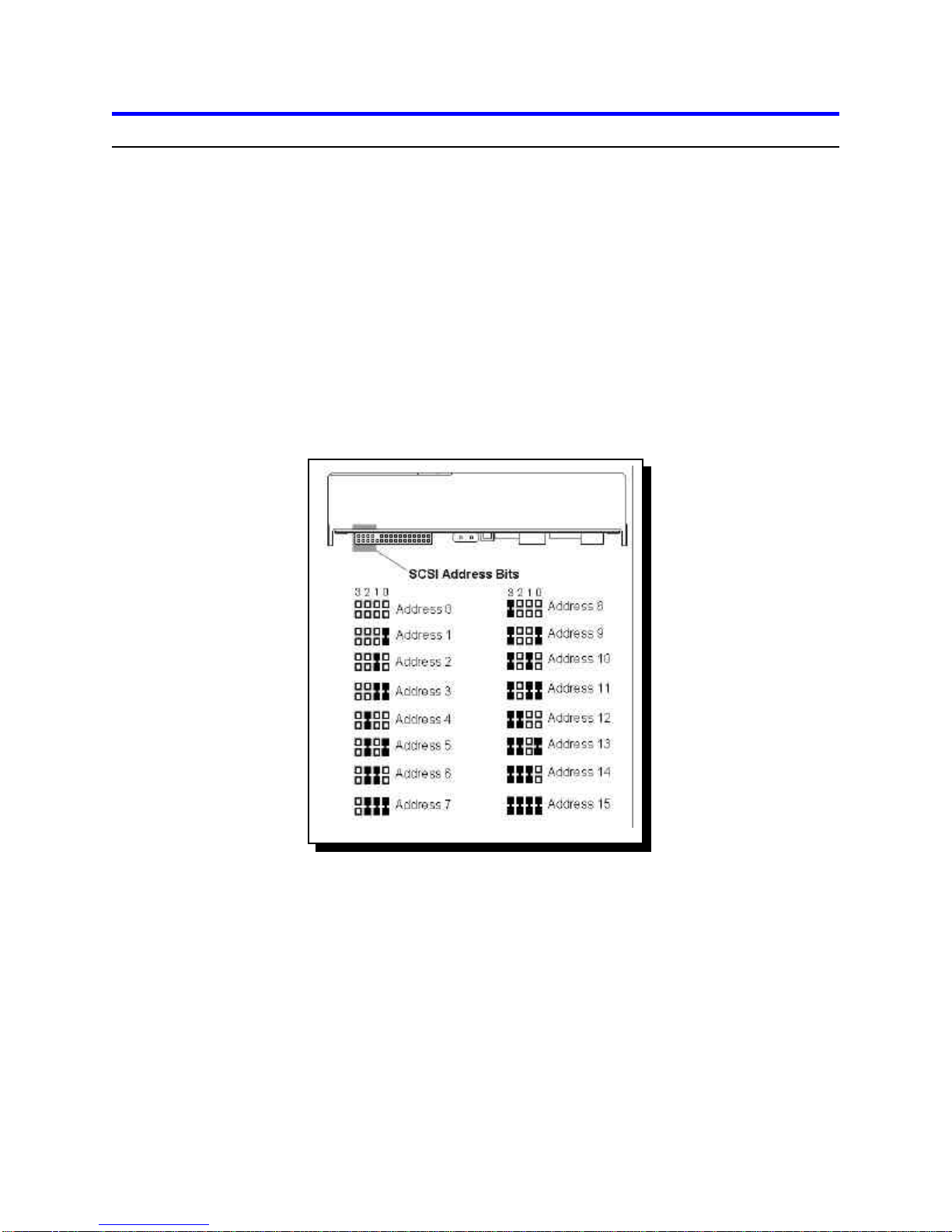

SCSI ID - pins 1 through 8

Assign a unique SCSI ID to your drive and place the jumper(s) accordingly. You can use ID 0

through ID 15; ID 7 is generally reserved for the controller card. The diagram below gives the jumper

positions for each ID.

Auto Start and Auto Start Delay - pins 11 & 12, 21 & 22

The Auto Start and Auto Start Delay pins control when and how the drive can spin up and come

ready. With Auto Start enabled, the motor spins up after power is applied without the need for a

SCSI Start Unit command. With Auto Start disabled, a SCSI Start Unit command is required to make

the drive spin and be ready for media access operations. With Auto Start Delay mode enabled, drive

spin up is delayed by a period of time determined by the Auto Start jumper multiplied by the drive's

SCSI address.

External Activity (LED) - pins 17 & 18

The LED pins can be used to drive an external Light Emitting Diode. Up to 33mA (5%) of TTL level

LED drive current is provided. The LED Anode may be tied to the +5V source provided on pin 18 of

the front option jumper block, pin 11 of the Auxiliary connector on the 68 pin unitized connector, or

the 5V power source on the 80 pin SCA model. The LED Cathode is then connected to the External

IBM storage products

Page 7

IBM Hard Disk Drive Technical Support Center version 2.0

34L3743IG10

Activity pin to complete the circuit. Note: The Ultrastar has two sets of pins, one on the front and one

on the back, which are connected to the same LED driver circuit. The combined current capability is

stated above.

Write Protect - pins 19 & 20

When the Write Protect pin is jumpered, SCSI commands that alter the customer data area portion of

the media will not be performed. The state of this pin is monitored on a per command basis.

Disable Target Initiated Synchronous Negotiation - pins 25 & 26

When the Disable Target Initiated Synchronous Negotiation pin is jumpered, an Initiator is required to

start a negotiation handshake if Synchronous and/or Wide (double byte) SCSI transfers are desired.

Disable SCSI Parity - pins 27 & 28

Jumpering these pins disables SCSI Parity Checking.

Disable Unit Attention - pins 29 & 30

Jumpering these pins disables the drive from building Unit Attention Sense information for commands

immediately following a Power On Reset (POR) or SCSI Bus Reset. Any pending Unit Attention

conditions will also be cleared at POR or SCSI Reset times.

Disable Wide Negotiations - pins 31 & 32

Jumpering these pins causes the drive to operate in a single byte mode. The drive will not negotiate

for wide (double byte) operation.

Force Single-Ended Mode - pins 23 & 24

Jumpering these pins on LVD models causes all models to operate in Single-Ended mode only.

80 pin models - option jumper block

Ground

+5V

Blank

Ground

External Activity LED Write Protect

Auto Start Delay

Disable Sync Negotiations

Disable SCSI Parity

Disable Unit Attention

Auto Start Disable

Force Single-ended Mode

SCSI Address

Reserved

Disable Wide Negotiations

Reserved

Ground

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32

3 2 1 0

| | | |

1 3 5 7 11 13 15 17 19 21 23 25 27 29 31

80 pin SCA-2 front option jumper block

IBM storage products

Page 8

IBM Hard Disk Drive Technical Support Center version 2.0

34L3743IG10

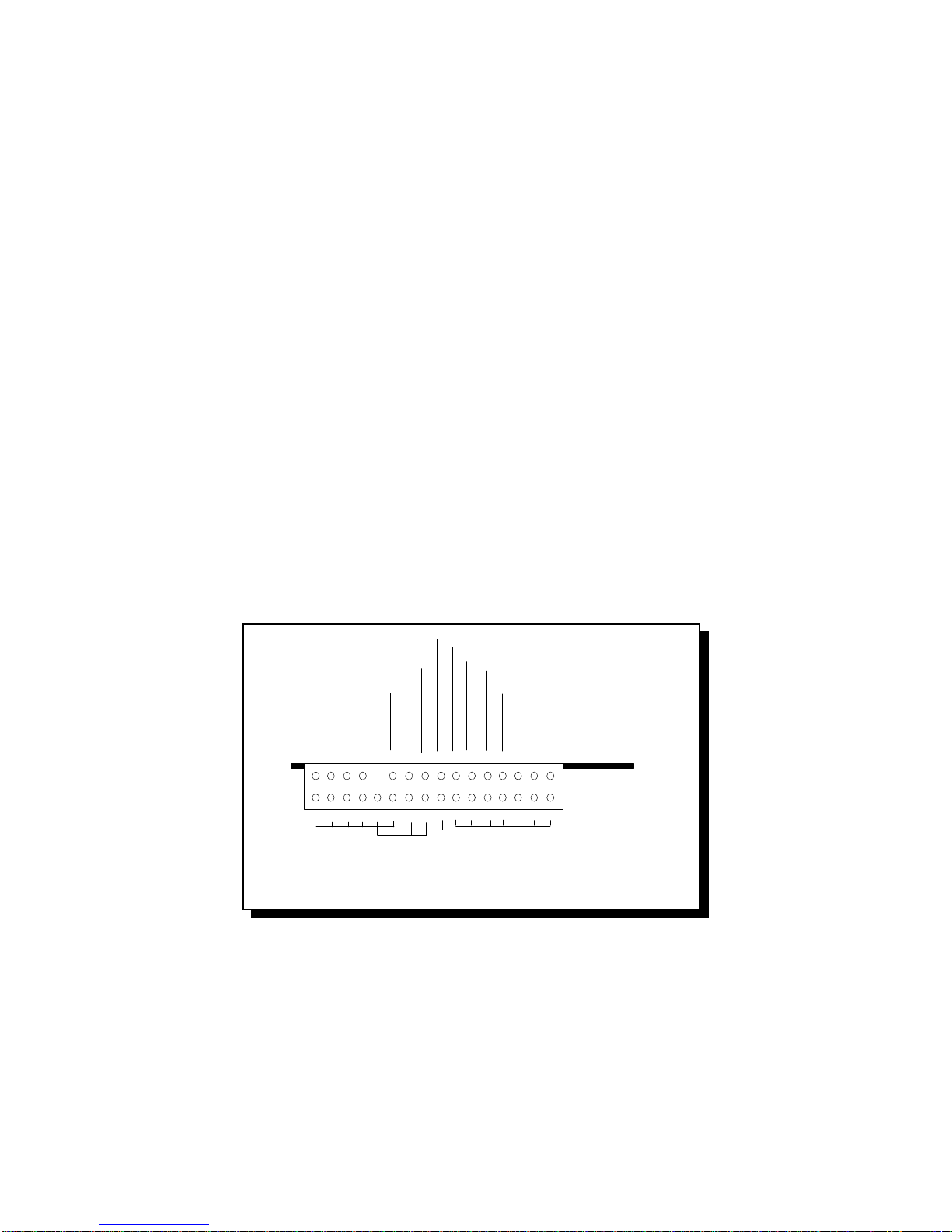

68 pin models - option jumper block

Ground Ground Termination

Power Enable

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32

+5V

SCSI Address Bits

Blank

Ground

External Activity LED Write Protect

Auto Start Delay

Disable Sync Negotiations

Disable SCSI Parity

Disable Unit Attention

Auto Start Enable

Reserved

Disable Wide Negotiations

Reserved

Force Single Ended Mode

Pin 23 is Reserved on Single Ended model.

Pin 14 is Enable Active Termination on Single Ended model.

3 2 1 0

| | | |

1 3 5 7 11 13 15 17 19 21 23 25 27 29 31

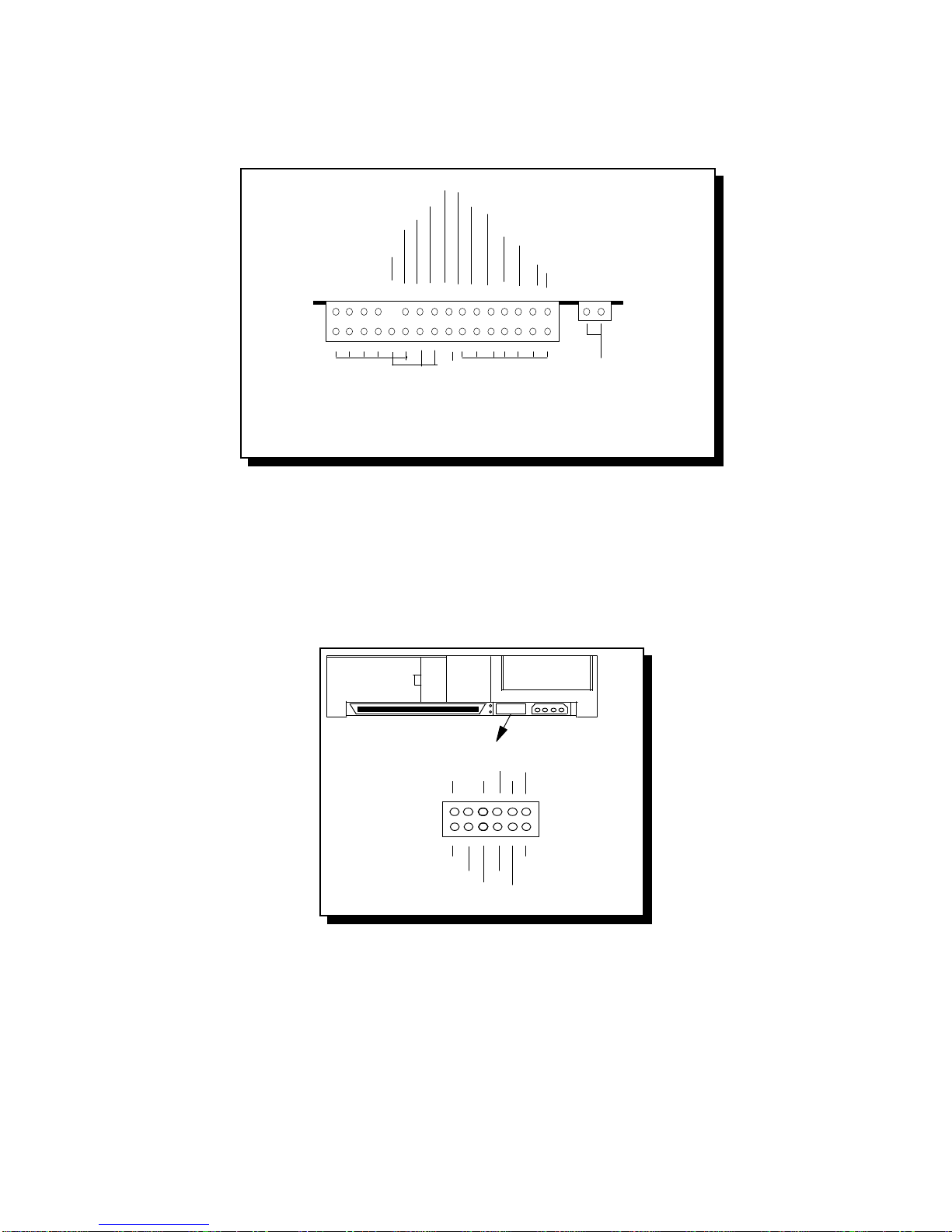

68 pin model - auxiliary option jumper block

The 68 pin models contain an auxiliary connector that duplicates some of the functions of the front option

jumper block. The auxiliary connector conforms to SFF 8009 Rev 3.0 and is typically used with a unitized

connector found on external drive enclosures.

IBM storage products

Page 9

IBM Hard Disk Drive Technical Support Center version 2.0

34L3743IG10

External Activity LED

12 10 8 6 4 2

11 9 7 5 3 1

+5V ID3 ID2ID1

ID0

Write Protect

Ground Slave Sync

Auto Spin Start

Unused

SCSI Address

: : : : : :

Step 4: Mounting the drive

ŸAfter setting the jumpers, mount the hard drive in your system. The Ultrastar drive can be mounted

with any of its six surfaces facing down. See the diagrams below for mounting hole locations.

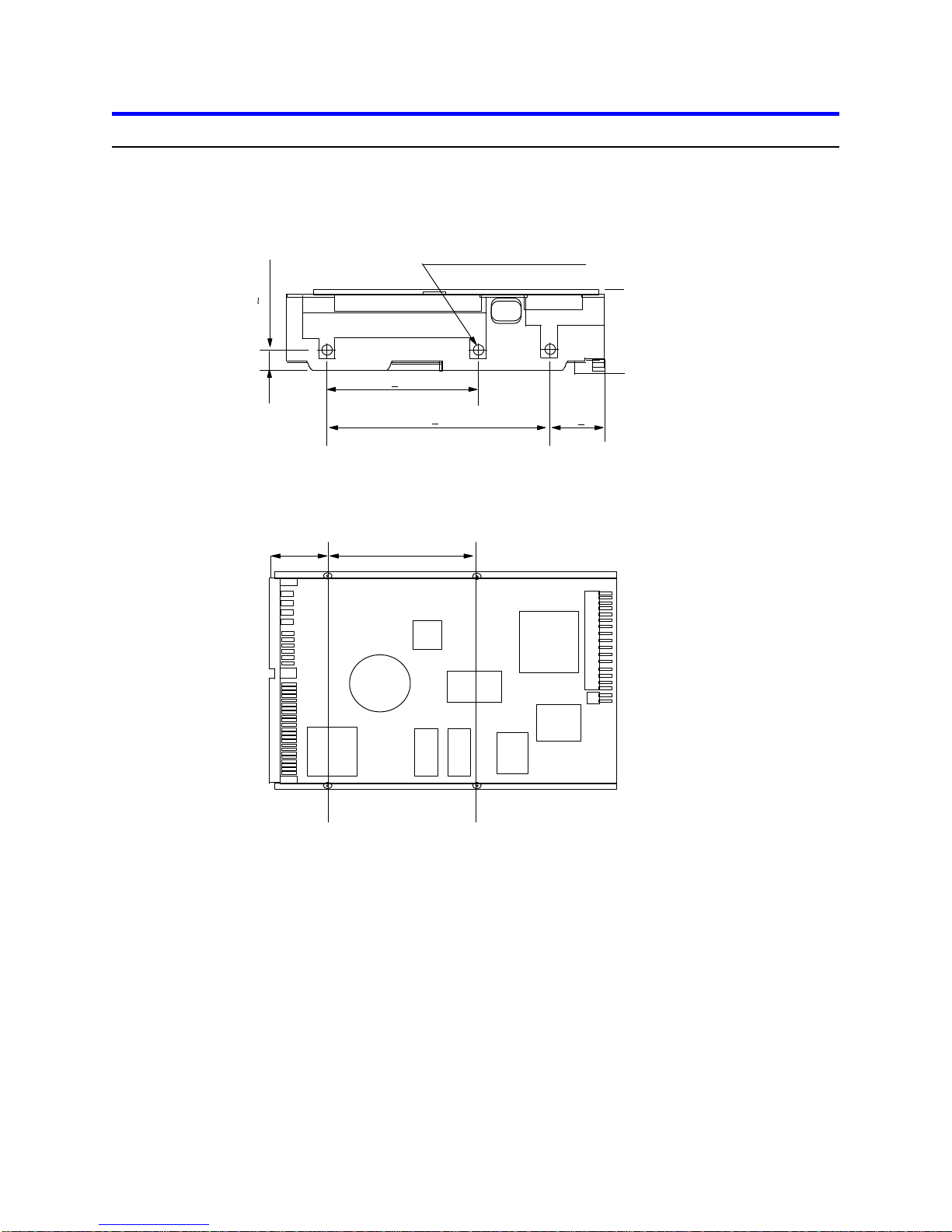

Mounting hole locations

You must ensure that the drive has sufficient air flow. Mount the drive in the system using four 6-32 UNC

screws. The maximum screw length is 3.5 mm for the side holes and 6 mm for the bottom holes. Mount

the drive securely enough to prevent excessive motion or vibration.

If you are mounting your drive in a 5.25 inch bay, you may need to purchase mounting brackets from

your computer manufacturer to mount the drive securely.

IBM storage products

Page 10

IBM Hard Disk Drive Technical Support Center version 2.0

34L3743IG10

(6X) 6-32UNC- 2B X 3.8mm MAX

(6X) 6.35

+0.25

60 +0.2

101.6 +0.2 28.5 +0.5

44.45+/- 0.25

41.28+/- 0.5

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere IBM Lagerung Handbücher

IBM

IBM DS8882F Technisches Handbuch

IBM

IBM TS4300 3555 Bedienungsanleitung

IBM

IBM 3453-F7E Bedienungsanleitung

IBM

IBM FlashSystem 720 Bedienungsanleitung

IBM

IBM IC25N040ATCS04 - Travelstar 40 GB Hard Drive Bedienungsanleitung

IBM

IBM Manager 3105 Bedienungsanleitung

IBM

IBM DS3500 Betriebsanleitung

IBM

IBM TotalStorage IP Storage 200i 110 Bedienungsanleitung

IBM

IBM System Storage DCS Series Bedienungsanleitung

IBM

IBM 1 GB Microdrive Storage Card Bedienungsanleitung

IBM

IBM 3581 Bedienungsanleitung

IBM

IBM 160 GB DLTV4 Bedienungsanleitung

IBM

IBM C1B 1.12 Brick On Sled Carrier 128-pin HPC Bedienungsanleitung

IBM

IBM EXP5060 Bedienungsanleitung

IBM

IBM FlashSystem 840 Bedienungsanleitung

IBM

IBM Ultrastar 36LZX Bedienungsanleitung

IBM

IBM DDS Gen 5 Bedienungsanleitung

IBM

IBM System storage DS6000 Series Bedienungsanleitung

IBM

IBM DTNA-21800 Bedienungsanleitung

IBM

IBM System Storage TS7600 ProtecTIER Series Installations- und Betriebshandbuch

IBM

IBM TS7700 Series Installationsanleitung

IBM

IBM 7208-341 Handbuch

IBM

IBM 8275-416 Referenzhandbuch

IBM

IBM Options 09N4153 Bedienungsanleitung

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

Freecom

Freecom CLS DOCK Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

Transcend

Transcend JetFlash 160 Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

Rocstor

Rocstor COMMANDER 3F series Bedienungsanleitung

HP P9000 Bedienungsanleitung

Western Digital

Western Digital Ultrastar Data60 Bedienungsanleitung
