INSTRUCTION MANUAL

SR-VPN1

VPN ROUTER INTRODUCTION

1 BEFORE USING THE SR-VPN1

2 ABOUT THE INTERNET CONNECTION

3 IPsec Wizard

4 OTHER BASIC FUNCTIONS

5 ABOUT THE SETTING SCREEN

6 MAINTENANCE

7 FOR YOUR INFORMATION

INTRODUCTION

Thank you for purchasing this Icom product. The SR-VPN1 VPN ROUTER is designed and built with Icom’s IP

network technology.

We hope you agree with Icom’s philosophy of “technology first.” Many hours of research and development went

into the design of your SR-VPN1.

document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including

photocopying, recording, or by any information storage and retrieval system without express written permission

from Icom Incorporated.

All stated specifications and design are subject to change without notice or obligation.

Adobe and Reader are registered trademarks of Adobe Systems Incorporated in the United States and/or other

countries.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United

States, the United Kingdom, Germany, France, Spain, Russia and/or other countries.

All other products or brands are registered trademarks or trademarks of their respective holders.

INTRODUCTION

FEATURES

• Secure, protected IPsec tunneling connecting up to 32 locations.

• Proven to work with IDAS multi-site systems.

• Supports FTTH, xDSL line. (WAN)

Note: An interface converter is separately required.

• 10/100/1000 BASE-T Ethernet ports.

• 4 [LAN] ports with a switching HUB.

• WAN Failover function.

Dual WAN ports for fail safe configuration, maintains VPN connection if either of the two network connection is working.

Notes:

- This function is disabled as the default.

- When the same network address is assigned to the WAN1 (Main line) and WAN2 (Sub line), this function doesn’t

properly work.

- Icom is not responsible for any result of using this function.

• Supports SNMP.

• Access restriction with the IP Filter function.

• Automatic Restore using a USB flash drive

• Multicast packets (IPv4) will reach every other end point.

Note: For only VE-PG2 and VE-PG3.

INTRODUCTION

iii

DEFAULT VALUES

• See Section 5 for the default values other than above.

To prevent unauthorized access:

You must be careful when choosing your password, and change it occasionally.

• Choose one that is not easy to guess.

• Use numbers, characters and letters (both lower and upper case).

(As of February 2013)

Menu Screen Item Itemname Value

Network Settings IP Address IP Address IP Address 192.168.0.1

Subnet Mask 255.255.255.0

DHCP Server DHCP Server DHCP Server Enable

Router Settings WAN1/WAN2 Connection Type Connection Type None

WAN Failover WAN Failover WAN1 Failure Detection Disable

Management Administrator

Administrator

Username admin (ﬁxed)

Current Password admin

Firmware Update Automatic Update Automatic Update Enable

INTRODUCTION

▼

SETTING PROCEDURE

Set up the SR-VPN1 following the procedure below.

Step.1

Step.2

Step.3

Step.4

Step.5

Connect to a PC and turn ON the powerCONNECTION GUIDE (Separated)

Access the setting screenCONNECTION GUIDE (Separated)/Section 1

Configure the network connectionSection 2

Configure the internet connectionSection 3

Configure the VPN connection using the IPsec WizardSection 4

INTRODUCTION

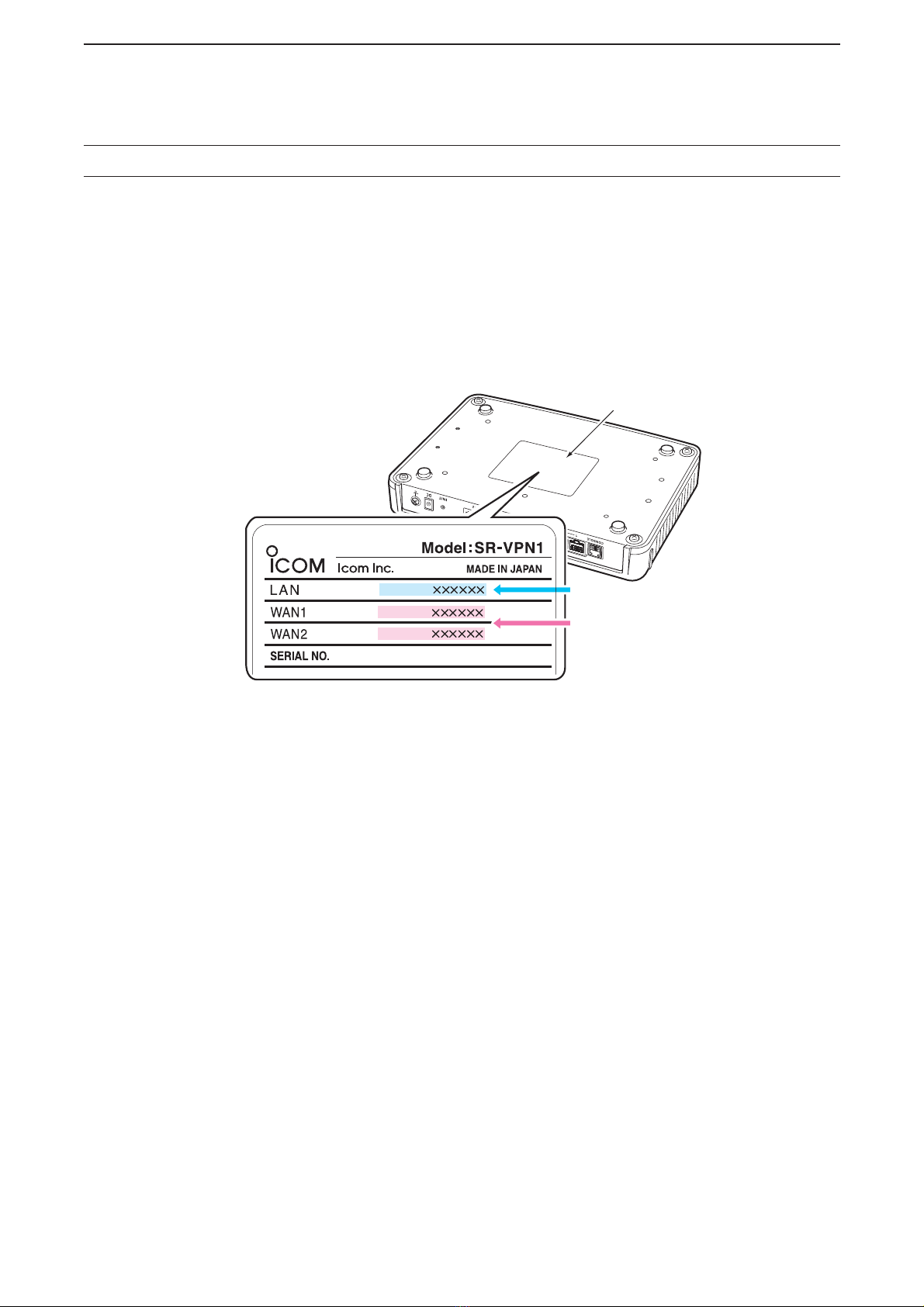

ABOUT THE MAC ADDRESS

The WAN/LAN MAC addresses are printed on the sticker on the bottom.

• MAC addresses are also displayed on the setting screen. (☞P5-5)

In the following cases, you need to know the MAC addresses

• When cloning the SR-VPN1s settings using a USB flash drive, you need to create folders whose names are each SR-

VPN1’s LAN MAC address. (☞P6-11)

• When your ISP requires you to register the MAC address.

0090C7

WAN MAC addresses

LAN MAC address

(This is an example.)

Serial label

SR-VPN1

1-1

BEFORE USING THE SR-VPN1 Section 1

1. Panel description ………………………………………………………………………………………………………………………… 1-2

MFront panel …………………………………………………………………………………………………………………………… 1-2

MRear panel …………………………………………………………………………………………………………………………… 1-4

2. Feature description ……………………………………………………………………………………………………………………… 1-5

MAbout the Routing function ………………………………………………………………………………………………………… 1-5

MAbout the VPN function……………………………………………………………………………………………………………… 1-6

1BEFORE USING THE SR-VPN1

1-2

1. Panel description

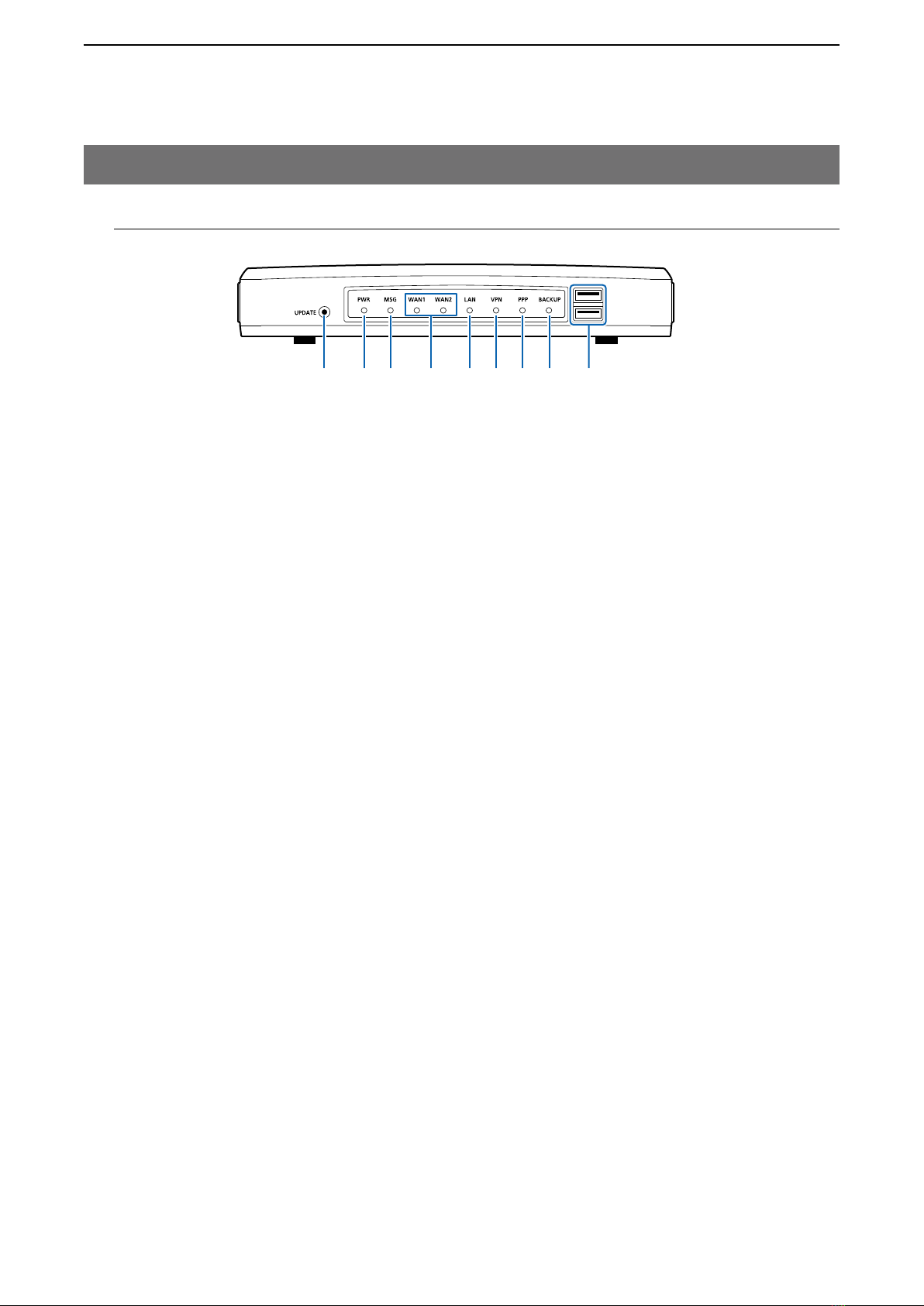

MFront panel

qwertyui o

q[UPDATE] button ………… When [MSG] lights green, a firmware update is ready.

To download and install the new firmware, hold down this button until [MSG]

blinks.

• To use the Firmware Update function, an internet connection, DNS and

default gateway settings are necessary.

w[PWR]……………………… Doesn’t light: Power is OFF

Lights green: Power is ON

Lights orange: An error has occurred or the SR-VPN1 is booting.

Blinks orange: Initialization is in progress. (Green and Orange LEDs

alternately light.)

Firmware update is in progress.

e[MSG]……………………… Lights green: A firmware update is ready.

Blinks green: Downloading new firmware.

Lights orange: Accessing the USB flash drive.

r[WAN](1/2)………………… Doesn’t light: Not connected

[1000BASE-T connection]

Lights green: Connected to the WAN

Blinks green: The WAN line is communicating.

[10BASE-T/100BASE-TX connection]

Lights orange: Connected to the WAN

Blinks orange: The WAN line is communicating.

t[LAN] ……………………… Doesn’t light: Not connected

[1000BASE-T connection]

Lights green: Connected to the LAN

[10BASE-T/100BASE-TX connection]

Lights orange: Connected to the LAN

• You can check the communication status for each [LAN] port by the [LAN]

LED on the rear panel. (+P1-4)

1BEFORE USING THE SR-VPN1

1-3

qwertyui o

y[VPN] ……………………… Lights green: An IPsec connection is established.

u[PPP] ……………………… Lights green: PPP is established.

i[BACKUP] ………………… Lights green: The backup line is communicating.

o[USB] ports ……………… CAUTION: Turn OFF the power before inserting or removing the USB flash

drive.

1. Panel description (continued)

MFront panel (continued)

(USB2.0×2)

About the USB flash drive

• A USB flash drive such as one with biometric authentication,

or one with password protection is not supported.

• Turn OFF the SR-VPN1's power before inserting or

removing the USB flash drive, to prevent data corruption.

• Either one of the USB slots accepts the USB flash drive, but

insert only one USB flash drive at a time.

• Insert the USB flash drive securely.

• NEVER remove the USB flash drive or turn OFF the

SR-VPN1's power, while transferring data. It will cause data

corruption, or damage the USB flash drive.

• After the firmware updating is finished, check the firmware

version on the setting screen to verify that the update was

correctly done.

• When importing setting data from the USB flash drive to

the SR-VPN1, the originally programmed setting data is

automatically saved as “bakdata.sav” in the USB flash drive,

as a backup.

1BEFORE USING THE SR-VPN1

1-4

1. Panel description (continued)

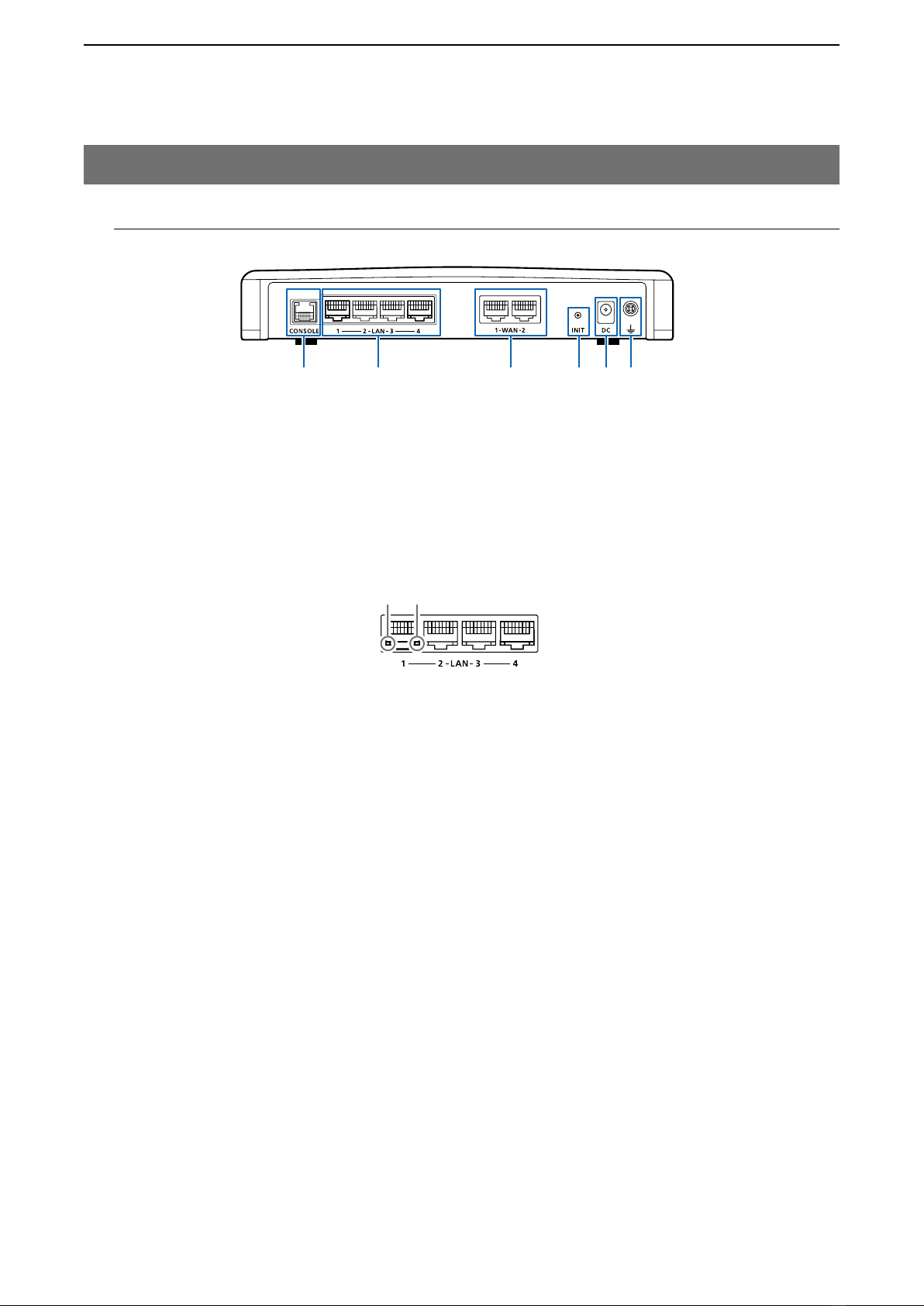

MRear panel

weqrty

q[CONSOLE] port ………… Connect an RS-232C serial communication interface to externally configure

the SR-VPN1.

(Optional OPC-1402 is required.)

w[LAN] ports ……………… Connect the network devices such as a HUB.

[LED indication]

Lights：Connected to the LAN line.

Blinks：The LAN line is communicating.

qGreen：1000BASE-T

wYellow：10BASE-T/100BASE-TX

q w 

e[WAN] ports ………………

The Routing function is disabled as the default.

Connect the modem (ADSL, VDSL, CATV) or ONU (Optical Network Unit) to

the [WAN1] port, and then select the network line type (DHCP client/PPPoE/

Static IP) as specified by your internet service provider (ISP). (+P2-3)

• The [WAN2] port can be used as the backup line. (+P2-9)

r[INIT] button ……………… If you cannot access the setting screen, push this button to initialize the

SR-VPN1.

• See the "PRECAUTIONS" leaflet for details.

• Initializing clears all the settings.

tDC jack …………………… Connect the supplied AC adapter.

yGround terminal ………… Connect to the ground.

(RJ-45 type×4)

(RJ-11 type)

(RJ-45 type ×2)
