ICOP Technology PPC-150T Bedienungsanleitung

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 i

User’s Manual

PPC-150T

DMP Vortex86 DX2 Processor

Compact Panel PC with 15”Touchscreen

All manuals and user guides at all-guides.com

all-guides.com

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 ii

SAFETY INFORMATION

Read these Safety instructions carefully.

Please carry the unit with both hands, handle carefully.

Make sure the voltage of the power source is correct before

connecting the equipment to the power outlet.

Do not expose your Panel PC to rain or moisture in order to prevent

shock and fire hazard.

Input voltage rated +12 ~ 24 VDC

Operating temperature between 0~+50°C (+32~+122°F).

Keep PPC-150T away from humidity.

When a Compact Flash Card or a SATA Slim is the main operating

system storage, please turn off power before inserting or removing.

Do not open the cabinet to avoid electrical shock. Refer to your

nearest dealer for qualified personnel servicing.

Never touch un-insulated terminals or wire unless your power

adaptor is disconnected.

Locate your Panel PC as close as possible to the socket outline for

easy access and to avoid force caused by entangling of your arms

with surrounding cables from the Panel PC.

USB connectors are not supplied with Limited Power Sources.

If the equipment is not used for a long time, disconnect it from the

power source to avoid damage by transient overvoltage.

WARNING!

DO NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS

(ENCASING) OF THIS PRODUCT. PLEASE CONTACT YOUR DEALER

FOR SERVICING FROM QUALIFIED TECHNICIAN.

All manuals and user guides at all-guides.com

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 iii

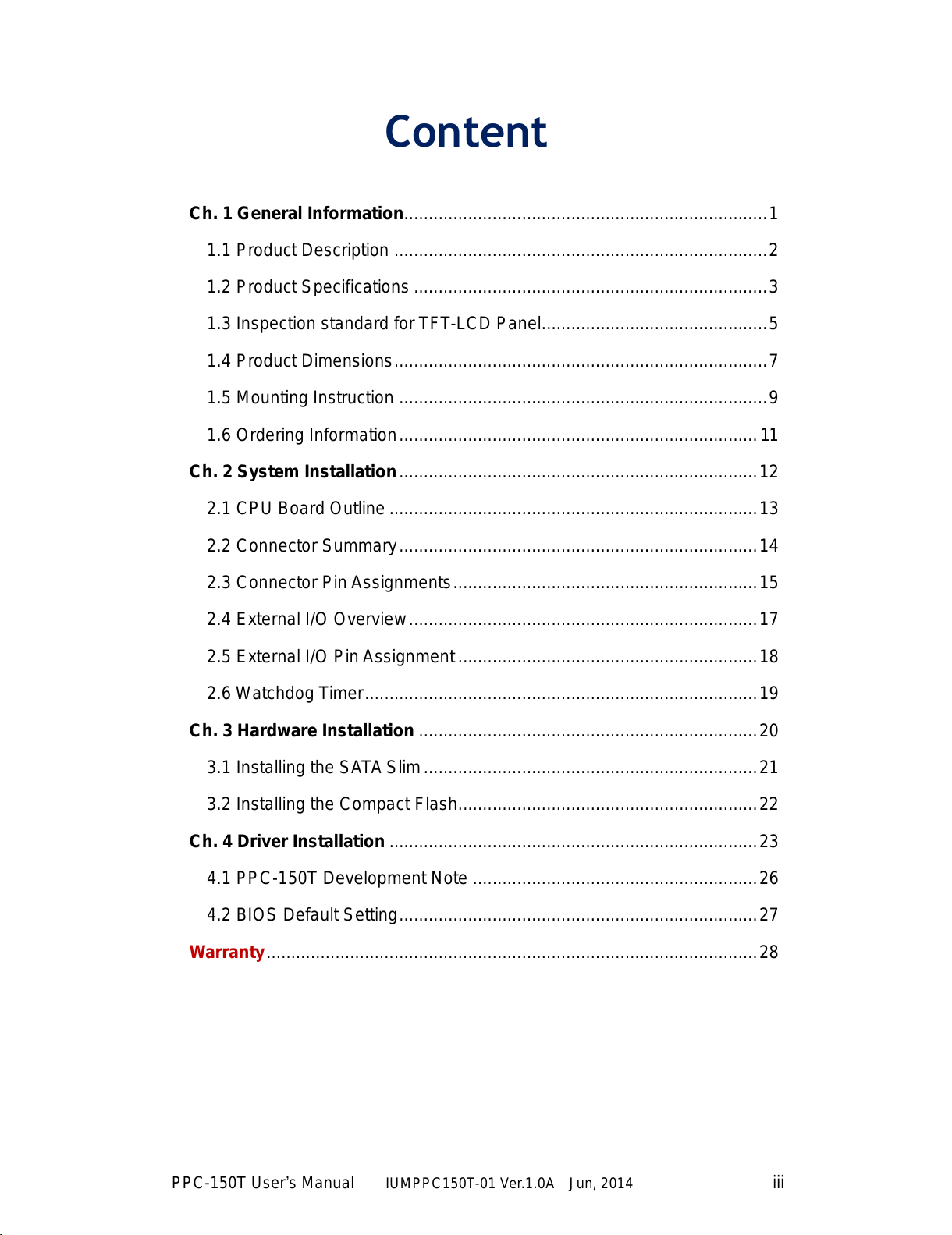

Content

Ch. 1 General Information..........................................................................1

1.1 Product Description ............................................................................2

1.2 Product Specifications ........................................................................3

1.3 Inspection standard for TFT-LCD Panel..............................................5

1.4 Product Dimensions............................................................................7

1.5 Mounting Instruction ...........................................................................9

1.6 Ordering Information.........................................................................11

Ch. 2 System Installation.........................................................................12

2.1 CPU Board Outline ...........................................................................13

2.2 Connector Summary.........................................................................14

2.3 Connector Pin Assignments..............................................................15

2.4 External I/O Overview.......................................................................17

2.5 External I/O Pin Assignment .............................................................18

2.6 Watchdog Timer................................................................................19

Ch. 3 Hardware Installation .....................................................................20

3.1 Installing the SATA Slim....................................................................21

3.2 Installing the Compact Flash.............................................................22

Ch. 4 Driver Installation ...........................................................................23

4.1 PPC-150T Development Note ..........................................................26

4.2 BIOS Default Setting.........................................................................27

Warranty....................................................................................................28

All manuals and user guides at all-guides.com

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 1

Ch. 1

General Information

1.1 Product Description

1.2 Product Specifications

1.3 Inspection standard for TFT-LCD Panel

1.4 Product Dimensions

1.5 Mounting Instruction

1.6 Ordering Information

All manuals and user guides at all-guides.com

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 2

1.1 Product Description

ICOP Technology Inc. is proudly going to release a brand new Panel PC,

which offers fanless design, low power consumption, and IP65 front panel.

The PPC-150T is powered by DMP’s latest Vortex86DX2 SoC, the 3rd

generation SoC of Vortex86 family, and dual-channel 1GB DDRII chipset

that handles processing more efficiently and provides faster performance.

The resistive touch panel with LED backlight TFT LCD increases operation

convenience and visibility in outdoor environments. The ultra-compact and

thin exterior design is perfect for the present demanding embedded and

productive applications.

The new PPC-150T inherited PDX/PMX-series’smooth appearance and

ultra-texture aluminum exterior design to make your industrial applications look

more stylish. The versatile I/O ports, IP65 front panel, 10/100Mps Ethernet,

GIGA high-speed Ethernet, WiFi, etc. can fulfill fundamental functions. Our

consistent advantages feature stable performance, extended working

temperature support, low power consumption and fanless design. The

expandable customize I/O ports can be accommodated connectivity

requirements to industrial machine platforms and industrial automation

equipment’s needs.

The PPC-150T supports Windows Embedded CE, Windows Embedded

Standard 2009, Windows Embedded Compact 7, and Linux to meet

ready-to-market demand and provide competitive advantages for customers.

All manuals and user guides at all-guides.com

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 3

1.2 Product Specifications

CPU BOARD SPECIFICATIONS

CPU

DM&P Vortex86DX2 933MHz

Cache

L1:16KB I-Cache, 16KB D-Cache

L2: 256KB Cache

BIOS

AMI BIOS

Memory

512MB / 1GB /2GB DDR2 onboard

Watchdog Timer

Software Programmable from

30.5u to 512 seconds x 2 sets

LAN

Integrated 10/100M Ethernet X1

Giga Ethernet (Optional) X1

Audio

HD Audio-Realtek ALC262 CODEC

Internal Drives

Compact Flash Type I / II Slot,

SATA SLIM

SD Slot (Optional)

I/O

RS-232/422/485 x 2

USB Ports (Ver2.0) x 3

PS/2 KB

Audio-Out

RJ-45 Port x 1

GIGA Ethernet Port X 1 (Optional)

MECHANICAL & ENVIRONMENT

Power Requirement

+12 ~ 24VDC

Power

Consumption

+24VDC@ 0.7A

Operating

Temperature

0~+50°C (+32~+122°F) /

-20~+60°C (-4~+140°F)

All manuals and user guides at all-guides.com

all-guides.com

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 4

Storage

Temperature

-30~+70°C (-22~ +158°F)

Operating Humidity

0% ~ 90% Relative Humidity,

Non-Condensing

Dimensions

354.85x280.85x55mm (13.97"x8.22"x2.16")

Weight

3.8 Kg

Protection

IP65 Front Panel

Certification

CE / FCC / VCCI / Vibration

LCD SPECIFICATIONS

Display Type

15” XGATFT LCD

Backlight Unit

LED

Display Resolution

1024(W) x 768(H)

Brightness (cd/m2)

250/350 nits

Contrast Ratio

700 : 1

Display Color

262,144

Pixel Pitch (mm)

0.297 (H) x 0.297 (V)

Viewing Angle

Vertical 140o, Horizontal 160o

Backlight Lifetime

25,000/50,000 hrs

TOUCHSCREEN

Type

Analog Resistive

Resolution

Continuous

Transmittance

80%

Controller

PS/2 interface

Software Driver

DOS / Linux / Windows Embedded

Durability

1 million

All manuals and user guides at all-guides.com

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 5

1.3 Inspection standard for TFT-LCD Panel

DEFECT TYPE

LIMIT

Not

VISUAL

DEFECT

INTERNAL

SPOT

φ＜0.15mm

Ignore

Note

0.15mm≦φ≦0.5mm

N≦4

0.5mm＜φ

N=0

FIBER

0.03mm<W≦0.1mm, L≦5mm

N≦3

Note

1.0mm＜W, 1.5mm＜L

N=0

POLARIZER

BUBBLE

φ＜0.15mm

Ignore

Note

0.15mm≦φ≦0.5mm

N≦2

0.5mm＜φ

N=0

Mura

It’ OK if mura is slight visible through 6%ND filter

ELECTRI

CAL

DEFECT

BRIGHT DOT

A Grade

B Grade

C Area

O Area

Total

C Area

O Area

Total

Note

N≦0

N≦2

N≦3

N≦5

Note

DARK DOT

N≦2

N≦3

N≦5

N≦8

TOTAL DOT

N≦4

N≦5

N≦6

N≦8

Note

TWO ADJACENT DOT

N≦0

N≦1

pair

N≦1

pair

N≦1

pair

N≦1

pair

N≦1

pair

Note

THREE OR MORE

ADJACENT DOT

NOT ALLOWED

LINE DEFECT

NOT ALLOWED

(1) One pixel consists of 3 sub-pixels, including R, G, and B dot. (Sub-pixel = Dot)

(2) Little bright Dot acceptitable under 6% ND-Filter.

(3) If require G0 grand (Total dot N≦0), please contact region sales.

[ Note 1 ] W: Width[mm]; L: Length[mm]; N: Number; φ: Average Diameter.

(a) White / Black Spot (b) Polarizer Bubble

All manuals and user guides at all-guides.com

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 6

[ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following.

[ Note 3 ] Display area

C Area: Center of display area O Area: Outer of display area

[ Note 4 ] Judge the defect dot and the adjacent dot as following. Allow below

(as A, B, C and D status) adjacent defect dots, including bright and dark adjacent

dot. And they will be counted 2 defect dots in total quantity.

R G

RDefect Dot

Adjacent Dot

The defects that are not defined above and considered to be problem shall

be reviewed and discussed by both parties.

Defects on the Black Matrix, out of Display area, are not considered as a defect

or counted.

All manuals and user guides at all-guides.com

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 7

1.4 Product Dimensions

All manuals and user guides at all-guides.com

Andere Handbücher für PPC-150T

Inhaltsverzeichnis

Andere ICOP Technology Touchscreen Handbücher

ICOP Technology

ICOP Technology PPC-150P-APL Series Bedienungsanleitung

ICOP Technology

ICOP Technology VOX-070-TS-EX2 Series Bedienungsanleitung

ICOP Technology

ICOP Technology PBSW-090T-5A-E8-4G Bedienungsanleitung

ICOP Technology

ICOP Technology PDX3-057T-5A Bedienungsanleitung

ICOP Technology

ICOP Technology PPC-090T-APL-N4-4G Bedienungsanleitung

ICOP Technology

ICOP Technology PPC-150T-EHL Series Bedienungsanleitung

ICOP Technology

ICOP Technology PDX2-090T-P5A Bedienungsanleitung

ICOP Technology

ICOP Technology PPC-150T-APL Series Bedienungsanleitung

ICOP Technology

ICOP Technology PINT-090T-APL Series Bedienungsanleitung

ICOP Technology

ICOP Technology QEC Series Bedienungsanleitung

ICOP Technology

ICOP Technology PPC-150P-D2N4N-GE Bedienungsanleitung

ICOP Technology

ICOP Technology PPC-090T-PD2N5NG5CGP Bedienungsanleitung

ICOP Technology

ICOP Technology PPC-150P-EHL Series Bedienungsanleitung

ICOP Technology

ICOP Technology PPC-104T-EHL Series Bedienungsanleitung

ICOP Technology

ICOP Technology PDX-089T-5A-512 Bedienungsanleitung

ICOP Technology

ICOP Technology VOX-070-TS-EX2C8-V Bedienungsanleitung

ICOP Technology

ICOP Technology PPC-090T-D3 Bedienungsanleitung

ICOP Technology

ICOP Technology PBSW-090T-8A-E8-4G Bedienungsanleitung

Beliebte Touchscreen Handbücher anderer Marken

FlowLine

FlowLine Data loop Bedienungsanleitung

ALPEX

ALPEX AEx-8 P Series Bedienungsanleitung

Ltech

Ltech E5S Bedienungsanleitung

Harman

Harman AMX MODERO S MSD-701-L2 Bedienungsanleitung

Acnodes

Acnodes PC 1150 Bedienungsanleitung

AIS

AIS IP10IA99 series Bedienungsanleitung

IBASE Technology

IBASE Technology ASTUT-152-RE1S Bedienungsanleitung

YASKAWA

YASKAWA TP 610C Bedienungsanleitung

B&R

B&R Power Panel C Series Bedienungsanleitung

Beijer Electronics

Beijer Electronics X2 control Bedienungsanleitung

AXIOMTEK

AXIOMTEK GOT321W-521 Bedienungsanleitung

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Bedienungsanleitung

Qomo

Qomo QIT1386 Bedienungsanleitung

DFI

DFI KS104-CD Bedienungsanleitung

AMX

AMX AXP-PPC Leitfaden

Sartorius

Sartorius X3 PR 5410 Bedienungsanleitung

AMX

AMX Modero X Series Bedienungsanleitung

Advantech

Advantech TPC-30 Series Bedienungsanleitung
