WISE-5801 SMS

Application Example

Scenario：

The following scenario assume using WISE-5801 controller in a greenhouse

environment monitoring application. The WISE-5801 is connected to an I-7019R

and an I-7061D remote I/O modules. The AI channel 0 on I-7019R will read the

room temperature and the DO channel 0 and 1 on I-7061D are connected

separately to the air conditioning equipment and sprinkler. The DO channel 2 on

I-7061D is connected to the lighting system to prolong the sun exposure. When

the room temperature is higher than 40°C , the WISE-5801 will send a SMS

message with the real-time temperature value to the operator. The operator could

turn on/off the air conditioner and sprinkler via SMS command. In addition, the

operator could also review the number of time the air conditioner and sprinkler

being turned on and control the lighting in real-time.

SMS Alarm and Command in the Scenario：

1. When the room temperature of the greenhouse exceeds the limit, WISE-5801

will send a SMS alarm to the operator as follow:

Attention! The current temperature of the greenhouse is 40.12

According to the value received, the operator can decide if the air

conditioner and the sprinkler should be turned on or not. If the operator

decide to turn on the air conditioner and the sprinkler, the operator could

send back a SMS command to the WISE-5801 like this:

ACT:1/1 ( or using SMS Quick command “on”)

After the WISE-5801 receives the SMS command, it will return a SMS

message as follow to the operator:

SMS Command 1 set as 1

To turn off the air conditioner and the sprinkler, the operator could send

back a SMS command to the WISE-5801 like this

ACT:1/0 (or using SMS Quick command “off”)

After the WISE-5801 receives the command, it will return a SMS message as

follow to the operator:

SMS Command 1 set as 0

2. To query the numbers that the air conditioner and the sprinkler have been

turned on, the operator could send a SMS command to the WISE-5801 as

follow:

GET:$ir1 (or using SMS Quick command “counter”)

After the WISE-5801 receives the command, it will return a SMS message as

follow to the operator:

GET 2.00

3. During the night time, the operator could send a command to the WISE-5801

as follow to turn on the lighting of the room.

SET:$m2do2/1 (or using SMS Quick command “light/1”)

After the WISE-5801 receives the command, it will return a SMS message as

follow to the operator:

SET I-7061(2) DO Channel 2 as ON

The operator could send a SMS command to WISE-5801 as follow to turn off

the lighting of the room.

SET:$m2do2/0 (or using SMS Quick command “light/0”)

After the WISE-5801 receives the command, it will return a SMS message as

follow to the operator:

SET I-7061(2) DO Channel 2 as OFF

Steps：

1. Open the WISE WEB page, click on “1. Basic Setting”to get into the “Basic

Setting”page.

2. After getting into the “Basic Setting”page, click “I-7000 Module Setting” to

get into the setting page.

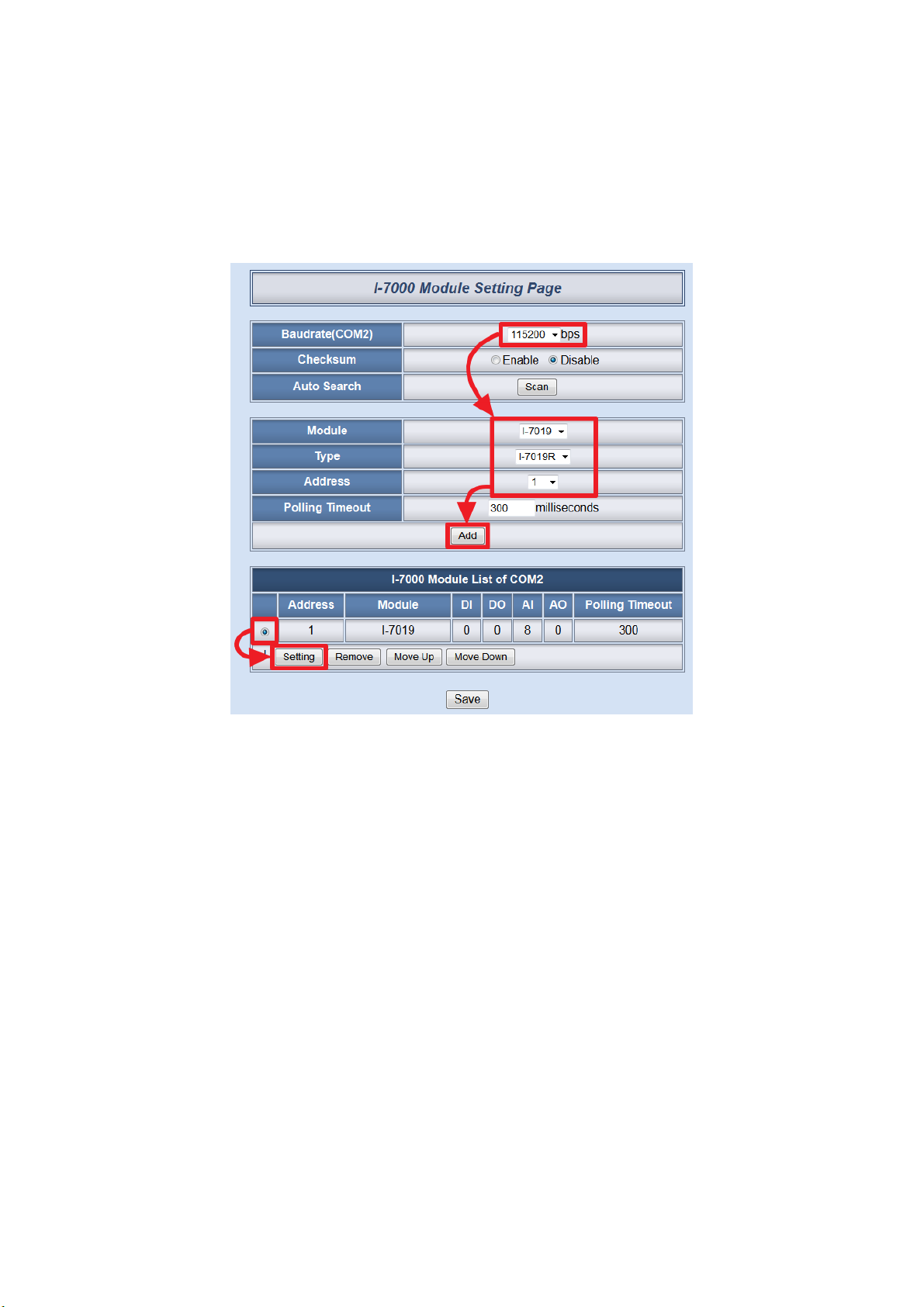

3. On the “I-7000 Module Setting Page”, set the Baudrate to “115200”, and add

I-7019R module to the list (in this case, the I-7019R locates at address 1).

Click on the “Setting” button on the module list as indicated to edit the

settings (for detailed module settings information, please refer to the user

manual).

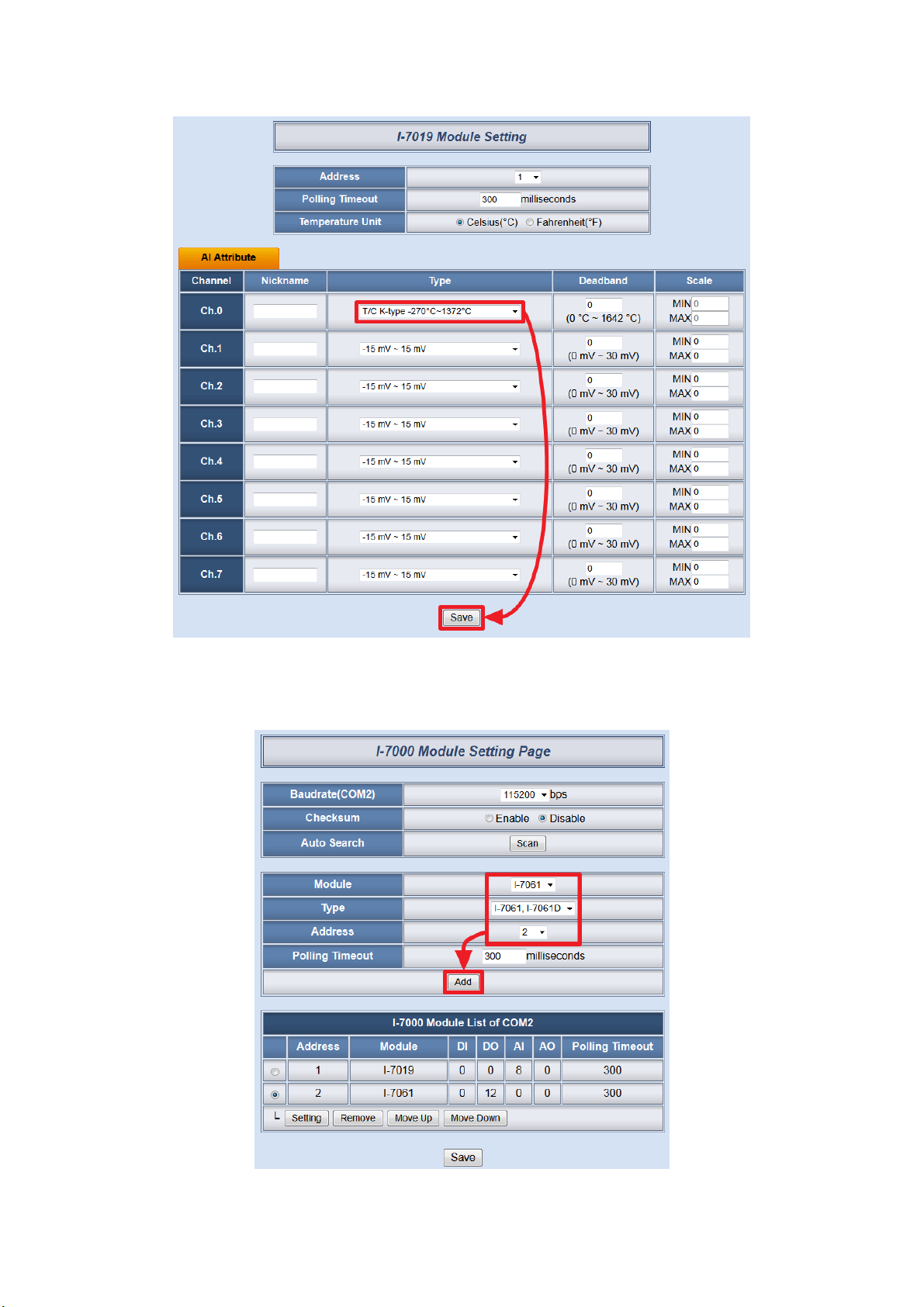

4. On the “I-7019 Module Setting” page, in the “AI Attribute” section, in the

“Ch.0” section, select “Type” to be “T/C K-type -270°C~1372°C”. Click “Save”

button to save the settings and return to the “I-7000 Module Setting Page”.

5. On the “I-7000 Module Setting Page”, continue to add I-7061D module to the

list (in this case, the I-7061D locates at address 2).

6. Make sure all settings are accurate, click “Save” button to save the module

settings.

7. Click on “2.Advanced Setting” to get into the Advanced Setting page.

8. On the “Advanced Setting”page; click on “Internal Register Setting” to get

into the setting page.

9. On the “Internal Register Setting” page, check the box of No.01 to enable the

Internal Register No.01 and click “Save” button.

10. On the “Advanced Setting”page; click on “SMS Setting” to get into the setting

page.

11. On the “SMS setting” page (on the right side), input the 4 digit SIM card PIN

code in the “PIN Code” field,. If the PIN code is not required, leave the field

blank.

12. Enable the “Send SMS Command to WISE” function. Input the phone

numbers of the operators who are authorized to send SMS commands to

WISE-5801 in the “Authorized Phone Number” field. The “Authorized Phone

Number” has to be input in the format: Country code, area code and number.

In this case you are required to input the cell phone number 0987654321 in

Taiwan area, therefore please input the Authorized Phone Number as

“886987654321”.)

13. In the Quick Command section, click the “Setting” button then a “SMS Quick

Command Setting” Page will pop up.

14. Input “on” as the command string in the “Quick Command” field. Select

“ACT” as the command style in the Original Command field. Assign Index as 1

and Value as 1 in the Original Command field, then press “Add” button to

complete the first SMS command setting.

15. Input “off” as the command string in the “Quick Command” field. Select

“ACT” as the command style in the Original Command field. Assign Index as 1

and Value as 0 in the Original Command field, then press “Add” button to

complete the second SMS command setting.

16. Input “counter” as the command string in the “Quick Command” field. Select

“GET” as the command style in the Original Command field. Select “Internal

command string to the original command field. You can also directly input the

command string “$ir1” in the original command field. Now press “Add” button

to complete the third SMS command setting.

17. Input “light” as the command string in the “Quick Command” field. Select

“SET” as the command style in the Original Command field. Please also select

“I-7061(2)”, “DO” and “2” in the Module field, assign “None” in the Value field,

then press “Add” button to complete the fourth SMS command setting.

18. Make sure all SMS command settings are accurate in the Quick Command

List. Press “Save” button to return to the SMS setting page.

19. In the “SMS Alarm Sending from WISE” section, please follow the steps as

below to complete the setting.

i. In the “SMS Amount” field, specify the total number of SMS alarm

messages to be “1” from the dropdown list.

ii. In the “Index” field, specify the SMS index number to be “1” from the

dropdown list.

iii. In the “Phone Number” field, input the phone numbers to receive the

SMS alarm messages. In this case, please input “0987654321”.

iv. Enter the content in the “Message” field. In this case, please input

“Attention! The current temperature of the greenhouse is $m1ai0”.

Please note: if you input the content other than English, please select

Unicode mode.
