ICP DAS USA GRP-520 Bedienungsanleitung

GRP-520 User Manual, V1.30, Aug. 2015

GRP-520 Series

3G Gateway

User Manual v1.30

High Quality, Industrial Data Acquisition, and Control Products

GRP-520 User Manual, V1.30, Aug. 2015

Warranty

All products manufactured by ICP DAS are warranted against

defective materials for a period of one year from the date of delivery to

the original purchaser.

Warning

ICP DAS assumes no liability for damages consequent to the use

of this product. ICP DAS reserves the right to change this manual at

any time without notice. The information furnished by ICP DAS is

believed to be accurate and reliable. However, no responsibility is

assumed by ICP DAS for its use, or for any infringements of patents or

other rights of third parties resulting from its use. This is licensed under

the terms of the GNU General Public License version 2.

worldwide.

Trademark

The names used for identification only may be registered

trademarks of their respective companies.

Version

Date

Author

Description

1.00

2013/03/20

Malo

Release version

1.10

2014/02/05

Malo

Add new feature

1.20

2014/08/05

Malo

Add new feature: RTU Client

1.21

2015/04/16

Malo

(1) Add VxComm configure description in

chapter 4.3

(2) FTP log function change report interval

unit as “minute”

(3) fix the description of “2.5 Rotary Switch”

(4) improve “Reboot Time”function

1.30

2015/08/25

Malo

(1) Add PPTP VPN Client function.

(2) Add network type option: "Automatic",

"3G only", "2G only"

GRP-520 User Manual, V1.30, Aug. 2015

Table of Contents

1. Introduction ............................................................................................... 4

1.1 Features............................................................................................................. 5

1.2 Applications...................................................................................................... 5

2. Hardware ................................................................................................... 8

2.1 Specifications ................................................................................................... 8

2.2 Appearance and pin assignments...................................................................... 9

2.3 Dimensions..................................................................................................... 10

2.4 LED indicators................................................................................................ 11

2.5 Rotary Switch .................................................................................................. 12

2.6 Installing GRP-520......................................................................................... 13

3. Web Utility .............................................................................................. 14

3.1 Login the Utility ............................................................................................. 14

3.2 Information..................................................................................................... 15

3.3 Network.......................................................................................................... 18

3.4 System ............................................................................................................ 26

3.5 VxServer......................................................................................................... 30

3.6 RTU Client...................................................................................................... 32

4. Example................................................................................................... 39

4.1 3G Router Application.................................................................................... 39

4.2 Web Server and IP Camera Application......................................................... 42

4.3 Remote I/O Control / Temperature Monitor................................................... 47

4.4 Modbus/TCP to Modbus/RTU over 3G, and Card Reader Monitor............... 52

4.5 RTU Client for Remote Control Application with RTU API.......................... 57

4.6 RTU Client for Remote Control Application with OPC DA Server............... 69

4.7 RTU Client for Remote Control Application with InduSoft........................... 72

4.8 Email or FTP report I/O logger file................................................................ 74

4.9 VPN Application ............................................................................................ 77

GRP-520 User Manual, V1.30, Aug. 2015

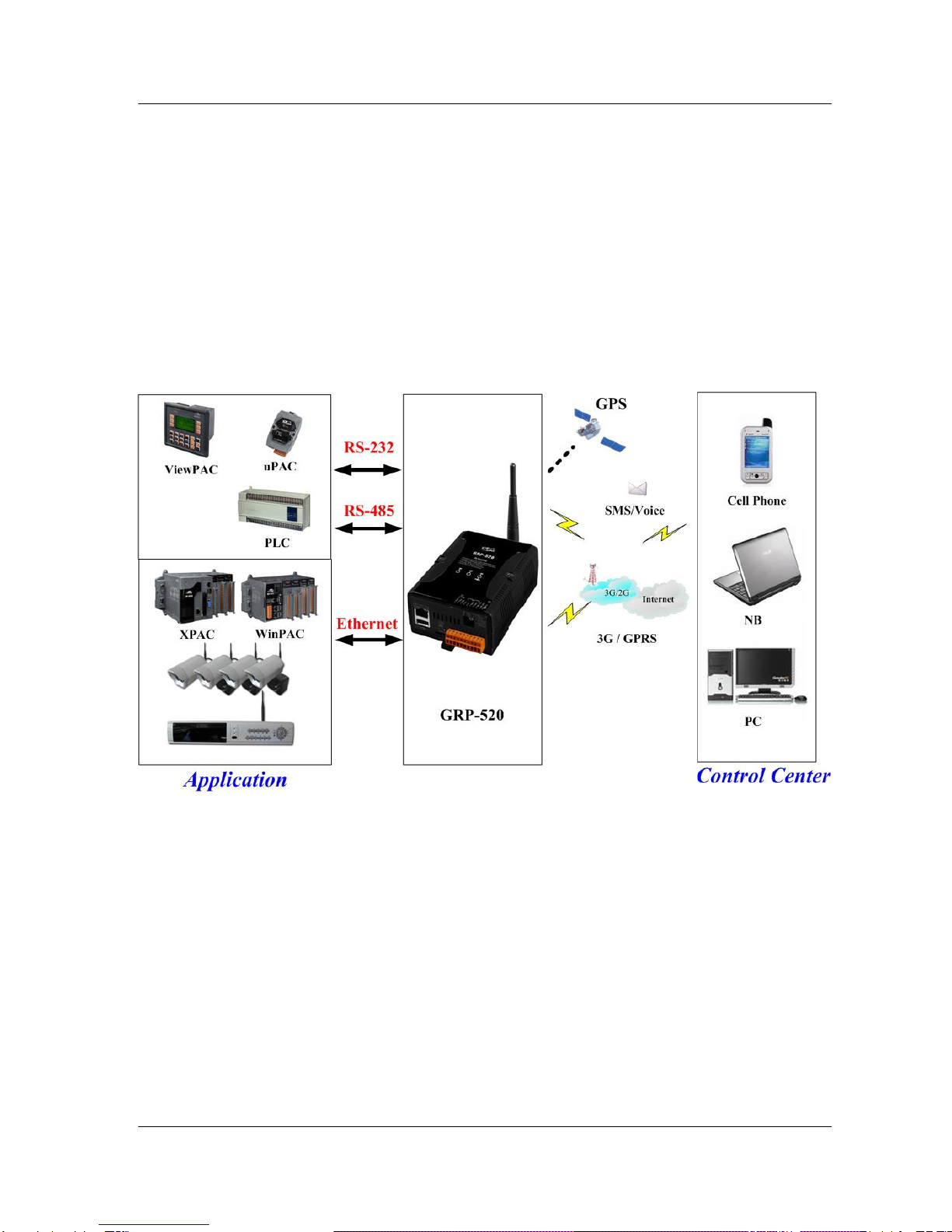

1. Introduction

The GRP-520 provided by ICP DAS is a 3G gateway for Ethernet or serial port. With

optional GPS model, the GRP-520 can also be a GPS tracking system. It can be used in M2M

application fields to transfer the remote I/O, Modbus data or video of the camera via 3G/2G.

Within the high performance CPU, the GRP-520 series can handle a large of data and are suit for

the hard industrial environment. The GRP-520 series have 3G module, Ethernet interface, and

optional GPS module.

GRP-520 User Manual, V1.30, Aug. 2015

1.1 Features

Support Tri-band WCDMA 2100/1900/850 MHz and Quad-band GSM 850 / 900 / 1800 /

1900 MHz.

10/100 Base-TX compatible ethernet eontroller

COM port: COM1 (3-wire RS232), COM2 (RS-485), COM3 (3-wire RS232)

GPS : 32 channels with All-In-View tracking (option)

Support Micro SD card.

Provide 3G Router function.

Support port mapping (port forward) function.

Serial Port to 3G Gateway

High reliability in harsh environments

DIN-Rail mountable

1.2 Applications

Signal Alarm Report System

3G Router

Home/Factory security

Remote Video Monitor

Energy Management

Temperature Monitoring

GRP-520 User Manual, V1.30, Aug. 2015

Application 1: 3G Router

Application 2: Remote Video Monitor

Application 3: Remote Control (Serial Port to 3G gateway)

GRP-520 User Manual, V1.30, Aug. 2015

2. Hardware

2.1 Specifications

Item

GRP-520

System / Software

3G Gateway

Ethernet and Serial port (1x RS-232, 1x RS-485) to 3G

Embedded service

Web Server, 3G router

System

CPU

ARM CPU (312MHz)

SRAM

64 MB

Flash

64 MB

EEPROM

16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)

Expansion Flash Memory

SD Card (Max. 32GB SDHC)

Expansion Disk

USB disk (format : FAT32)

RTC(Real Time Clock)

Provide seconds, minutes, hours, day of week/month, month and year

64-bit Hardware Serial Number

Yes

Watchdog Timer

Yes

LED Indicator

3 LEDs (SYS/PWR, F.W., 3G)

Rotary Switch

Yes (0~9)

GSM System

Frequency Band

GSM : 850/900/1800/1900 MHz

GPRS connectivity

GPRS class 12/10; GPRS station class B

DATA GPRS

Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8kbps

3G System

Frequency Band

WCDMA 2100/1900/850 MHz

Data Transmission

WCDMA / HSDPA / HSUPA

Downlink transfer: Max. 7.2Mbps; Uplink transfer: Max 5.76Mbps

GPS System (option)

Support Channels

Protocol Support

NMEA 0183 version 3.01

Comm. Interface

Ethernet

RJ-45, 10/100 Base-TX

(Auto-negotiating, Auto MDI/MDI-X, LED indicators)

COM1

RS-232 (RxD, TxD and GND); Non-isolated(Console, Debug)

COM2

RS-485 (D2+, D2-); 3000 VDC isolated

COM3

RS-232 (RxD, TxD and GND); Non-isolated

Mechanism

Casing

Plastic

Dimensions(W x L x H)

91 mm x 132 mm x 52 mm (W x L x H)

Installation

DIN-Rail

Power

Protection

Power reverse polarity protection

Frame Ground Protection

ESD, Surge, EFT, Hi-Pot

Required Supply Voltage

+10 VDC ~ +30 VDC

Power Consumption

4.8W ( 200 mA @ 24 VDC)

Environment

Operation Temp.

-25℃to 75℃

Storage Temp.

-30℃to 80℃

Humidity

5~95% non-condensing

GRP-520 User Manual, V1.30, Aug. 2015

2.2 Appearance and pin assignments

COM Port & Power Input

Terminal No.

Pin Assignment

COM1

RxD1

TxD1

GND

COM2

D+

D-

COM3

RxD3

TxD3

Power

DC.+VS

DC.GND

F.G.

GRP-520 User Manual, V1.30, Aug. 2015

2.3 Dimensions
