HRT-310 Modbus RTU to HART Gateway - QuickStart (Aug/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 1

HRT-310

Modbus RTU to HART Gateway

Quick Start Guide

Product Website:

https://www.icpdas-usa.com/hrt_310

Introduction

The HRT-310 is designed to be used as a master device of HART protocol, allowing the

Modbus to connect HART devices and converting the HART protocol to Modbus RTU / ASCII

protocol. In addition, the gateway is equipped with a more powerful built-in resistor, allowing

connecting up to 15 HART devices without having to connect an additional external resistor.

The HRT-310 is designed for users to integrate their HART devices into Modbus network easily

and quickly.

Figure1 : HRT-310 Application Structure

What’s In the Box

In addition to this guide, the package includes the following items:

HRT-310

CA-0910

Software CD

Screw Driver

(1C016)

HRT-310 Modbus RTU to HART Gateway - QuickStart (Aug/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 2

Pin Assignment

Name

Description

LP+

V+ of Loop Power (+24VDC)

HART+

Positive of HART

HART-

Negative of HART

+VS

V+ of Power Supply (+10 ~ +30 VDC)

GND

GND of Power Supply

RXD

Receive Data of RS-232

TXD

Transmit Data of RS-232

GND

GND of RS-232

RX+

Receive Data+ of RS-422

RX-

Receive Data- of RS-422

TX+

Transmit Data+ of RS-422

TX-

Transmit Data- of RS-422

D+

Data+ of RS-485

D-

Data- of RS-485

HRT-310 Modbus RTU to HART Gateway - QuickStart (Aug/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 3

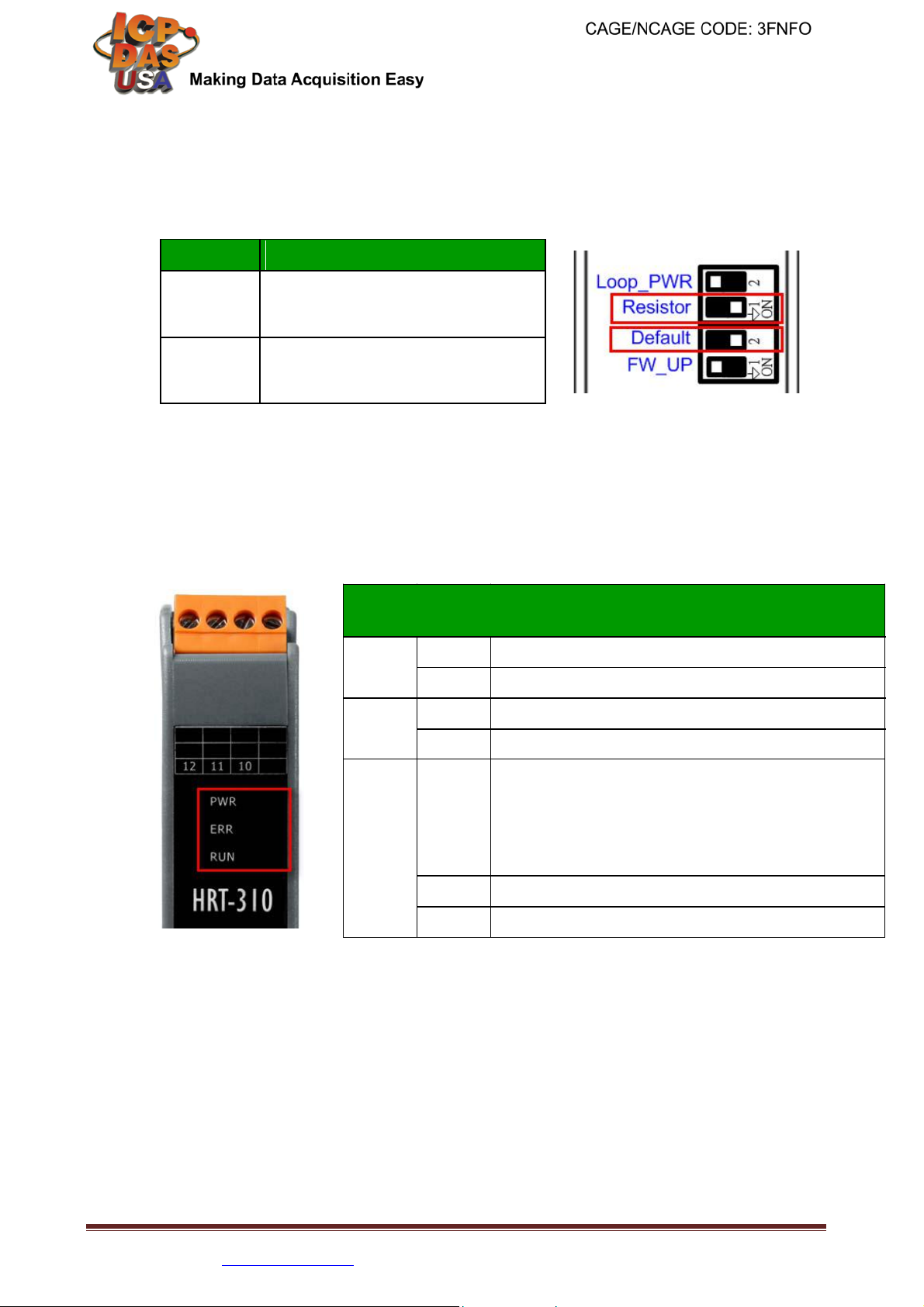

DIP Switch Setting

Please set the dip switch of the “Resistor” and “Default” to be ”ON”

position.

Item

Resistor

Enable HART loop resistor

(250 Ohm, 1W)

Default

Adapt the default settings.

(Refer to HART network wiring)



LED Indicator

LED

Status

Description

Name

PWR

Module Power OK.

OFF

Module Power Failed.

ERR

Flash

HART Comm. Error.

OFF

HART Comm. OK

[ Flash per second ]

Module in initial mode.

Flash

[ Flash per half second ]

RUN

Module received the burst frame from

HART device.

Module in normal operation.

OFF

Firmware has not been loaded yet.

HRT-310 Modbus RTU to HART Gateway - QuickStart (Aug/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 4



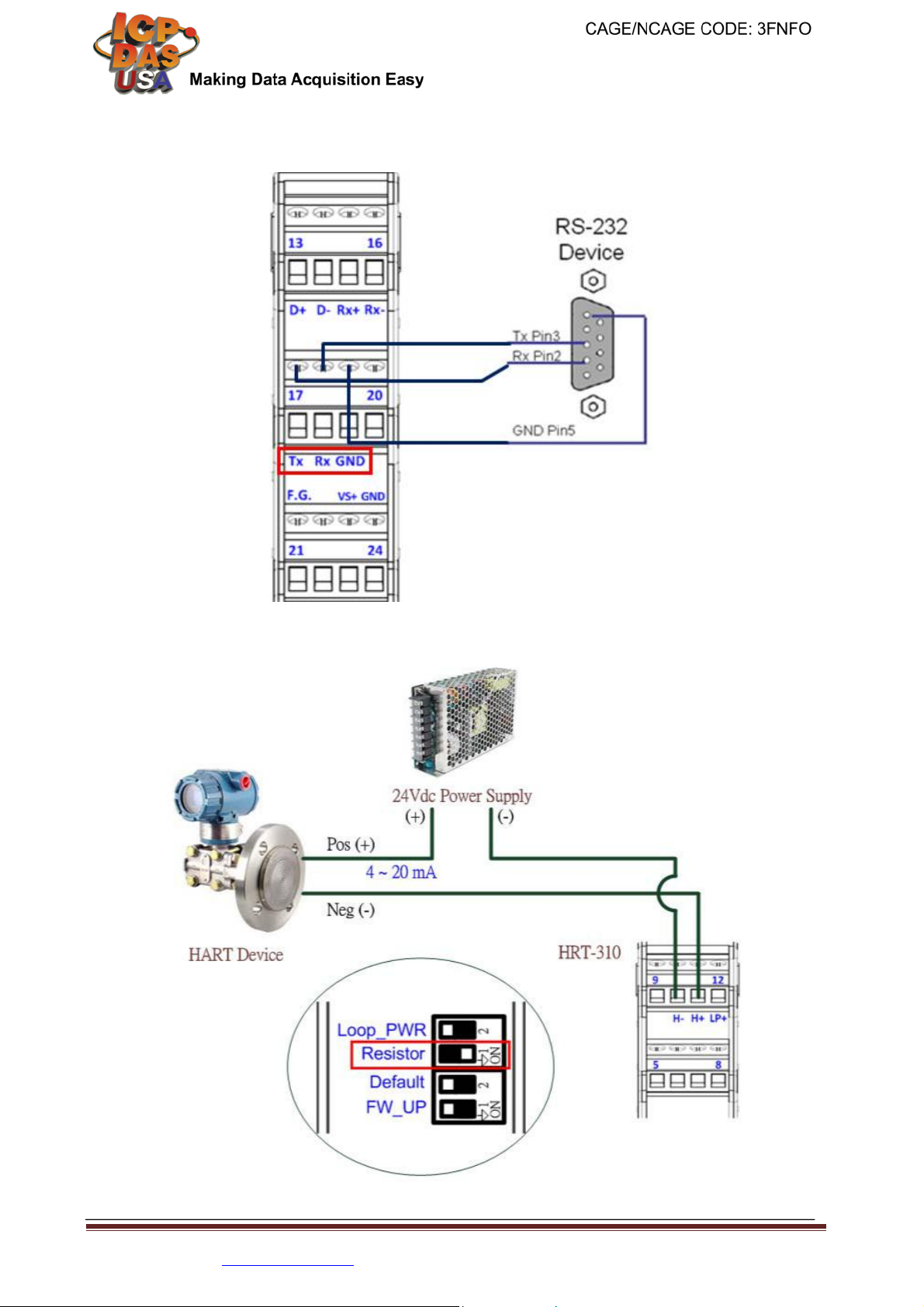

RS-232 Wiring

HART network wiring

HRT-310 Modbus RTU to HART Gateway - QuickStart (Aug/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 5

Install HG_Tool Utility

[ Install .NET Compact Framework ]

(1) When executing HG_Tool utility, the .NET Framework 2.0 or above

must be installed first. If the .NET Framework 2.0 or above exists in

the PC, please omit the step.

[ Install HG_Tool.exe ]

(1) Users can download the “HG_Tool” from the below source.

CD_Disk => CD:\hart\gateway\utilities\hg_tool\”

ftp://ftp.icpdas.com.tw/pub/cd/fieldbus_cd/hart/gateway/utilities/hg_tool/

(2) Execute the “setup.exe” file to install the “HG_Tool” utility.

(3) After finishing the installation of the HG_Tool, users can run the

utility. (refer to the path in the below figure)

HRT-310 Modbus RTU to HART Gateway - QuickStart (Aug/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 6

Communication Test

Step 1: Connect PC, HRT-310 and HART slave device according

to figure1.

Step 2: Set the DIP switch of the “Default” to be “ON” position.

Step 3: Turn on the power of HRT-310.

Step 4: Wait for the “RUN” LED to be always on status. If the “RUN” LED

always flashes, it means the HRT-310 can’t communicate with

the HART device. Please check the HART network wiring.

Step 5: Execute the HG_Tool utility.

Step 6: Set the communication settings between PC and HRT-310.

When the DIP switch of the “Default” to be “ON” position, the HRT-310

will adopt the below comport communication settings.

[1] Protocol: MB RTU

[2] Net ID: 1

[3] Baud Rate: 115200 bps

[4] Data Bits: 8

[5[ Stop Bits: 1

[6] Parity: None

=> So the HG_Tool must have the same settings with the HRT-310 as

shown in the below figure.

HRT-310 Modbus RTU to HART Gateway - QuickStart (Aug/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 7

Step 7: Click “Connect” button.

Step 8: Wait for the traffic light from red light to “green” light. If the

traffic light always keeps in the “yellow” light, it means the PC

can’t connect to HRT-710, please check the RS-232 wiring.

Step 9: Click the “Device Information” icon. Then select the “Default

CMD” or “User CMD” and right-click the mouse to choose

the “Basic Operation” option to get the information of the

corresponding HART command.

The information of HART command 0

Note

The detailed setting steps, please refer to the Q01 ~ Q03 of FAQ in the

manual.
