ICRealtime IHC-6260 Bedienungsanleitung

Cameras:

HD-IP

IC REALTIME SECURITY SOLUTIONS

IHC-6260: Door Phone IP Camera

Instruction Manual

I C R E A L T I M E S E C U R I T Y S O L U T I O N S

IHC-6260 IP Camera Instruction Manual

IC Realtime

3050 N Andrews Ave Ext

Pompano Beach, FL 33064

Phone 954.772.5327 • Fax 866.860.3860

Table of Contents

1. Features and Specifications..........................................................................1

a. Overview..............................................................................................1

b. Features................................................................................................1

c. Specifications.......................................................................................3

d. Dimensions..........................................................................................4

2. Camera Installation........................................................................................6

a. General Overview ..............................................................................6

b. Step by Step Guide ............................................................................7

c. Connections & Door Lock...............................................................8

3. Web Operation...............................................................................................9

a. Network Connection.........................................................................9

b. Logging In, and Main Interface .................................................................................. 10

c. Pairing with Indoor Monitor ....................................................................................... 11

4. Appendices ..................................................................................................................... 13

a. Toxic or Hazardous Elements .................................................................................... 13

I C R E A L T I M E S E C U R I T Y S O L U T I O N S

Chapter

Features and Specifications

This section outlines the primary features of the ICRealtime IHC-6260 IP

Camera. It also outlines basic Architectural and Engineering specifications.

1.a Overview

his IC Realtime series product is a high resolution IP Camera designed for use as a door phone. It Tadopts an embedded Linux

operating system to maintain reliable, 24/7 operation. Utilizing both H.264 video compression and G.711 audio compression

technology enables the highest quality of

recorded audio/video, while maintaining the lowest bitrate utilization.

The IHC-6260 is a IP Camera with an integrated microphone designed to be incorporated with a

Intercom System. This IPC is fully suited for full operation as part of ICRealtime's Intercom solution. It

can be paired to one of our ICR Network Video Recorders to add a great duration of recorded video.

The WVGA (800x480) recording resolution and wide angle lens design makes this IPC well equipped for

installation in various institutions ranging from residential, commercial, governmental, and enterprise

environments.

1.b Features

IC Realtime IHC-6260 series IP Cameras all support the following features:

Real-time Monitoring

This IP Camera records WVGA (800x480) video at a full 30 FPS.

Secure Archiving

Audio Video data is compressed and packaged into a secure, and proprietary video format (.dav files).

This bolsters archived video integrity, and prevents vicious data manipulation. Video is also watermarked

with special data for evidentiary purposes.

I C R E A L T I M E S E C U R I T Y S O L U T I O N S

Compression Format

H.264 video and G.711 audio enables high quality video recording while maintaining the lowest file sizes

possible.

Network Operation

Full system control is available with over the network. Client software is available for both Mac and PC

systems.

I C R E A L T I M E S E C U R I T Y S O L U T I O N S

1.c Specifications

Mode

IHC-6260

Main Processor

Embedded micro processor

System

Operation

Embedded LINUX OS

System

Video

Compression

H.264

Video

Standard

Input/Approach

WVGA CMOS HD camera

ing Induction

Back Light

Support

Audio Input

Omnidirection Microphone

Audio

Audio Output

Built-in loudspeaker

Bidirectional

Support bidirectional talk

Talk

Operation

Input

One-key input (with back lighting)

Mode

Alarm and

Access

Vandal proof

Support

Control

Ethernet

10M/100Mbps Self-adaptive

Network

TCP/IP

Protocol

Storage

Memory

N/A

Power

DC 10~15V

Power

Standby ≤1W，work ≤10W

Consumption

General

Working

-10℃－＋60℃,10~95% RH

Environments

Dimensions

141.0mm*100.0mm*16.8mm（L*W*T）;

Weight

0.8Kg

I C R E A L T I M E S E C U R I T Y S O L U T I O N S

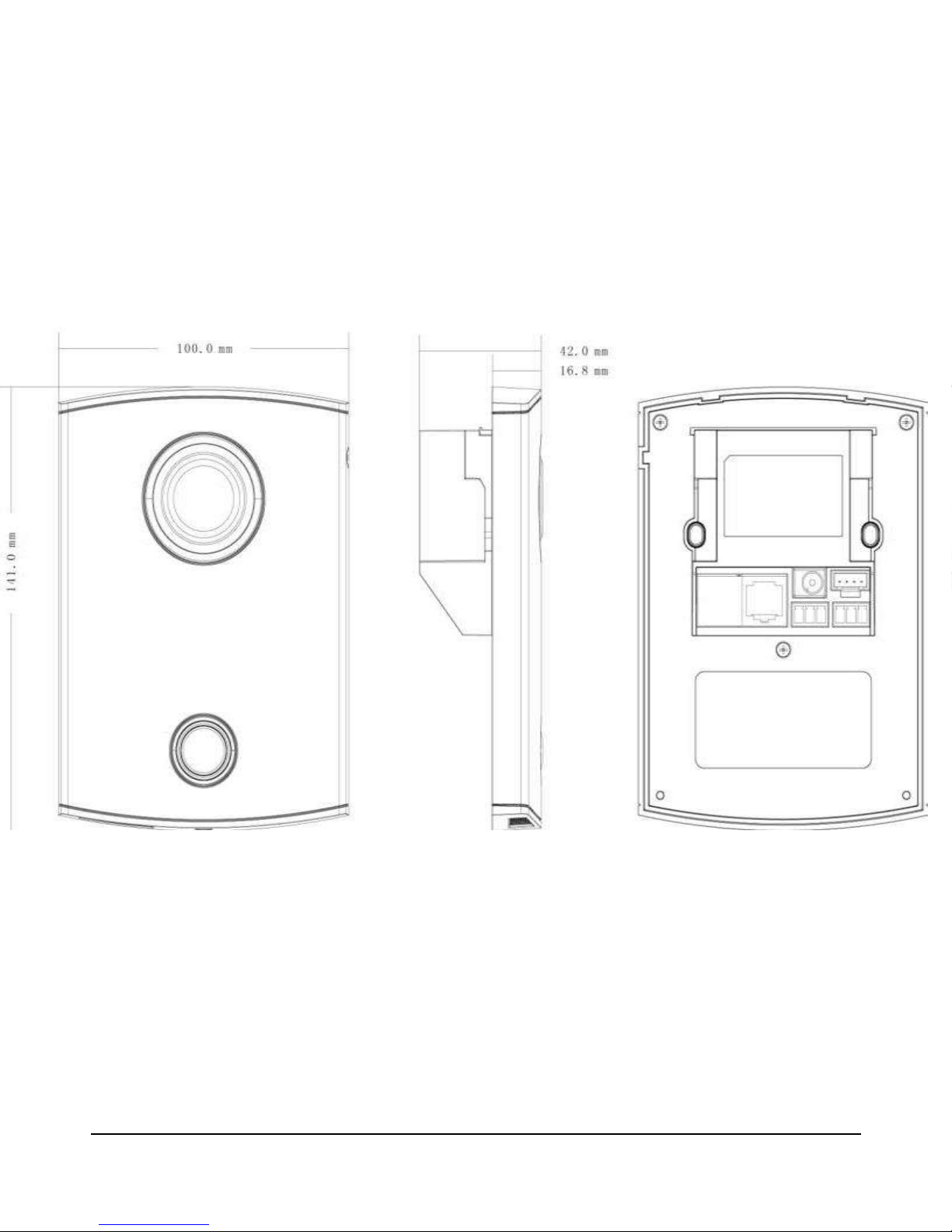

1.d Dimensions

I C R E A L T I M E S E C U R I T Y S O L U T I O N S

Chapter

Camera Installation

This section outlines the proper way to mount and install an IHC-6260 series IP

Camera. The suitable method of installing the IPC are limited to Wall installations only.

Note that hardware including screws and anchors are included for the camera installation.

2.a General Overview

I C R E A L T I M E S E C U R I T Y S O L U T I O N S

2.b Step by Step Guide



Note: Reference the labeled table below for screw type

Step 1: Remove front plate cover

Begin by taking off the front plate of the camera. There will be one (1) small screw (a) at the bottom of

the lip of the camera. The plate should pop off.

Step 2: Cut out hole in wall

You will need to trace out a box at the installation point so the back end with your connections fit flush

to the wall. You may use a gang box conceal the surrounding connections.

Step 3: Test fitting and fasten to wall

Assure the camera fits flush to the wall and aligns with your installation points. Use the included anchors (d)

to install in the wall. Use the two (2) screws (b) to fasten from the two holes by the cameras lens in to the wall.

Step 4: Replace dome cover

Lastly, make sure the camera is well placed and it firmly tightened to the wall. Replace the front plate and

use the one (1) small screw (a) to attach back to the body of the camera

Screw Notes

No.

Name

Illustration

M3×8 Cross recessed countersunk head-black zinc

M4×30 Cross recessed pan head screws

ST3×18 Cross recessed pan head tapping screws –white alloy

Expansion pipe ￠6*30mm white

I C R E A L T I M E S E C U R I T Y S O L U T I O N S

2.c Connections and Door Lock



Note: This section mainly references how to use a door locking mechanism with our IHC-6260. This is

more over a part of the complete Intercom System we offer. Please reference our other guides for a complete

setup. http://www.icrealtime.com/forum(click on how-to notes and then 'Access Control')

No.

Port Name

Description

Network port

RJ45 Port. Network Connection

Power supply port

Connect to 12V DC.

Test port

For Testing/Debugging

Green port 1

Connects to Door Lock Mechanism

Green port 2

Connects to Alarm Sensors / Door Sensor

Door Lock Triggering

Note that the terminal for No. 5 is used to unlock/lock an electronic door strike (door lock). Once the camera

is paired to a indoor monitor, you can use a one touch button to release the door lock that is rigged to this

terminal. This can be used for an extra layer of protection as you can see and talk to the person before

allowing them through a door. Below are the terminals involved in connecting your dock lock.

NO - Normally Open (dry contact) GND - Ground (Ground to Ground)

NC - Normally Closed (dry contact) Reference your door lock instructions for a more detailed info
