IDN EL740S Bedienungsanleitung

Electronic Pushbutton Locks

EL740S

0817

USER S GUIDE’

security technology

IMPORTANT SAFETY INSTRUCTION

！

1. To prevent damage to the finish, DO NOT use any abrasives, sharp objects or harsh chemical

products containing alcohol, petroleum solvents, acids or acetone to clean this lockset.

2. To prevent damage to the sensitive electronic components, DO NOT allow any liquids to enter

lockset while installing or cleaning.

1. Do not attempt to disassemble any internal components of this lockset as this WILL void the

limited warranty.

2. Do not drop or hit /strike the lockset as excessive shock may result in permanent damage.

3. Do not use sharp objects to press key buttons.

4. It is Strongly recommended that you always create a written backup of the programming code

and individual user codes. Please use the last page of this booklet as your reference.

5. For your Security, please remember to change this lockset's factory default programming code to

a PERSONAL programming code prior to normal day to day use of this product.

6. It is STRONGLY recommended that you use only ALKALINE BATTERIES to operate this product.

CAUTION

01A

All manuals and user guides at all-guides.com

Electronic Pushbutton Locks

EL740S

0817

！

ATTENTION

INSTRUCTIONS IMPORTANTES DE SECURITE

1. N’utilisez pas de produits abrasifs ou de produits chimiques contenant de l'alcool, du benzene,

de l'acide chlorhydrique ou de l'acide nitrique, et evitez d'utiliser des objets tranchants ou abrasifs

pour nettoyer cette serrure.

2. Ne laissez pas l'eau ou un liquide dans la serrure pendant le processus d'installation.

1. Ne tentez pas de demonter vous-memes les composants internes de la serrure. Vous courez le

risque d'annuler la garantie limitee.

2. Ne laissez pas tomber la serrure. Un grand choc pourrait causer des dommages

permanents.

3. N’utilisez pas des epingles ou des objets tranchants pour appuyer sur le clavier.

4. Creez toujours une copie de sauvegarde des informations que vous souhaitez conserver (telles

que le code de programmation et les codes d'utilisateur). Veuillez utiliser la derniere page de ce

manuel comme reference.

5. Veuillez changer le code de programmation avant d'utiliser cette serrure.

6. Il est fortement recommandé que vous utilisez uniquement des piles alcalines pour utiliser ce

produit.

01B

CONTENTS

MAIN OPERATING INSTRUCTIONS

PROGRAMMING CODE AND USER CODE

COMPONENTS

INSTALLATION INSTRUCTIONS

SETUP MODE

01. HOW TO CHANGE PROGRAMMING CODE

02. HOW TO ADD AN USER CODE

03. HOW TO ADD A PROXIMITY CARD (RFID)

04. HOW TO ADD A REMOTE CONTROL (RADIO FREQUENCY, RF)

06. HOW TO DELETE AN INDIVIDUAL EXISTING USER CODE

07. HOW TO DELETE AN INDIVIDUAL EXISTING PROXIMITY CARD

08. HOW TO DELETE AN INDIVIDUAL EXISTING REMOTE CONTROL

09. HOW TO DELETE ALL EXISTING USER CODES AT ONCE

10. HOW TO DELETE ALL EXISTING PROXIMITY CARDS/ REMOTE CONTROLS AT ONCE

02A

05. HOW TO ADD A SINGLE-USE USER CODE/ PROXIMITY CARD/ REMOTE CONTROL

All manuals and user guides at all-guides.com

Electronic Pushbutton Locks

EL740S

0817

11. HOW TO DISABLE ALL EXISTING USER CODES /

PROXIMITY CARDS / REMOTE CONTROLS (VACATION MODE) 36

12. HOW TO DISABLE BUTTON SOUND (MUTE MODE)

14. HOW TO SETUP AUTO-LOCK TIME DELAY

13. HOW TO ENABLE AUTO-LOCK MODE

15. HOW TO ENABLE DOUBLE AUTHORIZATION MODE

16. HOW TO RESTORE FACTORY SETTING

17. HOW TO REPLACE A BATTERY OF REMOTE CONTROL

OPERATION MODE

TROUBLESHOOTING GUIDELINE

DECLARATIONS AND SAFETY STATEMENTS

01. HOW TO LOCK (i.e. TO ENABLE AUTO-LOCK)

02. HOW TO UNLOCK

03. SAFE MODE

DATA RECORDS

02B

CONTENTS

MAIN OPERATING INSTRUCTIONS

1 2

3 4

5 6

7 8

9 0

LED Indicator

Keypad

1. Green light: Code entered is valid.

1. To unlock the lockset by entering a valid code.

Thumbturn

2. To program the lockset.

2. Red light: Code entered is invalid / Under setup mode.

3. Yellow light: Low battery warning.

※ All batteries should be replaced if yellow light flashes.

Lock Button

Cancel Button

3. When mis-typing codes during any process, press Cancel Button

to cancel the wrong codes and re-enter the correct codes

if the yellow light is on or keeps flashing.

4. To lock the lockset by pressing Lock Button .

Key Override

To unlock the lockset by a valid key.

To lock or unlock the lockset manually.

LED Indicator

Keypad

Key Override

Thumbturn

This manual is intended for both Proximity Card Electronic Deadbolt

and Remote Control Electronic Deadbolt.

Any description which is related to proximity card (RFID technology)

can only be applied on Proximity Card Electronic Deadbolt.

Any description which is related to remote controller (RF technology)

can only be applied on Remote Control Electronic Deadbolt.

All manuals and user guides at all-guides.com

Electronic Pushbutton Locks

EL740S

0817

MAIN OPERATING INSTRUCTIONS

(only available for Proximity Card Electronic Deadbolt)

1. Inductive zone is around the keypad.

2. The proximity card we offer is the latest Radio Frequency

Identification (RFID) technology, compatible with standard

Mifare -13.56 MHz.

3. Unlock the door by touching the inductive zone with the

proximity card.

(Radio Frequency, RF)

(only available for Remote Control Electronic Deadbolt)

1. There is one unlock button and one lock button on the remote control.

2. Effective range of the controller is designed to be within 15 meters

(50 feet). However, the range could be affected by ambient temperature

and humidity.

3. The LED light of the remote control will be turned on when holding

the Lock Button for over 3 seconds.

1 2

3 4

5 6

7 8

9 0

Inductive

Zone

LED Indicator

Lock Button

Unlock Button

Inductive Zone & RFID Card：

Remote Control：

PROGRAMMING CODE AND USER CODE

PROGRAMMING CODE

1. Only one programming code will be allowed. The lockset can be programmed only by

entering the programming code.

2. A programming code is restricted to 6-digits in length only.

The pre-set programming code is 1-2-3-4-5-6 (factory setting).

Please change it before operating the lockset.

3. The programming code can be used to unlock the lockset.

USER CODE

1. A user code can be from four (4) to six (6) digits in length.

2. A user code can be changed (added or deleted) by accessing the setup mode.

3. The lockset cannot be programmed by entering any of the user codes.

4. The lockset will be unlocked by entering one user code.

Note:

User code capacity: 10 sets maximum.

Proximity card capacity: 10 sets maximum.

Remote control capacity: 10 sets maximum.

All manuals and user guides at all-guides.com

Electronic Pushbutton Locks

EL740S

0817

COMPONENTS

H G

A. Exterior Assembly

H. 5/16” (7.8mm) Screw (2)

I. 13/16” (20mm) Screw (1)

J. Decorative Cover

K. Adjustable Latch

(Square or radius faceplate or drive-in)

L. 6/8” (19mm) Wood Screw (4)

M. Strike Plate

N. Reinforced Strike Plate

O. Dust Box

B. Cable

C. Tailpiece

D. Mounting Plate

COMPONENTS

E. 1-1/4” (32mm) Screw (1)

G. Interior Assembly

F. 2-1/8” (54mm) Mounting Bolt (2)

P. 3” (76mm) Wood Screw (2)

Q. Key (2)

R. Drive in Collar (Optional)

S. Bottom Plate (Optional)

T. Square or Radius Faceplate (Optional)

U. Screw post

All manuals and user guides at all-guides.com

Electronic Pushbutton Locks

EL740S

0817

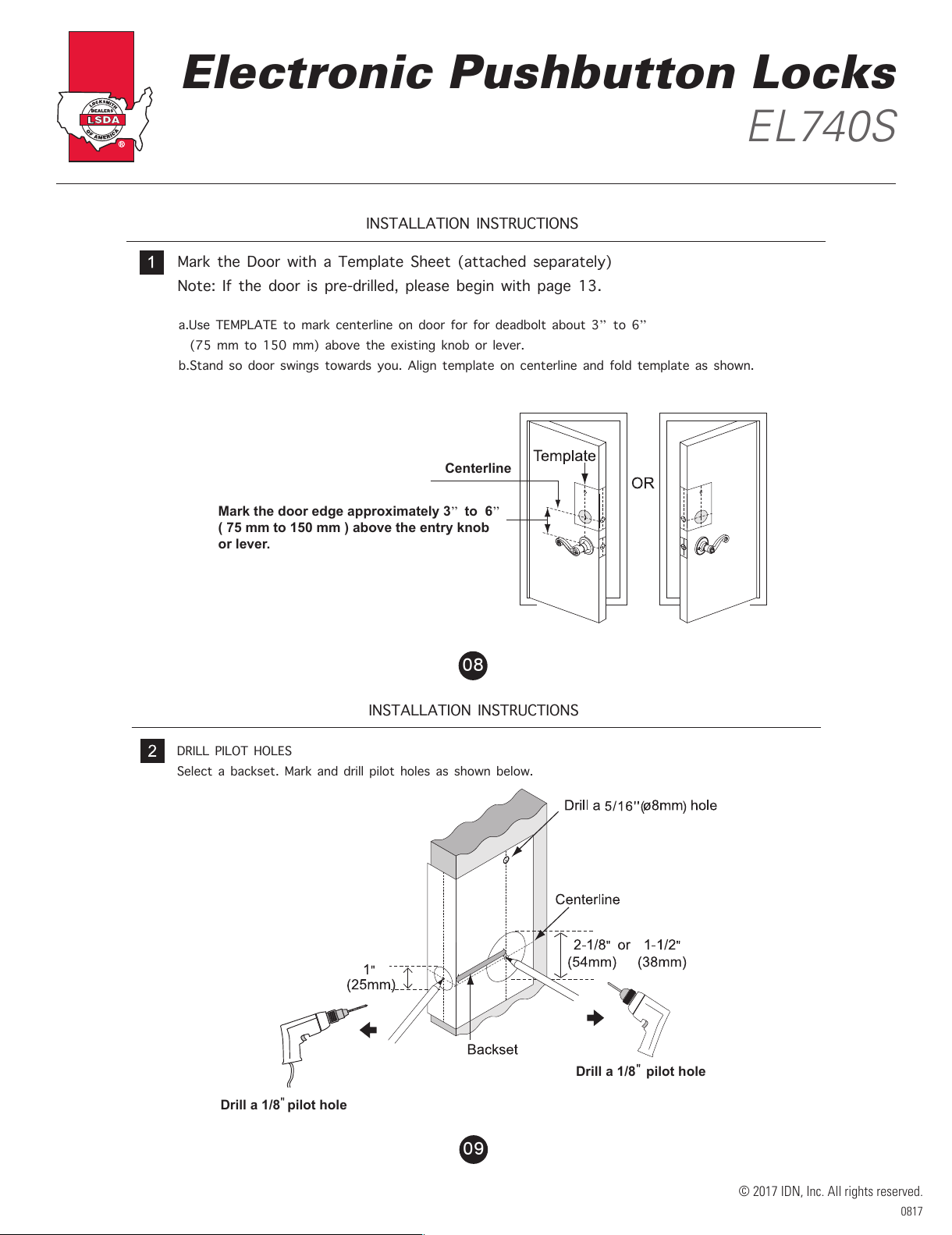

INSTALLATION INSTRUCTIONS

Mark the Door with a Template Sheet (attached separately)

Note: If the door is pre-drilled, please begin with page 13.

a.Use TEMPLATE to mark centerline on door for for deadbolt about 3” to 6”

(75 mm to 150 mm) above the existing knob or lever.

b.Stand so door swings towards you. Align template on centerline and fold template as shown.

Centerline

Mark the door edge approximately 3” to 6”

( 75 mm to 150 mm ) above the entry knob

or lever.

INSTALLATION INSTRUCTIONS

DRILL PILOT HOLES

Select a backset. Mark and drill pilot holes as shown below.

Drill a 1/8 pilot hole

All manuals and user guides at all-guides.com

Electronic Pushbutton Locks

EL740S

0817

INSTALLATION INSTRUCTIONS

DRILL HOLES

a.Drill a 2-1/8” ( 54 mm) or 1-1/2” ( 38 mm ) hole on the door face from both sides

to avoid wood splitting.

DRILL HOLES

b.Drill a 1”( 25 mm ) hole on the door edge for the latch.

c. Use the faceplate as a template for mortise and pilot holes. Chisel 1/8”( 3 mm) deep.

Faceplate should fit flush.

d. Install the appropriate latch type as shown below.

INSTALLATION INSTRUCTIONS

Note: For a drive-in latch, please refer to page 14.

All manuals and user guides at all-guides.com

Electronic Pushbutton Locks

EL740S

0817

INSTALLATION INSTRUCTIONS

PREPARE DOOR JAMB AND INSTALL STRIKE PLATE

Door jamb hole dimension

Strike dimension

Note: The dust box and reinforced strike plate are optional.

It is recommended to install both of them for maximum

security.

LATCH BACKSET ADJUSTMENT

Latch backset adjustment only needs to be made if your door

needs a 2-3/4” ( 70 mm ) backset. Please follow diagrams below as referece.

( Skip this if your door has a 2-3/8” ( 60 mm ) backset )

INSTALLATION INSTRUCTIONS

3. 4.

All manuals and user guides at all-guides.com

Electronic Pushbutton Locks

EL740S

0817

3. 4.

INSTALLATION INSTRUCTIONS

DRIVE-IN COLLAR or FACEPLATE ADJUSTMENT

In addition to 2-3/8”( 60 mm ) or 2-3/4”( 70 mm ) adjustable backset,

you may change the faceplate to drive-in collar.

(If your door is not a drive-in latch type, please skip this step.)

INSTALLATION INSTRUCTIONS

INSTALL LATCH IN MORTISED AREA OR INSTALL DRIVE-IN LATCH

If the door is designed for a standard type latch, please install the latch with 13/16” (20mm)

screws provided.

If a drive-in latch is used, please tap it into the appropriate position.

13/16” (20 mm) screws

Faceplate

Backset

Drive-in Latch

Tap Latch Flush

Wood Block (not included)

(See 1B before installation of drive-in latch)

All manuals and user guides at all-guides.com

Electronic Pushbutton Locks

EL740S

0817

Thread the cable through the hole and under the latch.

Thread the tailpiece through the latch in horizontal position.

Drill a 5/16”(ø8mm) hole on the door when the screw post is installed.

INSTALLATION INSTRUCTIONS

The bulged part of mounting plate must face toward the door.

Slide cable through the notch of mounting plate.

INSTALLATION INSTRUCTIONS
