IDTECK ITDC EIO8 Bedienungsanleitung

Quick Installation Guide

iTDC / iTDC-SR

EIO88

MULTI DOORS ACCESS CONTROL SYSTEM

※iTDC Quick Installation Guide

Mar.11.2010

1. iTDC/iTDC-SR INSTALLATION LAYOUT

1.1 LAYOUT TO CONTROL 2 DOORS

The figure below is iTDC/iTDC-SR installation layout to control 2doors.

You can install readers instead of No.8, Exit Buttons. In this case, connect each reader to reader port No.2 of

iTDC/iTDC-SR, reader port No.4 of iTDC/iTDC-SR.

(Figure: iTDC/iTDC-SR Installation Layout to Control 2 Doors)

Code

①

PC for installing application software, STARWATCH

iTDC PRO I, II, STARWATCH STANDARD)

②

iTDC or iTDC-SR

③

RS232/RS422 Converter

or TCP/IP Module (IIM7100A)

④

Power

⑤

Reader

⑥

Door Lock

⑦

Door Contact

⑧

Exit Button

※iTDC Quick Installation Guide

Mar.11.2010

1.2 LAYOUT TO CONTROL 3 DOORS

You have to attach EIO88 to control more than2 doors.

The figure below is iTDC/iTDC-SR installation layout to control 3 doors.

(Figure: iTDC/iTDC-SR Installation Layout to Control 3 Doors)

Code

①

PC for installing application software, STARWATCH

iTDC PRO I, II, STARWATCH STANDARD

②

iTDC or iTDC-SR

③

RS232/RS422 Converter

or TCP/IP Module (IIM7100A)

④

Power

⑤

Reader

⑥

Door Lock

⑦

Door Contact

⑧

Exit Button

⑨

EIO88

※iTDC Quick Installation Guide

Mar.11.2010

1.3 LAYOUT TO CONTROL 4 DOORS

The figure below is iTDC/iTDC-SR installation layout to control 4 doors. (Attach EIO88)

(Figure: iTDC/iTDC-SR Installation Layout to Control 4 Doors)

Code

①

PC for installing application software, STARWATCH

iTDC PRO I, II, STARWATCH STANDARD

②

iTDC or iTDC-SR

③

RS232/RS422 Converter

or TCP/IP Module (IIM7100A)

④

Power

⑤

Reader

⑥

Door Lock

⑦

Door Contact

⑧

Exit Button

⑨

EIO88

※iTDC Quick Installation Guide

Mar.11.2010

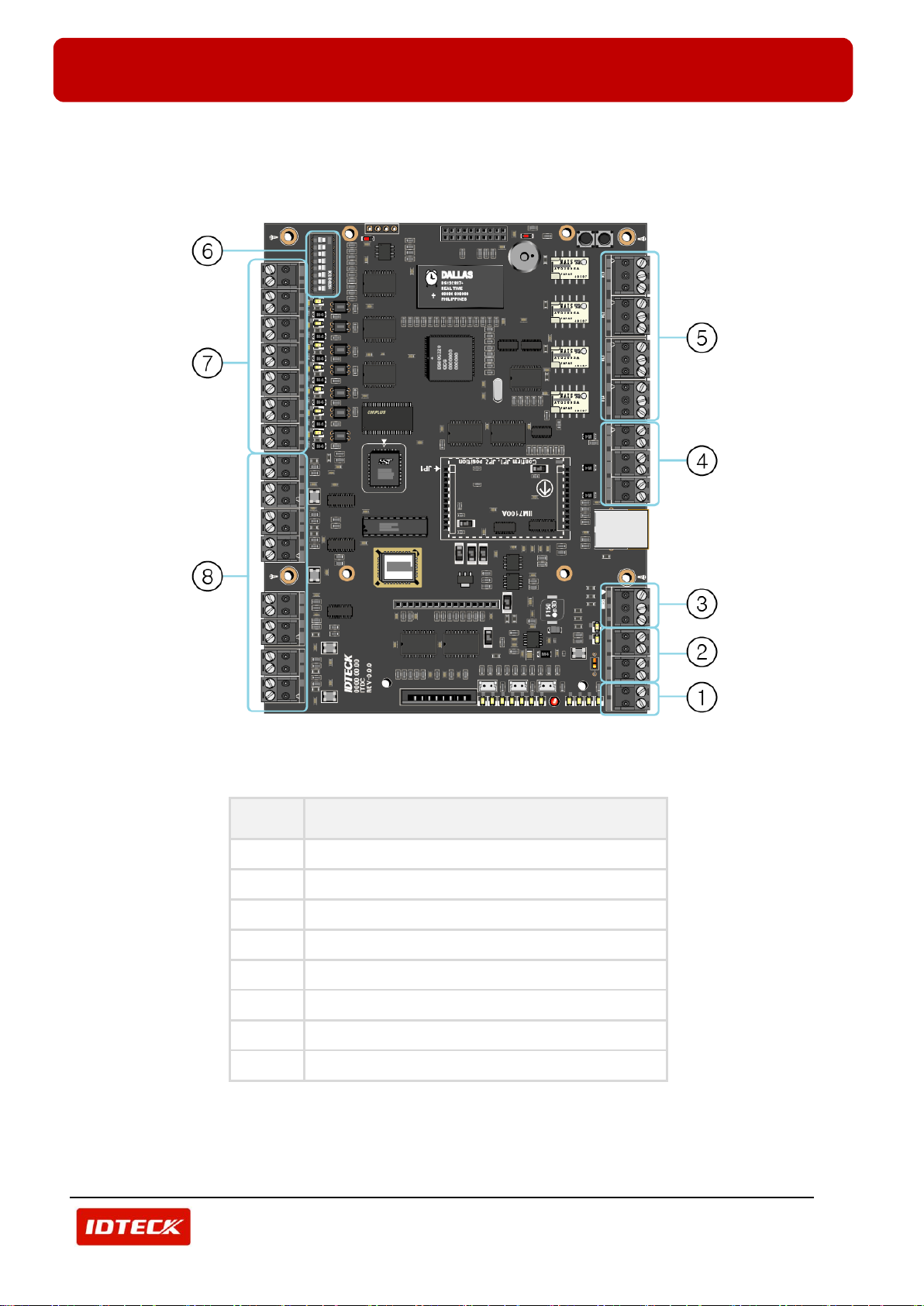

1.4 WIRING PARTS CODE

1.2.1 iTDC/iTDC-SR

]

No.

Code

①

Power Port Terminal Block

②

RS422 Communication Port Terminal Block

③

RS232 Communication Port Terminal Block

④

TTL Output Port Terminal Block

⑤

Relay Output Port Terminal Block

⑥

Board ID Setting Switch

⑦

Input Port Terminal Block

⑧

Reader Port Terminal Block

※iTDC Quick Installation Guide

Mar.11.2010

1.2.1 EIO88

No.

Code

①

Input Port Terminal Block (#1 ~ #4)

②

Output Port Terminal Block (#5 ~ #8)

③

Input Port Terminal Block (#1 ~ #4)

④

Output Port Terminal Block (#5 ~ #8)

※iTDC Quick Installation Guide

Mar.11.2010

2. BOARD ID SETTING

Board ID is unique address used for Serial Communication. If more than one iTDC/iTDC-SR board is used, Board

IDs must be different from each others.

There is an 8 channel DIP switch on the upper left side of the iTDC/iTDC-SR board for Board ID setting. Each

channel of DIP switch has assigned address value and the Board ID is the sum value of each switch set to “ON”

position. Refer to the example below.

(Figure: Position of DIP Switch and Magnification of the Switch)

Example 1

Example 2

Example 3

1+2 = 3 (Board ID = 3)

4+32 = 36 (Board ID = 36)

128= 128 (Board ID = 128)

(Figure: Board ID Setting Example by DIP Switch)

Board ID must be set before main power connection to the iTDC/iTDC-SR.

If more than one iTDC/iTDC-SR-MAIN boards are installed, you must set different Board ID for

each iTDC/iTDC-SR board.

Caution

※iTDC Quick Installation Guide

Mar.11.2010

3. WIRING

Wiring must be done before main power switched on to the iTDC/iTDC-SR. Wiring after main

power switched on may cause electrical shock.

3.1 EARTH GROUND WIRING [IMPORTANT]

When installing iTDC/iTDC-SR, you must connect GND wire of Power terminal block to 1ST class EARTH

GROUND. EARTH GROUND wiring equalizes all ground level to zero and protects the device from the thunderbolt

or surge voltage.

(Figure: iTDC/iTDC-SR GND Wiring)

3.2 iTDC/iTDC-SR POWER WIRING

Confirm that main power switched OFF before wiring.

- Connect +12V (red) wire of DC12V power supply to Power terminal block (+12V) of iTDC/iTDC-SR.

- Connect GND (-) (black) wire of DC12V power supply to Power terminal block (GND) of iTDC/iTDC-SR.

(Figure: iTDC/iTDC-SR Power Wiring)

EARTH GND

Power Supply

Caution

※iTDC Quick Installation Guide

Mar.11.2010

3.3 COMMUNICATION CABLE CONNECTION

3.3.1 MULTIPLE CONNECTION THROUGH RS422 COMMUNICATION

RS422/RS232 converter is required for RS422 communication. When connecting multiple devices, you can

connect up to 32 devices for 1 loop.

1) Connection between Host PC and RS422/RS232 Converter

Connect the Host PC and the RS232/RS422 Converter using Cable

If the Host PC has Serial Port, connect RS422/RS232 Converter to the Serial Port using 9 pin Serial Cable.

If the Host PC doesn’t have Serial Port, connect RS232/RS422 Converter using Serial Multi-Port which uses

separate power source.

If the Host PC doesn’t have serial port, attach Serial Multi-Port Card on the Main Board of the Host

PC and then use it. (Serial Multi-Port Card can be optionally purchased.)

Don’t use USB to Serial Port. If you use USB to Serial Port, it outputs low currents then it causes

some malfunctions.

2) Connection between RS422/RS232 Converter and iTDC/iTDC-SR

First, connect RS422/RS232 Converter to the first iTDC/iTDC-SR in cross connection as follows;

- Connect RS422-TX(+) Port of the Converter to RS422-RX(+) Port of the iTDC/iTDC-SR.

- Connect RS422-TX(-) Port of the Converter to RS422-RX(-) Port of the iTDC/iTDC-SR.

- Connect RS422-RX(+) Port of the Converter to RS422-TX(+) Port of the iTDC/iTDC-SR.

- Connect RS422-RX(-) Port of the Converter to RS422-TX(-) Port of the iTDC/iTDC-SR.

Next, from the second iTDC/iTDC-SR, connect one iTDC/iTDC-SR with following iTDC/iTDC-SR in direct

connection as follow;

- Connect RS422-TX(+) Port of one iTDC/iTDC-SR to RS422-TX(+) Port of the following iTDC/iTDC-SR.

- Connect RS422-TX(-) Port of one iTDC/iTDC-SR to RS422-TX(-) Port of the following iTDC/iTDC-SR.

- Connect RS422-RX(+) Port of one iTDC/iTDC-SR to RS422-RX(+) Port of the following iTDC/iTDC-SR.

- Connect RS422-RX(-) Port of one iTDC/iTDC-SR to RS422-RX(-) Port of the following iTDC/iTDC-SR.

Converter

iTDC #1

iTDC #2

iTDC #n

TX+

RX+

TX-

RX-

RX+

TX+

RX-

TX-

(Table: RS422 Multiple Connection)

Caution

Direct Connection

Cross Connection

※iTDC Quick Installation Guide

Mar.11.2010

(Figure: RS422 Multiple Connection)

○

1 Recommended Communication Cable

It is recommended to use STC(Shielded Twisted Pair) cable for RS422 communication.

○

2 GND Connection

As the figure above, connect an end of Shield wire to the Power terminal block(GND) of iTDC/iTDC-SR. If you

connect both ends of Shield wire to the Power terminal block(GND) of iTDC/iTDC-SR, currents may flow

because voltage levels of both sides are different then it causes communication error. Thus, must connect

only one end of the Shield wire as the figure above.

○

3 Termination Resistor Connection

When you connect RS232/RS422 Converter and iTDC/iTDC-SR, connect Termination Resistor to the start

and end points of the wire as the figure above. If the length of communication wire is too long in one

communication loop, it causes communication problem from the cracked data or decrement. To prevent it,

connect Termination Resistor as the figure above. But, don’t use Termination Resistor for short-distance

communication wire. If you use Termination Resistor in short-distance, it could cause communication errors.

Caution
