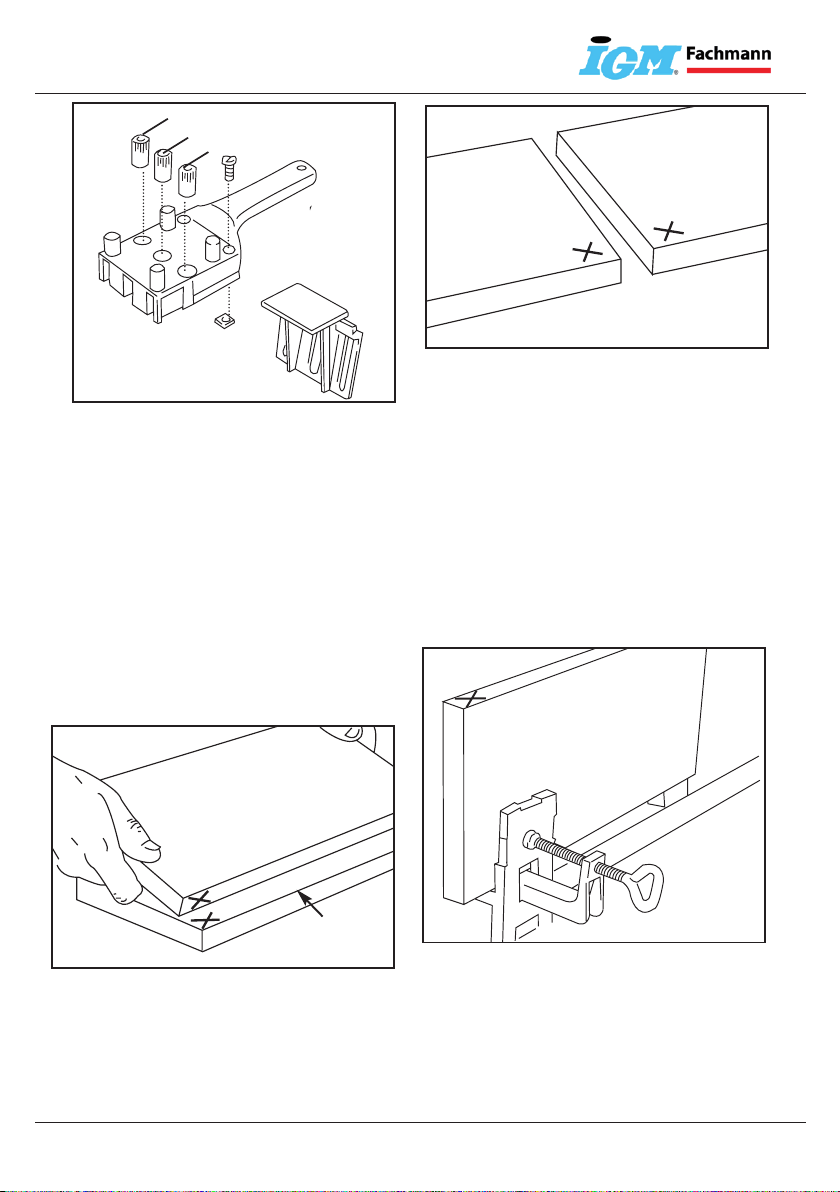

Figure 16 & 17: Place the board B in the desired position on
board Aand clamp firmly. Draw a centre line for the dowel
holes on board B. Place the dowel locator with the side
centre marks on the centre line, push the angle fence
against board B and clamp. Then drill as shown in Figure
14.
Figure 18: T-Joint.
Figure 19 & 20: Draw a centre line for the dowel holes on
board B. Clamp board Aat a distance of 35mm from the
drawn line.
Important: The depth stop must be re-adjusted (board
thickness 5mm). Now place the dowel locator with the
corresponding guiding groove over the dowel. When drilling
ensure that the centre marks are aligned with the centre line.
Figure 21: End-grain joints.
Figure 22: Place the dowel locator on a dowel in board A.
Then push the angle fence from the handle side into the
guideway until it rests firmly against the board. Finally tighten
the clamping screw.
Figure 23 & 24: Clamp board A& Bin such a manner that
the marks are visible. Push the dowel locator with the
corresponding guiding groove over the dowel until the angle
fence rests firmly against the board and then drill.

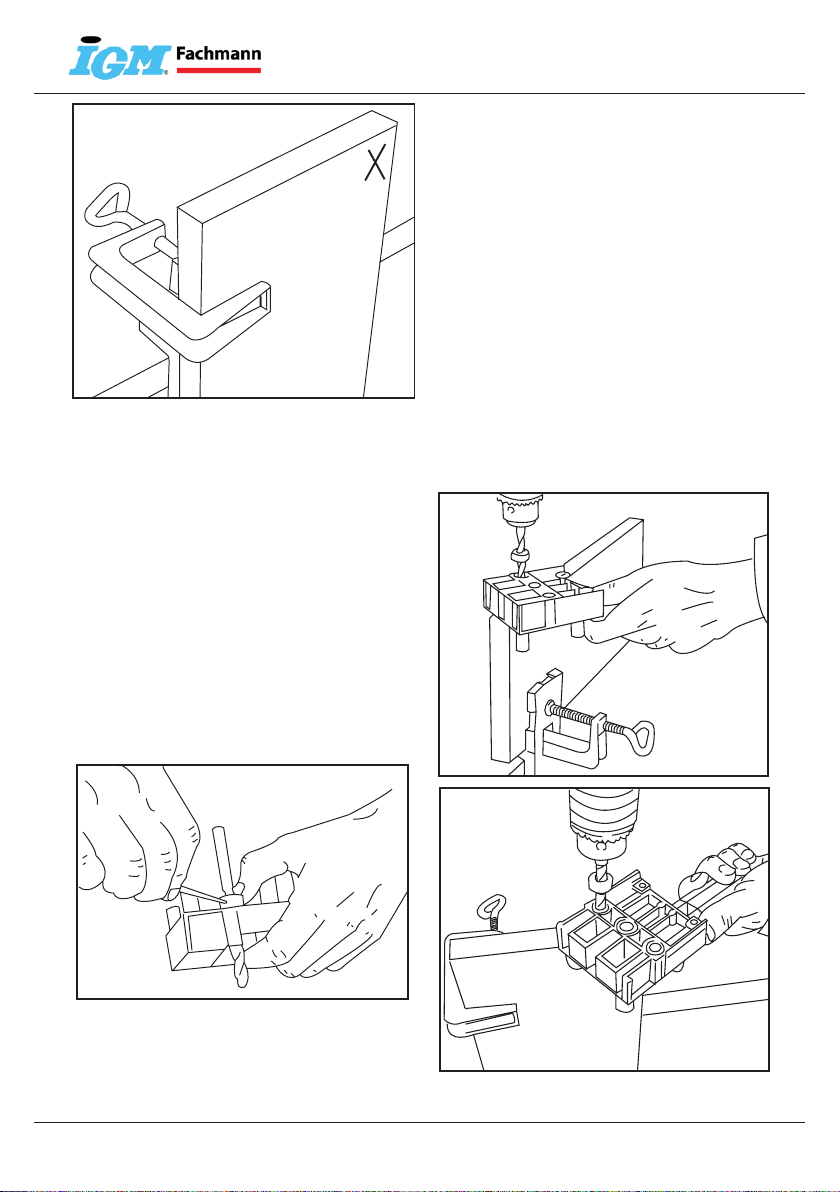

Figure 13 & 14: Place board B in a desired position on
board Aand clamp to the workbench.
Important: The depth stop must be re-adjusted (board
thickness 5mm). Place the dowel locator over the
corresponding dowel of board Ain such a manner that the
angle fence rests firmly against the board and drill.
Figure 15: The distance of the dowel from the edge is
maximum 25mm.
13
A
B
A
A
B
B
14
25mm
35mm
16
17
18
15
B
19
22
23
24
20
B
A
B
A
B
A
A
A
B
A
