iHome iConnectIH-K231MS Bedienungsanleitung
user manual
2
You have made an excellent choice with your
iConnect™media keyboard for Mac®
.
This product comes with a limited one-year warranty.
Before using, please read and follow these
instructions. If you still need help, see the back page
for other support options.
For more about our products, visit
www.life-works.com.
Model IH-K231MS
system requirements
Mac OS X v10.5.x or later•
USB port•
CD-ROM drive•
contents
features 3
get started 3
your new keyboard 4
install software 5
dock your iPod or iPhone 8
using your keyboard 10
troubleshooting 12
3
features
charge-n-sync iPod• ®or iPhone®with iTunes®
illuminated touch-sensitive media keys•
Mac application keys•
2 rotating USB 2.0 ports•
rubberized wrist rest•
get started
If you have not done so already, follow the steps
in the get started guide to connect your new
hardware.
4
your new keyboard
iPod or iPhone
dock cover
play/
pause
numeric
keypad
Mac application
launch keys illuminated touch-sensitive
media keys USB 2.0 ports
USB connector
power connector
rubberized
wrist rest
5
install software
If you have not already installed the keyboard driver
software (as described in get started), you will need
to do so to take advantage of all features available
with your new keyboard.
insert installation CD
1.
Please see your get started guide for
instructions on how to connect your
new hardware to your computer.
USB ports
on keyboard
rotate for
easier use
6
double-click iHome Keyboard icon2.
The installation software will open.

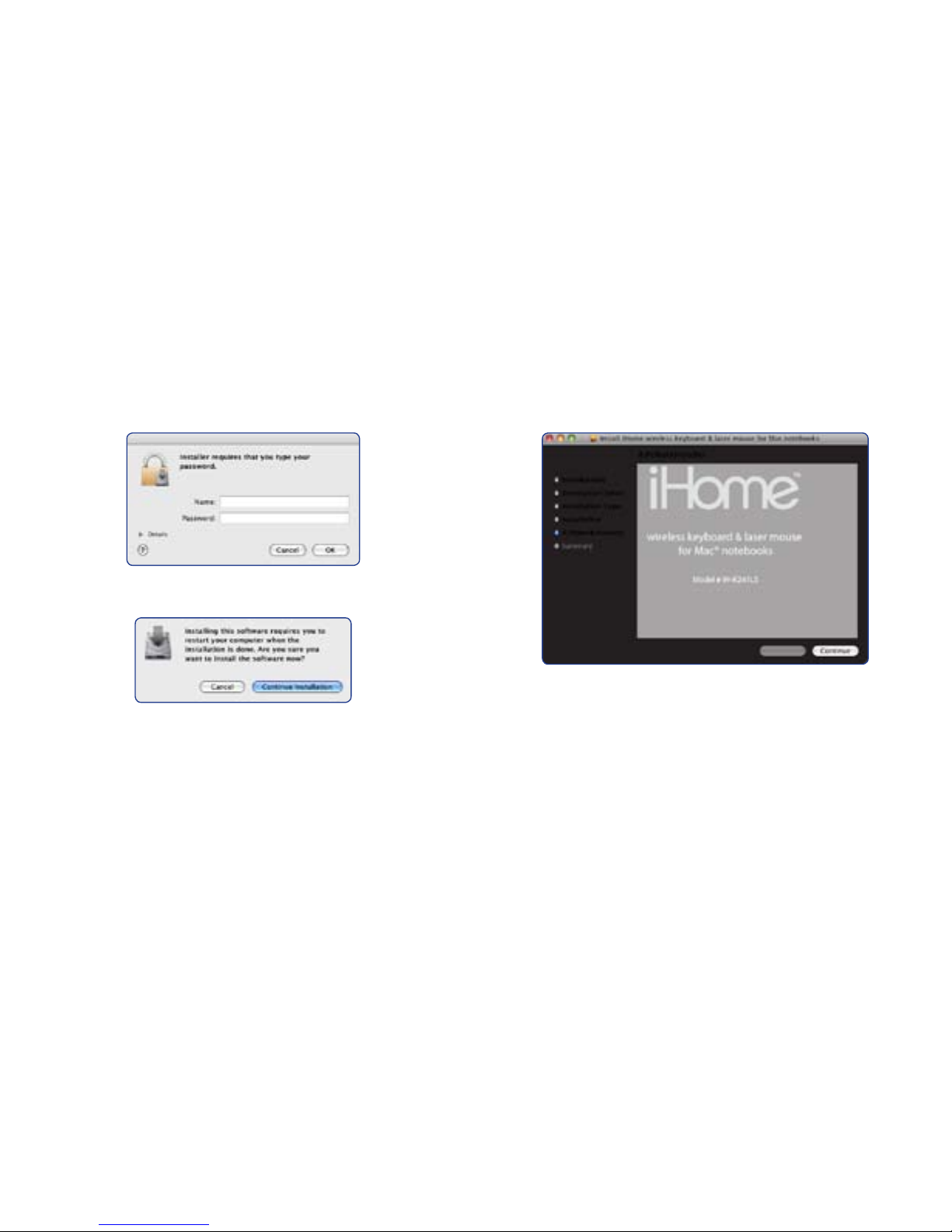

when Welcome screen displays, click
3. Continue
click4. Install to install driver in default location
7
type your password if asked to do so5.
when prompted, click6. Continue Installation
Click7. Continue again
8
Click8. Restart to restart your computer dock your iPod or iPhone
Keyboard must be connected to ACWARNINGf
adapter at all times when in use.
Your keyboard is designed to sync and charge your
iPod or iPhone when docked.
gently slide the dock cover forward
1.
9
insert your iPod or iPhone2.
For a snug t, use one of the three inserts before
docking your iPod or iPhone.
See the table on next page for which insert to use.
(Look for the number on the back of the insert.)
device use insert
iPod nano (1st, 2nd, 3rd and 4th
generation) 1
iPod classic (80GB, 120GB)
iPod 5G (30 GB)
iPod touch, 1st and 2nd generation
(8GB, 16GB, 32GB)
2
iPhone 3G
iPod classic (160GB)
iPod 5G (60GB, 80GB) 3
10
using your keyboard
adjust the volume from the keyboard
Slide nger across volume control to adjust volume—
left to lower, right to increase.
To go from minimum to maximum volume ornotef
back again, swipe four times.
Mac application launch keys
application key function
F1 decrease brightness
F2 increase brightness
F3 Exposé®
F4 Dashboard
F6 sleep
F7 iTunes
