IHome IBT75 Bedienungsanleitung

Color Changing Rechargeable

Bluetooth Speaker

with Speakerphone

instruction manual

Model: iBT75

CHARGE

BEFORE

USE

Introduction

Thank you for purchasing the iHome iBT75. This product is designed to

provide high quality wireless sound for your iPad, iPhone, iPod, computer,

PDA or other Bluetooth audio device.

This instruction booklet explains the basic operation and care of the unit.

Please read them carefully and keep for future reference.

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or

excessive heat.

• Protect your furniture when placing your unit on a natural wood and

lacquered ﬁnish. A cloth or other protective material should be placed

between it and the furniture.

• Clean your unit with a soft cloth moistened only with mild soap and water.

Stronger cleaning agents, such as benzene, thinner or similar materials

can damage the surface of the unit.

iBT75

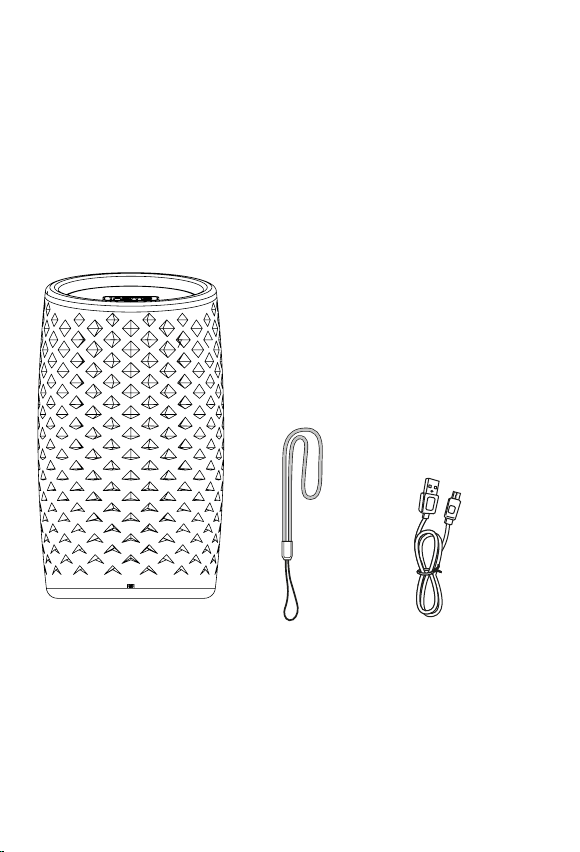

What’s Included

• iBT75 speaker

• Micro USB to USB charging cable

• Carry strap

iBT75 speaker

Micro USB to USB

charging cable

Carry strap

iBT75

Front

Microphone

Back

Bluetooth

Button

Color Mode Button

(press and hold for

Battery Review)

Lower/Raise Volume

Buttons

Aux-in

Jack

USB Charging

in Port

Carry Strap

Channel

Meet Your iBT75

Bottom

Top

Blue Bluetooth Status

Indicator Light

(green for wireless stereo)

Red Charging

Status Indicator

Light

Power On/O

Switch

Manufactured and Serviced by

SDI TechnologiesInc.

Designed in the USA

Patents: www.ihome.com/patents

Toll Free:1-800-288-2792

www.ihome.com

Made in China

iBT75-A-A

Service Number:

DC 5V, 500mA

Charging Voltage:

FCC ID: EMOIBT75 IC: 986B-IBT75

iBT75

o on

Getting Started: Carry Strap

The iBT75 has a channel above the controls to

attach the included carry strap. To attach the

carry strap, form a small loop in one end of the

carry strap. Insert this loop through the desired

channel, then pull the loop back through the

larger loop formed in the carry strap to tighten.

Charging the Unit

CHARGE UNIT BEFORE USE/KEEP UNIT OFF FOR FASTER CHARGING

1. Connect the micro USB plug on the included charging cable to the micro

USB Charging in Port on the back of the unit.

2. Connect the standard USB plug end of the cable to a USB AC adapter

connected to a working outlet or to another USB charging source. For

ﬁrst time use, charge unit for about 4 hours. The status indicator LED

on top of the unit ﬂashes red while charging and turns o once unit is

fully charged. When charge level is low, it will also ﬂash red when not

connected to charging source.

iBT75

Charge via USB AC adapter or other powered USB port

iHome iBT75 USB charge in port

USB AC adapter

(not included)

USB AC adapter

connected to working outlet

3.To review the charging status of the unit while it is charging, press and

hold the Color Mode Button. The cabinet lights will ﬂash green from

bottom to top for 12 seconds to show unit is charging.

Reviewing Battery Charge Level

(Charger is Disconnected and unit is ON)

1. Press and hold the Color Mode Button when unit is ON but not

charging (micro USB cable not connected) to enter Battery Review

Mode. The cabinet lights will blink and built-in voice will announce the

current battery level.

TIP: On some iOS (Apple)

devices, you can view the iBT75

battery status on your device’s

screen. When device is paired

and connected, look for a

vertical battery icon next to the

Bluetooth icon on the upper

right corner of the

device’s screen.

LowVery Low

RED GREEN

Good High

iBT75

Pairing Your Device

Pairing is the set-up process to introduce your Bluetooth-capable device to

the iBT75. Once your device is paired, the iBT75 can recognize it and you can

play your audio through it.

1. Turn on your Bluetooth device and make it “discoverable”

by turning on Bluetooth mode (check in Options or

Settings).

2. Slide the Power On/O Switch to ON to turn on the

iBT75. The ﬁrst time the unit is powered on, it will enter

auto-pairing mode: the unit will beep and the Bluetooth

status indicator light on top of the unit will ﬂash quickly

while the unit attempts to pair. (If Color Mode is on, the

cabinet lights will ﬂash blue and red.) “iHome iBT75”

should appear in your device’s Bluetooth menu. Select

“iHome iBT75” on device to begin/complete pairing. If

prompted for a passcode, enter “1234” on your device’s

keypad. 1 beep will sound and the Bluetooth status

indicator light will appear solid blue (in Color Mode,

cabinet will ﬂash blue twice), indicating the iBT75 is

paired and ready to play music. There should also be an

indication on your device. If no device is successfully

paired within 3 minutes the iBT75 will default to previous

mode.

3. To pair with a dierent device or at a dierent time, make

sure unit is powered on, then press and hold the

Bluetooth Button for 2 seconds. Select “iHome iBT75” on

device to pair.

Once the iBT75 is paired to a device, it will attempt to

autolink when the device is within range (about 33 feet).

Using the iBT75

o on

iHome iBT75

Playing Audio Via Bluetooth

1. Slide the Power On/O Switch to ON to turn on the unit. The Bluetooth status

indicator will glow solid blue when a linked device is in range and detected. You

can then listen to audio streamed wirelessly from your paired Bluetooth device.

2. Press the Bluetooth Button to play and pause tracks.

3. Press the –or +Button to adjust the iBT75 volume. You can also adjust volume

on your device.

4. When done listening, slide the Power On/O Switch to OFF turn the unit OFF.

Remember to turn o your device, too.

Speakerphone Operation

NOTE: The unit must be powered on and linked to a Bluetooth phone to receive a

call.

1. When a call is received, playing music is muted to hear the ring tone and the

cabinet lights ﬂash green. Press the Bluetooth Button to answer the call, or

press and hold to reject the call.

2. When a call is completed, press the Bluetooth Button to end the call and

resume previous function.

Wireless Stereo Mode

NOTE: The iBT75 is Wireless Stereo capable, and will play stereo through 2 linked

speakers (2nd speaker sold separately) when linked.

1. Power ON each speaker.

Press and hold the Bluetooth Button and the –Minus Button

together on each speaker until the cabinets blink green, as will the

status indicator on the right speaker. When linked, a voice will announce

“Left Channel” and “Right Channel” and the status indicator on the right

speaker will glow solid green. You can now play music through both

speakers.

3. Press the Bluetooth Button to play and pause tracks.

4. Press the –or +Button to adjust the volume on both speakers. You can also

adjust volume on your device.

5. Note that powering o either speaker will turn both o.

Using the iBT75

Playing Audio via Aux In

1. Connect micro USB charging/audio cable to the

Charging/Aux-in USB Port on the side of the

unit and connect the 3.5mm audio plug end to

the headphone or line-out jack on your audio

device.

2. Slide the Power On/O Switch to ON turn the

unit ON.

3. Power on the audio device and use the controls

on the device to play or pause audio and to

navigate tracks.

4. Press the –or +Button to adjust the

system volume. You can also adjust

volume on your device.

5. When done listening, slide the Power

On/O Switch to OFF turn the unit

OFF. Remember to turn o your

device, too.

Using Color Modes

There are six color modes, which you cycle through in this order:

a. Slow Fade (colors slowly fade from one into the next

b. Fast Change (colors change rapidly)

c. One Color (select a favorite color)

d. Pulse to Music (lights ﬂash to the beat of the music)

e. Preset Pulsing (each light array pulses through its own preset pattern of colors)

f. O (no display)

1. Slide the Power On/O Switch to ON turn the unit ON.

2. Press the Color Mode Button repeatedly to cycle to the desired color mode.

For One Color mode, ﬁrst cycle to Fast Change mode and press the Color Mode

Button when the desired color appears. For Pulse to Music, make sure the volume

on your connected Bluetooth device is above 30%.

3. When done, slide the Power On/O Switch to OFF turn the unit OFF.

Using the iBT75

Unit doesn’t respond (no power/locked up/frozen)

• Make sure unit is completely charged.

• Check that all connections are correct and properly plugged in.

• Make sure your device is properly paired with the iBT75.

• Make sure the unit is on

If the unit does not respond, try resetting the unit. Press and hold both the

“+” and “–” Buttons at the same time for about 10 seconds. Note that doing

so will clear settings, and any Bluetooth devices will need to be re-paired.

Trouble pairing device with iBT75

Bluetooth implementation varies depending on your device’s hardware and

operating system. Please see our website for updates on pairing.

• When you power ON the speaker, it will automatically link with the last

previously paired Bluetooth device if the device is still within range

(about 33 feet).

• If your device does not auto-link when within range, re-pair the device. To

do so, ﬁrst delete the iBT75 from your Bluetooth devices menu.

• Make sure your device is working properly. Check your device’s manual

for details on Bluetooth pairing and linking.

For further information and to see the latest instructions, visit

www.ihome.com/support

Troubleshooting
