Ihse KVM-TEC ScalableLine 4K/5K Bedienerhandbuch

Misprints, errors and technical changes reserved

First

Aid

kvm-tec

Video error

(stripes in the

picture)

USB is not

working

No Power

(No LED)

Check the

powerplug

Is the power

supply ok? Try

another Unit.

Contact kvm-tec

support

Are the USB

Devices plugged

in correctly?

Is the USB cable

on the Local side

plugged into the

PC?

Are the USB

Devices working

directly on the

PC?

Check if local

and remote Unit

have the same

 rmware

Replace the USB

cable from PC to

the Local

Extender

Check if the local

or the remote

Unit is causing

the problem by

swaping  rst the

local and than the

remote Unit to

another Unit

Contact kvm-tec

support

Check if all

cables are plug-

ged in correctly

Check that the PC

is turned on, as

well as checking

the status LED

Check if the DDC is

set correctly (in menu

under point „O“)

Ist im im Switching

Manager Frontend

, „Video“ aktiv -

Video / no Video

Contact kvm-tec

support

Check if all

cables are plug-

ged in correctly

Check if local and re-

mote Unit have the

correct  rmware

Check if the DDC

is set correctly (in

the menu under

point „o“)

Check if the

network switch

is setup correctly

and has enough

bandwidth

Contact kvm-tec

support

Check if other units

have the same

behaviour

kvm-tec Support

[email protected]

Phone: +43 2253 81912 - 30

No video

We are here for you to answer

your questions about installation?

Manual download www.kvm-tec.com

kvm-tec Installationchannel on our homepage

personally +43 2253 81912

Quickinstruction

free scalable

ScalableLine

4K/5K

Scalable

line

www.kvm-tec.com

move - zoom - cut it out - PIP

Multiview Systems

ScalableLine - 4K/5K

V102022

Misprints, errors and technical changes reserved

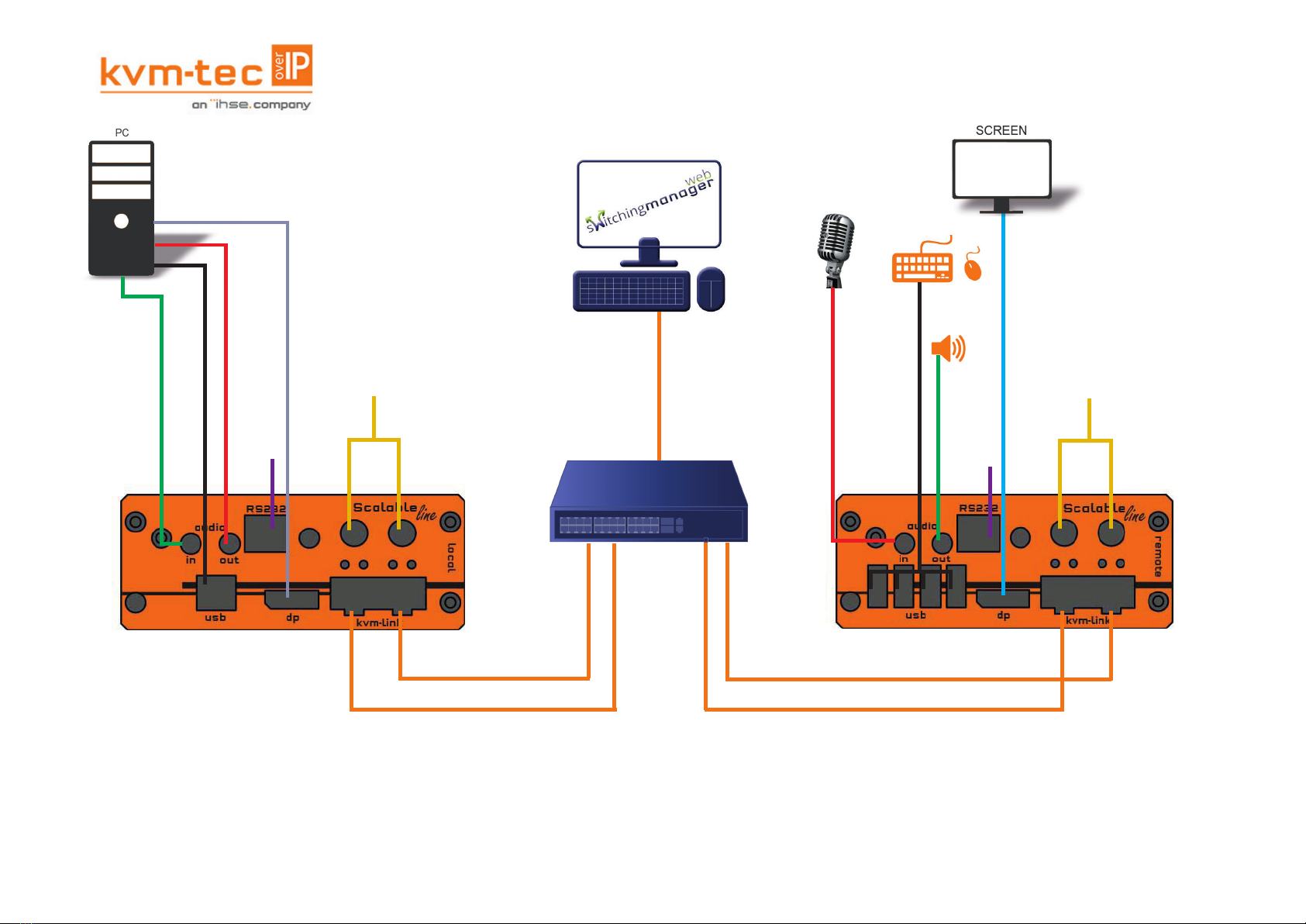

1. Connect the CON/Remote and the CPU/Local Unit with the supplied 12V 3A power supply.

2. Now connect the USB cable to a USB socket of your PC and connect the other end of the USB cable to the

Local Unit. Connect the keyboard and mouse to the Remote Unit.

3. Connect the Local and the Remote Unit with a network  ber cable.

4. Connect the DP cable to the DP socket of the PC to the DP socket DP/in of the Local device and connect

the screen on the remote side with the DP cable.

5. Connect the Audio cable from PC to Local Extender and connect the Audio cable from Remote Extender

to Speaker

6. Connect the Audio Cable from Microphone to Remote Extender and connect the Audio cable from Local

Extender to PC.

HAVE FUN - Your kvm-tec Extender is now in use for many years (MTBF approx. 10 years)!

DP out

zum Monitor

USB von

Tastatur und Maus

Netzteil für

12V 3A

Duplex multimode

OM4-Fiberkabel (LC)

bis zu 300m main link 1

Audio out

zum Laut-

sprecher

Netzteil

für 12V 3A

DP in

vom PC

USB zum PC

Audio in

vom PC

Audio out

zum PC

Audio in

vom Mikrofon

RS232

plug RS232

plug

Duplex multimode OM4-Fiberkabel (LC)

bis zu 300m main link 1

Duplex multimode OM4-Fiberkabel (LC)

bis zu 300m main link 2

Duplex multimode OM4-Fiberkabel (LC)

bis zu 300m main link 2

10G Switch

IstheSwitchingManagerconguredcorrectly?

A test for the correct con guration of the network switch (Layer3)

is built into the Switching Manager.

You can  nd this test under „General Settings

ACCESS TO MAIN MENU

Use the monitor and keyboard to access the main menu.

Access to the main menu

1. Make sure that the extenders, monitors and computer are turned on

2. Press the Scroll Lock button ve times one after the other. The main menu and the

overview of the submenus are displayed.

3. To access a submenu, press the corresponding key or navigate with the arrow keys up

and down to the corresponding line and then press Enter key.

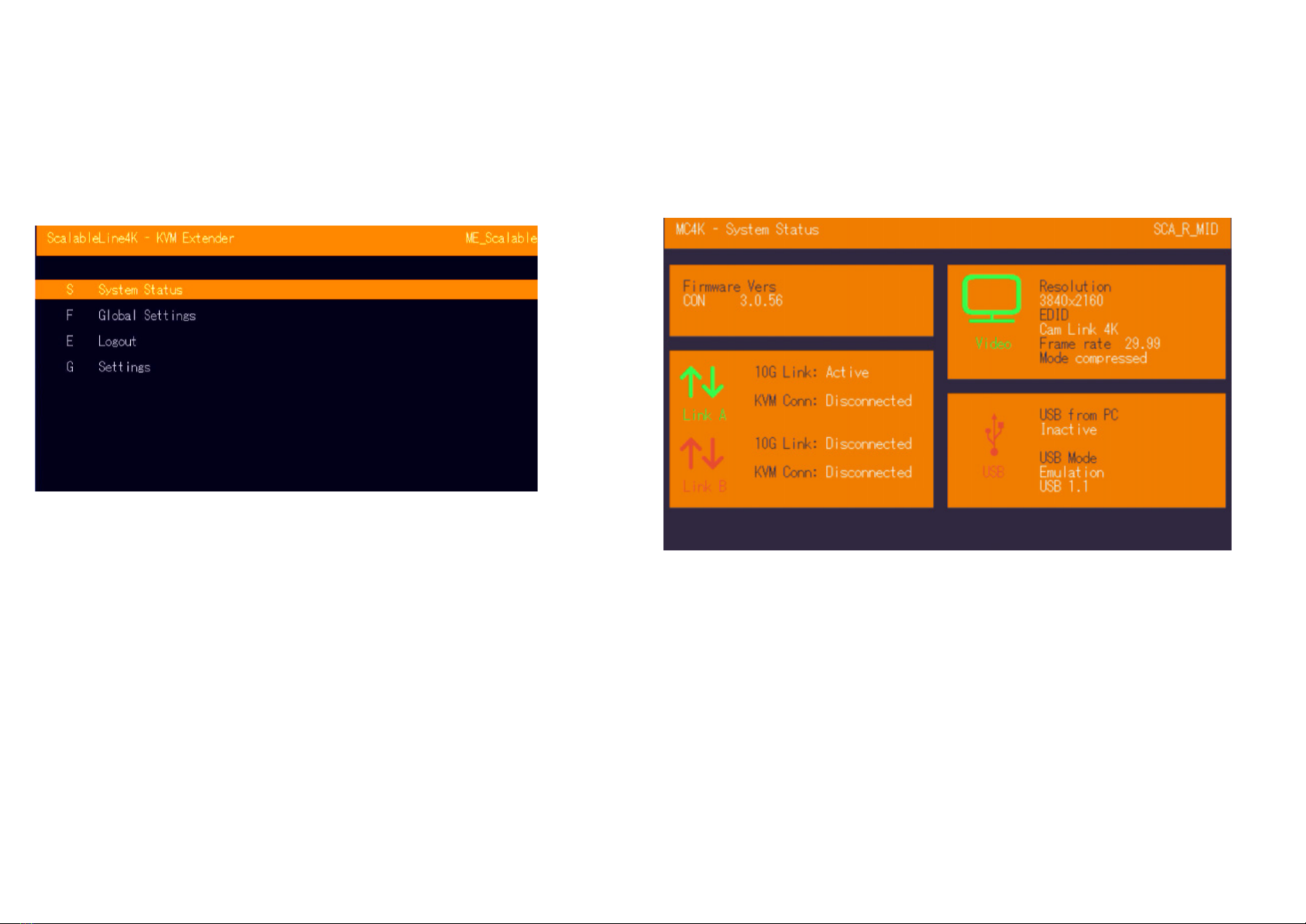

SCREEN „OSD menu“

In the main menu you can make the following settings by selecting the corresponding letters:

Press

S System status menu system status/ current status

F Features Menu activated features

E Login login to use secure features

G Settings extender settings

SYSTEM STATUS

By pressing the „S“ key or by selecting the arrow keys, you access the status menu, where you will

nd information about hardware and software versions, as well as the activated upgrades

The menu displays information about the connection, the resolution of the video channel and the

USB status. The current Firmware version is displayed in the upper left corner.

The link status indicates whether a connection is possible.

Video and USB display data transfer status

SCREEN „System Status“

Misprints, errors and technical changes reserved

CREATE WINDOW

The following combination - Ctrl + Alt + Left mouse click - activates the rst „default“ window, which is

set to a resolution of 800x600 px.

The maximum number of windows you can activate on a scalable 4K device is 16.

You can decide later on the positioning, cropping and scaling of each window.

EDIT MODE WINDOW

By pressing the „Ctrl“ and „Alt“ keys at the same time, you activate the window editing mode, which

allows you to control the size, spacing and placement of each window.

How it works:

Our scalable devices emulate a computer mouse cursor over all windows. In this mode, you cannot

take control of any of the connected locales in any of the windows displayed on the screen. This

cursor is controlled by the mouse connected to the remote device

With this cursor you can only move and scale windows on the screen. 1.

1. stand in the window with the mouse and hold Ctrl+Alt+left mouse button to move it.

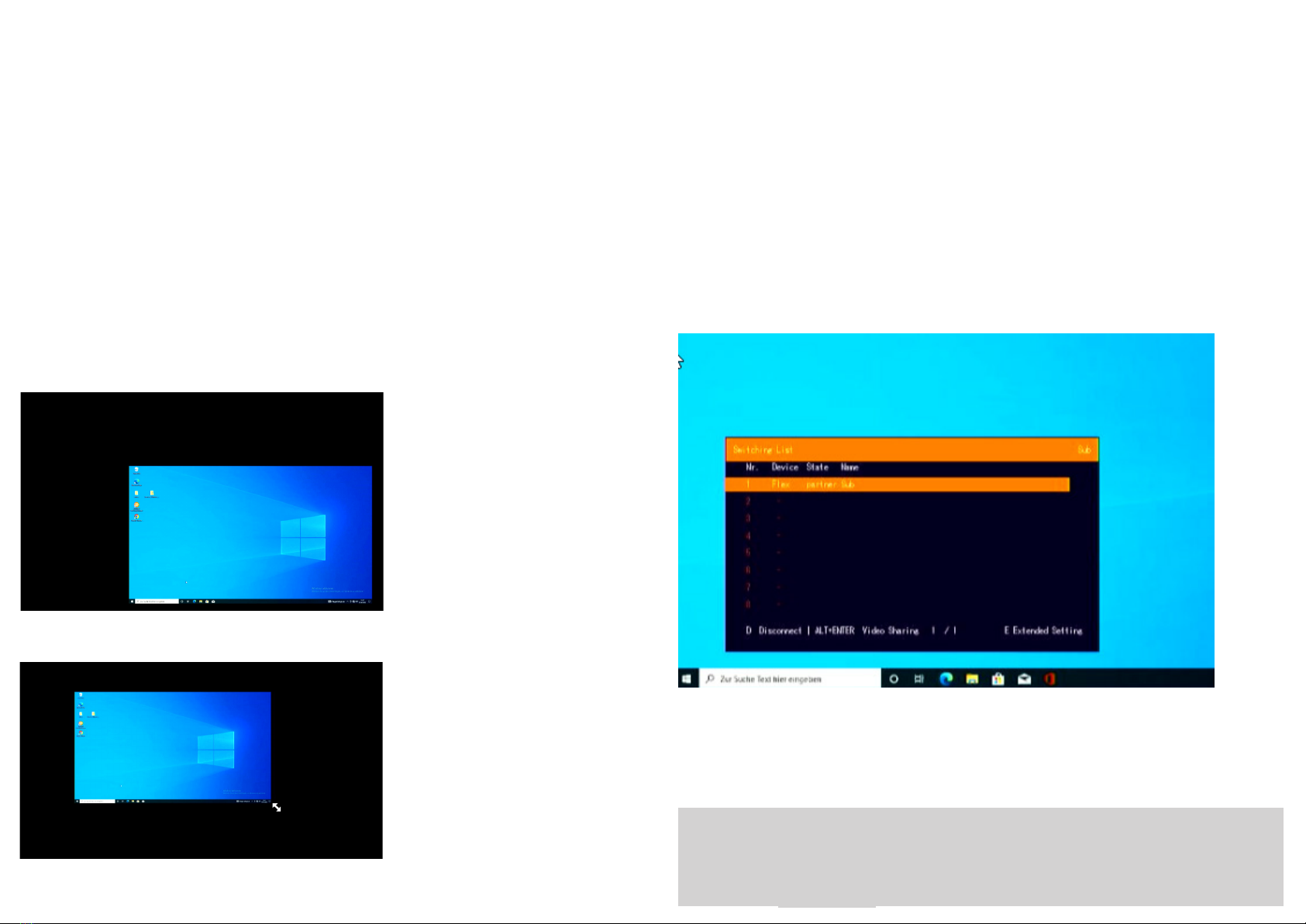

SCREEN Moving a scalable window using our KVM emulated cursor

2. Drag the corner of the window or move the mouse scroll wheel to resize it

SCREEN Scaling a scalable window using our KVM emulated cursor

EXITING WINDOW EDITING MODE

Editing Mode is automatically exited when Ctrl+Alt is released.

CONNECTING LOCALS TO WINDOWS WITHIN THE

WINDOW EDIT MODE

Connecting to locals is as easy as any other kvm-tec extender

How it works:

1- Point with the mouse to the window to which you want to connect

2- Press „Ctrl“ + „Alt“ + right mouse button

3- In the connection window that opens, select the local device that you want to connect to.

Either by arrow key + Enter or by

 Mousewheel+Leftclickconnect.4-Press„Enter“toconrmyourselection

SCREEN Local Switching List
