Ikan ELE-CNFLY Bedienungsanleitung

www.ikancorp.com

3903 Stoney Brook Dr. Houston TX 77063

1.713.272.8822

[email protected]

© 2010 ikan Corporation. All right reserved

ELE-CNFLY

CineFly Cinema Camera Shoulder Rig QUICKSTART GUIDE

ELE-CNFLY

CineFly Cinema Camera Shoulder Rig QUICKSTART GUIDE

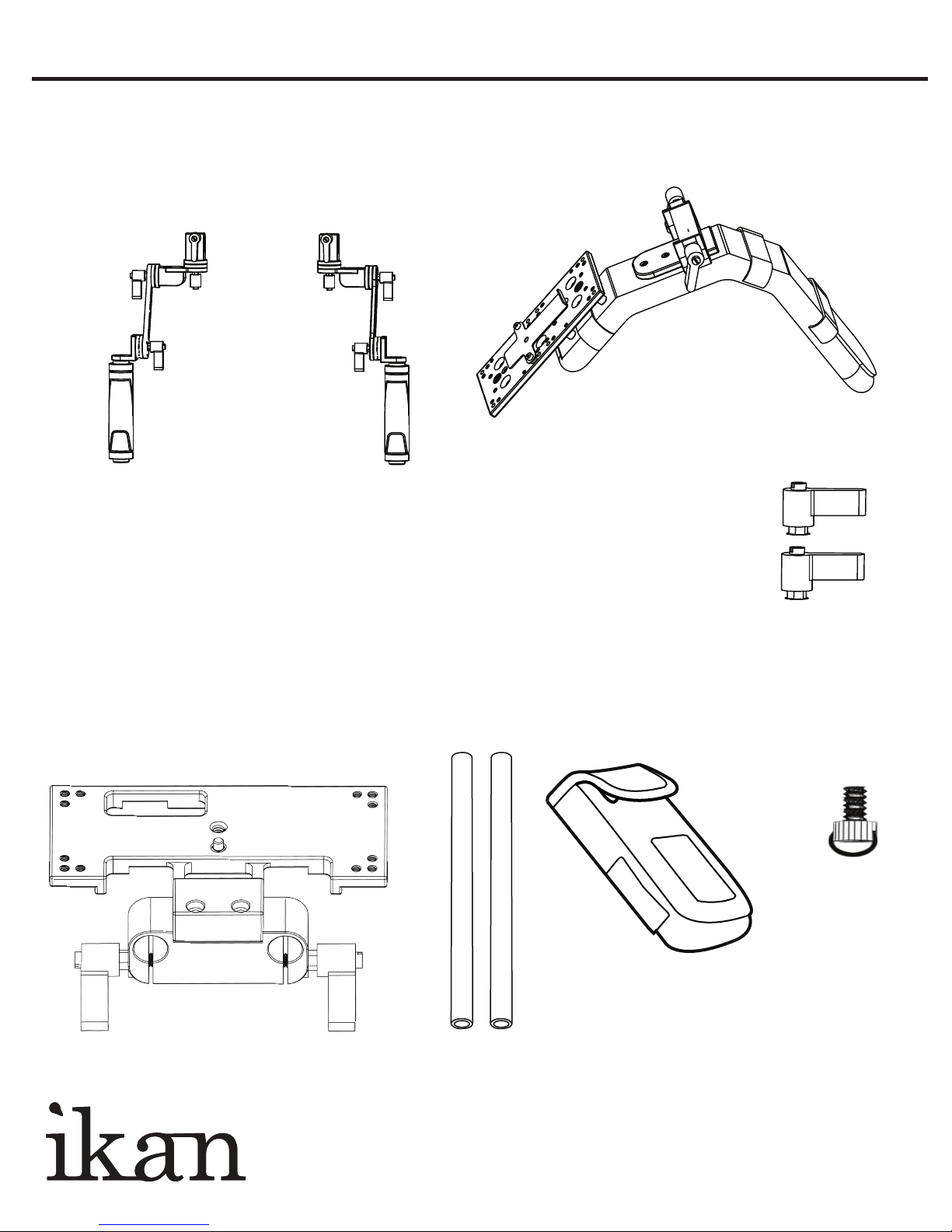

What’s included

www.ikancorp.com 713-272-8822

 1 x DRS-01

 2 x 18” Rod

(ELE-15R18)

 1 x Baseplate

 1 x Weightbag

(ELE-WB)

 2 x ATS

Adjustable

Thumb

Screws

2 x Adjustable Handle

1 x Shoulder Mount Frame

1 x Cross Bar with 2 Rod Mounts

www.ikancorp.com 713-272-8822

ELE-CNFLY

CineFly Cinema Camera Shoulder Rig QUICKSTART GUIDE

Assembling your CineFly Shoulder Rig is quick and easy, since the majority of the rig has already been

pre-assembled for you.

STEP 1

Insert the adjustable rosettes grip arms onto the sides of the 12” rod, position the arms as desired and

tighten the thumb screws accordingly.

ELE-CNFLY

CineFly Cinema Camera Shoulder Rig QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

STEP 2

Slide two 18” rods through the backends of the Crossblocks (4) and slide the other side of the 12‘ rods

into the BlackMacig Baseplate (ELE-BMC-BP). Tighten the thumb screws.

ELE-CNFLY

CineFly Cinema Camera Shoulder Rig QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

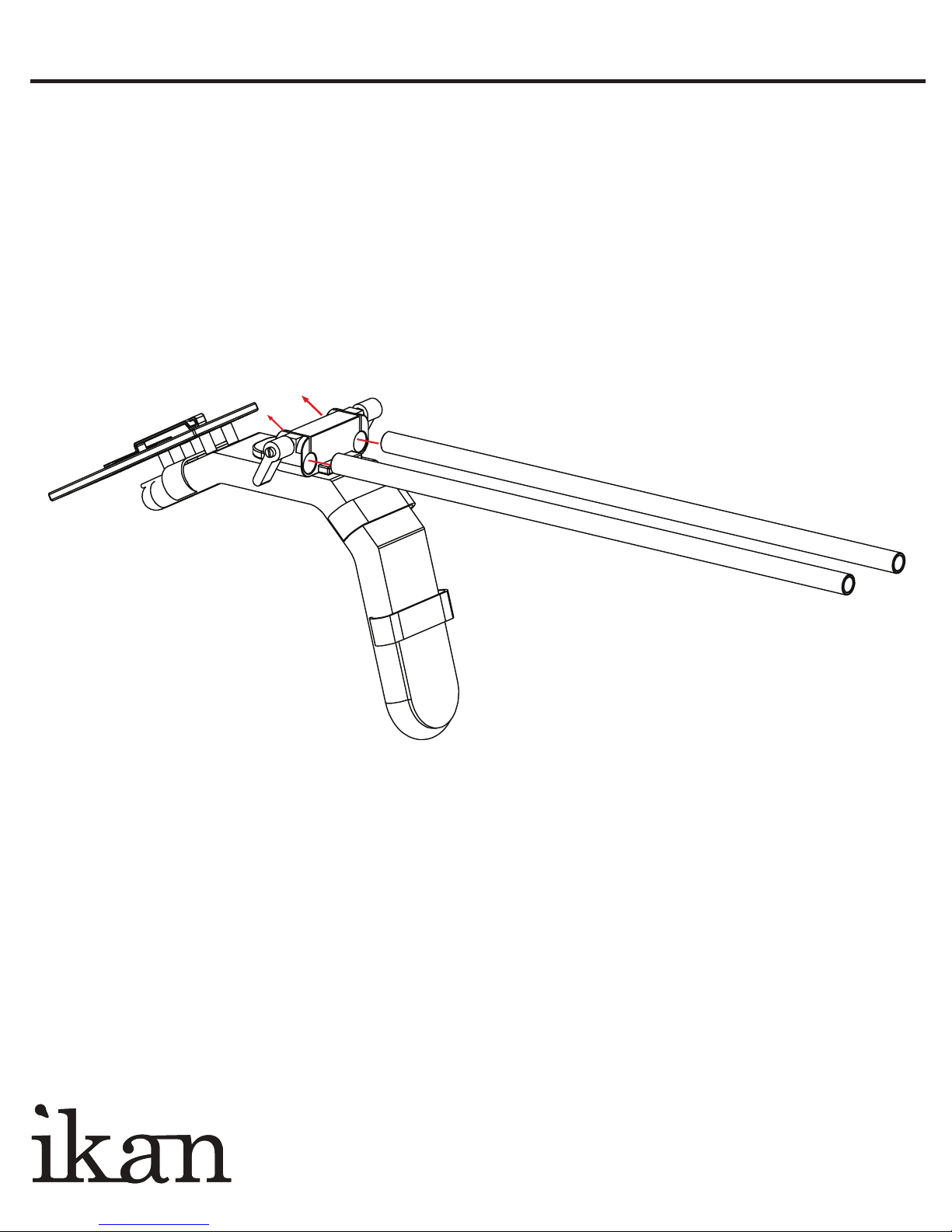

STEP 3

Continue by sliding the 12’ rods through the front holes of the Shoulder Mount and tighten.

ELE-CNFLY

CineFly Cinema Camera Shoulder Rig QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

STEP 4

Finally, secure the Weightbag (ELE-WB) onto the Double Cheeseplate.

WEIGHTS NOT INCLUDED

Please be aware that your weight bag does not come with its own weights.

ELE-CNFLY

CineFly Cinema Camera Shoulder Rig QUICKSTART GUIDE

COMPLETE ASSEMBLY

www.ikancorp.com 713-272-8822

Bottom View of Baseplate

Optional conﬁgurations for tripod mounting plate:

Unscrew the tripod mounting plate from the TriFly baseplate and turn it 180º and screw back in. This

will give you easier access to the D-Ring to mount or loosen your camera.

Tripod Mounting Plate

TriFly Baseplate

www.ikancorp.com 713-272-8822

ELE-CNFLY

CineFly Cinema Camera Shoulder Rig QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

BASE PLATE ATTACHMENT POINTS

There are a total of four threaded attachment points for your base plate; two 3/8-16 and two 1/4-20

threaded holes for you to chose from. Simply tighten the screw from your base plate into the appropriate

hole for easy mounting and unmounting from your tripod’s quick release.

3/8-16

Screw thread sizes

1/4-20

ELE-CNFLY

CineFly Cinema Camera Shoulder Rig QUICKSTART GUIDE
