ELE-TRIFLY

TriFly Cinema Camera Handheld Rig QUICKSTART GUIDE

 1 x Top Grip Handle

ELE-TRIFLY

TriFly Cinema Camera Handheld Rig QUICKSTART GUIDE

What’s included

www.ikancorp.com 713-272-8822

 1 x DRS-01

 2 x 12” Rod

(ELE-15R12)

 1 x Baseplate

 2 x Grip Handle

2 x Screw

www.ikancorp.com 713-272-8822

ELE-TRIFLY

TriFly Cinema Camera Handheld Rig QUICKSTART GUIDE

Assembling your Triy is quick and easy, since the majority of the rig has already been pre-assembled

for you.

STEP 1

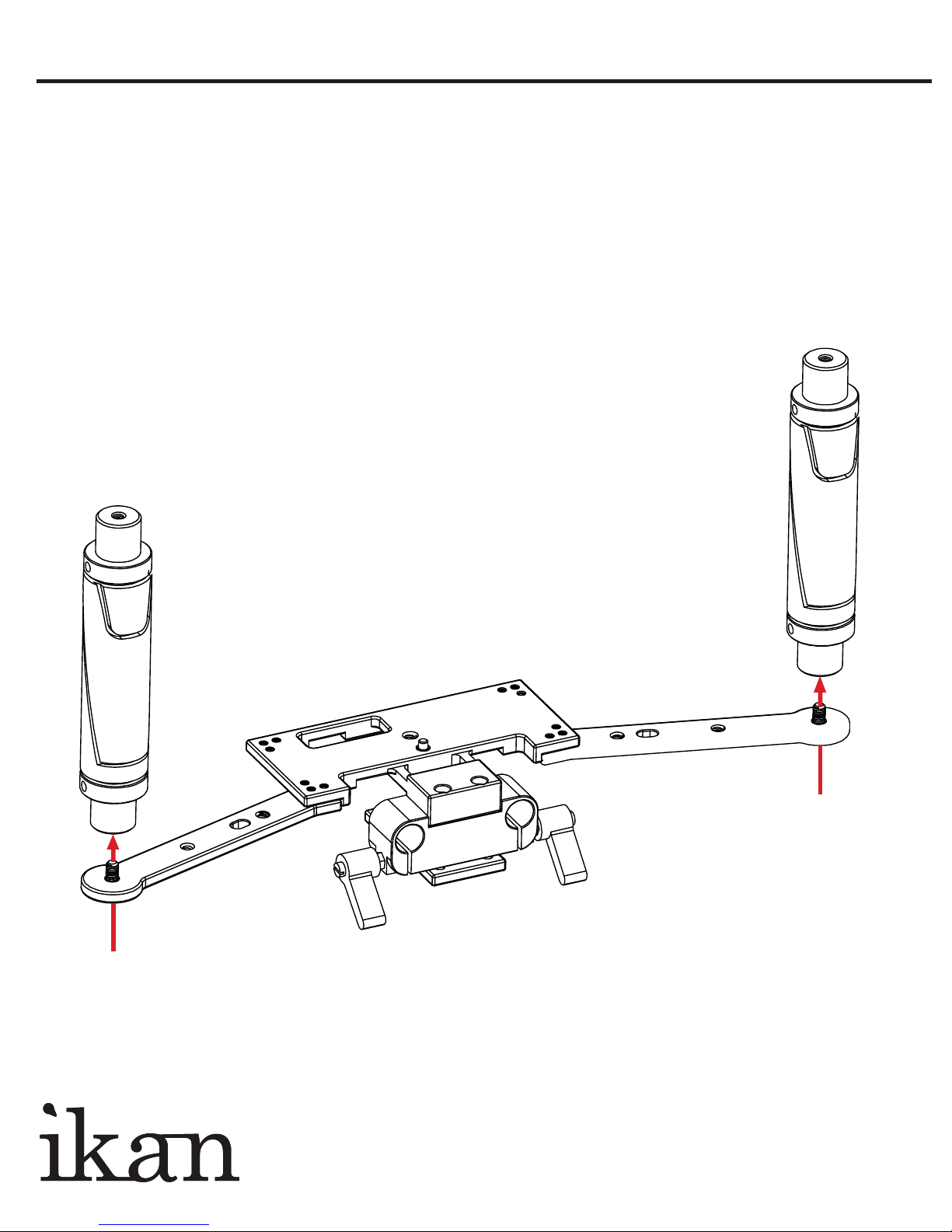

Secure the heavy duty Comfort Hand Grips to the Handle Arms, using the included 1/4-20 Hex Screws

and tighten them with the Hex Key.

www.ikancorp.com 713-272-8822

ELE-TRIFLY

TriFly Cinema Camera Handheld Rig QUICKSTART GUIDE

STEP 2

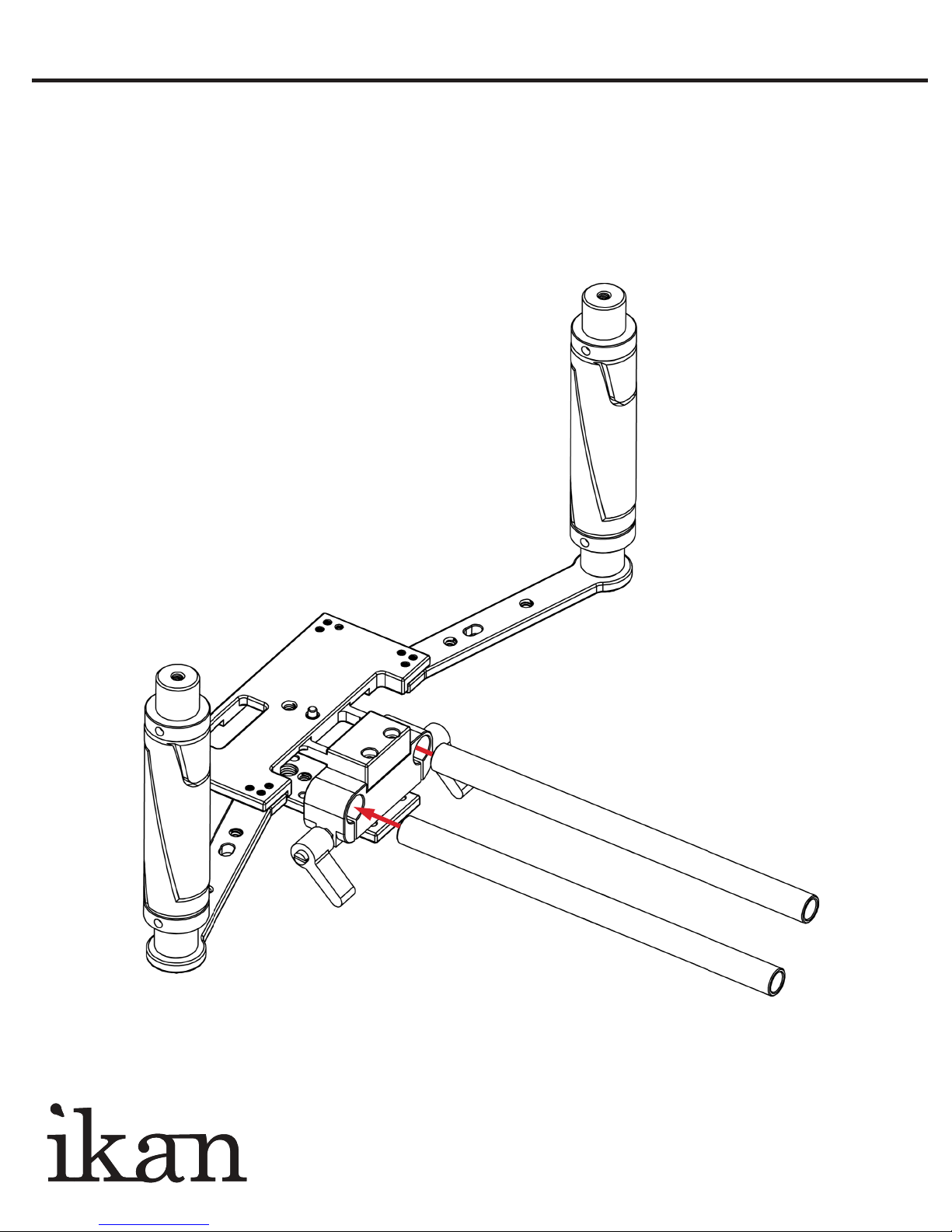

Next, insert the 12” Rods into the front Rod Mount of the BlackMagic Base Plate (BMC-BP), slide them

into desired position and then tighten the Adjustable Thumb Screws to lock them in place.

ELE-TRIFLY

TriFly Cinema Camera Handheld Rig QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

STEP 3

Mount the Rosette Grip Handle with two screws to the top of your Cinema Camera. Note that the

rosette grip handles can turn 360 degrees. Simply loosen the thumb screw, move it to desired position

and then tighten the thumb screw.

ELE-TRIFLY

TriFly Cinema Camera Handheld Rig QUICKSTART GUIDE

Bottom View of Baseplate

www.ikancorp.com 713-272-8822

Optional conﬁgurations for tripod mounting plate:

Unscrew the tripod mounting plate from the TriFly baseplate and turn it 180º and screw back in. This

will give you easier access to the D-Ring to mount or loosen your camera.

Tripod Mounting Plate

TriFly Baseplate

ELE-TRIFLY

TriFly Cinema Camera Handheld Rig QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

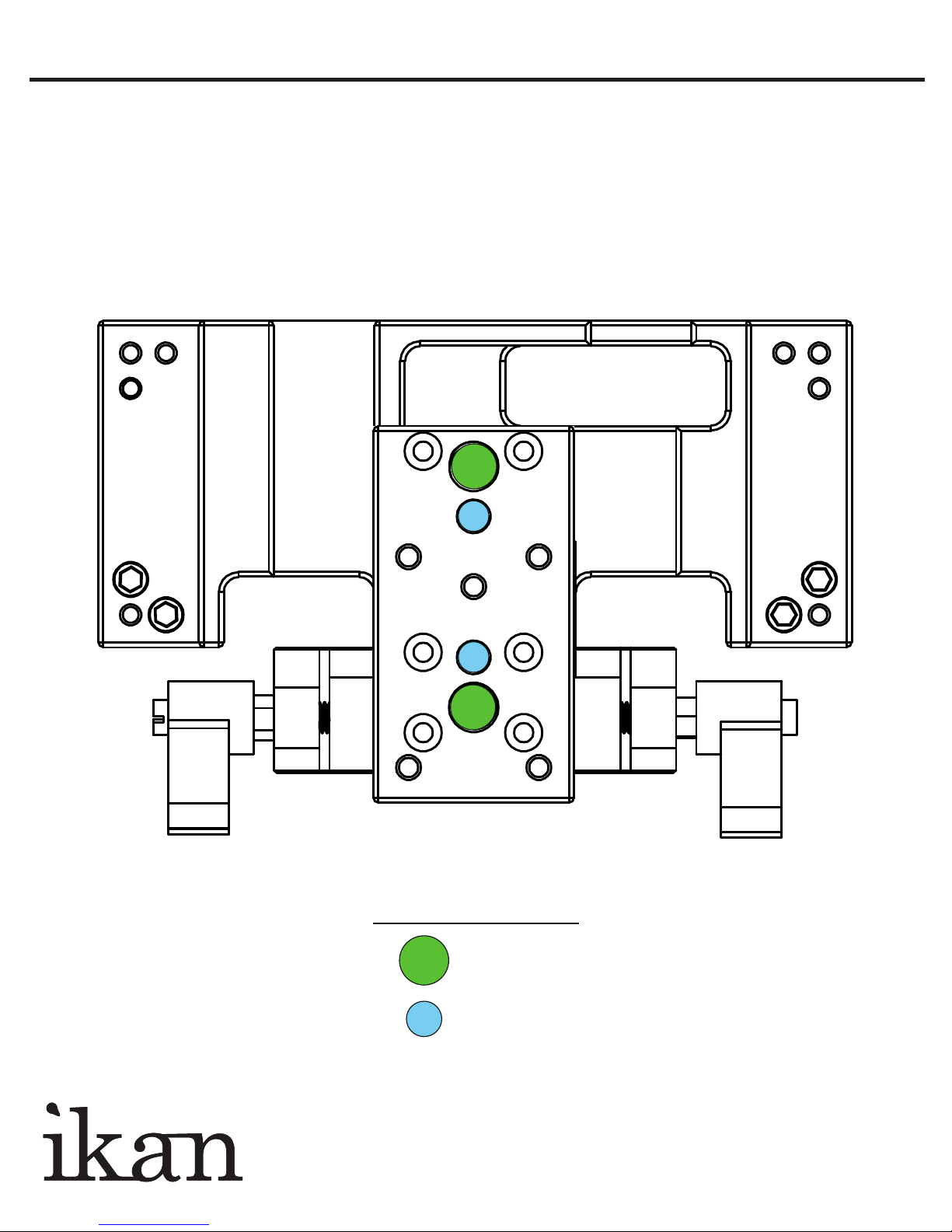

BASE PLATE ATTACHMENT POINTS

There are a total of four threaded attachment points for your base plate; two 3/8-16 and two 1/4-20

threaded holes for you to chose from. Simply tighten the screw from your base plate into the appropriate

hole for easy mounting and unmounting from your tripod’s quick release.

3/8-16

Screw thread sizes

1/4-20

ELE-TRIFLY

TriFly Cinema Camera Handheld Rig QUICKSTART GUIDE

Front View

Rear View

COMPLETE ASSEMBLY

www.ikancorp.com 713-272-8822
