Ikan IB 500 Bedienungsanleitung
IBK 2513
Large Interview Kit Package
www.ikancorp.com
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
3903 Stoney Brook Dr. Houston TX 77063
1.713.272.8822
© 2010 ikan Corporation. All right reserved

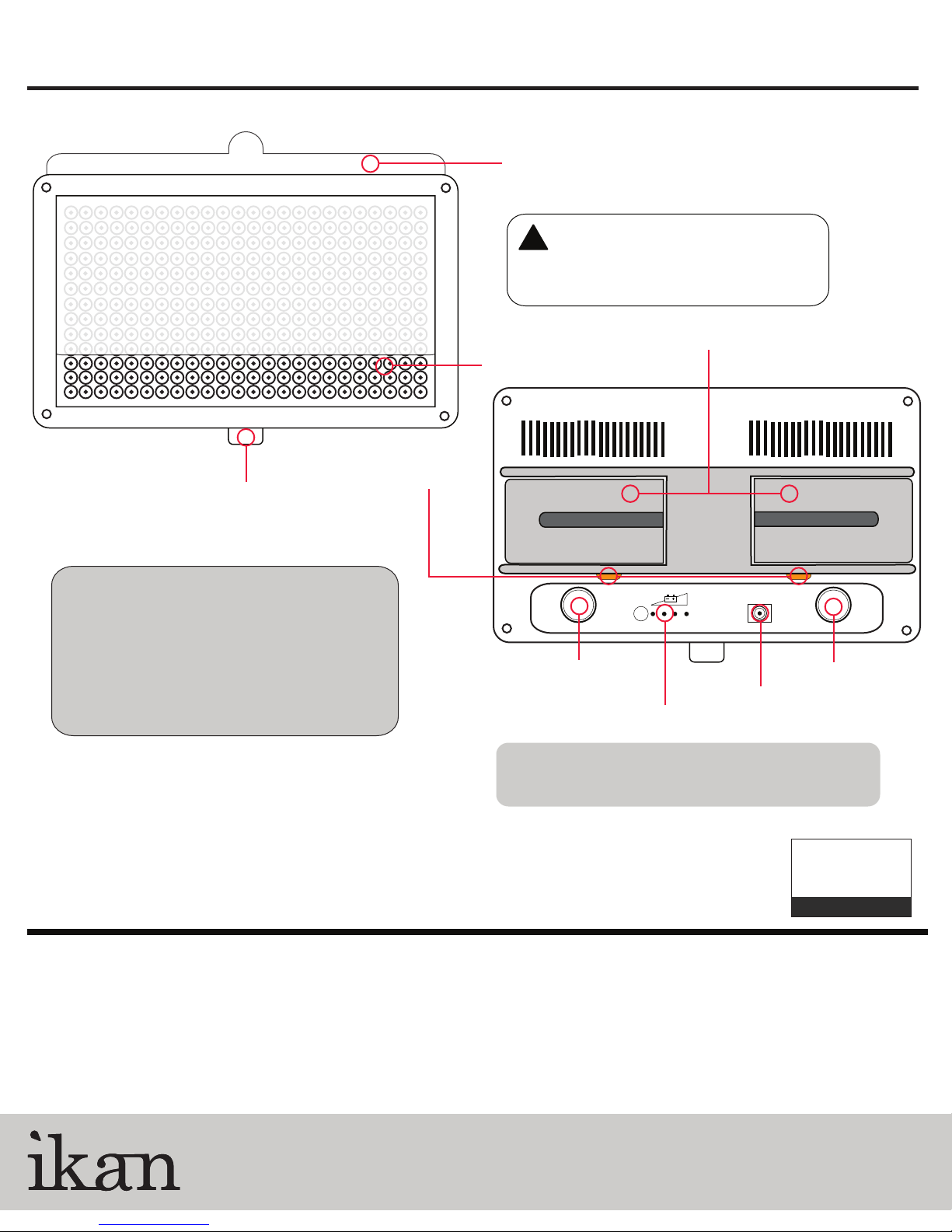

What’s included
Checked by
2 x IB500 LED Light
1 x iLED 312 LED Light
3 x Light Stands
1 x IBG-500-3L Light Kit bag
QuickStart Guide:
IB500 LED Light QSG
iLED 312 LED Light QSG
IB 500
L.E.D. Light QUICKSTART GUIDE
www.ikancorp.com
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
3903 Stoney Brook Dr. Houston TX 77063
1.713.272.8822
© 2010 ikan Corporation. All right reserved
What’s included
Checked by

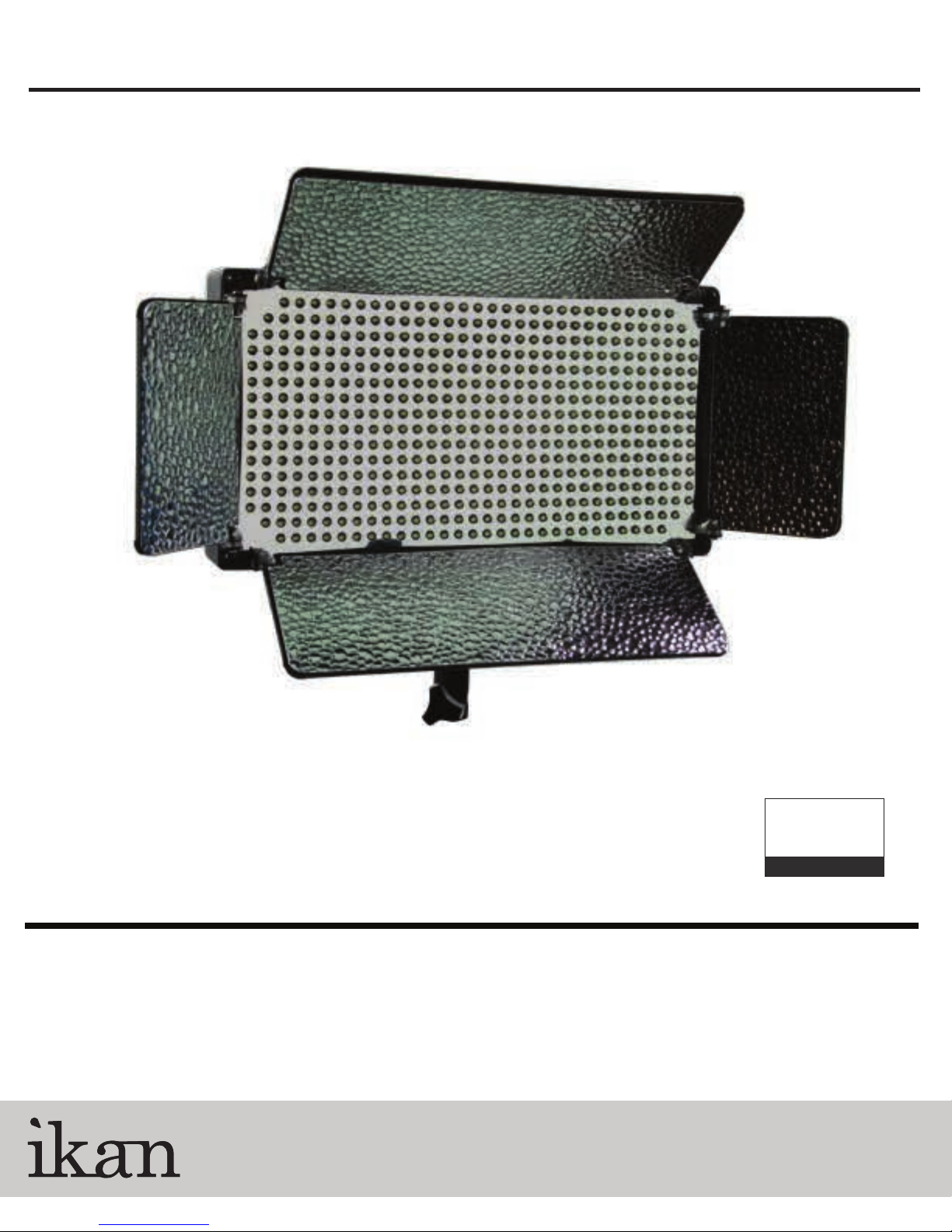

IB 500 Light
AC Adapter + Power Cord
Remote Control
IB 500
L.E.D. Light QUICKSTART GUIDE
www.ikancorp.com 713-272-8822

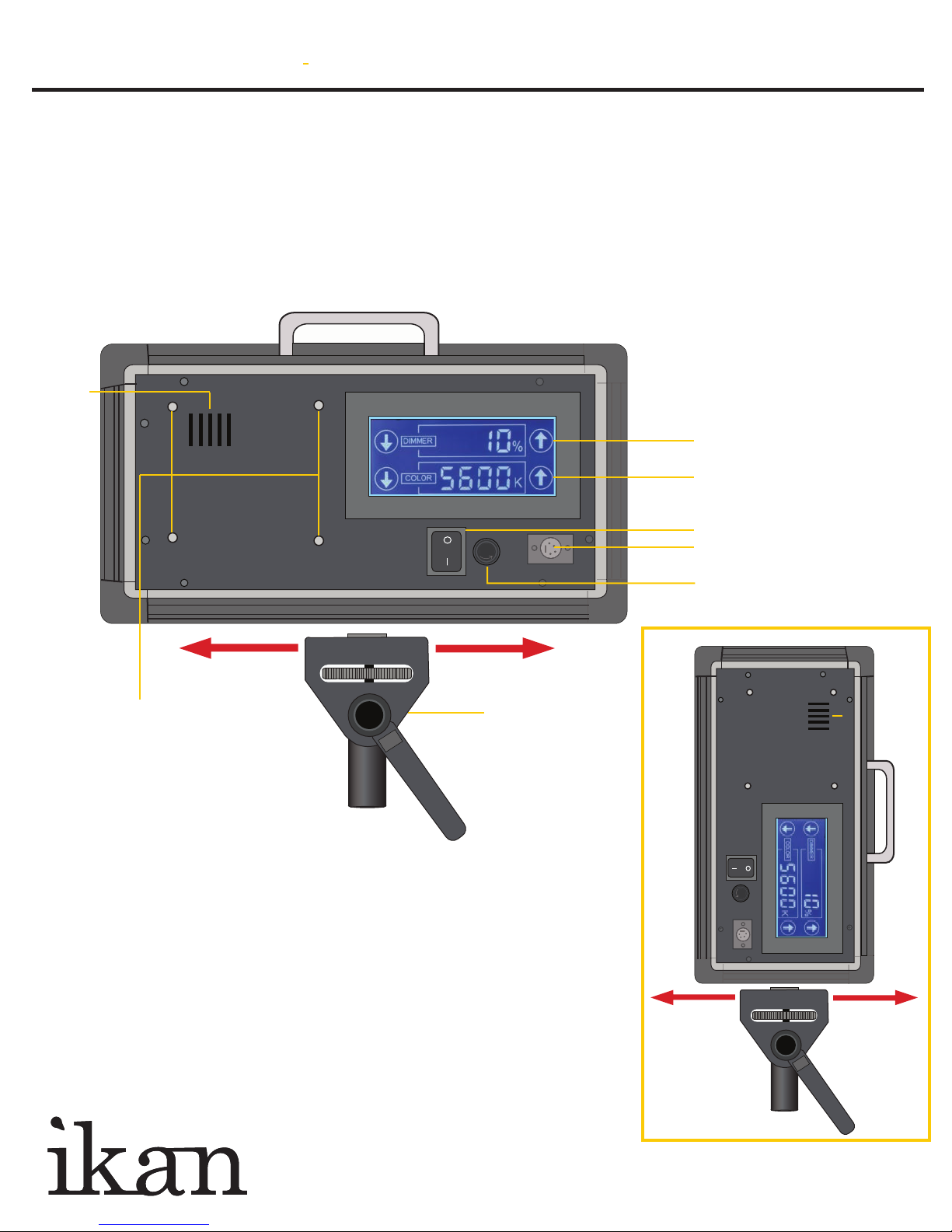

Back View
Light Stand Adapter
+
+
+
+
+
+
+
+
+
+
+
FUSE
Power Switch
Fuse
Color Switch
Dimmer Switch
DC Power Connection
Vents
Mounting
Pro Battery
Option
++
+
+
+
+
+
+
+
+
+
+
++
FUSE
GETTING STARTED
1. Connect the included AC Adapter to power the IB 500 light.
2. Turn the light on / off with the Power Switch.
3. Control the amount of the light with the Dimmer knob. Adjust the intensity of the light by
turning the Dimmer Knob clock-wise to increase the intensity and counter clock-wise to reduce it.
4. The IB 500 can also be powered by pro battery (optional accessories).
Put it Where You Want It
The IB 500 comes with a movable and detachable
Light Stand Adapter allowing you to mount your light
either horizontally or vertically.
IB 500
L.E.D. Light QUICKSTART GUIDE
www.ikancorp.com 713-272-8822
Operation
Indicator

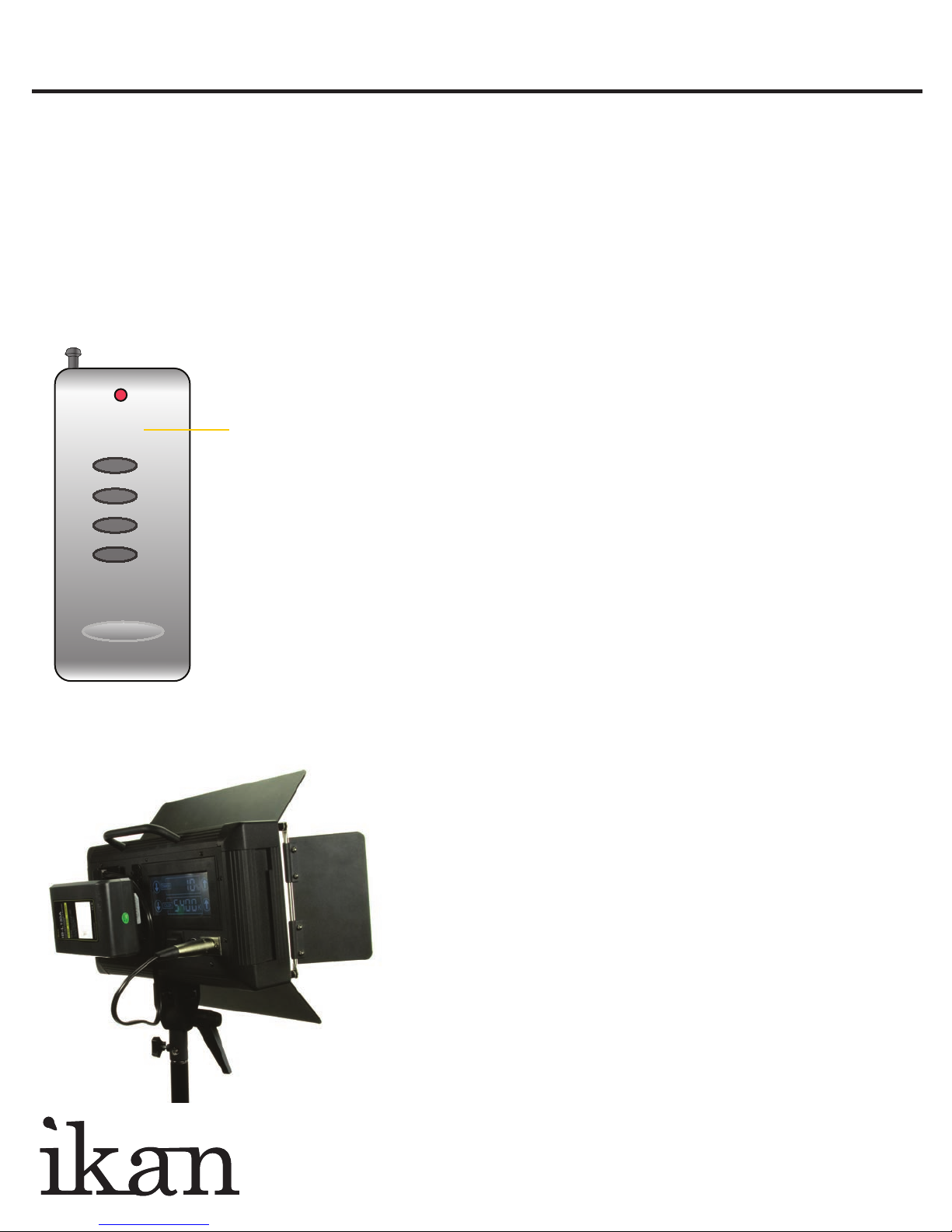

On/Off Remote Control Buttons
A. Power On/Off
Press and hold for 5 seconds to sync remote control to light.
B. Press button to adjust 4 levels of light intensity.
Press and hold for 5 seconds to enable/disable sound.
C. Hold down to increase light intensity
D. Hold down to decrease light intensity
SPECIFICATIONS
Operating Volts: 12v - 14.4v
Wattage: 30w
Brightness: 2.55Klux/50cm
Color Temperature: 5600K
Dimension: 13.8” x 7.5” x 2.7”
Weight (lbs): 5.8
• Pro Battery Option
Optional Accessories
• V17PBK-S Pro Battery Kit $149.00
• V17PBK-A Pro Battery Kit $149.00
• IB-L130A AB Mount Professional Battery $375.00
• IB-L130S V Mount Professional Battery $375.00
A
B
C
D
IB 500
L.E.D. Light QUICKSTART GUIDE
www.ikancorp.com 713-272-8822
IB 500 LUX Drop Off
IB 500 LUX Drop Off

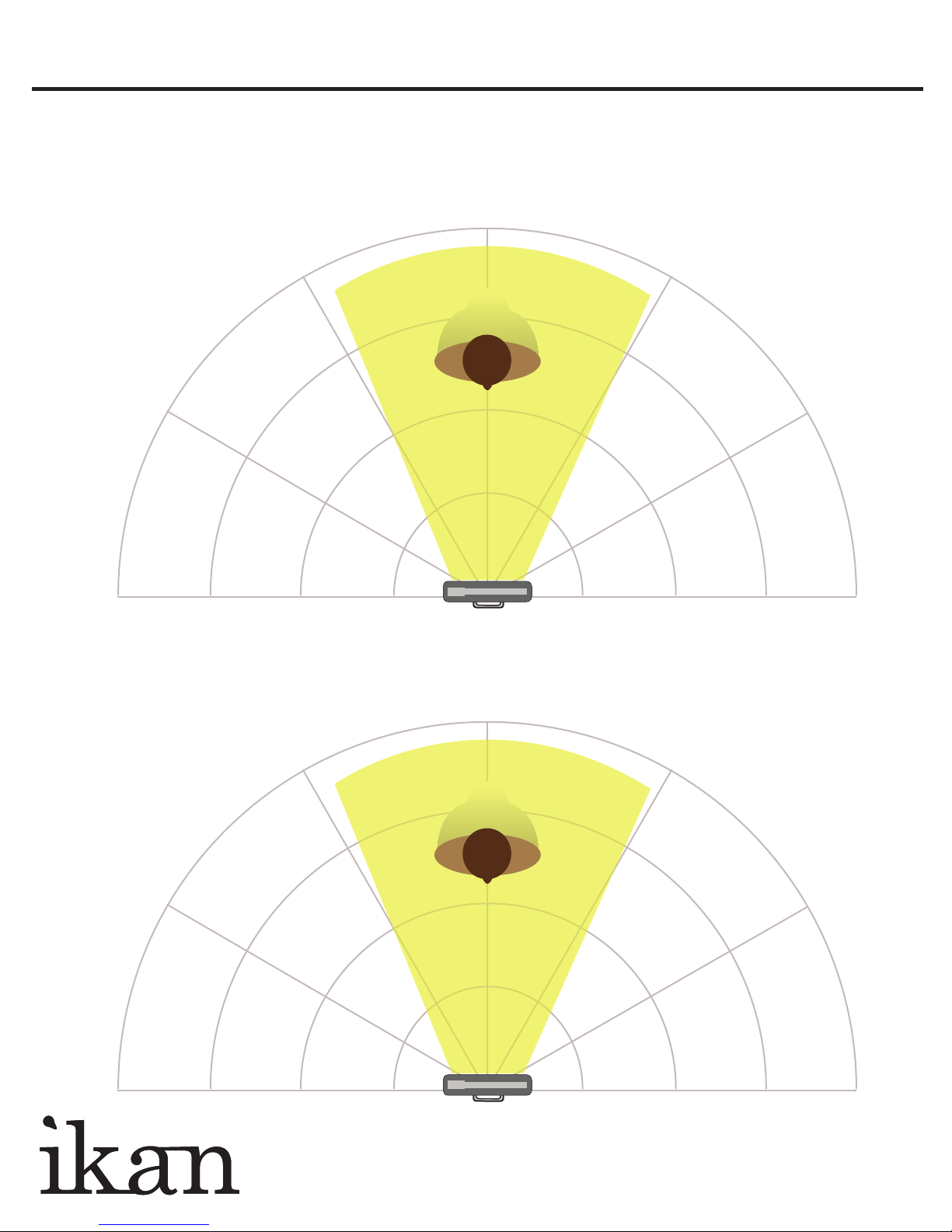

The right amount of light
The IB 500 lux drop off (Vertical)
900
9000 ft
1 meter
3 meters
6 meters
600
600
300
300
00
5560 fc / 216 lux
5540 fc / 480 lux
5560 fc / 2.51 lux
The right amount of light
The IB 500 lux drop off (Horizontal)
900
9000 ft
1 meter
3 meters
6 meters
600
600
300
300
00
5590 fc / 222 lux
5580 fc / 584 lux
5560 fc / 2.55 lux
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
iLED 312
On-Camera Dual Color LED Light QUICKSTART GUIDE
www.ikancorp.com
3903 Stoney Brook Dr. Houston TX 77063
1.713.272.8822
© 2010 ikan Corporation. All right reserved
!Warning:
•Do not block the vents or look directly at the
LED light while its on.
•The body of the light might get hot, after
prolong use.
T
3200~5600K 10~100%
DC7.4~14.8V
PUSHPUSH
OFF ON
SPECIFICATIONS:
Bulb Type: 312LEDs
Brightness: 6580 lux / 50cm
Color Temperature: 3200 K - 5600 K
Voltage: 7.4V-14.8V
Weight (lbs): 1.2
Dimension (inch): 7 ½ x 1 ¼ x 4 ½
What’s included
Checked by
iLED 312 Light Soft Carrying Case
AC Adapter SM201 Shoe Mount
Sony “L” DV Battery Diffusion Filter
DV Battery Charger
Sony “L”Series Battery
Built-In
Dimmer
Battery Life
Indicator
DV Power
Variable Color
Temperature
Battery Release
Wide Angle LEDs
“Diffussion” Filter
¼-20 Thread
Note: Due to the way the Sony L 500 Series and 300 series batteries
are designed, Sony MP-F330/F570/F550 batteries will not work
on the left battery slot of the iLED312.
