Ikan VXF7-DK Bedienungsanleitung

What’s Included

QUICKSTART GUIDE

1 x VXF7 Monitor

1 x AC Adapter

1 x Camera Shoe Mount (SM-201)

1 x Screen Cleaning Wipe

1 x Screen Protector

1 x Sunhood

1 x DV Battery Plate

1 x DV Battery

1 x DV Battery Charger

1 x Standard to Mini Cable (1.5 ft)

1 x Standard to Micro HDMI Cable (1.5 ft)

1 x Hard Case

VXF7-DK

VXF7 Field Monitor Deluxe Kit

www.ikancorp.com 713.272.8822

Sony “L” Series

Canon “900” Series

Canon “E6” Battery

Panasonic “D54” Series

Nikon “EL15” Series

Getting Started

Front

www.ikancorp.com 713-272-8822

DV BATTERY PLATES

 VX7c-1: Canon 900, Sony L,

Panasonic D54 Battery Plates

 VX7c-2: Canon E6, Nikon EL15, Panasonic

G6 Battery Plates

VX7c

7” 3G -SDI Monitor w/ Signal Conversion QUICKSTART GUIDE

12 3 4 5 6 7810 11 12 13 14

VX7c

Input

ASPECT/

EXIT

BRIGHT CONTRAST CHROMA SHARPNESS

RGBTINT

User programmable function buttons. For quick access, the user may

program the F1 through F4 buttons to enable frequently accessed

monitor features.

Power Switch

Power ON / OFF

Power Indicator Light

When the power is ON, the LED green lights up

F1 / Button

Function key actions are selected in the menu

F4 / Button

Function key actions are selected in the menu

F2 / Button

Function key actions are selected in the menu

F3/ Button

Function key actions are selected in the menu

Input & Aspect/Exit Buttons

Aspect: 16:9, 4:3, Full

In MENU, it is to exit the menu

Button

Toggle left in MENU setting mode

and Buttons

Toggle up and down in MENU setting mode

/ MENU Button

Toggle right in MENU setting mode

In MENU, push button to select menu setting

BRIGHT/R Knob

Adjust brightness 0 - 100 (50)

Adjust red channel

CONTRAST/G Knob

Adjust contrast 0 - 100 (50)

Adjust green channel

CHROMA/B Knob

Adjust chroma 0 - 100 (50)

Adjust blue channel

TINT/SHARPNESS Knob

Adjust tint 0 - 100 (50)

Adjust sharpness 0 - 100 (10)

TALLY Indicator Lights

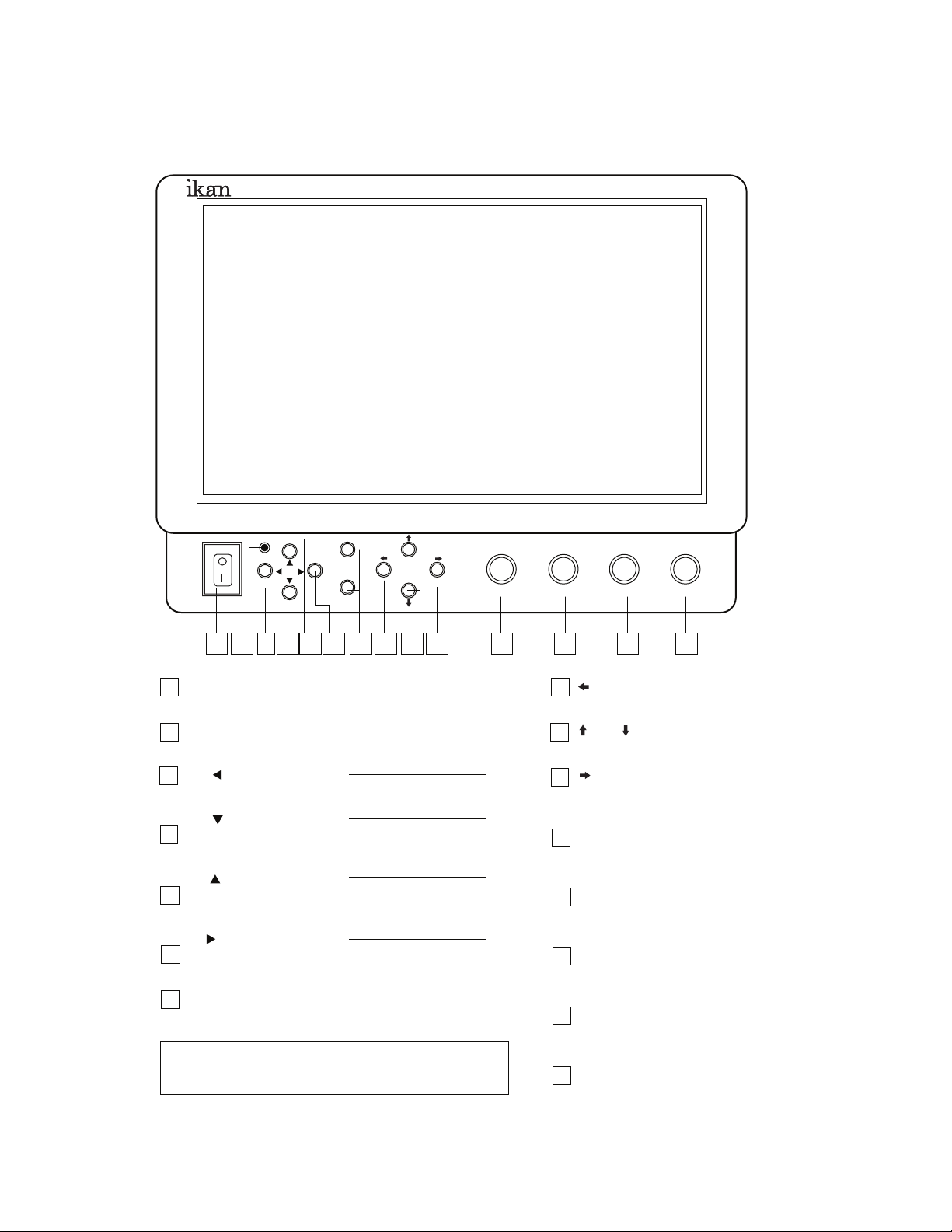

Front view

VXF7

Back

Getting Started

www.ikancorp.com 713-272-8822

VX7c

7” 3G -SDI Monitor w/ Signal Conversion QUICKSTART GUIDE

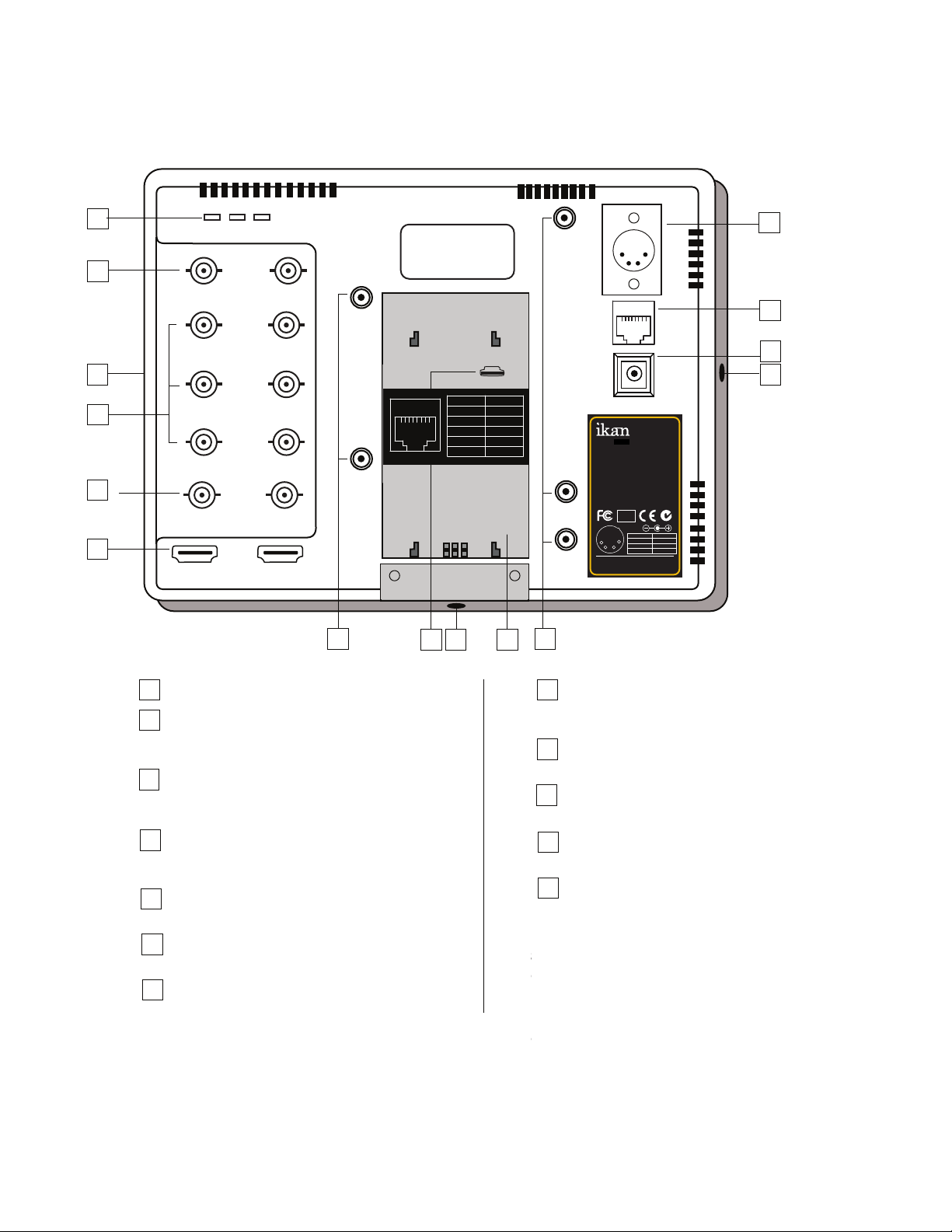

Rear view

Switch

50p

30p

25p

24p

24psf

720p

1080p

CAUTION: TURN OFF POWER

BEFORE ADJUSTING

SWITCHES

123 4 5

OFF

VIDEO

Y/C

SDI

DC 12V

DC 12V - 20V

OUT

HDMI

+ +

TALLY Indicator Lights

VIDEO terminal (BNC)

IN : Composite signal input terminal

OUT : Input signal through-out terminal

YPbPr terminal (BNC)

IN : Component signal input terminal

OUT: : Input signal through-out terminal

HDMI terminal

IN : HDMI input terminal

OUT: : Input signal through-out terminal

DC 12V-24V power terminal

XLR DC Connection

TALLY Input Connector

RJ45 Connection

DC 7-24V power terminal

Standard DC Connection

Pro Battery Plate Mount Holes

Threaded for M3x.07 screws. Use to attach pro battery

plate adapter.

USB terminal

For factory service use only

¼-20 Threaded insert (on three sides of monitor)

Mounting Monitor

DV Battery Plate Slot

Mounting ikan DV battery plate

3G-SDI

+ +

VIDEO

TALLY

OUT

HDMI

OUT IN

3G-SDI

1010

8911 8

1 2 3 4 5 6 7 8

PIN Number Signal

Yellow

Red

Green

GND

4 5 6 7

HIGH DEFINITION

3G-SDI LCD MONITOR

2 3

4Pin number Signal

2,3

GND

+12V

ikancorp.com MADE IN CHINA

RoHS

COMPLIANT

Model: VX7c

Picture Size: 7 inch

Resolution: 1280 x 800

Aspect Ratio: 16:9 / 4:3

Color System: NTSC / PAL

Operating Volts: DC 7.4 ~ 24V

Signal Input:

480i/p 576i/p 720p 1080i/p

*NOTE*

3G-SDI: Inputs automatically output via the 3G-SDI

output as well as the HDMI output.

HDMI: Inputs automatically output via the HDMI

output as well as the 3GI-SDI output.

Input can be converted to HDMI.

Enable this feature in the menu.

For future software updates

VXF7

Conﬁguration of Setting Menus

Function Set Up on following page.

Guides Toggle between the following: 80%, 90%, 15:9, 4:3, 1.5:1, 2:1, 2.35:1

Crosshair Activates Crosshair on center of screen.

Grids Activates grids on the screen to assist with framing.

Video Conﬁg Brightness: 0-100

Contrast: 0-100

Chroma: 0-100

Sharpness: 0-100

Tint: 0-100

Color Temperature 5600K, 6500K, 9300K, Manual

Backlight Allows user to ﬁne tune the intensity of the LCD Panel’s backlight.

Aspect Allows user to change the aspect ratio of the image.

System Conﬁg OSD - Language: Choose between English & Chinese for OSD.

OSD - Duration: Choose how long the menu stays active without activity.

OSD - Transparency: Choose from low, medium, high, or off.

MENU Setup - Allows 5 users to save menu settings.

System Reset - Reset Settings to factory defaults.

HDMI Out Option This option allows the user to enable SDI to HDMI conversion.

The user can choose between SDI to HDMI or HDMI to HDMI.

Displays a crosshair on the center of the screen.

The DH5e is equipped with Monochrome Peaking features, which highlight

the desired focus area in a bright, red outline. The operator adjusts the focus

control until the red indicator outlines on the desired area are razor sharp,

indicating optimal focus. For best results, be sure object is properly exposed.

The DSLR Scaling function will allow users to extend their DSLR camera’s

HDMI Video Output any option of four; Normal 3:2, 16:9, or Full Screen.

Convenience Made simple.

The 1:1 pixel-to-pixel mapping allows you to emphasize on individual

chosen elements in the shot. This feature is essential for ensuring that you

are in focus.

This feature allows you to enlarge the image up to 3x.

Toggles between the Blue only, Red only, Green only, & Mono Modes.

This is to help calibrate the image.

This function displays the blanking portion of the incoming signal.

Activates grid on screen to assist with framing.

This feature utilizes a full spectrum of assigned color indicators, ensuring

ﬂawless shot exposure. Under/Over luminance warnings enable the user to

get the desired quality every time.

Displays Audio Stereo Levels.

The DH5e offers adjustable upper Clip Guide levels to accurately display

overexposed images in any shooting condition. The operator simply assigns

the upper IRE to their preference and any exposure over the set IRE limit will

ﬂash in a vivid purple, indicating only the over exposed area.

A graphical representation of the pixels exposed in your image. The left side

of the graph represents the blacks or shadows, the right side represents the

highlights or bright areas and the middle section is mid-tones. How high the

peaks reach represent the number of pixels in that particular tone. This tool

helps you get proper exposure.

When using a 5D Mark II this mode improves the time it takes for the image to

appear when going into record mode from live view.

Displays currently installed ﬁrmware.

Used to update ﬁrmware when a USB containing update ﬁle is inserted.

Function Set Up 1-4

Guides

Crosshair

Peaking

Underscan

DSLR Scaling

Zooming

Pixel-to-Pixel

Check Field

HV Delay

Grids

False Color

Audio Wave

Clip Guides

Histogram

5DII Rec.

Firmware Version

Information

Update (USB)

NOTE:

To see further options

for an active function,

hold the function key

for 2 seconds until

option mode appears.

Function Set Up

Speciﬁcations

Supported Video Signals

Aspect Ratio 16:10

Backlight LED

Brightness 300 cd/m2

Build Material Heavy Duty Plastic

Color Depth 16.7 Million

Color System PAL / NTSC / SECAM (Auto-Detected)

Contrast Ratio 800:1

Dimensions 7.36 x 5.6 x 1.3 In.

Display Technology IPS

Input Voltage DC 6V-24V

3G-SDI 1920x1080p @ 50, 59.94, 60 Hz

HD-SDI

1280x720p @ 50, 59.94, 60 Hz

1920x1080i @ 50, 59.94, 60 Hz

1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz

1920x1080p @ 23.97, 24, 25, 29.97, 30 Hz

SD-SDI 720x480i @ 60Hz

720x576i @ 50Hz

HDMI

720x480i & 720x480p @ 59.94, 60 Hz

720x576i & 720x576p @ 50 Hz

1280x720p @ 50, 59.94, 60 Hz

1920x1080i @ 50, 59.94, 60 Hz

1920x1080psf @ 24, 25, 29.97, 30 Hz

1920x1080p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz

3840x2160p @ 24, 25, 30 Hz

4096x2160p @ 24 Hz

Component

720x480i @ 60 Hz

720x576i @ 50 Hz

1280x720p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz

1920x1080i @ 50, 59.94, 60 Hz

1920x1080psf @ 24, 25, 29.97, 30 Hz

Composite

NTSC-M, NTSC-J, NTSC 4.43

PAL B/G H I D, PAL M, PAL N

SECAM

Inputs 3G-SDI, HDMI, Component, Composite

Outputs 3G-SDI, HDMI, Component, Composite

Pixel Pitch 0.07875 x 0.07875mm

Power Consumption 11W

Resolution 1920 x 1200

Response Time 20ms

Viewing Angle 178 (H) 178(V)

Shipping Dimensions 14.75 x 7.75 x 3 In.

Shipping Weight 3 lbs

Optional Accessories

MA207

MA211

MA211-R

MOUNTS BATTERY PLATES

BP5-C

BP5-E6

BP5-P

BP5-S

BP5-N

BP5-PG6

BP5-SU

7 In. Articulating Arm

11 In. Articulating Arm

11 In. Articulating Arm w/ Single

Rod Mount

Canon 900 Battery Plate

Canon LP-E6+ Battery Plate

Panasonic D54 Battery

Sony L Series Battery Plate

Nikon EN-EL15 Battery Plate

Panasonic G6 Battery Plate

Sony BP-U Series Battery Plate

Learn More

More dynamic information at ofﬁcial website: www.ikancorp.com

Support

Contact email: [email protected]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.

• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.

• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.

Inhaltsverzeichnis

Andere Ikan Monitor Handbücher

Ikan

Ikan VX7e Deluxe Kit Bedienungsanleitung

Ikan

Ikan V9200 Bedienungsanleitung

Ikan

Ikan MS21-V2 Bedienungsanleitung

Ikan

Ikan DH5e-DK Bedienungsanleitung

Ikan

Ikan V8000 Bedienungsanleitung

Ikan

Ikan VX Series Bedienungsanleitung

Ikan

Ikan PT17-SDI Bedienungsanleitung

Ikan

Ikan V8000 Bedienungsanleitung

Ikan

Ikan V17e-FK Bedienungsanleitung

Ikan

Ikan D7w-DK Bedienungsanleitung

Ikan

Ikan D5 Bedienungsanleitung

Ikan

Ikan D12 Bedienungsanleitung

Ikan

Ikan V7000 Bedienungsanleitung

Ikan

Ikan HS-PT700-RC Bedienungsanleitung

Ikan

Ikan D5w Bedienungsanleitung

Ikan

Ikan V17E Bedienungsanleitung

Ikan

Ikan V7000 Bedienungsanleitung

Ikan

Ikan VH7e-DK Bedienungsanleitung

Ikan

Ikan V5600 Bedienungsanleitung

Ikan

Ikan V8400D Bedienungsanleitung

Ikan

Ikan V800HDMI Bedienungsanleitung

Ikan

Ikan VX7 Deluxe Kit Bedienungsanleitung

Ikan

Ikan D7-DK Bedienungsanleitung

Ikan

Ikan VH7 Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
