8 in. Dome with Shade 5510.45
Instructio n Manual
2
#$-'0(0/4'/43
Important Notice ............................................P. 3
Port Bodies ....................................................P. 4
Install Port Bodies on the 8” Dome ................P. 5
Install Port on a Housing................................P. 6
Remove Port from a Housing............................P. 8
Port Shade Alignment........................................P. 8
Port Lock Information ....................................P. 9
Port Shade Installation/Removal....................P. 10
Port Seal - Inside View ..................................P. 12
ptional Replacement -rings ......................P. 13
Maintenance ..................................................P. 14
Ikelite Limited Warranty..................................P. 15
Returning Products for Service ......................P. 16
3
.1024#/404+%'

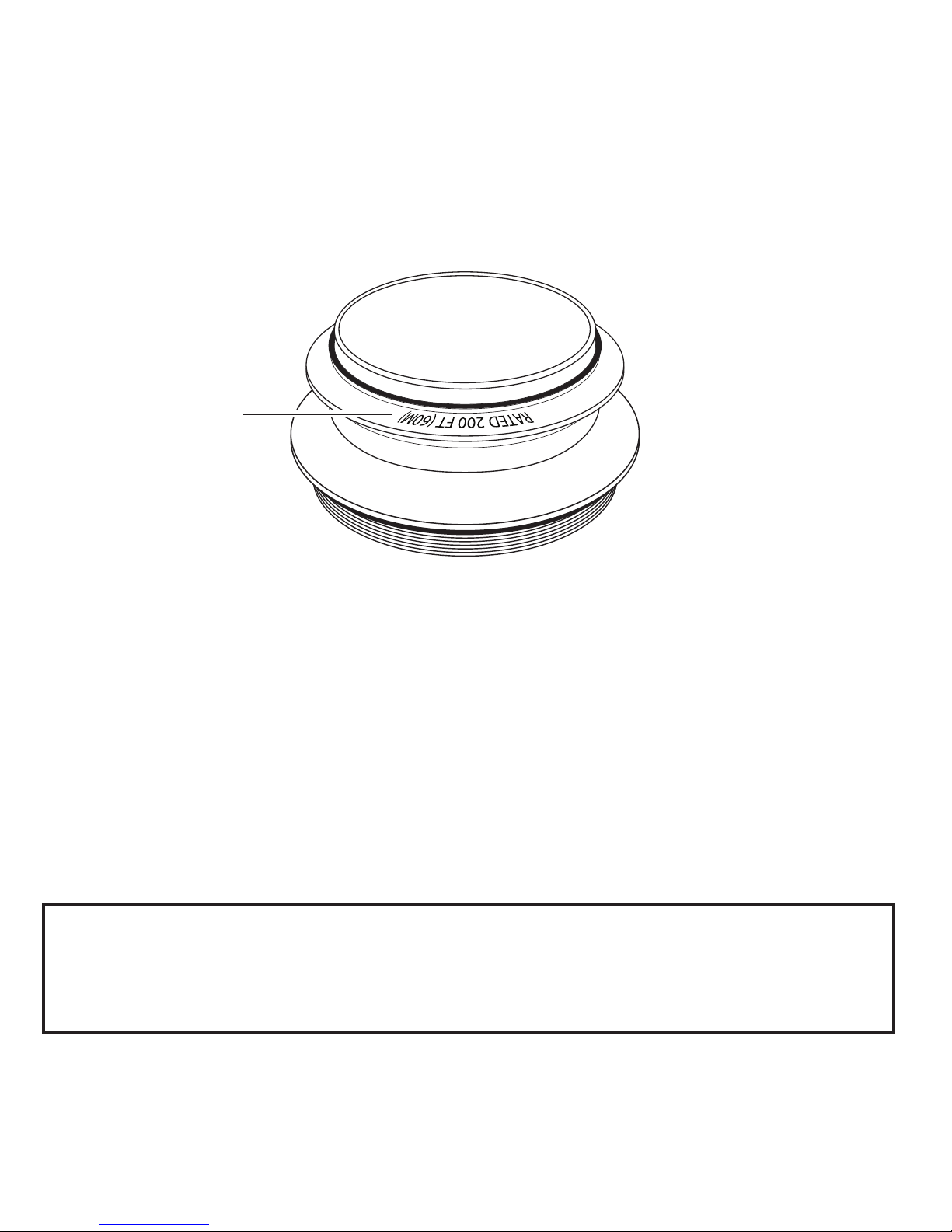

Port bodies are engraved with a Maximum Depth Rating;
“RATED 200 FT (60m).” They are engraved on the flat flange
that rests against the front of the camera housing; see
illustration.
lder standard and extended port bodies that are N T
engraved have a Maximum Depth Rating of 150 ft. (45m). The
unmarked standard or extended port bodies can be returned to
Ikelite for a no charge replacement with the newer 200 ft. (60m)
rated bodies. 0/04 send the dome when returning the port
body.
All super wide bodies are “RATED 200 FT (60m)” whether
they are engraved or not. 0/04 return super wide bodies
for exchange.
Maximum Depth
Rating engraved
on flange
4
0240&+'3

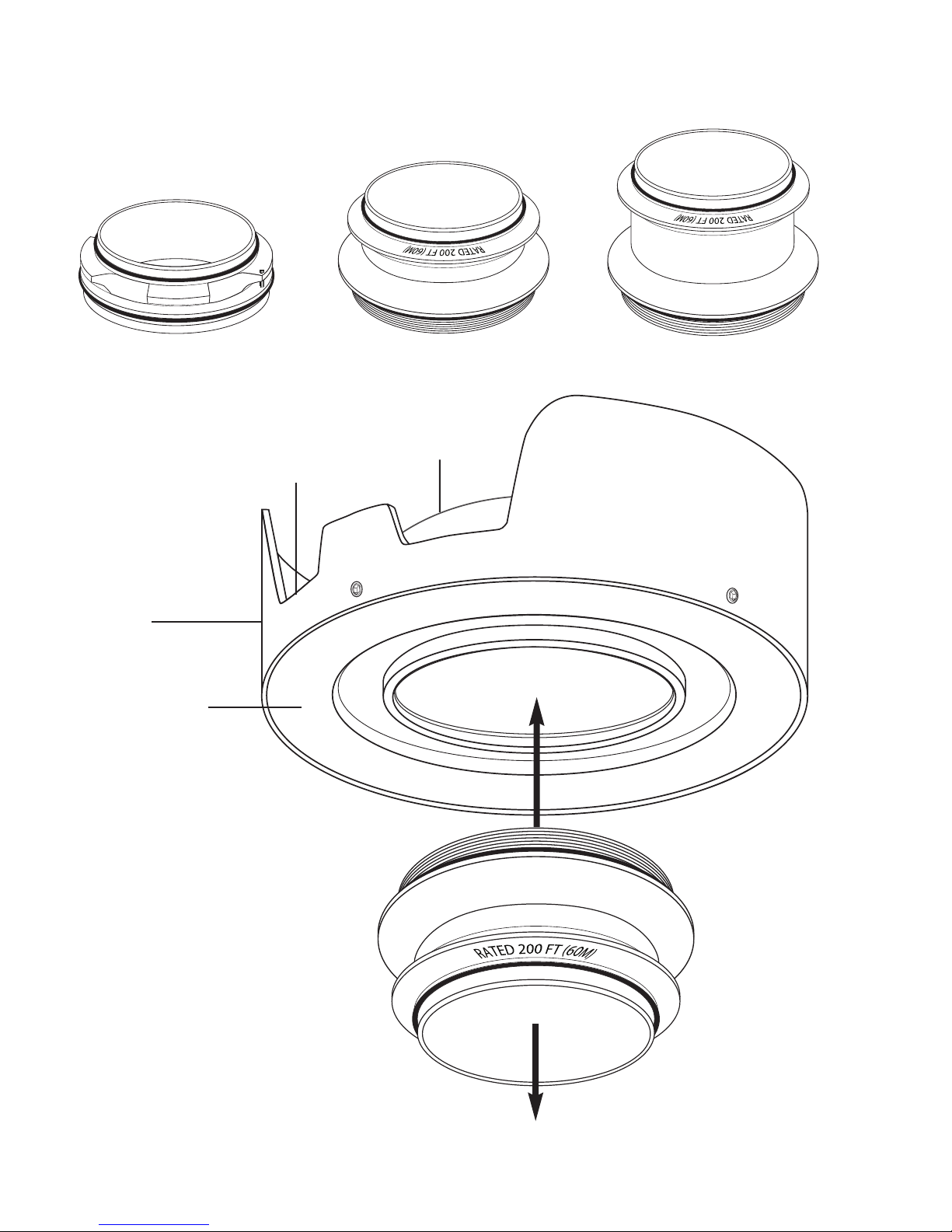

For information on the full selection of 8 in. dome port bodies,
please visit 777+,'-+4'%0..
II
IV
Dome with Shade
5510.45
Extended Body
5510.24
Standard Body
5510.16
Super Wide Body
5510.11
Camera Housing / Port pening
Dome
Shade
Base Plate
Cut-outs
5
/34#--0240&+'30/4*':0.'

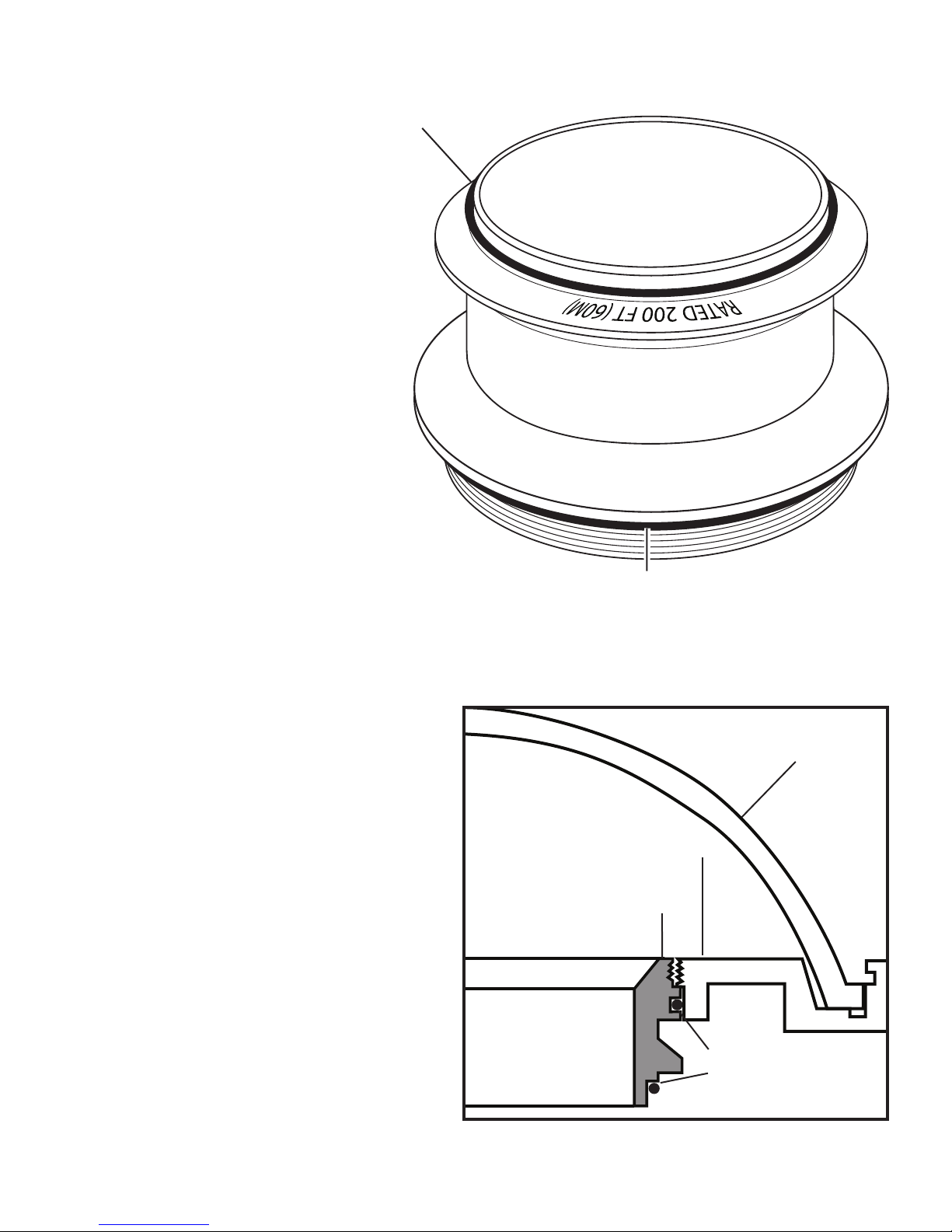

Install bodies by
screwing them into
the base plate of the
5510.45 dome port.
The seal between the
body and the dome
base plate is a side to
side seal and requires
the o-ring to be lightly
lubricated for easy
installation. Remove
the body/base plate
o-ring, put a small
amount of lubricant
on your fingers and
pull the o-ring through
your fingers to lightly lubricate it. Do not stretch the o-ring.
Check that the o-ring groove in the body where the o-ring fits
and the sealing surface on
the port base plate are clean.
Replace the o-ring onto the
body and then screw the
body into the base plate of
the dome port. Screw the
body in until it stops. The
front edge of the body should
be flush or slightly above the
inside face of the dome base
plate as shown
in the cross-section.
Dome
Front edge of Body
Face of Base Plate
%20333'%4+0/
Port Body
Housing/Port o-ring
Body/Base Plate o-ring
-rings
Port Body
6
/34#--0240/#053+/)

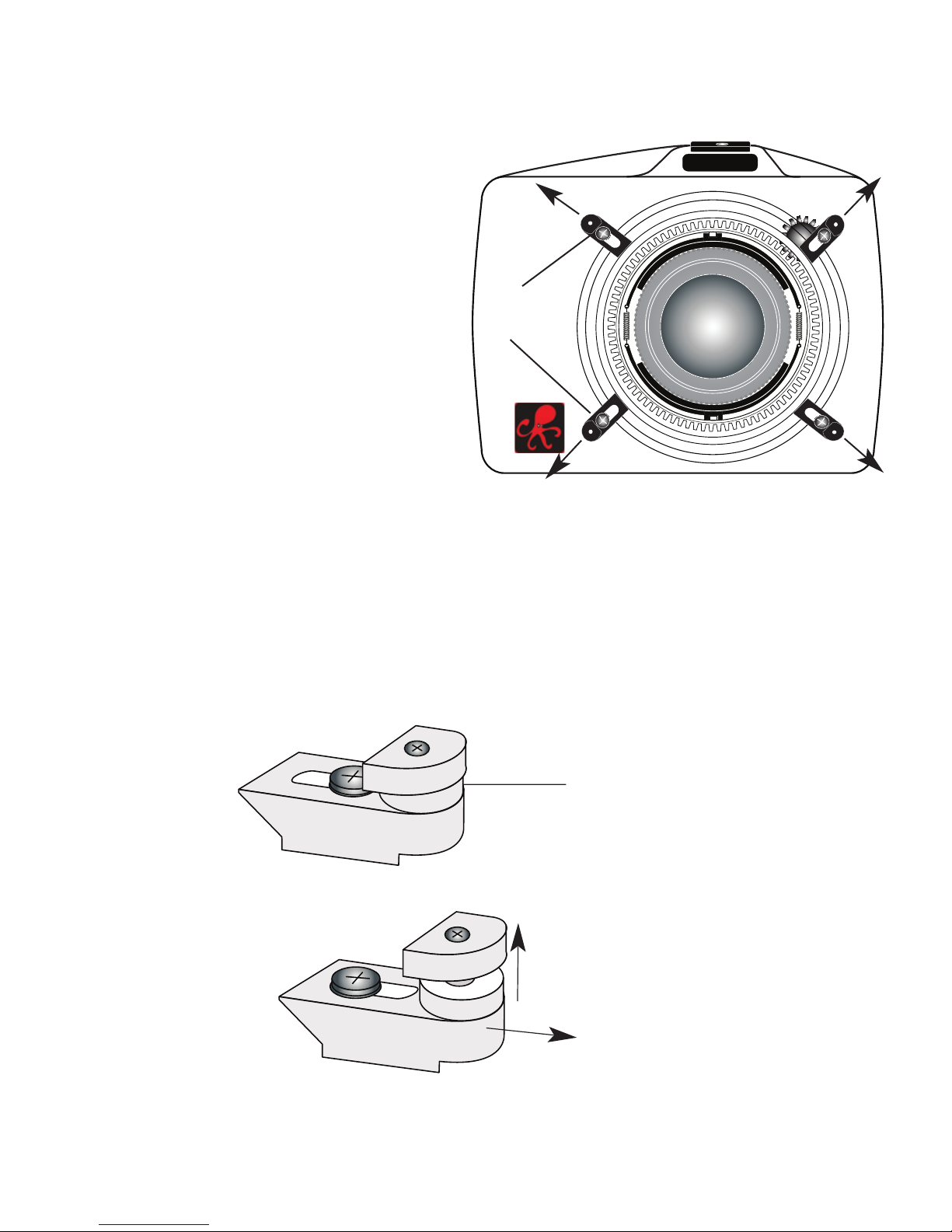

There are four port locks on the front of the housing. Each port
lock has a release button. Lift
the release button and slide
each port lock away from the
port opening. In the unlocked
position, the release button
will remain in the “up”
unlocked position as shown.
Whe usi g the 5510.11
superwide port body, the port locks must be i the “dow ” locked
positio . Refer to your 5510.11 i structio ma ual for this
i stallatio .
Port Lock
Release
Button
Lift Release
Button to
Unlock
Pull Back to
Disengage
Port
“Up” Unlocked Position
“Down” Locked Position
IKELITE
Port
Locks
0240%,
7
/34#--0240/#053+/)%0/4
To prepare the port for installation, remove the port o-ring and
lightly lubricate it. The port seal is a side-to-side seal and
requires the o-ring to be lightly lubricated for easy installation.
Put a small amount of lubricant on your fingers and pull the
o-ring through your fingers to lightly lubricate it. Do not stretch
the o-ring. Check that the lip of the port where the o-ring fits and
the sealing surface on the housing are clean.
Place the port, with o-ring, into the housing port opening. Press
down on the port firmly and evenly until you feel the port slide
into place. Continue to push down on the port and push each
port lock forward until the lock fully engages. It may help to
slightly rotate the port as you push in on the port lock. Visually
inspect the port lock and confirm that the port lock release
button is seated flush against the port lock body - Page 6. Do
not rely only on an audible "click" to indicate that the lock is
engaged.
Check around the perimeter of the port seal to see that the
o-ring is properly sealed and not extruded #)'+).
Cut-out Cut-out
8
'.06'024 (20.#053+/)
'8%'147+4*51'27+&'0240&9
To remove the port, lift up on each Port Lock Release Button
and slide the port lock away from the port. Lift port from
housing.
The o-ring may be left in the port hole of the housing when the
dome port is removed. Replace the o-ring in the proper position
on the port body before reassembling the housing and dome
port.
To remove a port with a 5510.11 superwide port body, refer to
the 5510.11 instruction manual.

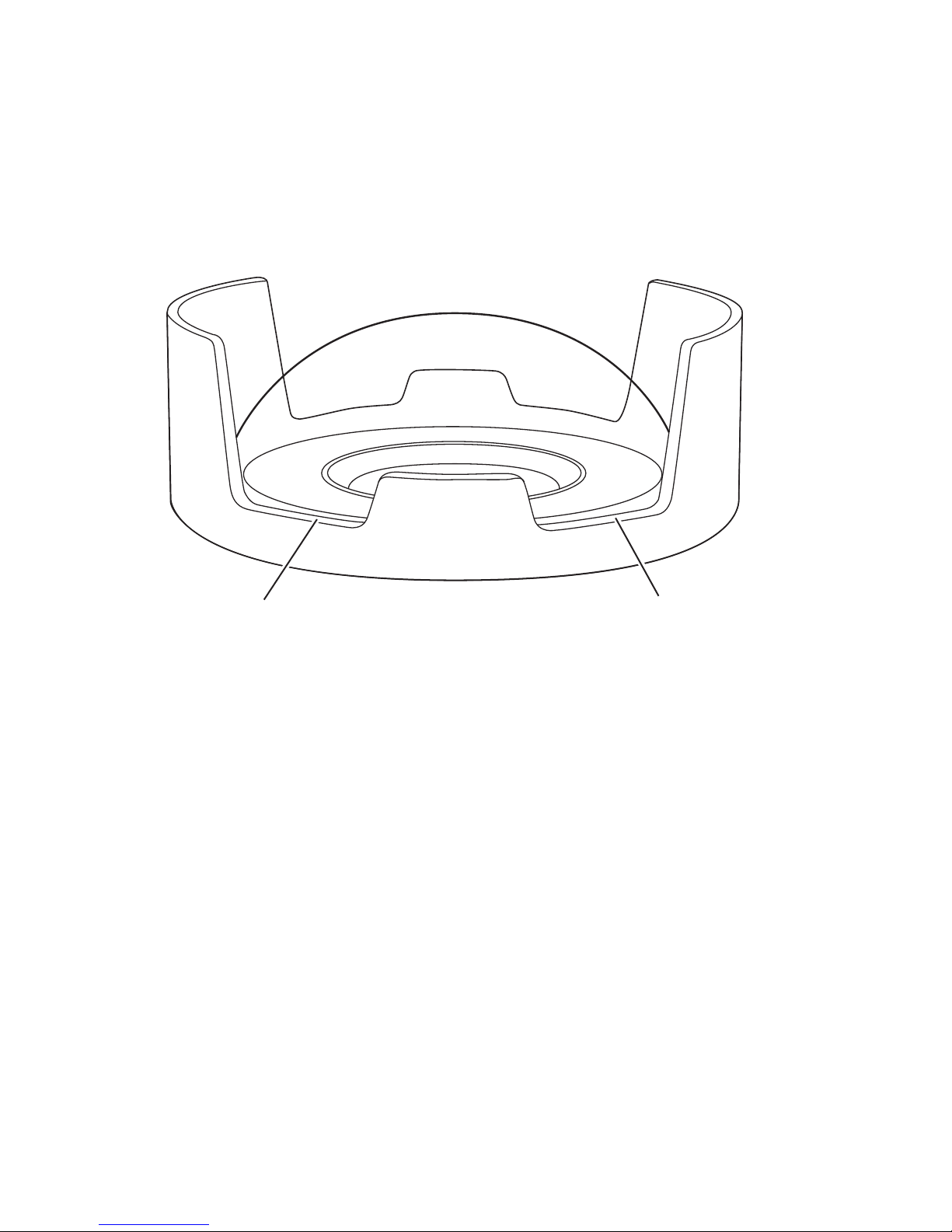

024*#&'-+)/.'/4
Rotate the port so the 4 cut-outs in the shade are at the 2, 4, 8
and 10 o’clock positions in relation to the camera lens view.
When using the 5510.11 superwide port body, refer to your
5510.11 instruction manual for proper shade alignment.
04'The Low Profile Port Locks work with all Ikelite port bodies.
nce they have been installed, there is no reason to replace
them.
0240%,/(02.#4+0/
7*'/53+/)4*'51'27+&'0240&9
When using the 5510.11 superwide port body, unmodified
(2-port lock housings) produced prior to March 2006 require the
installation of low-profile port locks (now standard on all DSLR
housings). These may be purchased through your local Ikelite
dealer or directly from Ikelite. Request two 9072.24 port locks
when ordering.
All Ikelite digital SLR housings produced since March 2006
(serial number 15798 and above) are fully compatible with all
port bodies including the 5510.11 superwide port body and
require no modification.

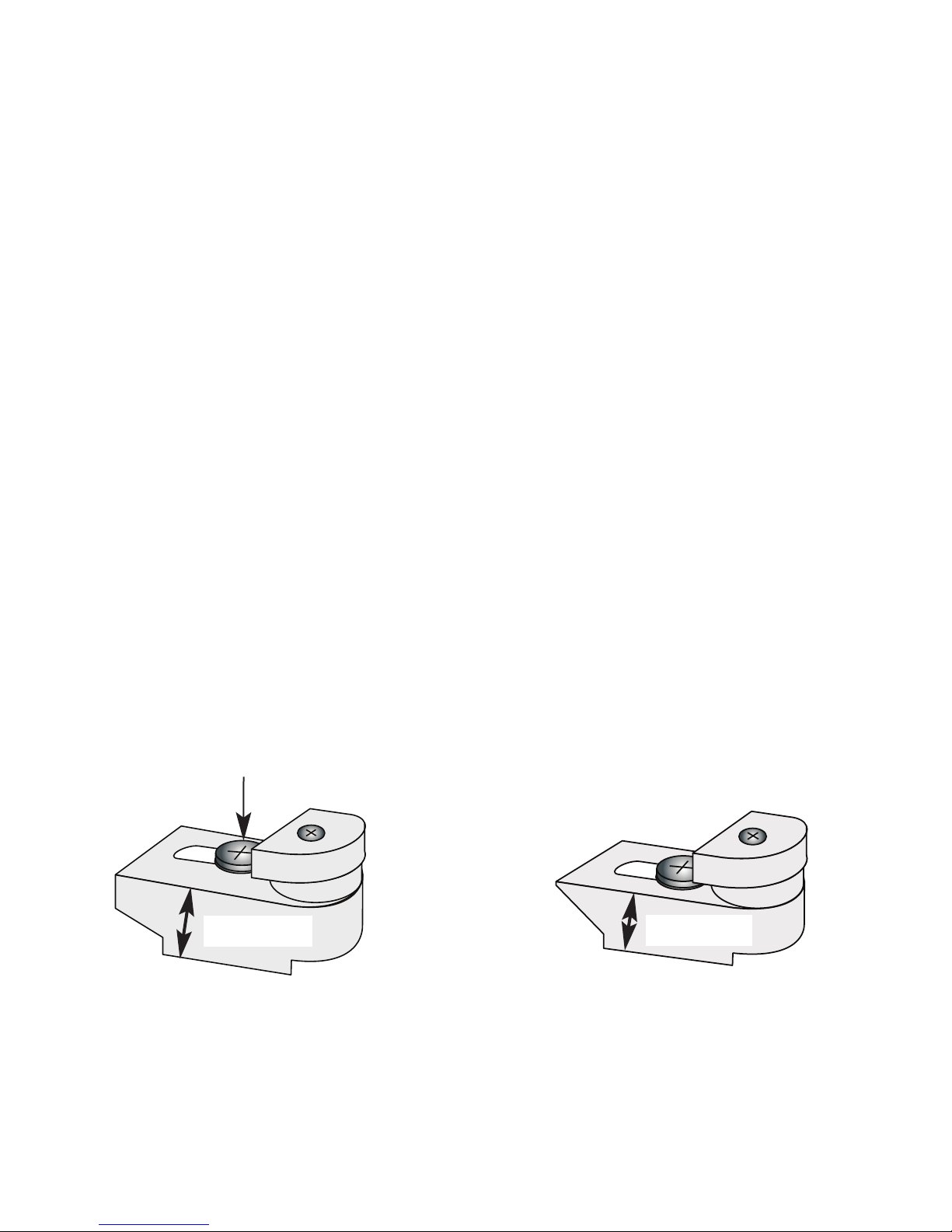

To visually compare older port locks, measure 7/16" from the
bottom to the top of the retaining screw slot. Low-profile port
locks measure 5/16". Refer to the figures below.
Ikelite film SLR housings are not compatible with the 5510.11
superwide port body.
Standard Port Lock
Port Lock
Retaining Screw
Low-Profile Lock
Measure Measure
9
10
024*#&'/34#--#4+0/'.06#-
- Reference illustrations on page 11.
1. Place the port shade on a flat surface with the cut-out
section face down +)1#)'.
2. Loosen the four set screws with the Allen wrench. The set
screws do not have to be removed, unscrew them until the
face of the set screw does not protrude beyond the inside
face of the dome shade.
3. Carefully place the port inside the shade with the
dome face down +)1#)'. The dome port should
rest on the two inner ledges of the shade +)1#)'.
4. Hold the port in place and tighten the four set screws
with the allen wrench provided. Tighten the set screws
until the face of each set screw is even with the face of
the port shade +)1#)'.
