Ikelite 6243.40 Betriebsanleitung
Digital Housing
Supplemental Instructions
6243.40 Canon Elph 140 IS, IXUS 150, Elph 135,
IXUS 145
Thank you for your purchase of Ikelite equipment. Please read the
“Instruction Manual” and “Supplemental Instructions” completely before
attempting to operate or dive with this product.
Housing Specifications
Controls ............................All camera functions
Width ................................5.9 in (150 mm) including controls
Height ..............................4.5 in (114 mm) including controls
Depth ................................4.1 in (104 mm) including controls
Weight ..............................1.2 lb (544 g)
Buoyancy..........................Slightly positive in freshwater
Depth Rating ....................200 ft (60 m)
Built-in Flash ....................Yes
Strobe Connection............Slave or Fiber ptic
Main -Ring ....................0132.45
Port -Ring ......................0103
Port uter Diameter ........3.0 in (76 mm)
Use 46mm Lenses............No
Use 67mm Lenses............Yes (moderate vignetting present with W/A lenses)
Use Bayonet Lenses ........No
2
Supplied Accessories
- 0200 Vinyl Port Cover
- 0321.10 Safety Lanyard
- Flash Diffuser
- Flash Deflector
- 0184.1 Silicone Lubricant
- Extra Control Tips and Sleeves
ULTRA
compact
Made in USA
4
7
65
3
1
89
2
Parts of the Housing
Back View
Power Switch
1. Playback Button
2. Movie Button
3. Auto/Single Erase/UP Button
4. ECO Button
5. FUNC./SET Button
Latch
6. Flash / Right Button
7. DISP. Display / Down Button
8. ?Help Button
9. MENU Button
Zoom Control
Front View Lens Port
Shutter-release Button
3
Tray Mounts
Fiber Optic Ports
4
Initial Camera Settings (before placing camera in housing)
- Insert a fully charged battery. Due to the power required to operate the
camera and LCD screen, start each dive with a fully charged camera
battery.
- Set Flash to “ n Flash always fires.”
- In FUNC./SE :
Set Light Metering to “ Center Weighted Avg.”
- Set White Balance to Auto “AWB.” For best results, set to Custom “ ”
and reset for each working depth.
- Set IS to “200.”
- Set Shooting Mode to “P” Program.
- Set Focus Range to “Normal” or “ Macro” for close-up shots.
- Set Image Recording Size to “L” 20M.
- Set Movie Quality to “HD.”
- In MENU Shooting Settings:
- Set AF Frame to “Center”
- Set Digital Zoom, AF-Point Zoom and Servo AF to “ ff.”
- Set Continuous AF to “ n.” A strobe focusing light is recommended to
assist AF underwater.
- Set Lamp Setting and Red-Eye Corr. to “ ff.”
- Set Review Image after shooting to “8 Seconds.”
- Set Blink Detection and Grid Lines to “ ff.” Set IS Mode to “Continuous.”
- In MENU Camera Settings:
- Set Date/Time and Time Zone.
- In Power Saving, set Auto Power Down to “ ff”; Display ff to “3 min.”
- Insert and Format an SCHD memory card.
Notes: Enable Macro mode when shooting close-up subjects. If
overexposure occurs, back away from the subject and zoom in, and/or
use “-” exposure compensation.
Camera functions not mentioned should be set to user’s desired setting.
5
W-20 and W-30 Wide-Angle Conversion Lenses
The front of the lens port accepts the Ikelite 6420 W-20, 6430 W-30, and
other 67mm threaded wide angle or macro lenses without the need for
an adapter. An external wide angle conversion lens increases angle of
coverage so you can get closer to the subject while still fitting everything
Moderate vignetting will likely occur at widest angle camera lens setting
with these lenses. Zoom in to eliminate, or crop the image in post
processing.
Bayonet mount lenses cannot be used with this housing.
External Accessory Lenses
Ikelite 6430 W-30 Conversion Lens
Please visit www.ikelite.com for additional information.
6

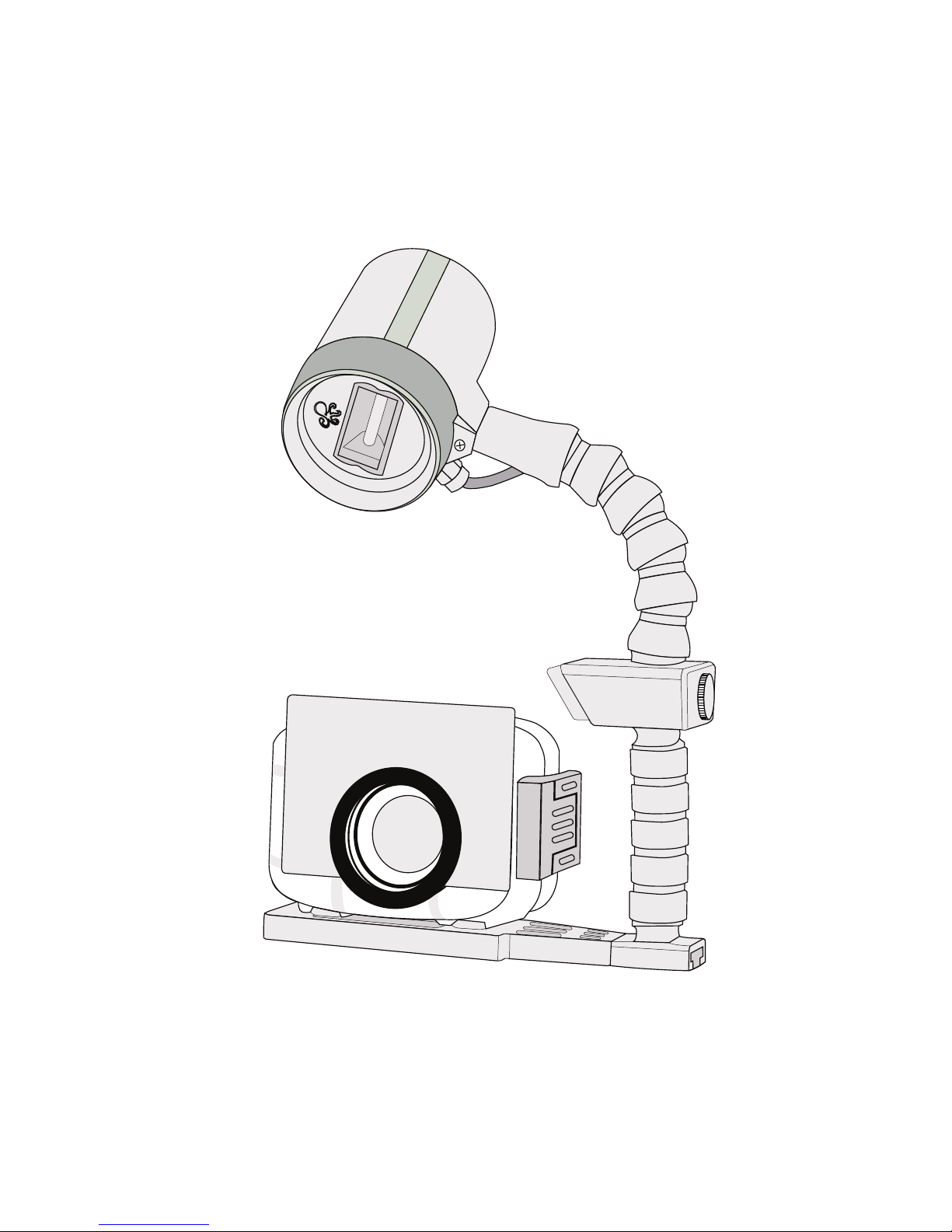

AF35 Strobe Package 4035
The AutoFlash AF35 kit is a great compliment, and an effortless,
affordable way to add a flash to your new Ikelite point and shoot camera
system. Everything you need to get started is in the box. Just attach it to
the bottom of your housing and start taking pictures!
The AF35 Strobe Package is available to support your housing along
with a full range of accessories. Please visit www.ikelite.com to see the
most current information about recommended accessories for your
housing.
ikelite
35
AF
ikelite
AUTOFLASH
Limited Warranty
This Ikelite product is warranted against any manufacturing defects for a
period of one (1) year from the original date of purchase. Defective
products should be returned to Ikelite postage paid. Ikelite will, at its sole
discretion, repair or replace such products, and will return to customer
postage paid. All other claims of any nature are not covered. Except as
mentioned above, no other warranty expressed or implied applies to this
Ikelite product.
7
Customer Support
Please read the troubleshooting section of the “Instruction Manual”
before contacting Ikelite.
6243.40_Canon_Elph_135_140is_1-0514
Ikelite Underwater Systems
50 West 33rd Street
Indianapolis, IN 46208 USA
www.ikelite.com
