Digital Housing

Supplemental Instructions

6233.03 Olympus TG-3

Thank you for your purchase of Ikelite equipment. Please read the

“Instruction Manual” and “Supplemental Instructions” completely before

attempting to operate or dive with this product.

Housing Specifications

Controls ............................All camera functions

Width ................................5.9 in (150 mm) including controls

Height ..............................4.5 in (114 mm) including controls

Depth ................................3.6 in (91 mm) including controls

Weight ..............................1.1 lb (499 g)

Buoyancy..........................Slightly positive in freshwater

Depth Rating ....................200 ft (60 m)

Built-in Flash ....................Yes

Strobe Connection............Slave or Fiber Optic

Main O-Ring ....................0132.45

Port O-Ring ......................0119.2

Port Outer Diameter ........3.0 in (76 mm)

Use 46mm Lenses............ o

Use 67mm Lenses............Yes (moderate vignetting present with W/A lenses)

Use Bayonet Lenses ........ o

Supplied Accessories

- 0200 Vinyl Port Cover

- 0321.10 Safety Lanyard

- Flash Diffuser

- Flash Deflector

- 0184.1 Silicone Lubricant

- Extra Control Tips and Sleeves

ULTRA

compact

Made in USA

Parts of the Housing

Back View

Power Button

1. Movie Button

2. Mode Dial

3. INFO Button

4. Exp. Comp. / UP Button

5. LEFT Button

Latch

6. OK Button

7. Right / Flash Button

8. Down / Erase Button

9. MEN / Wi-Fi Button

Shutter Button

Front View Lens Port

Tray Mounts

Fiber Optic Ports

Zoom Lever

Initial Camera Settings (before placing camera in housing)

- Insert a fully charged battery. Due to the power required to operate the

camera and LCD screen, start each dive with a fully charged camera

battery.

- Slide Mode Dial to “A” Aperture Priority and set Aperture to F2.0.

- Set Flash to “Fill In” .

- In MEN :

Set Compression to “Fine.”

Set AF Mode to “Spot.”.

Set ESP/ to .

Set Digital Zoom to “Off” and Image Stabilizer to “On.”

Set AF Illuminat. to “Off.” A strobe focusing light is recommended to

assist AF underwater if needed.

Set Rec View to “3sec.”

Set Image Size to “1080p.”

Set IS Movie Mode to “On.”

In Memory Format select “Yes” OR in Erase, set to “All Erase.” If you

have previous images you wish to keep, ignore this setting.

In Custom Mode Setup, select “Set.”

Set Power On to “Yes.”

Set the Date and Time.

In Tough Settings, set LED Illuminator to “On.”

- Press the OK Button to enter additional MEN Settings:

Set White Balance to Auto “WB/AUTO or underwater.” For best results,

set to Custom “One Touch 1 .” Reset for each working depth.

Set ISO to “200.”

Set Shooting Image to “Single.”

Set Image Quality to “16m” and Picture Ratio to “4:3.”

- If overexposure occurs when shooting a close-up subject, Adjust

Aperture setting to F8.0, back away from the subject and zoom in,

and/or use “-” exposure compensation.

- Camera functions not mentioned should be set to user’s desired setting.

Important Notes:

When installing the camera in the housing front, make sure camera is

pushed all the way forward against the front housing ribs before closing

housing. Failure to check this may result in poor camera alignment and

housing controls not engaging properly.

-Reflections may occur in some photos due to the front camera lens

chrome ring. To assist in reducing reflection, a black vinyl ring is included

with your housing. Remove the protective backing and affix the vinyl ring

to the lens chrome ring.

Zoom Control (Olympus TG-3 only)

Most Ikelite digital point and shoot housings feature a fork style zoom

control as indicated in the general instruction manual, however, the TG-3

housing features a single zoom lever due to space and design

constraints. The lever can only zoom the housing in one direction at a

time. To change the camera’s zoom direction, pull the control knob up

and rotate the lever over the camera zoom toggle. Push the knob back

down and rotate in the opposite direction to zoom the other way. After

you have used the housing's zoom lever, it must always be rotated off

the camera’s zoom toggle to the “disengaged” position. If the housing

zoom lever is pushing the zoom toggle in either direction, you may not

be able to take a picture due to the camera receiving a signal from the

engaged zoom toggle.

Lift knob

to rotate

Disengaged Engaged

(Telephoto)

Disengaged and

lifted up to rotate

over zoom toggle

Engaged

(Wide)

Disengaged

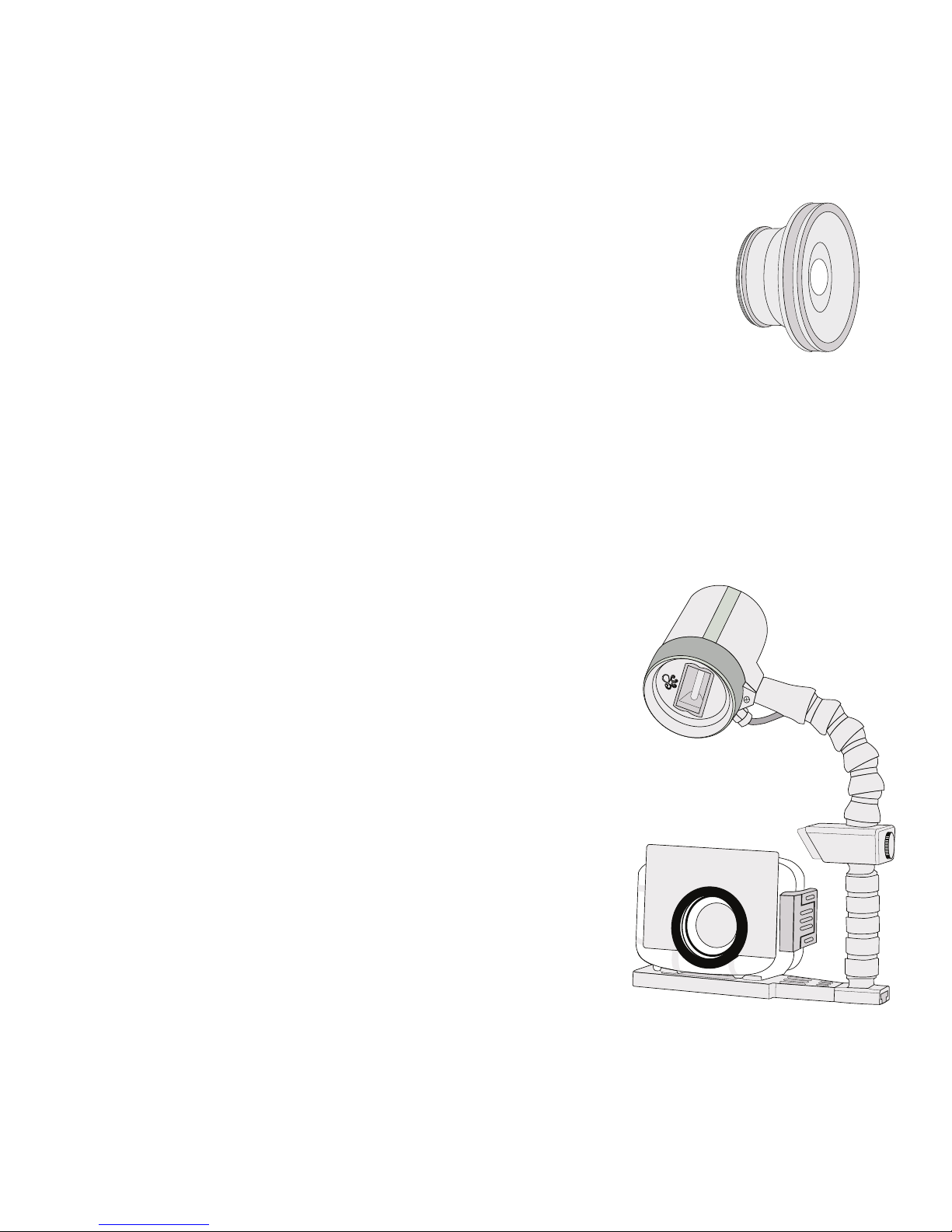

AF35 Strobe Package 4035

The AutoFlash AF35 kit is a great compliment,

and an effortless, affordable way to add a

flash to your new Ikelite point and shoot

camera system. Everything you need to get

started is in the box. Just attach it to the

bottom of your housing and start taking

pictures!

The AF35 Strobe Package is available to support your housing along

with a full range of accessories. Please visit www.ikelite.com to see the

most current information about recommended accessories for your

housing.

ikelite

AUTOFLASH

W-30 Lens

The front of the lens port accepts the Ikelite 6420 W-20, 6430 W-30, and

other 67mm threaded wide angle or macro lenses without the need for

an adapter. An external wide angle conversion lens increases angle of

coverage so you can get closer to the subject while still

fitting everything in the frame. Moderate vignetting will

likely occur at widest angle camera lens setting with

these lenses. Zoom in to eliminate, or crop the image in

post processing.

Bayonet mount lenses cannot be used with this housing.

External Accessory Lenses

Please visit www.ikelite.com for additional information.

Limited Warranty

This Ikelite product is warranted against any manufacturing defects for a

period of one (1) year from the original date of purchase. Defective

products should be returned to Ikelite postage paid. Ikelite will, at its sole

discretion, repair or replace such products, and will return to customer

postage paid. All other claims of any nature are not covered. Except as

mentioned above, no other warranty expressed or implied applies to this

Ikelite product.

Customer Support

Please read the troubleshooting section of the “Instruction Manual”

before contacting Ikelite.

6233.03_ Olympus-TG3_2-1214

Ikelite nderwater Systems

50 West 33rd Street

Indianapolis, IN 46208 SA

www.ikelite.com
