IKey SL-75-OEM Bedienungs- und Sicherheitshinweise

Part Number: SL-75-OEM

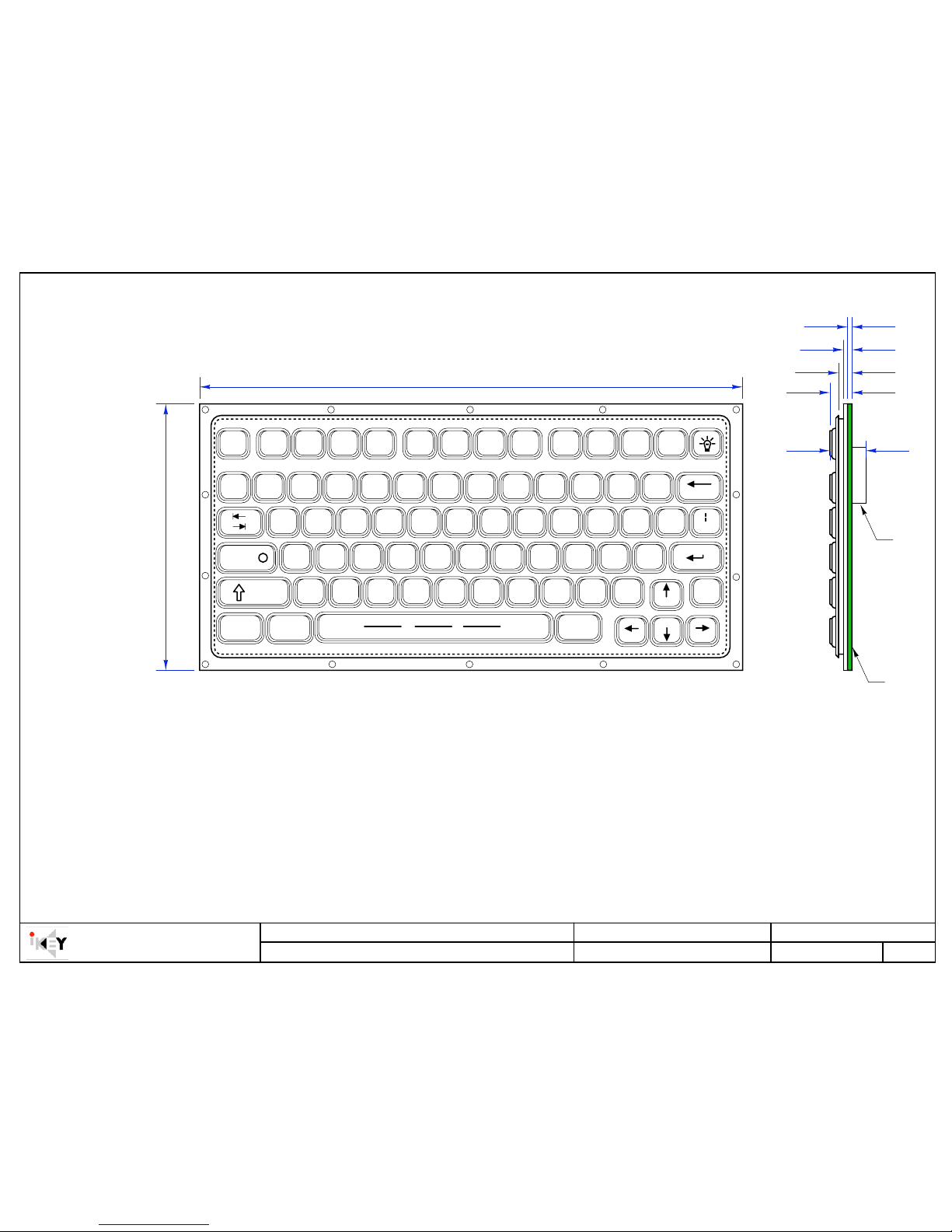

Drawing Title: DIMENSIONS/ FEATURES Date:

Sheet:

JAE

Drawing Number:

Revision: 1.0

MKT0043 1OF 2

2.21.05

SL-75-OEM

Voice: (512) 837-0283



Fax: (512) 927-8530

IKEY, LTD



2621 Ridgepoint Dr. Suite 235



Austin, Texas 78754

Esc

QWE RT Y U I OP

ASDFGHJKL

ZXCVBNM

(

)

_

{

[

}

/Shift

Backspace

Pg Up

Pg Dn

Home End

Caps

Lock

Shift

Fn Ctrl

Del

Ins

Alt

F3 F4 F5 F6 F7

F1 F2

F11 F12

F8 F9 F10

Scroll

Lock Print

Screen

Pause

POWER

KEY SWITCH TEMPERATURE

FLAMMABILITY

HUMIDITY

SHOCK

VIBRATION

MATERIAL: industrial Silicone Rubber

LIFE: Greater than 10 million cycles

TRAVEL: 0.055 in.

ACTUATION FORCE: 5 oz. (130g)

FEEDBACK: Tactile with Mechanical Snap

100% Humidity Resistant

KEYBOARD: 5V@20ma (from CPU port)

5V @200ma (with backlight on)

PRINTED CIRCUIT BOARD: 94VO

SILICONE OVERLAY: 94HB 

INTERFACE CABLE: 94VO

Storage: -40 F to +194 F (-40 C to +90 C)

Operating: -40 F to +140 F (-40 C to +60 C)

3 X 11 ms pulses of 50g on each of 3 axis

POWER SPECTRAL DENSITY: .04g/HZ

FREQUENCY RANGE: 20Hz-2Khz

DURATION OF TEST PER AXIS: 3 hours

3.850"

7.850"

0.518"

0.063"

0.123"

0.193"

0.318"

PCB

IC on 

board

MOUNTING: HORIZONTAL 7.85"

VERTICAL 3.5"

DEPTH 0.39"



PANEL THICKNESS: 0.06" TO 0.08"

KEY HEIGHT ABOVE PANEL: 0.165"

KEY TRAVEL: 0.055"

POWER: 5 Vdc @ 20 mA, PROVIDED

BY HOST CPU

TEMPERATURE: OPERATING FROM 

0 F TO 140 F (-20 C TO 60 C)

Mounting Instructions:



1. Turn panel face-down.

2. Seat keypad into the panel with back facing up. Seat the

keypad in the mounting cutout one edge at a time.

3. Apply silicone adhesive [IKEY recommends SuperFlex by Loctite]

to back side of silicone overlay (keypad)

-a small amount should be applied to the the ridges 

between every other key and on each row. 

-be sure not to drop silicone on any key contacts

Date:

Sheet:

Drawing Number:



Part Number: SL-75-OEM

Drawing Title: MOUNTING CUTOUT JAE

Revision: 1.0

MKT0043 2 OF 2

2.21.05

Voice: (512) 837-0283



Fax: (512) 927-8530

IKEY, LTD



2621 Ridgepoint Dr. Suite 235



Austin, Texas 78754

.178"

1.914"

3.828"

5.742"

7.655"

.177"

1.218"

2.436"

3.654"

7.300"

3.300"

CUTOUT

5. Place the PCB (circut board) onto the panel studs , ensuring 

that no adhesive is misplaced on a key switch.

7. When the board is in place, allow it to fall onto the keypad.

8. Spread the keypad to be sure it is well seated on all four sides.

You may need to look at other side of panel to assure there

are no gaps in the corners.

9. Tighten hex nuts until keypad is just SLIGHTLY compressed 

between panel and PCB.
