ILCO Unican 4000 Series Bedienungsanleitung

4000

English

Operations Manual

Programmable Pushbutton Lock

Second Edition

Español

Manual de

Funcionamiento

Cerradura programable de

botones pulsadores

Segunda ediciòn

Français

Manuel

d’utilisation

Serrure programmable

à boutons-poussoirs

Deuxième édition

IMPORTANTE

Para su protección,

envíe la tarjeta de

garantía ubicada en

el Instrucciones de

Instalación de la

Serie 4000.

IMPORTANT

Pour plus de sécurité,

veuillez renvoyer la

carte de garantie qui

se trouve dans

les Instructions

d’installation de la

serrure Série 4000.

IMPORTANT

For your protection,

return the warranty

card located in the

4000 Series

Installation

Instructions.

4000 Series Programmable Pushbutton Lock

Operations Manual

Second Edition

No part of this book may be reproduced or transmitted in any form or by

any means, electronic or mechanical, including photocopying, recording,

or by any information storage and retrieval system, without prior written

permission from the publisher.

The information contained in this publication is accurate to the best of

ILCO UNICAN's knowledge.

Specifications are subject to change without notice.

D8-PKG-2471 E/S/F 06/00

The UNICAN Group Printed in Canada

IMPORTANT IMPORTANTE IMPORTANT

English Español Français

The 4000 Series Quick

Reference card — A handy

reference for programming

steps and command codes

for the 4000 Series lock.

La tarjeta de referencia rápida

de la Serie 4000: un útil

práctico para seguir las etapas

de programación y los códigos

de comando de la cerradura

de la Serie 4000.

La carte de référence rapide

de la Série 4000 : un outil

pratique pour suivre les étapes

de programmation et les codes

de commande de la serrure

de la Série 4000.

4000 Series Programmable Pushbutton Lock

The 4000 Series lockset is a completely stand-alone programmable pushbutton

lock that is powered by alkaline batteries and requires no cabling or computer to

operate it. The lock grants access to authorized users only, and it has a mechanical

key override for emergency situations. User access (entry) codes can be added,

changed, or deleted in seconds, and a facility allows the temporary lockout of an

individual or a group of users during non-working hours. The lock can also be put

in passage mode at any time. This all-weather, heavy-duty cylindrical lockset is

ANSI/BHMA 156.2 Grade 1 certified and carries a 3-hour UL/ULC fire rating

for “A” labeled doors. The lock is handed at the factory but can be changed

in the field.

The 4000 Series lock is ideal for high-frequency use in locations such as

commercial, government, military, and industrial buildings, hospitals, university

dormitories, condominiums, or anywhere that key control is a problem and

secure access control is needed.

Introduction

Chapter 1

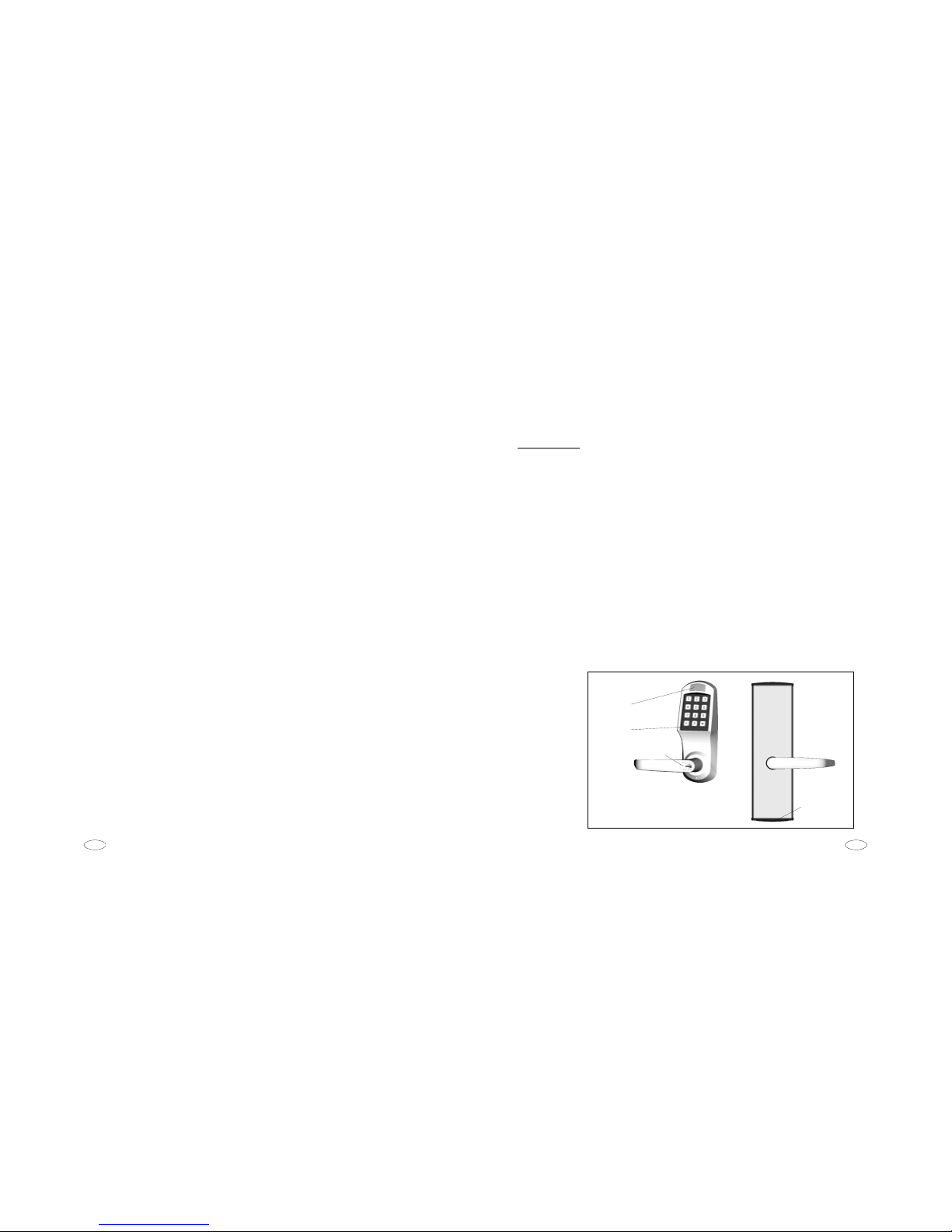

Front View Back View

Green light, red light,

and buzzer located

behind a dark

window.

Telephone-style 12-key

metal-pushbutton

keypad.

Best®compatible

removable core

cylinder or equivalent.

Plastic cover for

the battery

holder.

4000 Series Programmable Pushbutton Lock

44000 Series Programmable Pushbutton Lock

Table of Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2 Lock Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3 Lock Programming Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

4 Lock Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4.1 Principles of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4.2 User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

4.3 Programming Command Codes . . . . . . . . . . . . . . . . . . . . . . .13

5 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

6 Security & Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

6.1 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

6.2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

7 Troubleshooting & Technical support . . . . . . . . . . . . . . . . . . . . . . .24

8 Code Record Log Sheet for the 4000 Series Lock . . . . . . . . . . . . . .26

4000 Series Programmable Pushbutton Lock

Lock Programming

Features

Chapter 3

• The easy-to-understand user interface is equipped with both visual

(green and red lights) and audible (loud and soft beeps) indicators.

•Three security levels—Master (one code), Manager (three codes), and

User (up to 18 User codes and one Service code)—allow flexible

management of access control.

•Factory-programmed lock configurations are supplied for

Commercial, Residential, and Handicapped access situations.

• The lock can be programmed in seconds to add, change, or delete any

or all User access codes using a Master or Manager authorization code.

•Up to 1,000,000 unique access codes are possible; the User access

code length can be specified from three to six digits.

•Temporary lockouts can be used for utmost security: individuals,

groups, or all access codes can be temporarily locked out during

non-working hours or holidays.

• For convenience, the passage mode allows entry without an access

code.

•Atemporary shut down of the lock for up to 15 minutes results from

four successive illegal or invalid attempts to enter an access code.

• The lock is powered by four standard AA alkaline

batteries that last up to four years or 80,000 openings (whichever

comes first).

• The lock provides advance audio and visual warning of low batteries

and will continue to function until the batteries are completely

discharged.

• The lock can be remotely unlocked from inside from up to 90’ (30m)

using 24 AWG twisted pair wire connecting a normally open

pushbutton switch and the inside lock housing.

• The Master authorization code can be reset to the factory default in a

secure way from inside if the current Master authorization code is

forgotten.

4000 Series Programmable Pushbutton Lock

Lock Hardware

Features

Chapter 2

• Durable heavy-duty cylindrical lockset with clutch mechanism

• Standard 161 door preparation: 21⁄8" (54mm) cross bore and 1" (25mm)

latch bore; also supports 23⁄4" (70mm) and 23⁄8" (60mm) backsets for

commercial and residential door applications

• ANSI/BHMA 156.2 certified as a Grade 1 lock: ANSI/BHMA 156.2

standard

• 3-hour UL/ULC fire rating for “A” labeled doors

• Weather-resistant indoor/outdoor lock;

for indoor applications, operates between +32˚F and +120˚F

(0˚C and +49˚C);

for outdoor applications, operates at ambient temperatures between

-31˚F and +151˚F (-35˚C and +66˚C)

• Field-reversible lever set conforming to Americans with Disabilities Act

(ADA) requirements

• Key override accepts Best and compatibles, Medeco/ASSA, Schlage, and

Yale removable core cylinders

• Rugged vandal-resistant 12-button metal keypad used to gain entry and

for all programming functions

• Minor modifications are required to retrofit the lock to competitors’

pushbutton locksets

• Attractive finishes—605 (03) Bright Brass, 606 (04) Brushed Brass,

626 (26D) Satin Chrome, and 695 (55) Duranodic Dark Bronze

4000 Series Programmable Pushbutton Lock 9

Lock Operating Instructions

The following diagram describes the 4000 Series lock’s programming

authorization control structure.

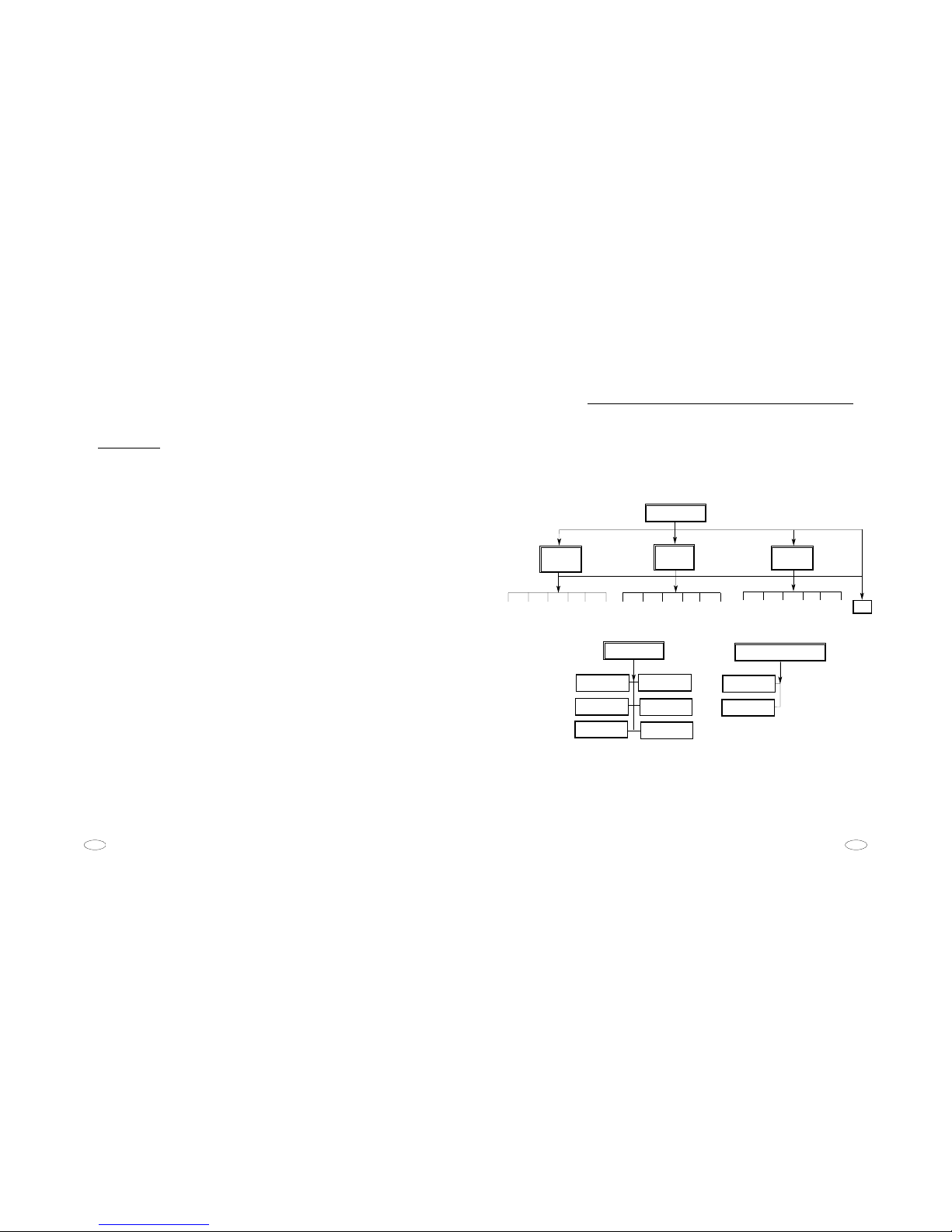

Programming Authorization Control Structure

The 4000 Series lock has four modes of operation:

•Normal—The lock unlocks when a valid access code is entered.

• Programming—A Master or Manager authorization code has been used

to initiate a session to program the lock.

• Passage—The lock allows entry without an access code.

• Tamper shut down—The lock is disabled due to four successive invalid

access code entries.

Master

Group 1

Manager Group 3

Manager

Remote Unlock

Passage Mode

Service

User

Group 2

Manager

Grp. 1

User 1 Grp. 2

User 1

Grp. 1

User 6

Grp. 1

User 5

Grp. 1

User 4

Grp. 1

User 3

Grp. 1

User 2 Grp. 2

User 6

Grp. 2

User 5

Grp. 2

User 4

Grp. 2

User 3

Grp.

User 2 Grp. 3

User 6

Grp. 3

User 5

Grp. 3

User 4

Grp. 3

User 3

Grp. 3

User 2

Grp. 3

User 1

Master

Configuration

Setup

Buzzer Sound

Tamper

Shutdown Time

Unlock Time

Remote Unlock

Passage Mode

Group 1, 2, & 3 Managers

Lock Function Control

User Access Control

4000 Series Programmable Pushbutton Lock

Lock Operating

Instructions

Chapter 4

4.1 Principles of Operation

The 4000 Series lock is managed using three security levels: Master, Manager

(sub-Master), and User.

At the Master level of security, there is only one code, which must be eight digits

in length. This is an authorization or control code—not an access code—that is

used to control authorization codes, access codes, and other programming

features of the lock. The holder of the Master code has the ability to change the

Master authorization code; add, change, delete, lock out, or reactivate the

Manager authorization codes, User access codes, and Service access codes; and to

program the lock as follows:

• Enable and disable the passage mode

• Enable and disable the remote-unlock feature

• Set the unlock time from one to 20 seconds

• Set the tamper shut-down time from 30 seconds to 15 minutes

• Set the buzzer sound volume to off, soft, or loud

• Set the lock configuration to Commercial, Residential, or Handicapped

At the Manager level, there are three codes, which must be seven digits long.

These codes are also authorization codes, not access codes. Each Manager

authorization code is used to control a particular Group of up to six User access

codes by performing the same functions as the Master code: adding, changing,

deleting, locking out, or reactivating codes. This code is also used to program the

lock as follows:

• Enable and disable the passage mode

• Enable and disable the remote-unlock feature

At the User level, there are 18 User access codes and one Service access code.

These 19 access codes can be set to a length of three, four, five, or six

digits; however, all codes must be of the same length. The length of the codes

affects the total number of unique access code combinations possible:

for six digits, 1,000,000; for five digits, 100,000; for four digits, 10,000; and

for three digits, 1,000.

4000 Series Programmable Pushbutton Lock 11

Lock Operating Instructions

Red Light

• Pushbutton pressed—when a pushbutton on the keypad is pressed,

lights for half a second

• Access denied—when an invalid access code is entered, lights for one

second

• Invalid programming-session entry—after an invalid entry, lights for

one second

• Commencement of lock tamper shut-down period—after the fourth

successive illegal or invalid access code is entered, lights for three

seconds to indicate the beginning of the shut-down period

• Tamper shut down—during the entire shut-down period, lights for half

a second every ten seconds

Both Lights

• Low batteries indicator (advance visual warning)—when a valid access

code is entered, if the battery power is weak but the lock is still

functioning, each light flashes alternately every half a second for the

unlock time period or until the lever is released after unlocking

No Lights

• Dead batteries—the batteries are completely discharged and there is not

enough battery power to operate the lock

• Loose cable—the cable between the rear housing and the front housing

of the lock might not have been properly secured in its connector

when the lock was installed

4.2.3 Audible Buzzer

The buzzer is an audible status indicator located inside the dark window on the

front lock housing. The buzzer can be programmed to sound at loud or soft levels

or it can be disabled; however, regardless of the setting, it is always enabled at the

loud volume level during a programming session when command codes are

entered. The buzzer emits two tones: one high-pitched and the other low-pitched.

These tones are used as audible indicators for the lock operations as described

below.

High-Pitched Tone (buzzer sound level loud or soft)

• Pushbutton pressed—when a pushbutton on the keypad is pressed,

emits a short beep

• Access granted—when a valid access code is entered, emits a beep for

one second

• Valid programming-session entry and end of session—after each valid

entry, emits three beeps (one long and two short); when the <#> key is

pressed at the end of the programming session, emits three beeps (one

long and two short)

• Reset button pressed—if the reset button is pressed, emits a beep for

five seconds

4000 Series Programmable Pushbutton Lock

Chapter 4

4.2 User Interface

Interaction with the lock is accomplished via the pushbutton keypad, the green

and red status lights, the audible buzzer, the outside lock lever, and the

mechanical override key. Through these components, those who are Master and

Manager authorized program the lock and those with access codes unlock it.

There is free egress at all times from inside by turning the inside lock lever.

4.2.1 Pushbutton Keypad

The keypad, located on the outside housing of the lock, is a standard telephone-

style metal-pushbutton keypad displaying ten numeric keys from zero to nine

and the alphanumeric keys <*> and <#>.

By entering a valid access code combination and turning the outside lock lever,

the user unlocks the door. The keypad is also used to program the lock, including

adding, deleting, or changing authorization and access codes or enabling a

special lock mode such as passage mode. The <#> key is used to start and end a

programming session and is also used following each command code entered.

If an undesired command code is entered, the <*> key can be used to clear the

command before the <#> key is pressed. However, once the <#> key is pressed, the

command is executed.

While entering an access code or during a programming session, five seconds is

allowed between pushbutton entries; however, once the five seconds is up, a

timeout occurs and the access code or the programming session is aborted.

4.2.2 Green And Red Status Lights

The green and red status lights, Light Emitting Diodes (LEDs), are located

immediately above the keypad behind a dark window. The lights are visual

indicators for the lock operations as described below.

Green Light

• Access granted—when a valid access code is entered, flashes every half

a second for the unlock time period or until the lever is released after

unlocking

• Valid programming-session entry and end of session—after each valid

entry (an authorization, command, or access code followed by the <#>

key), lights for one second; when the <#> key is pressed at the end of

the programming session, lights for one second

• Expiration of tamper shut-down time—at the end of the of the

shut-down period, lights for three seconds to indicate the lock is in

its normal mode of operation

4000 Series Programmable Pushbutton Lock 13

Lock Operating Instructions

4.3 Programming Command Codes

4.3.1 Definitions

A programming session is used to manage authorization and access codes, to

enable and disable the passage mode and the remote-unlock feature, to set the

unlock time and tamper shut-down time, to set the buzzer sound level, and to

modify the lock configuration setup.

The lock is programmed by entering an eight-digit Master or a seven-digit

Manager authorization code and a three-digit command code. Each command

code consists of a one-digit primary sub-command and a two-digit secondary sub-

command which identify the desired action and the specific authorization or

access code(s) to which this action is applied.

For example, the command code 010 is used to temporarily disable access codes

(0) for all users in Group 1 (10).

A lock programming session consists of the following steps:

1. To start the programming session, press <#>.

2. Enter a valid Master or Manager authorization code.

3. Press <#>.

4. Enter a command code.

5. Press <#>.

Note: When adding or changing a code, enter the code and press <#>.

For the Master authorization code, enter the code a second time to

verify the change and press <#>.

6. To end the programming session, press <#>.

Tips• An eight-digit Master or a seven-digit Manager authorization code is

required to program the lock.

• Start and end each programming session by pressing the <#> key.

• If an undesired command code is entered by mistake, use the <*> key

to clear the command before pressing the <#> key. Once the <#> is

pressed, the command is executed.

• Follow every authorization, command, and access code with the <#>

key.

• Command codes can be chained within the same programming session

by repeating steps 4 and 5 in the above procedure.

There are nine primary sub-commands (0 to 8) and secondary sub-command sets

(00 to 99; although, not all numbers are valid) which are described in the

following table. The Master authorization code can be used to program the lock

with any command code. The command codes available to be programmed using

the Manager authorization code are identified in the right-hand column. Note

that Manager authorization codes can manage only those User access codes

within their own User Group (up to six).

4000 Series Programmable Pushbutton Lock

Chapter 4

Low-Pitched Tone (buzzer sound level loud or soft)

• Access denied—when an invalid access code is entered, emits a beep for

one second

• Invalid programming session entry—after an invalid entry, emits a beep

for one second

• Commencement of tamper shutdown period—after the fourth

successive illegal or invalid access code is entered, emits a beep for

three seconds to indicate the beginning of the shut-down time period

• Low battery indicator (advance audible warning)—when a valid access

code is entered, if the battery power is weak but the lock is still

functioning, emits a beep every half a second (in sequence with the

flashing red light) for the unlock time period or until the lever is

released after unlocking

4.2.4 Outside Lock Lever

Enter a valid entry code and turn the outside lever downward to unlock the lock.

When the outside lever is released (after unlocking), the lock mechanism relocks

immediately.

4.2.5 Mechanical Override Key

Where the override key cylinder is housed in the lever handle, the mechanical

override key can be used at any time as an emergency key to unlock the lock. It

is used when the battery power is too weak to operate the lock or when the lock

is in tamper shutdown mode.

To activate the mechanical override mechanism, turn the key 90° in the same

direction as the lever turns (as handed at the factory). Note that changing the

handing to left- or right-handed might change the direction in which the key

must be turned.

Important: To unlock the lock with the mechanical override key, turn the

key and then turn the lever. Simply turning the override key does

not retract the latch.

4000 Series Programmable Pushbutton Lock

Chapter 4

4000 Series Lock Command Codes

(Primary + Secondary number)

Each command code consists of a primary and a secondary number.

The following are examples of how to use the above table:

• To enable passage mode, use the code 4 01 .

• To add a third User access code to Group 2, use the code 2 23 .

Command Code Name Primary Secondary Sub-command & Manager

Sub-command Description Authorized?

Disable code temporarily 0 00: All codes (except Master) No

(lockout) 01,02,03: Manager authorization codes No

10,20,30: Group 1, 2, or 3 access codes Yes

11 to 16: Group 1 User access codes Yes

21 to 26: Group 2 User access codes Yes

31 to 36: Group 3 User access codes Yes

77: Service access code Yes

Re-activate (previously 1 00: All codes No

disabled) code 01,02,03: Manager authorization codes No

10,20,30: Group 1, 2, or 3 access codes Yes

11 to 16: Group 1 User access codes Yes

21 to 26: Group 2 User access codes Yes

31 to 36: Group 3 User access codes Yes

77: Service access code Yes

Add or change code 2 99: Master authorization codes No

01,02,03: Manager authorization codes No

11 to 16: Group 1 User access codes Yes

21 to 26: Group 2 User access codes Yes

31 to 36: Group 3 User access codes Yes

77: Service access code Yes

Delete code permanently 3 00: All codes (except Master) No

01,02,03: Manager authorization codes No

10,20,30: Group 1, 2, or 3 access codes Yes

11 to 16: Group 1 User access codes Yes

21 to 26: Group 2 User access codes Yes

31 to 36: Group 3 User access codes Yes

77: Service access code Yes

Passage mode 4 00: Disable Yes

01: Enable Yes

Remote unlock 90: Disable Yes

91: Enable Yes

Set unlock time 5 01 to 20: 1 to 20 sec. No

Set tamper shutdown time 6 00 to 15: 30 sec. (00) to 15 min. (15) No

Buzzer sound 7 00: Off No

01: Soft No

02: Loud No

Configuration setup 8 00: Commercial No

01: Residential No

02: Handicapped No

4000 Series Programmable Pushbutton Lock 15

Lock Operating Instructions

This Operations Manual is supplemented with a plastic quick reference card, the

4000 Series Lock Quick Reference, that includes the steps for programming the lock

and the command codes. It is the size of a credit card and can be kept in your

wallet or purse.

4.3.2 Rules

The following rules must be observed when programming the lock:

• It is not possible to disable or delete the Master authorization code;

however, it can be changed.

• The Master authorization code can be used to program all functions of

the lock.

• When adding or changing the Master authorization code, the new code

must be entered twice (followed each time by the <#> key) to confirm

its correct entry.

• When the first access code is created, its code length (three, four, five,

or six digits) determines the length of all the remaining User access

codes, the Service access code, and therefore the number of unique

access code combinations possible. User access codes cannot vary in

length. To change the code length, all User and Service access codes

must be permanently deleted and replaced with codes of the new

length.

• The same User access code can be programmed for users in multiple

groups. For example, the User access code 12345 can be assigned to a

Group 1 user, a Group 2 user, and a Group 3 user. If that code is deleted

in Group 1, the access code will still unlock the door because the code

is still valid in Groups 2 and 3. For utmost security, do not use

duplicate User access codes despite this ability.

• When the four AA alkaline batteries are replaced, all authorization

codes, access codes, and lock settings remain unchanged except the

passage mode setting. If the lock was programmed for passage mode, it

will return to the normal locked mode once the batteries are changed.

• During the tamper shut-down time, only the remote unlock from

inside (if enabled) and the mechanical override key can unlock the

lock. If the remote unlock is used, the tamper shut-down time is reset

and the lock returns to its normal mode of operation. However, when

the override key is used, the shut-down time period is not reset but

counts down the entire period before the lock returns to its normal

mode.

4000 Series Programmable Pushbutton Lock 17

Lock Operating Instructions

11. Set the factory-programmed lock configuration to Handicapped using

the Master authorization code 87654321.

#-8-7-6-5-4-3-2-1-#-8-0-2-#-#

12. Enable the passage mode using the Group 1 Manager authorization

code 1123456.

#-1-1-2-3-4-5-6-#-4-0-1-#-#

13. Chain a series of command codes using the Master authorization code

87654321. Disable the passage mode and return the lock to normal

lock mode, set the unlock time to eight seconds, set the lock tamper

shut-down time to fifteen minutes, and set the buzzer sound level to

soft.

#-8-7-6-5-4-3-2-1-#-4-0-0-#-5-0-8-#-6-1-5-#-7-0-1-#-#

14. Change the Master authorization code back to the factory default

12345678 using the Master authorization code 87654321.

#-8-7-6-5-4-3-2-1-#2-9-9-#-1-2-3-4-5-6-7-8-#-1-2-3-4-5-6-7-8-#-#

15. Set the lock configuration to Commercial (factory default) using the

Master authorization code 12345678.

#-1-2-3-4-5-6-7-8-#-8-0-0-#-#

16. Chain a series of command codes using the Master authorization code

87654321. Delete all users and then add the service access code 4000

(factory default).

#-8-7-6-5-4-3-2-1-#3-0-0-#-2-7-7-#-4-0-0-0-#-#

4000 Series Programmable Pushbutton Lock

4.3.3 Examples

The following examples can be performed on the lock in sequence.

1. Set the tamper shutdown time to 30 seconds using the Master

authorization code 12345678.

#-1-2-3-4-5-6-7-8-#-6-0-0-#-#

2. Change the factory-default Master authorization code from 12345678

to 87654321. Use the original Master authorization code 12345678 to

program the change and enter the new code twice to confirm it.

#-1-2-3-4-5-6-7-8-#-2-9-9-#-8-7-6-5-4-3-2-1-#-8-7-6-5-4-3-2-1-#-#

3. Permanently delete all existing Manager authorization and User access

codes so that you can change the code length for maximum security

(from the default access code length of four—1234) using the Master

authorization code 87654321.

#-8-7-6-5-4-3-2-1-#-3-0-0-#-#

4. Add the Group 1 Manager authorization code 1123456 using the

Master authorization code 87654321. Use the <*> key to correct the

mistakenly entered code 202 (adds a Group 2 Manager authorization

code).

#-8-7-6-5-4-3-2-1-#-2-0-2-*-2-0-1-#-1-1-2-3-4-5-6-#-#

5. Add the Group 1 User 2 access code 12345 using the Master

authorization code 87654321.

#-8-7-6-5-4-3-2-1-#-2-1-2-#-1-2-3-4-5-#-#

6. Add the Service access code 77777 using the Master authorization code

87654321.

#-8-7-6-5-4-3-2-1-#-2-7-7-#-7-7-7-7-7-#-#

7. Temporarily disable (lockout) all Manager authorization codes, the

Service access code, and all User access codes using the Master

authorization code 87654321.

#-8-7-6-5-4-3-2-1-#-0-0-0-#-#

8. Reactivate all temporarily disabled codes using the Master authorization

code 87654321.

#-8-7-6-5-4-3-2-1-#-1-0-0-#-#

9. Change the Group 1 User 2 access code 12345 to 54321 using the

Group 1 Manager authorization code 1123456.

#-1-1-2-3-4-5-6-#-2-1-2-#-5-4-3-2-1-#-#

10. Permanently delete the Service access code 77777 using the Group 1

Manager authorization code 1123456.

#-1-1-2-3-4-5-6-#-3-7-7-#-#

Chapter 4

4000 Series Programmable Pushbutton Lock 19

Getting Started

The 4000 Series lock can now be programmed as desired. Start by programming

the Master authorization code to an eight-digit number other than the factory

default 12345678. See the last page of this manual where a “Code Record Log

Sheet for the 4000 Series Lock” is provided to record all authorization and

access codes for the lock. Store this document in a secure place. From this record,

the lock can be easily programmed with all the required codes.

4000 Series Programmable Pushbutton Lock

Getting Started

Chapter 5

Ensure that the 4000 Series lockset, the latch, and the strike plate are properly

installed. The signal cable inter-connecting the front and the back housing must

be correctly connected, and the four AA alkaline batteries (included) must be

inside the battery holder and conform to the marked polarities for the lock to

work.

The lock is delivered from the factory with one access code—the Service code

4000. (Note: If the examples on pages 17 and 18 were performed on the lock, this

code might have been deleted.) This access code can be used by the person who

installs the lock to test that the lock operates. When the access code is entered

using the keypad, the lock should unlock. After verifying several times that the

lock works properly, delete all access codes using the factory-default Master

authorization code 12345678:

#-1-2-3-4-5-6-7-8-#-3-0-0-#-#

The lock is now configured in the Commercial setup (factory default).

Note: If the examples on pages 17 and 18 were performed on the lock, ensure

that step 15 was performed to set the configuration to Commercial.

The following table compares the three available lock configurations:

The following parameters are identical for all three of the above setups:

Master authorization code 12345678

All 3 Manager authorization codes blank or deleted

All 18 User access codes blank or deleted

Service access code blank or deleted

Passage mode disabled

Hard-wired remote unlock disabled

Commercial Residential Handicapped

Command code 800 801 802

Unlock time 5 seconds 5 seconds 20 seconds

Buzzer sound loud soft loud

Tamper shutdown time 4 minutes 2 minutes 1 minute

Inhaltsverzeichnis

Sprachen:

Andere ILCO Unican Sperren Handbücher

ILCO Unican

ILCO Unican 900 Bedienungsanleitung

Beliebte Sperren Handbücher anderer Marken

Magic

Magic 105 Bedienungsanleitung

Gantner

Gantner GAT NET.Lock 7020 System Kurzanleitung

Wittkopp

Wittkopp Insys 7202 Bedienungsanleitung

Dorma

Dorma Studio Classic Bedienungsanleitung

Securam

Securam ECSL-601 Bedienungsanleitung

Sudhaus

Sudhaus 3003 Bedienungsanleitung

Safety 1st

Safety 1st 48517 Bedienungsanleitung

Pado

Pado FDS-10 Bedienungsanleitung

Esco

Esco systeQ Series Bedienungsanleitung

COMPX

COMPX National D8951 Bedienungsanleitung

secureo

secureo Key Box Bedienungsanleitung

Stock Loks

Stock Loks C8713 Bedienungsanleitung

COMPX

COMPX 1T-058 Betriebsanleitung

Auslock

Auslock T11 Bedienungsanleitung

ELCOM

ELCOM 7205 Bedienungsanleitung

Stealth SAFES

Stealth SAFES ShadowVault Bedienungsanleitung

Knox

Knox KeySecure 5 Bedienungsanleitung

Kwikset

Kwikset 48334/01 Bedienungsanleitung
